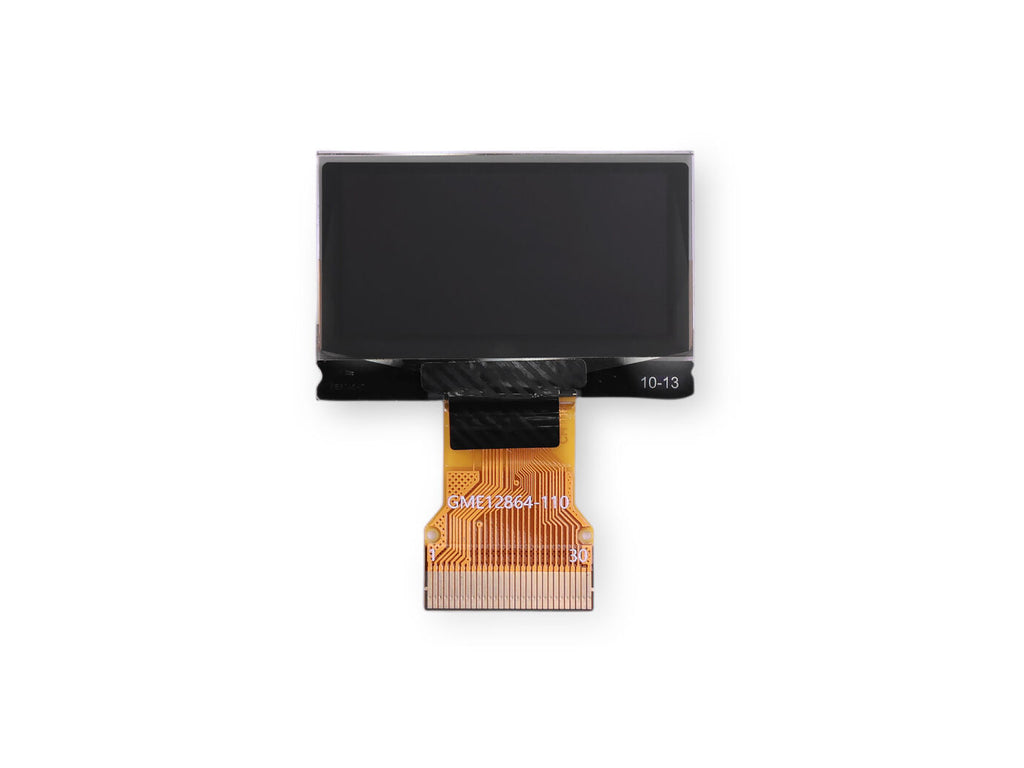

It's a high-contrast 1.3-inch OLED display featuring a 128×64 white panel and wide viewing angles. Designed for wearables and IoT devices, it supports SSD1306-compatible drivers and low-power operation, delivering crisp monochrome visuals for compact embedded applications.
High Contrast Display:
Provides a crisp 128×64 white OLED output with a contrast ratio typical of >10,000:1, ensuring excellent readability even in low-light environments.
- Wide Viewing Angle:
Delivers clear visibility across >160° viewing range, thanks to the self-emissive OLED technology that avoids brightness drop at extreme angles.
- Low Power Consumption:
Operates efficiently with typical current consumption under 20mA, making it ideal for battery-powered IoT, wearables, and portable devices.
- SSD1306-Compatible Driver:
Fully compatible with the popular SSD1306 controller, allowing seamless integration with Arduino, Raspberry Pi, and other microcontroller platforms via I²C/SPI interfaces.
(Example: compatible with controllers similar to the one used in the Seeeduino V4.2
)

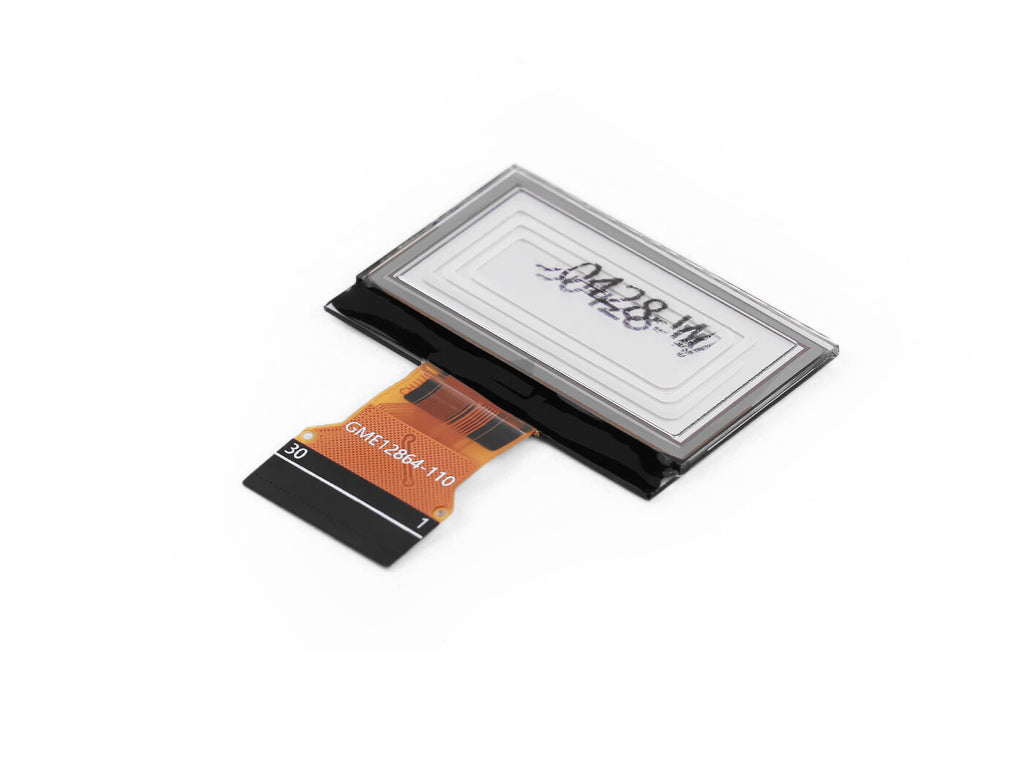

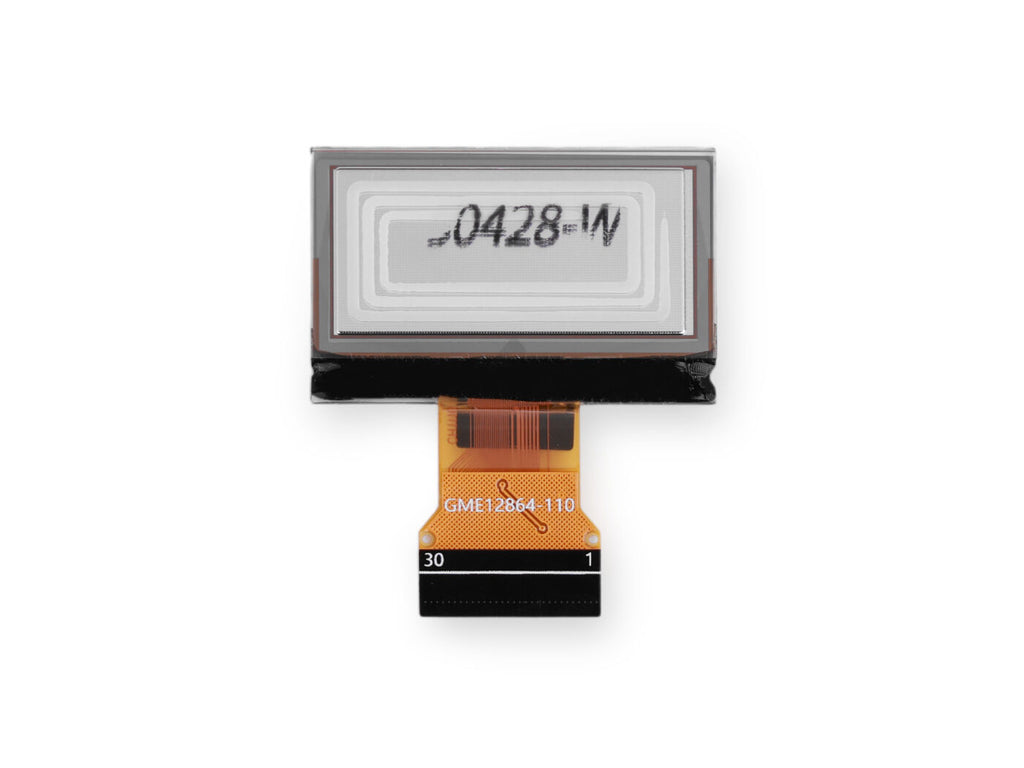

- Flexible FPC Interface:
Features a thin FPC connector design that supports easy mounting and integration into compact enclosures, enhancing mechanical flexibility for embedded applications.
- Fast Response Time:
OLED technology enables sub-millisecond response speeds, producing smooth animations and real-time UI transitions without motion blur.
- Long Lifetime:
High-quality OLED panel provides a typical lifetime exceeding 20,000 hours, ensuring stable performance in long-term deployments.
Parameter | Specification |
Display Size | 1.3 inch |
Resolution | 128 × 64 Dots |
Display Color | White monochrome OLED |
Driver IC | CH1116G |
Drive Duty | 1/64 |
Operating Voltage | 3.0V – 5.0V (typical) |
Operating Current | < 20 mA (typical) |
View Direction | ALL |
Contrast Ratio | Typically >10,000:1 |
Operating Temperature | -40°C to +80°C |
Storage Temperature | -40°C to +85°C |
Interface | 8-bit68XX/80XX,3/4-wireSPI, I2C |
Interface Type | Flexible FPC connector |

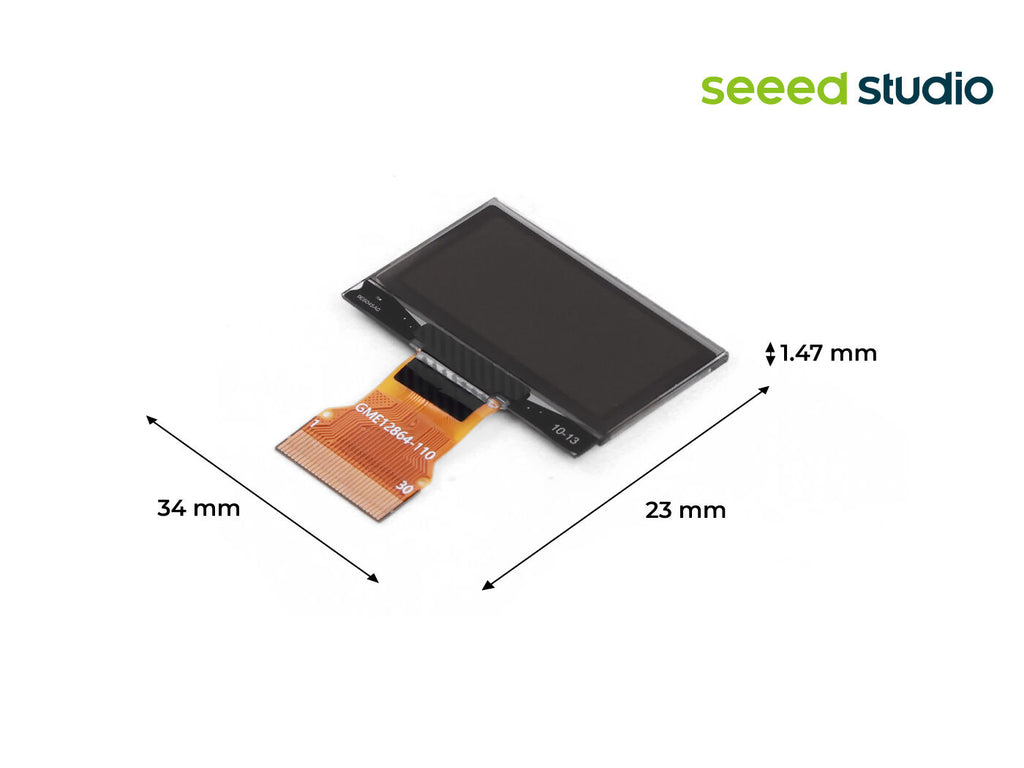

Module size | 34.5mm(W)x23.0mm(H)x1.47mm(T) |
Active Area | 29.42mm(W) x 14.7mm(H) |
Pixel Pitch | 0.23mm(W)x0.23mm(H) |
Pixel Size | 0.21mm(W)x0.21mm(H) |
IC package type | COG |
1.3inch OLED 128*64-White-FPC Datasheet

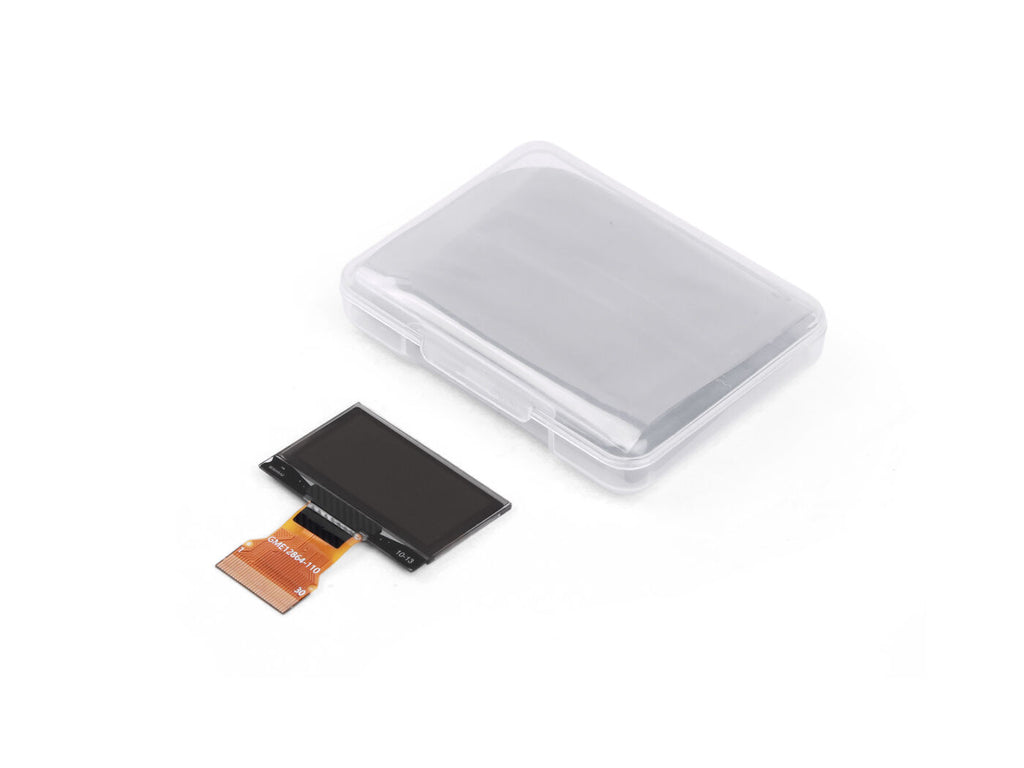

1.3inch OLED 128*64-White-FPC | x1 |
| HSCODE | 8524929000 |
| USHSCODE | 8524119000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
