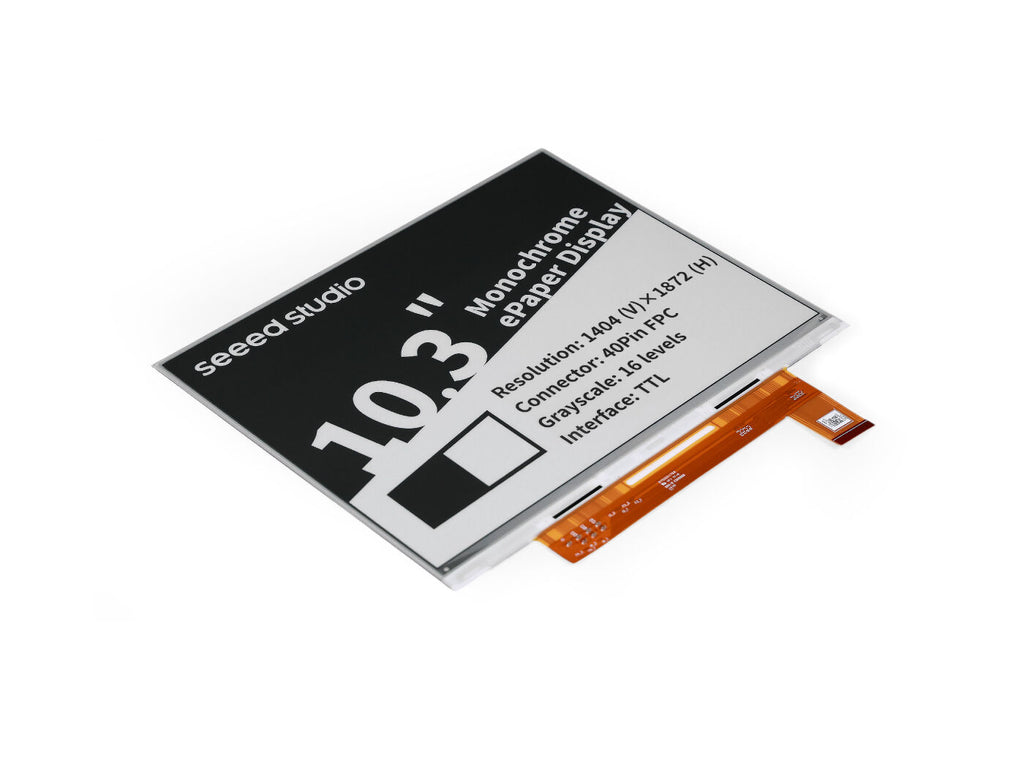

The 10.3 inch ePaper Display offer a high-quality, low-power solution for a wide range of applications. The model features a 1404 ×1872 resolution, black and white display with a diagonal size of 10.3 inches. With a fast refresh rate and excellent contrast, this display is ideal for e-readers, digital notebooks, and other portable devices.
- Up to 16-level grayscale clarity: Support 2 to 16 levels of grayscale (1-4 bits), delivering clear and refined visuals for text and graphics.
- Ultra-Low Power Consumption: The ePaper consumes power only during updates, resulting in longer battery life and greater energy efficiency.
- Plug&Play with XIAO ePaper Driver Board: Optimized for the upcoming XIAO ePaper Display Board EE03, powered by the XIAO ESP32-S3 Plus, featuring a reserved battery connector and user button to accelerate prototyping and project development.
- Wide Range of Applications: Supports high-speed refresh for low-latency updates with a TTL parallel interface (multi-line, high-throughput) — perfect for e-paper readers and digital notebooks.
Seamless Setup and Customization for Your ePaper Display
This ePaper display is designed to work seamlessly with any standard 40-pin driver board. We recommend the XIAO ePaper Display Board EE03, which will be available soon.
To make things even easier, we’re introducing SenseCraft HMI—a no-code, AI-powered platform that allows you to quickly design and customize your user interface. Drag and drop elements, choose templates, or let AI generate the perfect layout for you.Get started today and create your ideal display experience with ease!
Parameter | Description |
Type | Dot Matrix |
Size | 10.3 inch |
Active Area(mm) | 157.25(V)×209.66(H) |
Resolution | 1404 (V)×1872 (H) |
Pixel Pitch(mm) | 112 × 112 |
Display Color | Black, White |
Interface | TTL |

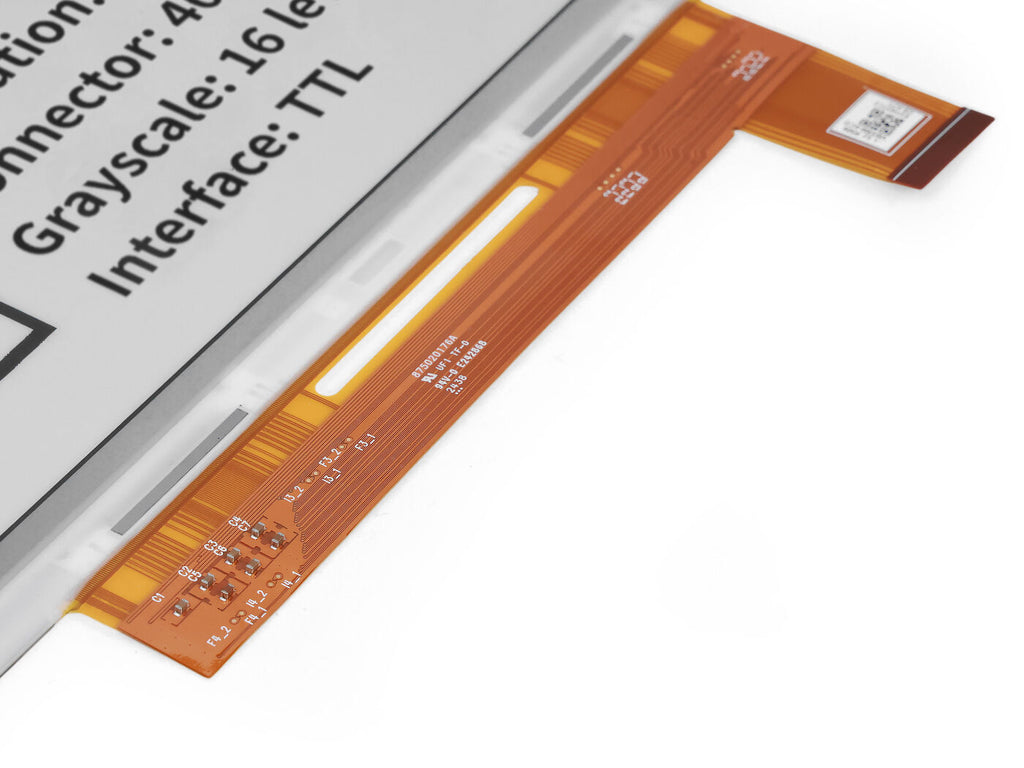

Connector | 40 Pin FCP, 0.5mm Pitch |
Grayscale | 16 |
Driver Mode | Support XIAO/Arduino/MicroPython |
Drawing | Support GUI Drawing |
Outline Dimension(mm) | 174.4(V) × 216.7(H) × 0.78(D) |
Weight(g) | 60±7 |
- Reading equipment
- Retail shelf labels
- Conference room signage
- logistics tracking boards
- Smart home dashboards
ePaper Selection Guide
Product | Name | Resolution | Display Color | Partial Refresh | SenseCraft HMI |
200x200 | √ | √ | |||
250x122 | √ | √ | |||
250×122 |
| √ | |||
212x104 | √ |
| |||
296x128 |
|
| |||
296x128 | √ | √ | |||
296x128 |
| √ | |||
400x300 | √ |
| |||
800x480 |
| √ | |||
648x480 | √ |
| |||
800x480 |
| √ | |||
800x480 | √ | √ | |||
1404×1872 | √ |
| |||
1600x1200 |
|
|
10.3-inch Monochrome ePaper Display | ×1 |
| HSCODE | 8524999010 |
| USHSCODE | 8524119000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
