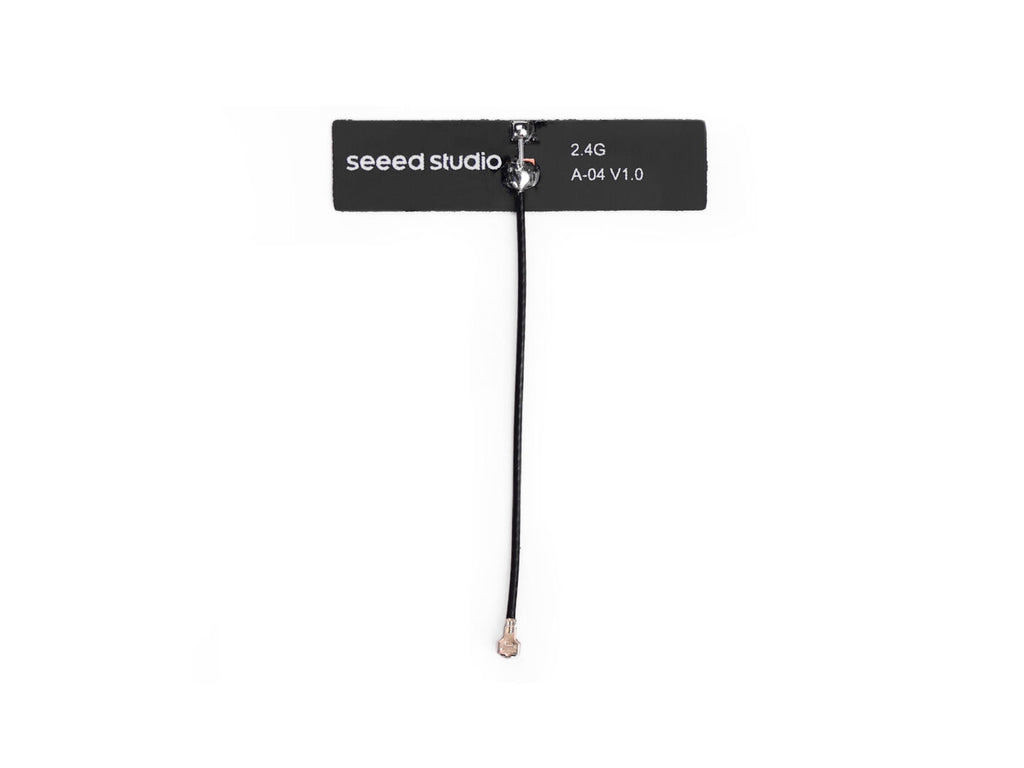

- Mini Antenna for Tiny Seeed Studio XIAO nRF54L15
Attach everything you need to enhance the tiny MCU board’s 2.4 GHz wireless capability. In real-world testing, XIAO nRF54L15 with this external antenna achieved communication distances up to 180 meters in open outdoor environments.
- Suitable for Bluetooth LE 6.0 Channel Sounding
The external FPC antenna improves link budget and radiation quality on XIAO nRF54L15, enhancing stability and precision for distance/ranging.
- Boosted Bluetooth stability
Matched to 50 Ω with VSWR ≤ 2.0 across 2400–2500 MHz, ensuring stable, low-loss BLE connectivity with XIAO nRF54L15.
- High efficiency & reliable range
Delivers up to 1.86 dBi peak gain (at 2430 MHz) and 67.6% max efficiency (at 2450 MHz) for stronger 2.4 GHz coverage and extended range.
- Slim, flexible integration

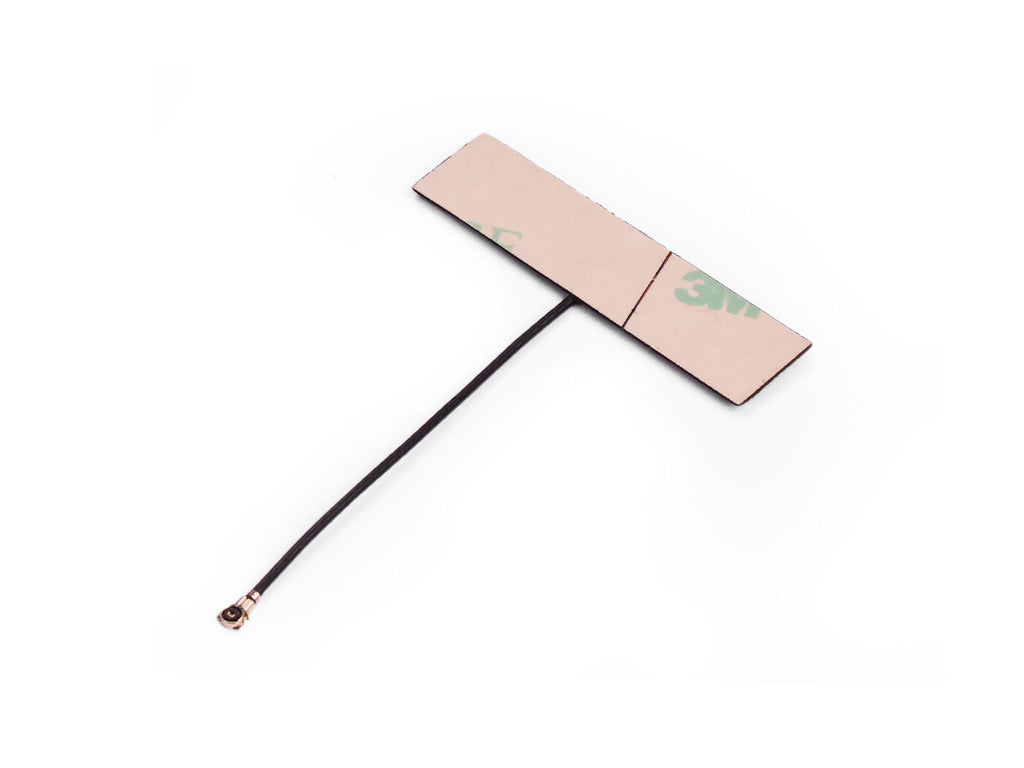

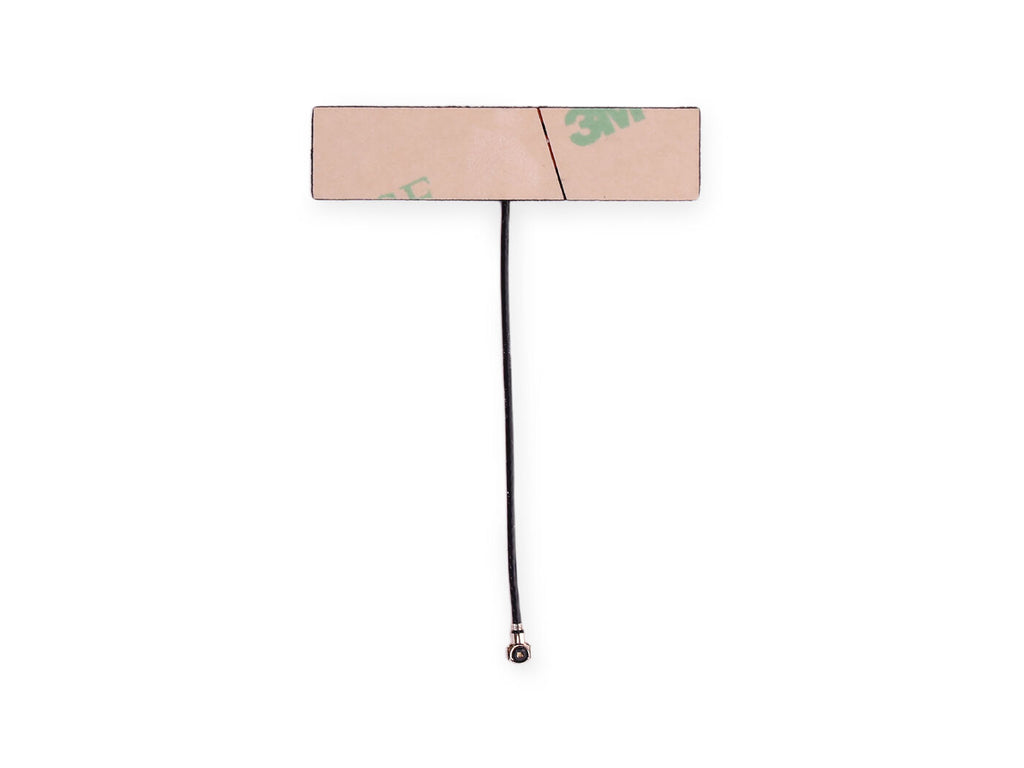

Flexible FPC antenna with Ø0.81 × 50 mm coax (IPEX 4), plus 3M adhesive for quick mounting on non-conductive surfaces—ideal for tight spaces.
Parameter | Description |
Frequency Range | 2400–2500 MHz |
Impedance | 50 Ω |
Max Efficiency | 67.6% @ 2450 MHz |
VSWR | ≤ 2.0 |
Polarization | Linear |

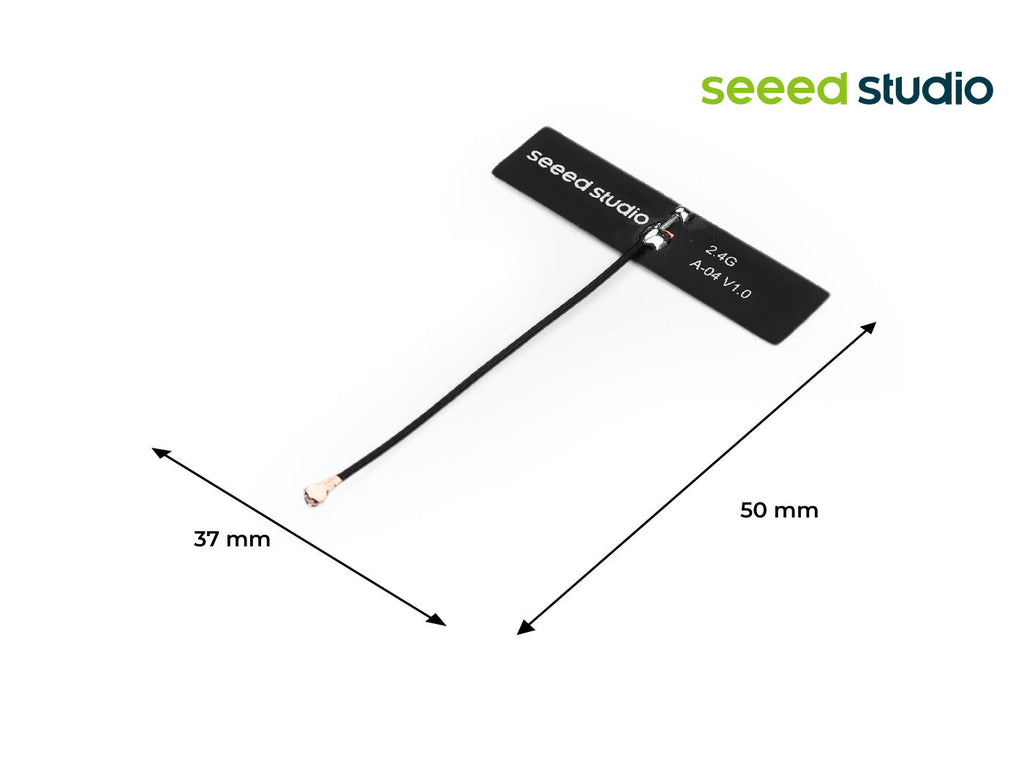

Dimensions | 35.2 × 8.5 mm |
Cable | RG0.81 mm, 50 mm length |

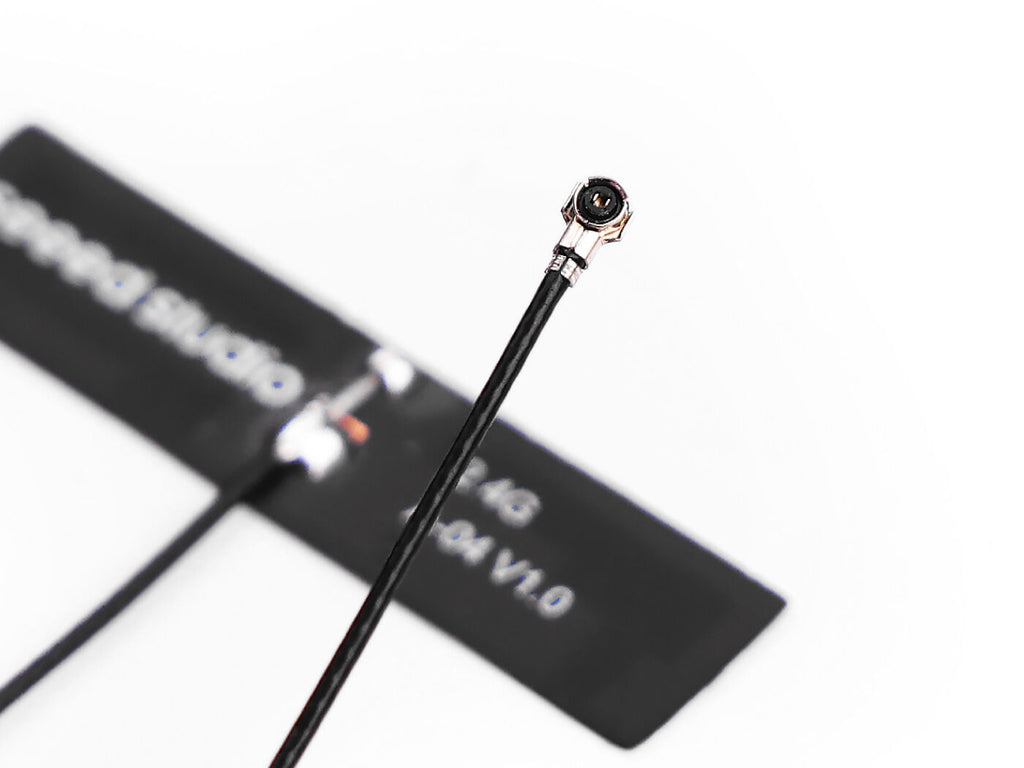

Connector | IPEX 4 |
Operating Temp | -40 °C ~ +85 °C |
Material Substance Compliance | REACH/RoHS Compliance |
- Industrial Sensor Networks
- Agricultural Telemetry Systems
- Drone Swarm Relays
- Embedded IoT Gateways
2.4GHz FPC Antenna (1.86dBi) for XIAO nRF54L15 | ×1 |
| HSCODE | 8517710000 |
| USHSCODE | 8517710000 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
