This is a mini antenna for a tiny Seeed Studio XIAO ESP32C3 microcontroller board. With a rugged and effective hardware design, the antenna increases the wireless capability of the MCU board.
This antenna is XIAO ESP32C3 TELEC certified supporting antenna, and it is TELEC compliant with XIAO ESP32C3
Feature
Mini Antenna for Tiny Seeed Studio XIAO ESP32C3: Attach everything you need to enhance the tiny MCU board wireless capability in 2.4GHz
Omnidirectional Function Design: Robust, effective hardware, which gains up to 2.81 dBi
Material Substance Compliance: REACH, RoHS
Description
2.4GHz 2.81dBi Antenna for XIAO ESP32C3 help to increase the wireless capability for Seeed Studio XIAO ESP32C3 in 2.4GHz, and decrease the lifetime cost of M2M (Machine to Machine) by designing robust, effective, and maintenance-reducing.
It has presented everything you need in the packaging and provided an easy installation method for your convenience.
This antenna is omnidirectional and capable of gaining up to 2.81 dBi for the Seeed Studio XIAO ESP32C3, operating in 2.4GHz.
Specification
Parameter |
Detail |
Frequency Bands, MHz |
2400-2500 |
VSWR (Max) |
3.0:1 |
Peak Gain, dBi (Typ) |
Up to 2.81 |
Nominal Impedance |
50 Ω |
Max Power (ambient temp of 25°C) |
10 Watts |
Azimuth Beam Width (deg) |
Omnidirectional |
Polarization |
Linear, Omnidirectional |
Radome PC, |
White |
Storage Temperature Range (°C) |
-40° C to +85° C |
Operational Temperature Range (°C) |
-30° C to +80° C |
Material Substance Compliance |
REACH/RoHS Compliant |
Hardware Overview

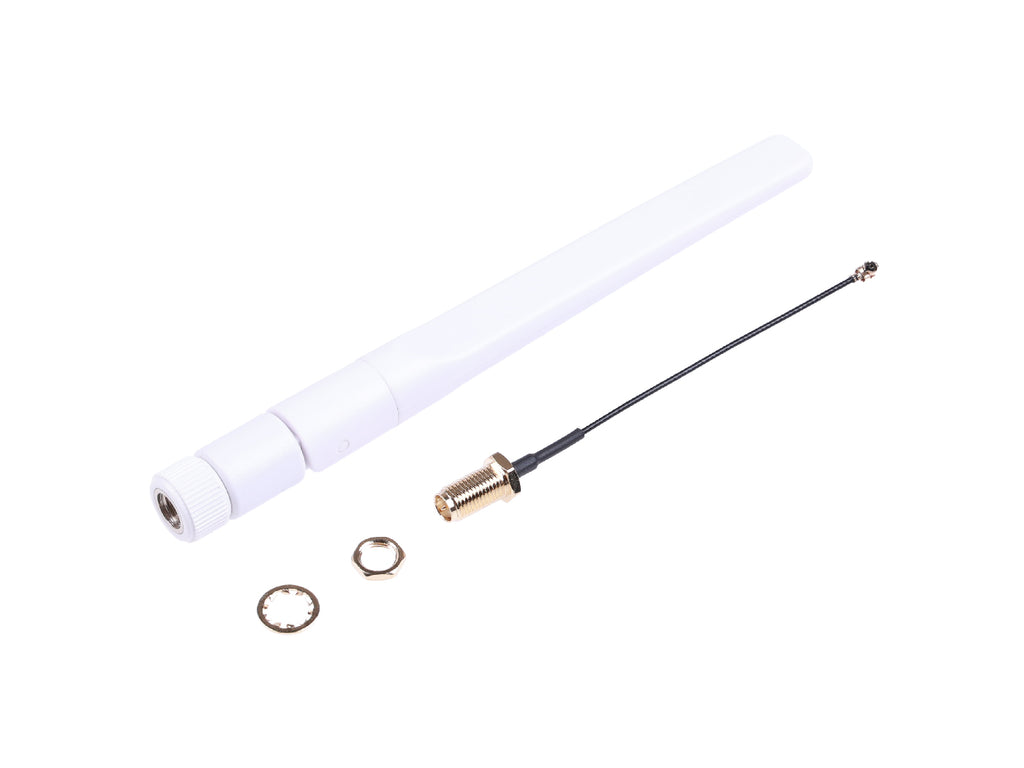

Part List
SMA to I-PEX Antenna Cable |
x1 |
White Rubber Duck Antenna |
x1 |
FAQ
How can I know the farthest communicated distance?
The distance of wireless communication is related to the transmit power, receive sensitivity, and operating frequency, and is impacted by external factors like atmosphere, and obstacles. Hence, it is inconclusive.
However, the antenna will ensure the Seeed Studio XIAO ESP32C3 functions well in your kitchen, living room, or bedroom.
ECCN/HTS
| HSCODE | 8517710000 |
| USHSCODE | 8517620010 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
