Description

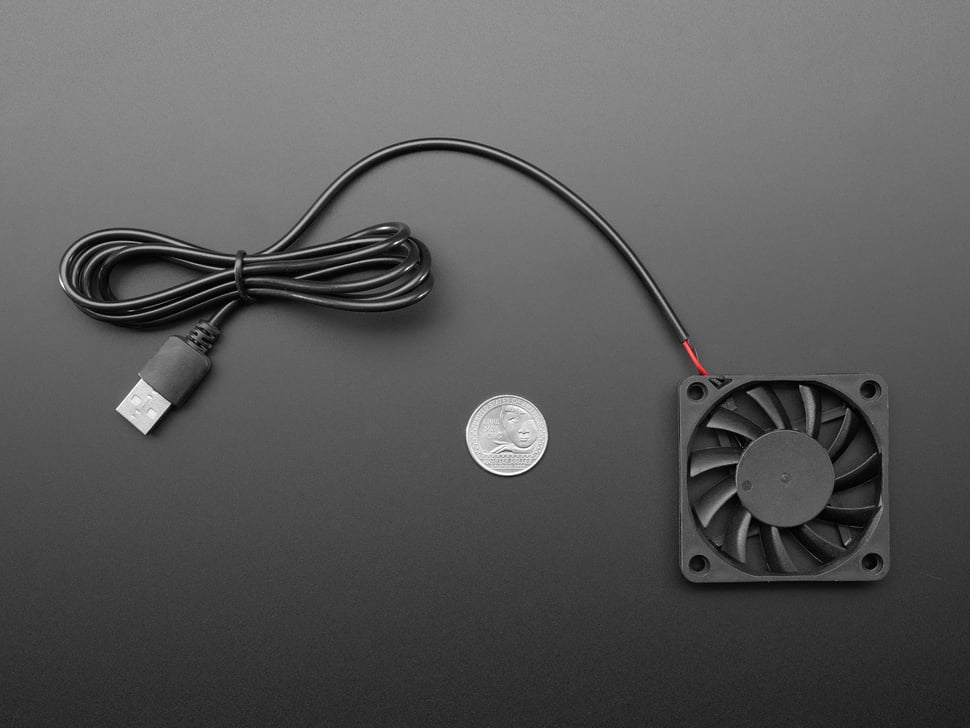

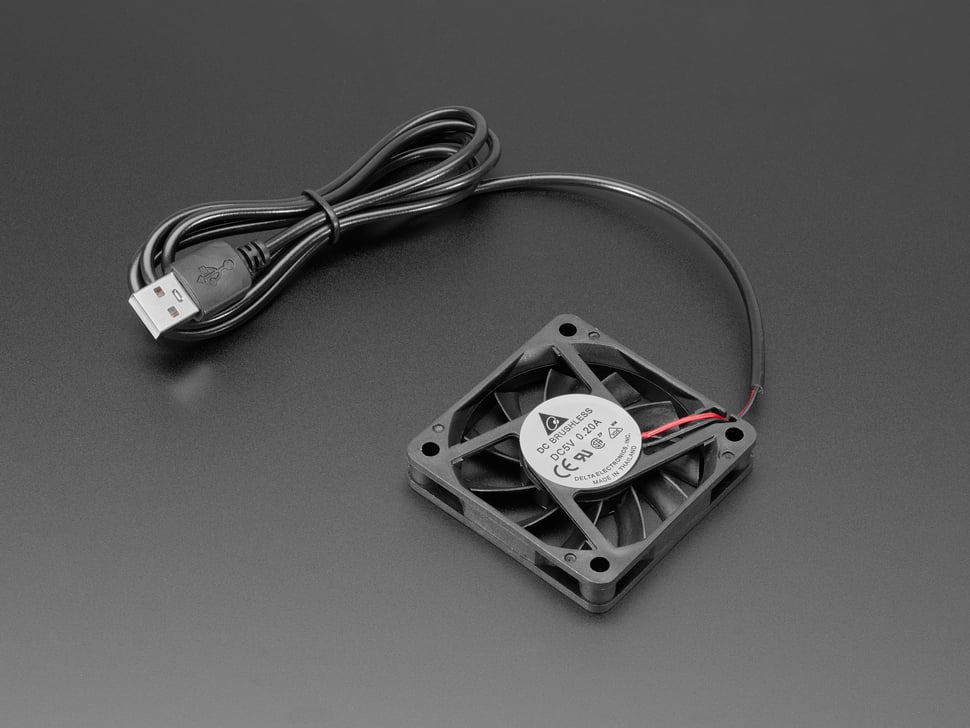

Looking for another way to keep your project cool? These plug-and-play USB-ready 5V Fans provide instant gratification, and prevent your goodies from overheating! Of course, it's also great for use with any small computer or FPGA or motor driver or anything that needs cooling.
They come with a USB port but you can easily cut off the connector and just power with 5V directly. There's no PWM/feedback pin, but you could control the fan with basic PWM using a motor controller / H-Bridge / MOSFET. Just don't forget that fans are an inductive load so you'll need a flyback diode to protect your circuitry. We recommend something like the MOSFET Driver Stemma which can make it easy.
We also carry various sizes of this 5V USB powered cooling fan so you can find the right size needed for your project. They all come with with grills for the front and and back of the fan along with mounting screws and nuts.
Technical Details
Specifications:
- Voltage: 5V
- Current 0.2A
- Dimensions: 60mm x 60mm x 11mm
- Mounting hole dimensions: 50mm x 50mm, 4.4mm diameter
- USB Cable Length: approx 1 meter long

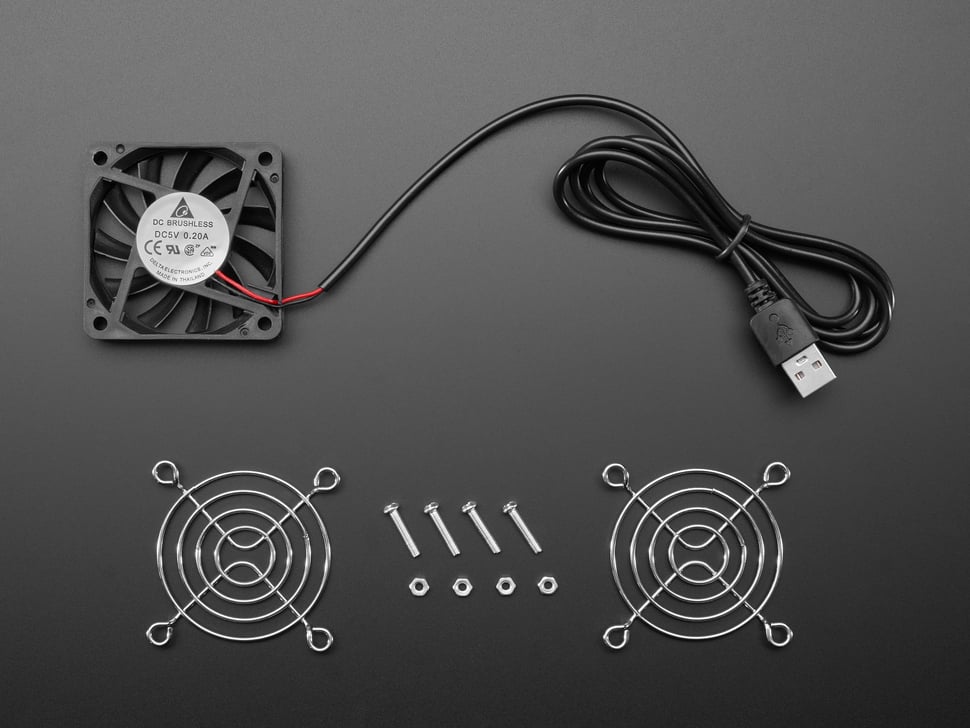

Comes with:
- 2 x Fan Grills
- 4 x Screw and Nuts
