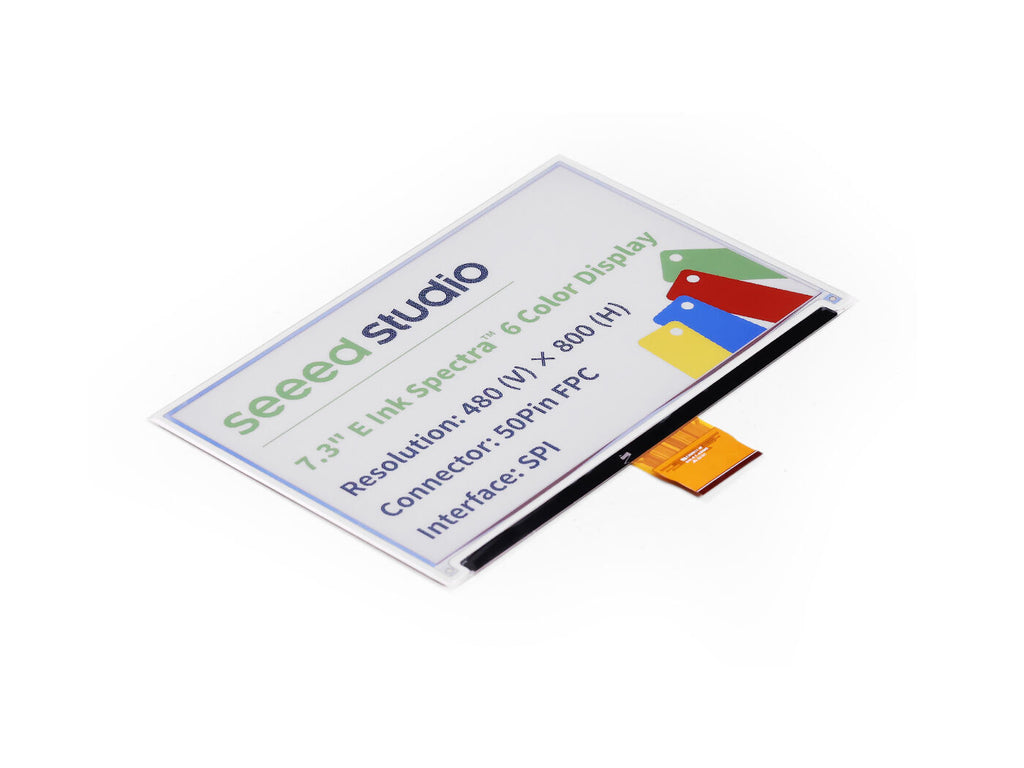

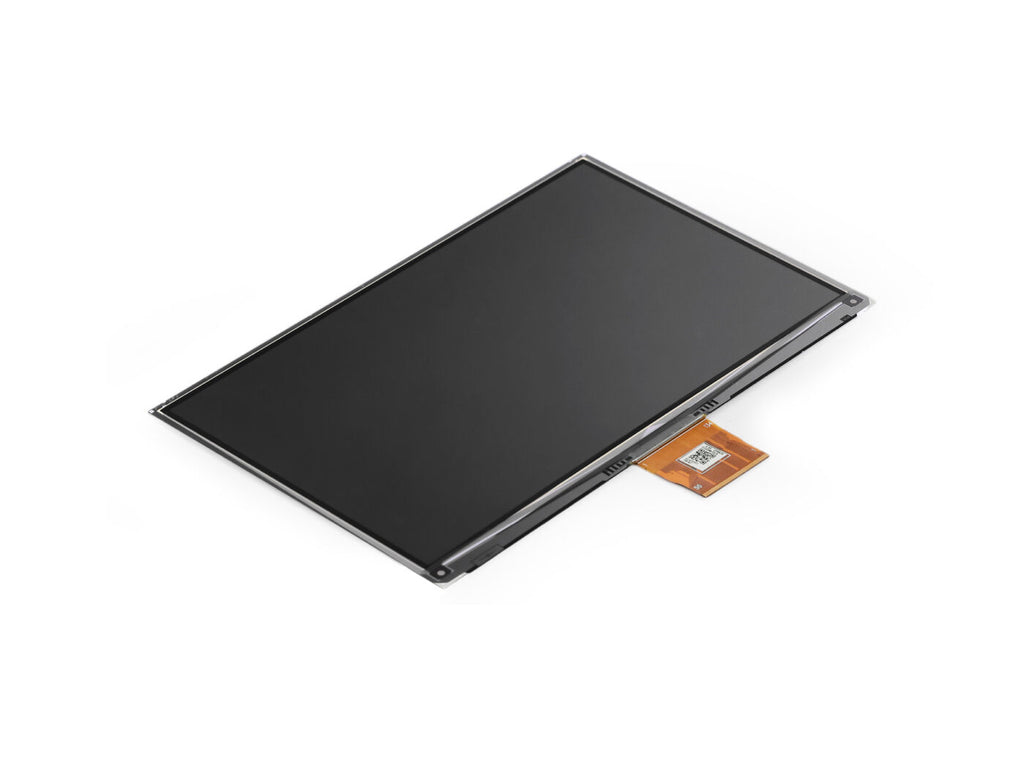

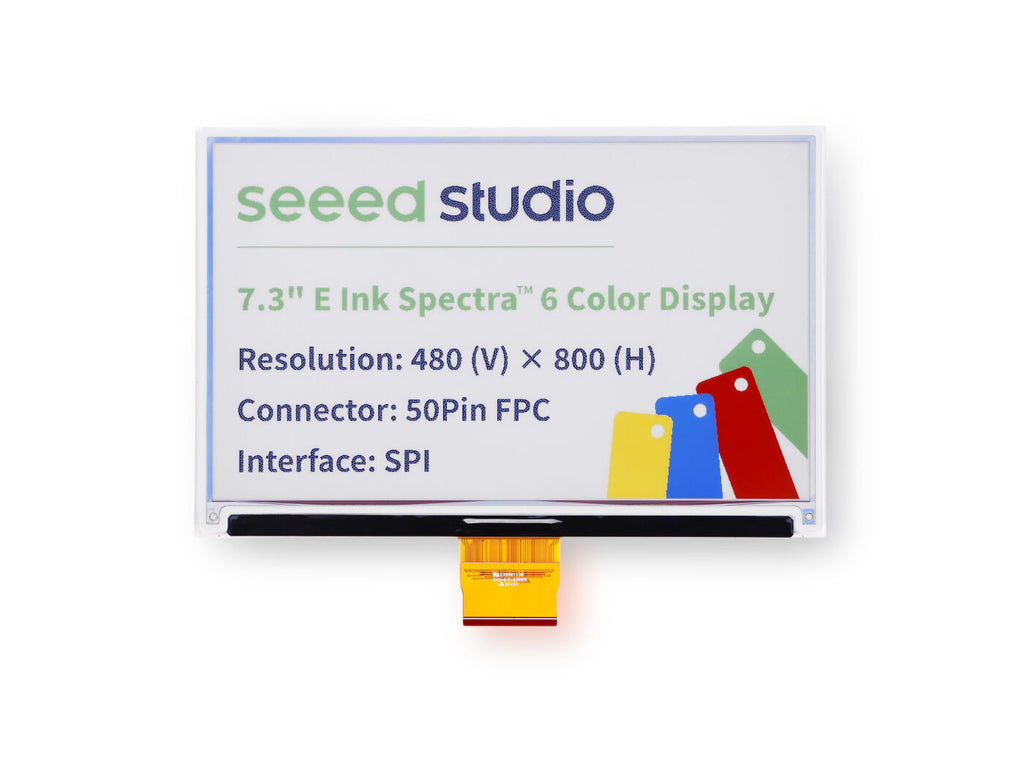

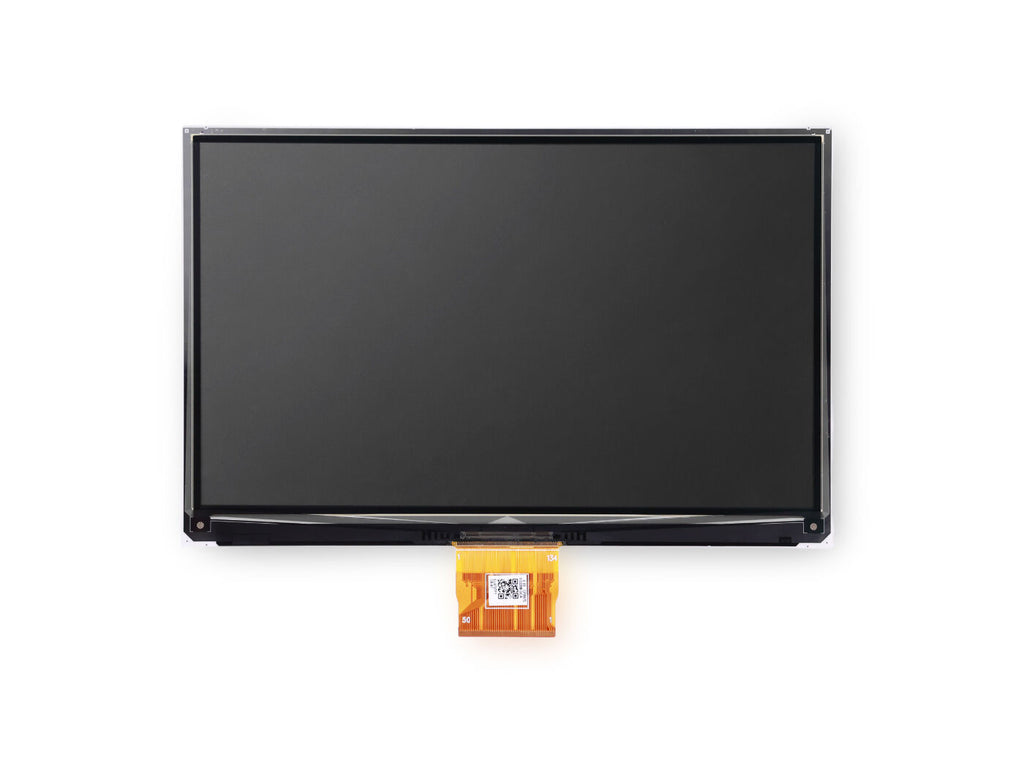

The 7.3 inch spectraTM 6 ePaper Display offer a high-quality, low-power solution for a wide range of applications. The model features a 800x480 resolution, black, white, yellow, red, green and blue display with a diagonal size of 7.3 inches. With a fast refresh rate and excellent contrast, this display is ideal for e-readers, smart wearables, and other portable devices.
- Vibrant SpectraTM 6 Technology Display: Showcase black, white, yellow, red, green and blue colors more than just black and white, resulting in striking visuals and clear information.
- Ultra-Low Power Usage: The ePaper only consumes power during updates, leading to prolonged battery life and efficient energy use.
- Developer Friendly Integration: Optimized for use with the XIAO ePaper Display Board EE04 (coming soon), powered by the XIAO ESP32-S3 Plus, featuring a reserved battery connector and user button to accelerate prototyping and project development.
- Wide Range of Applications: Well-suited for applications such as electronic photo album, conference room signage, logistics tracking boards, and IoT dashboards, where high visibility, multi-color display, and low power consumption make a real impact.
Note:
- If your epaper has been idle for a long time, you can clear the screen content, which can effectively prevent the residual shadow and increase the screen life.
- Avoid keeping the same image on the screen for more than one day, as this may cause image retention. It is recommended to refresh the display at least once a day.
- Please refresh the screen as infrequently as possible when using and debugging the program. Refreshing the screen at high speed for a long period of time may also reduce the service life of the screen.
Parameter | Description |
Type | Dot Matrix |
Size | 7.3 inch |
Active Area(mm) | 160 (H) × 96 (V) |
Resolution | 800 (H) × 480 (V) |
Pixel Pitch(mm) | 0.200 × 0.200 |
Display Color | Black, White, Yellow, Red, Green and Blue |
Interface | SPI |
Connector | 50 Pin FCP, 0.5mm Pitch |
Driver Mode | Support XIAO/Arduino/MicroPython |
Drawing | Support GUI Drawing |

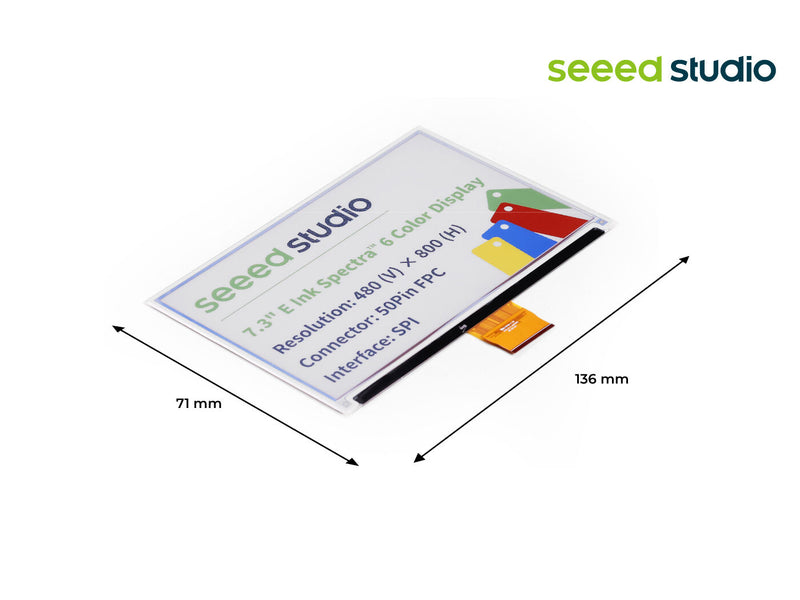

Outline Dimension(mm) | 170.2(H) x 111.2(H) × 0.9 (D) |
Weight(g) | 33 |
7.3" spectraTM 6 ePaper Display | ×1 |
| HSCODE | 8524999010 |
| USHSCODE | 8524119000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
