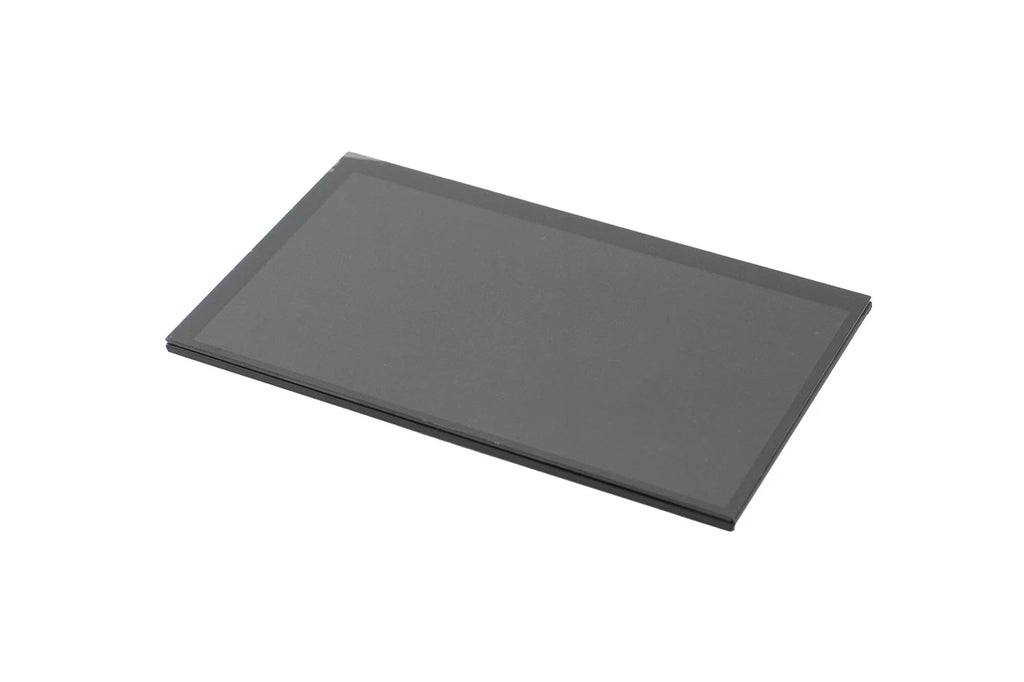

This is a 7-inch, 1024x600 multi-touch display engineered specifically for the LattePanda IOTA and LattePanda 3 Delta single-board computers. It utilizes an eDP (Embedded DisplayPort) interface, ensuring native, low-level integration for superior performance and control compared to standard HDMI screens. The core advantages include an exceptional IPS visual panel, a robust design tailored for embedded use, and flawless compatibility. Key specifications include a 1024x600 high resolution, multi-touch functionality, and a wide operating temperature range. This 7-inch touch screen is the ideal solution for developing human-machine interfaces (HMI), portable computing devices, and interactive kiosks.
Seamless eDP Integration for Unmatched Compatibility
Unlike generic HDMI displays, this LattePanda eDP screen connects via the eDP interface, the native display output for the LattePanda IOTA and 3 Delta. This direct connection provides the best possible compatibility, enabling direct control over screen parameters like brightness and contrast through the operating system or APIs. This eliminates the need for extra adapters and complex configurations, resulting in a cleaner, more stable, and power-efficient setup.
Exceptional Visuals with an IPS Panel
The 1024x600 eDP display features a high-quality IPS (In-Plane Switching) panel, delivering a brilliant visual experience. With a crisp 1024x600 high resolution and high color saturation, images and text are rendered with outstanding clarity and accuracy. The IPS technology also provides wide viewing angles, ensuring that the visual quality remains consistent even when viewed from different perspectives, which is critical for shared interfaces and portable devices.
Robust Design for HMI and Portable Projects
Thoughtful design optimizations make this LattePanda touch display perfectly suited for demanding environments. A fully-fit construction seals the screen, preventing dust from entering and compromising visibility—a common issue in industrial HMI scenarios. This design also effectively reduces internal light reflection, enhancing clarity. Furthermore, the touch screen's surface has a 6H hardness rating, providing significant resistance to scratches and ensuring durability in interactive and portable applications.
Note: The display is compatible solely with the LattePanda IOTA and LattePanda 3 Delta model.

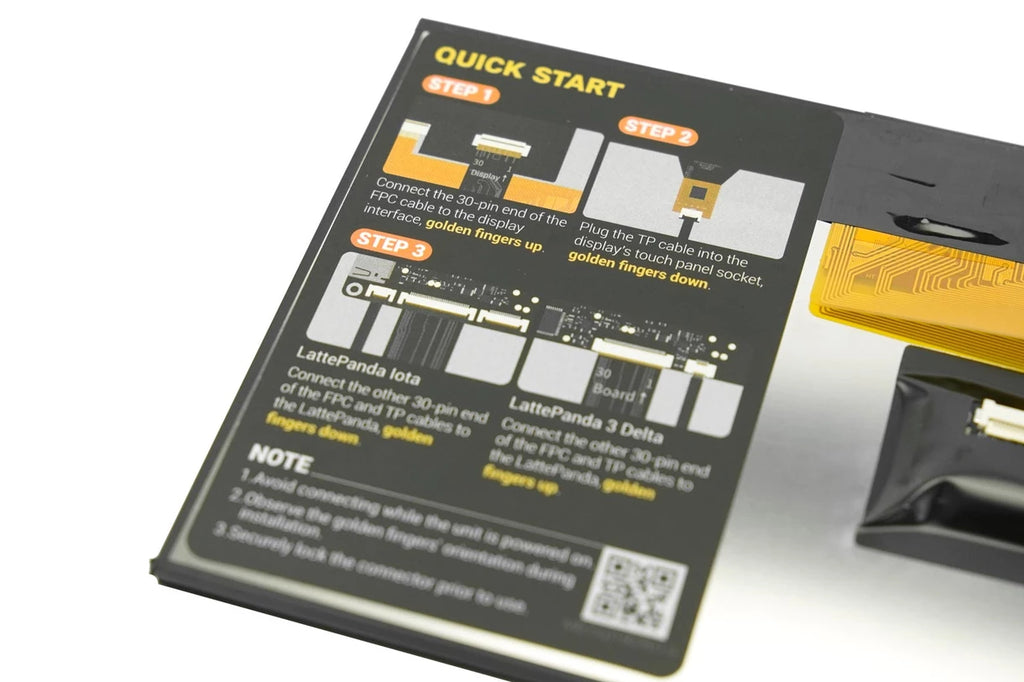

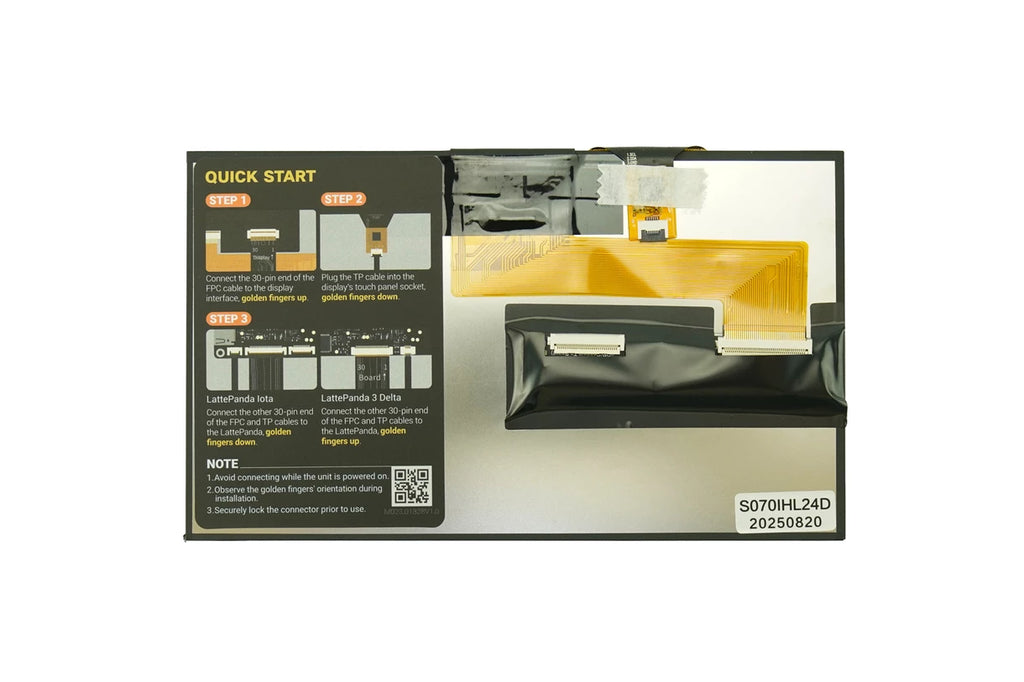

Figure: How to Install the 7-inch multi-touch display and LattePanda
Specification:
- Compatible with: LattePanda IOTA, LattePanda 3 Delta
- 1024 x 600 high resolution
- Interface: eDP(DP) + I2C(TP)
- Transmittance: 85%
- Surface Hardness: 6H
- Response Time: ≤16ms
- LCM Luminance: 250 cd/m²
- Dimensions: 164.0mm x 96.0mm
- Operating Temperature: -20 +70
- Storage Temperature: -30 +80
Documents:

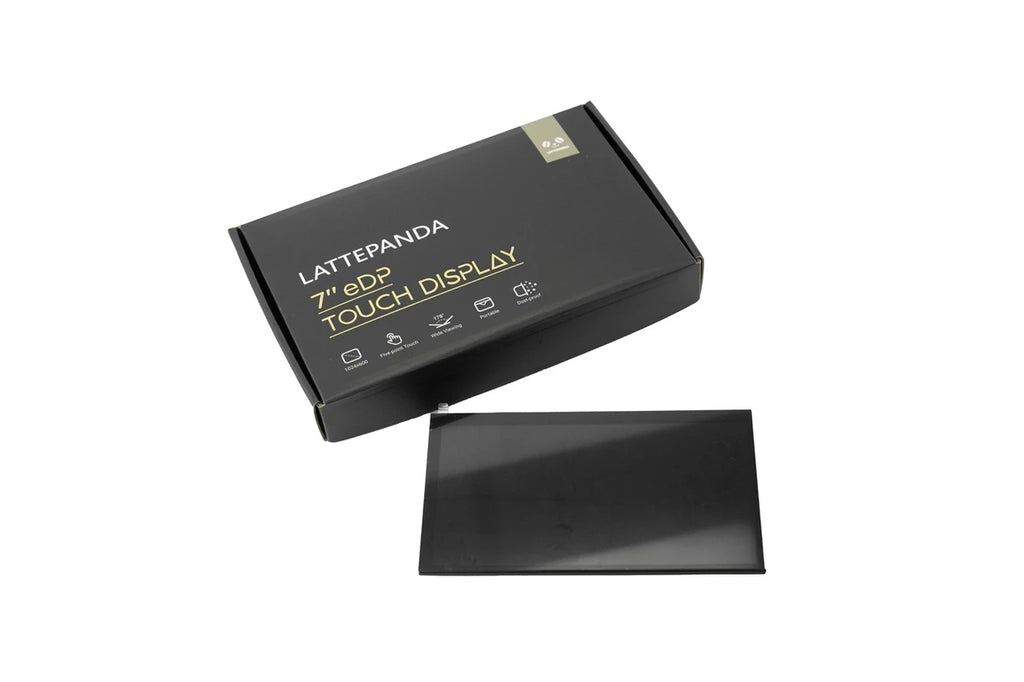

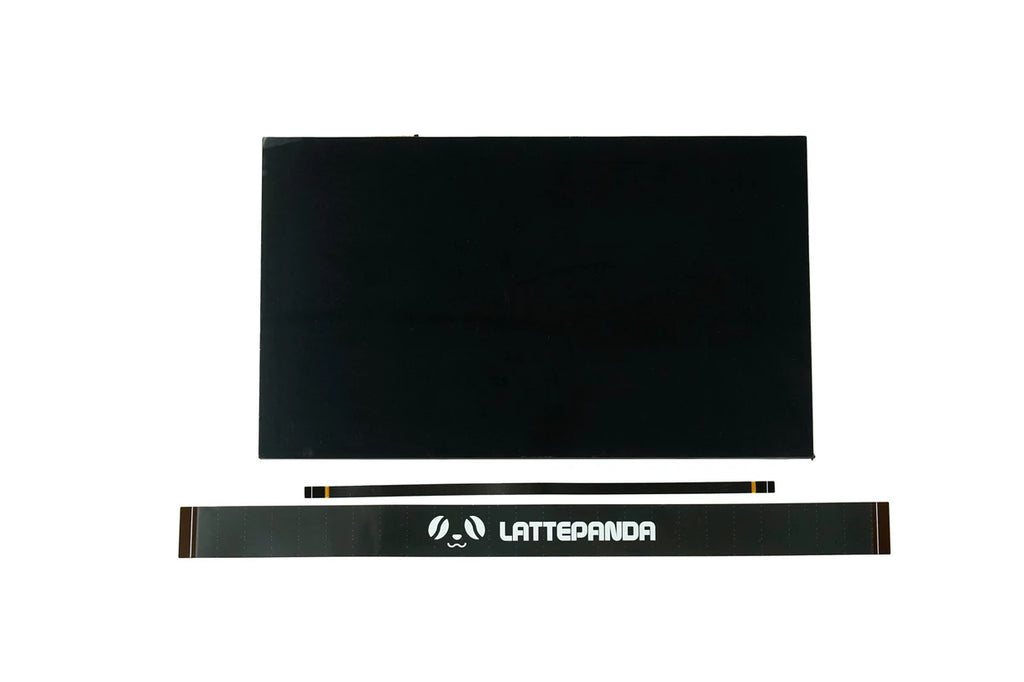

Product Includes:
- 7-inch eDP Touch Display x1
- 21cm eDP cable x1
- 14cm Same-side Touch cable x1
