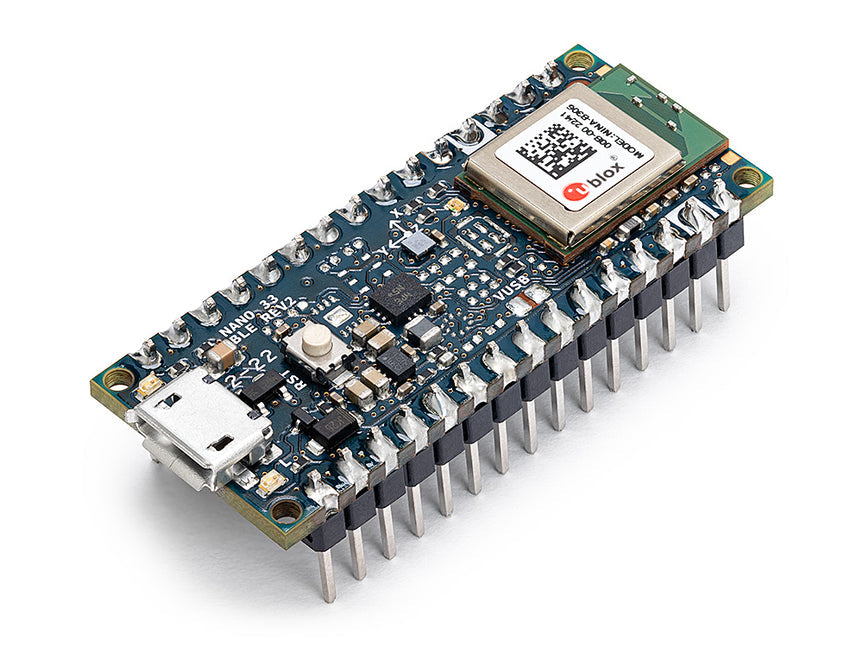

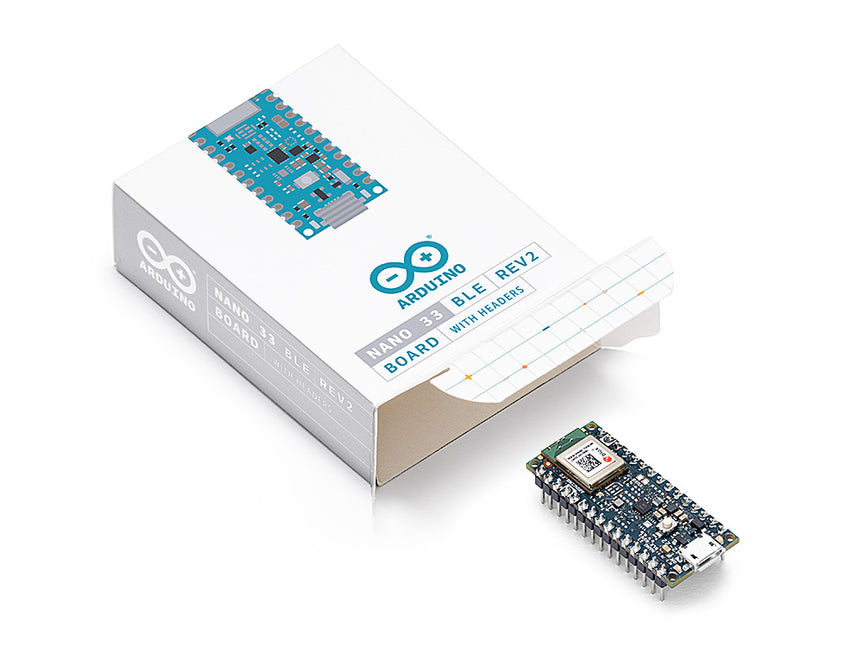

Arduino Nano 33 BLE Rev2 with headers
Arduino Nano 33 BLE Rev2 with headers
Arduino Nano 33 BLE Rev2 with headers
Arduino Nano 33 BLE Rev2 with headers

Arduino Nano 33 BLE Rev2 with headers

SKU: ARD-ABX00072
$64.00 NZD
3 units ships in 24 hours from Melbourne
Compact Arduino Nano 33 BLE Rev2 microcontroller board with nRF52840 processor, built-in 9-axis IMU, and Bluetooth Low Energy connectivity. Features 64 MHz Arm Cortex-M4 CPU, 1 MB flash memory, MicroPython support, and pre-soldered headers for easy prototyping. Perfect for IoT projects, wearables, and wireless applications. Measures just 45mm × 18mm with 14 digital I/O pins, 8 analog inputs, and integrated motion sensors for real-time tracking. Connect seamlessly to Bluetooth-enabled devices and smartphones. Ideal for developers and hobbyists building connected projects with minimal footprint and maximum capability.

Designed with versatility in mind, the Nano 33 BLE Rev2 is equipped with a built-in 9-axis Inertial Measurement Unit (IMU). This IMU is a game-changer, offering precise measurements of position, direction, and acceleration. Whether you're developing wearables or devices that demand real-time motion tracking, the onboard IMU ensures unparalleled accuracy and reliability.

In essence, the Nano 33 BLE Rev2 strikes the perfect balance between size and features, making it the ultimate choice for crafting wearable devices seamlessly connected to your smartphone. Whether you're a seasoned developer or a hobbyist embarking on a new adventure in connected technology, this development board opens up a world of possibilities for innovation and creativity. Elevate your projects with the power and flexibility of the Nano 33 BLE Rev2.

Tech specs

MicrocontrollernRF52840 (datasheet)
USB connectorMicro USB
PinsBuilt-in LED Pin13
Digital I/O Pins14
Analog Input Pins8
PWM PinsAll digital pins (4 at once)
External interruptsAll digital pins
ConnectivityBluetooth®u-blox® NINA-B306
SensorsIMUBMI270 (3-axis accelerometer + 3-axis gyroscope) + BMM150 (3-axis Magnetometer)
CommunicationUARTRX/TX
I2CA4 (SDA), A5 (SCL)
SPID11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS)
PowerI/O Voltage3.3 V
Input Voltage (nominal)5-18 V
DC Current per I/O Pin10 mA
Clock SpeedProcessornRF52840 64 MHz
MemorynRF52840256 KB SRAM, 1 MB flash
DimensionsWeight5 gr
Width18 mm
Length45 mm

Get Inspired

PROJECT HUB
Precise and programmable wireless thermostat
Precise and programmable wireless thermostat
Project Tutorial by frenchy22
read more
BLOG
Not bigger, just better: Introducing the Nano 33 BLE Rev2
Not bigger, just better: Introducing the Nano 33 BLE Rev2
February 27, 2024
read more

FAQs

What is the difference between Rev1 and Rev2?

There has been some changes in the sensors, components and PCB design to improve the experience of the users:

  • Replacement of IMU from LSM9DS1 (9-axis) for a combination of two IMUs (BMI270 - 6-axis IMU and BMM150 - 3-axis IMU).
  • Replacement of power supply MPM3610 for MP2322.
  • Addition of VUSB soldering jumper on the top side of the board.
  • New test point for USB, SWDIO and SWCLK.

Can the Nano 33 BLE Rev2 be programmed using MicroPython?

Yes, the Nano 33 BLE Rev2 is compatible with MicroPython, to learn more visit the board installation in the Arduino and MicroPython documentation.

Do I need to change my sketch used in the previous revision?

For sketches reliant on the LSM9DS1 library to access IMU data, given the recent modification in this component, users are advised to transition to the Arduino_BMI270_BMM150 library, tailored for the updated combined IMU. For more information visit the Arduino Help Center.

Is it also compatible with the Arduino Nano Screw Terminal Adapter?

Yes, the Arduino Nano 33 BLE Rev2 is compatible with the Arduino Nano Screw Terminal Adapter.

Is it also compatible with the Arduino Nano Motor Carrier?

Yes, the Arduino Nano 33 BLE Rev2 is compatible with the Nano Motor Carrier.
