Step into the future of interactive wearables with the BeagleBadge. Visually striking and ready out-of-the-box, its large 4.2-inch e-paper display and intuitive physical controls—including a 4-way joystick and tactile buttons—offer a dynamic user interface for everything from digital event badges to portable data dashboards. Combined with built-in sensors for tracking motion (IMU) and ambient light, it enables deeply context-aware interactions. Under the hood, the high-performance yet low-power TI AM62L32 processor and comprehensive wireless suite (Wi-Fi 6, Bluetooth 5.2, LoRaWAN) ensure you have the computing and connectivity muscle to run complex edge computing or decentralized communication projects anywhere you go.
- Prominent e-Paper Display & Intuitive UI
Designed as the ultimate smart badge, it features supports for a large 4.2" e-paper display via an FPC connector for crisp, low-power visualization. Combined with a 4-way joystick, tactile buttons, an RGB LED, and dual 7-segment displays, it offers a fully interactive out-of-the-box HMI experience.
- Next-Gen Processing Power
Powered by the TI AM62L32, a low-power SoC featuring a Dual-core Arm® Cortex®-A53 processor at 1.25GHz, perfectly optimized for complex edge computing and portable applications.
- Comprehensive Wireless Connectivity
Integrates the BeagleMod CC3301-1216 module for robust Wi-Fi 6 (2.4GHz) and Bluetooth 5.2, plus a Wio SX1262 module for long-range LoRaWAN communication, ensuring you stay connected anywhere.
- Rich Sensing & Limitless Expansion
Comes equipped with an onboard IMU and ambient light sensor for context awareness. Designed for ultimate modularity, it features built-in Grove, dual QWIIC, and mikroBUS connectors, granting plug-and-play access to thousands of external modules.
- Robust Open-Source Ecosystem
Supports Linux and Zephyr base ports with a mainline roadmap. Ready for interactive display development with LVGL and MicroPython libraries, and includes Meshtastic and ActivityPub integration for seamless off-grid messaging.
Category | Item | Specification |
Processor | SoC | |
CPU Architecture | Dual-core Arm® Cortex®-A53 @1.25GHz | |
Memory | RAM | 2GB (128M x 16bit)-1600MHz 3200Mbps LPDDR4 |
Storage | eMMC | 4GB eMMC |
Flash | 256Mb OSPI flash | |
EEPROM | 32Kb EEPROM | |
Wireless Connectivity | WiFi & Bluetooth | WiFi 6 (2.4GHz) & Bluetooth 5.2 - via BeagleMod CC3301 (MHF4 Connector) |
LoRaWAN | LoRaWAN - via Wio SX1262 (u.FL Connector) | |
On Board | Display | 4.2" e-paper (With 24-pin FPC Connector) |
1x MIPI DSI connector for LCD | ||
Sensors | 1x IMU Sensor | |
1x Ambient light sensor | ||
1x Temperature & Humidity sensor (Unpopulated) | ||
Ecosystem Ports | 1x MikroBus Connector | |
1x Grove Connector | ||
2x QWIIC Connector | ||
External Ports | 1x USB 2.0 Type-A host | |
1x Micro-SD socket | ||
User Interface | Buttons | 1x Reset buttons |
2x Tactile buttons (Back/Select) | ||
Joystick | 1x 4-way Joystick (with press) | |
Output | 1x Passive Buzzer | |
Indicators | 1x RGB status LED | |
2x 7-segment LED displays | ||
Power Input | Interface | 1x USB Type-C (Power & Debug) |
1x BAT Connector for BL-5C (with fuel gauge monitoring) | ||
Software | Supported Platforms | Linux |
Zephyr RTOS | ||
LVGL | ||
MicroPython | ||
Meshtastic&ActivityPub |

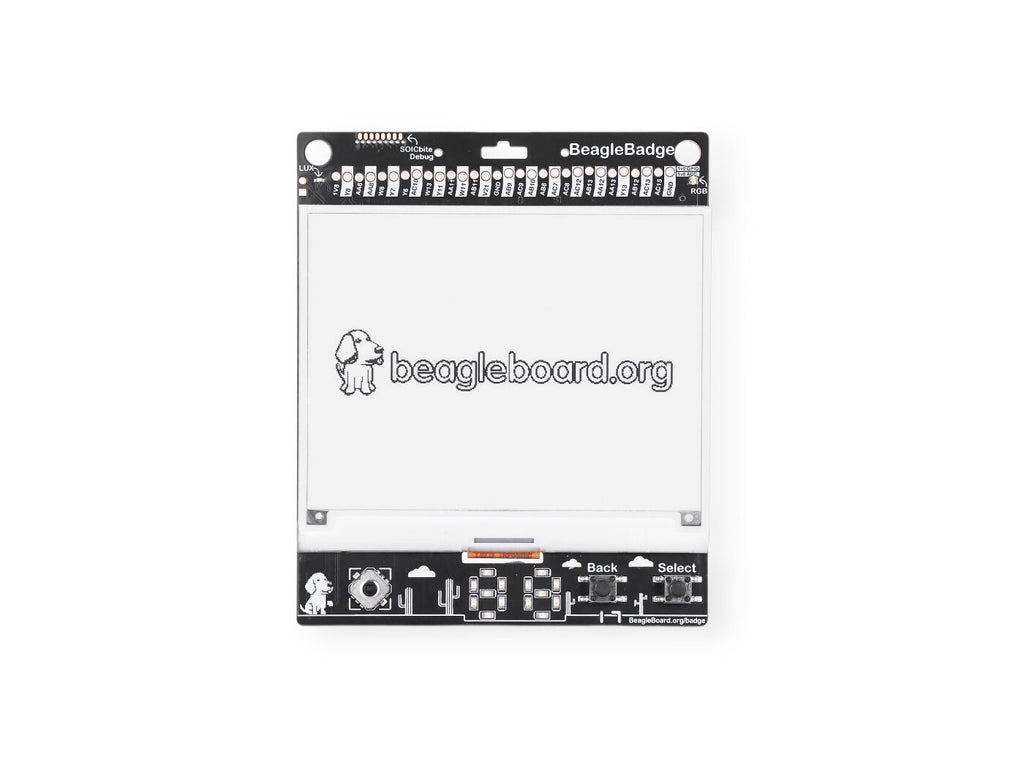

Front

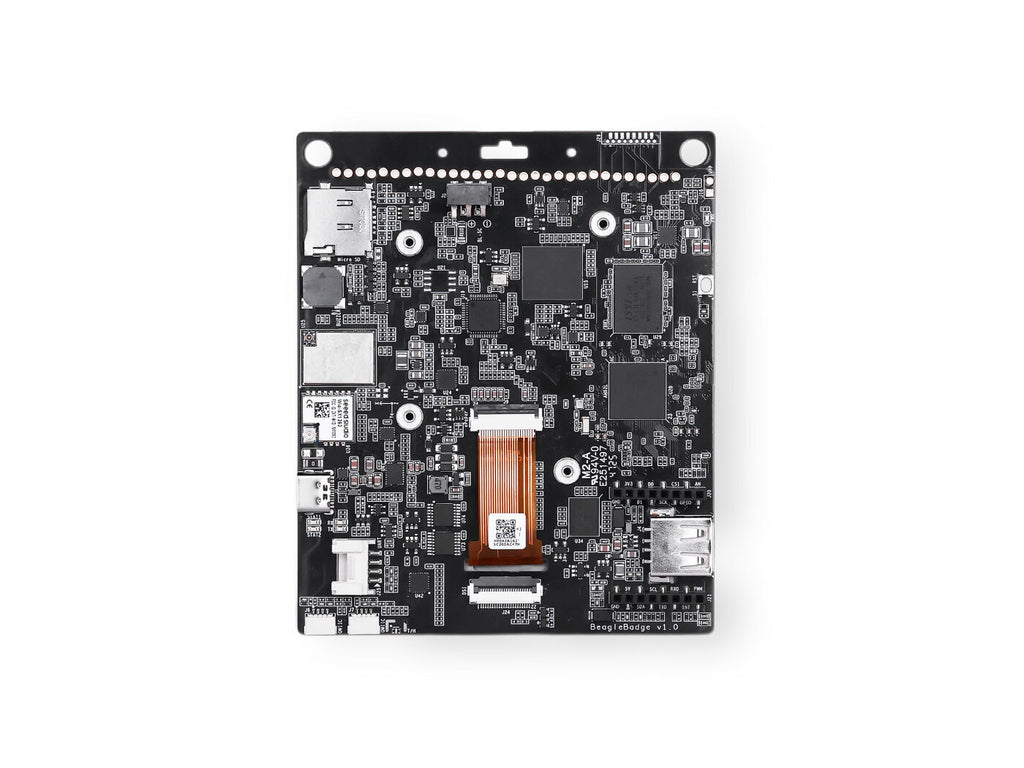

Back
- Smart Wearables & Smart Badges：Utilizing the ePaper display and sensing capabilities for dynamic event badges or personal assistants.
- Edge Computing Devices: Leveraging the high-performance TI AM62L32 processor and Linux capabilities to process sensor data locally at the edge, reducing latency and cloud dependency.
- Off-grid Communication Nodes：Leveraging Meshtastic and LoRaWAN for decentralized messaging in remote areas.
- Environmental & Health Monitoring：Using the built-in LUX/IMU sensors combined with external bio-sensors via expansion ports.
- Embedded control systems：Taking advantage of the TI AM62L32 processor's real-time processing capabilities.
BeagleBadge | x1 |
