Camera Flange is the base for collaborative robots from Elephant Robotics. Camera Flange helps you complete more creative robots.
Used for myCobot 280 M5Stack、 myCobot 280 Pi、MyCobot 280 For Arduino、myCobot 280 Jetson Nano、myPalletizer 260 M5Stack、 myPalletizer 260 Pi、mechArm 270 M5、mechArm 270 Pi、myBuddy 280.
Features

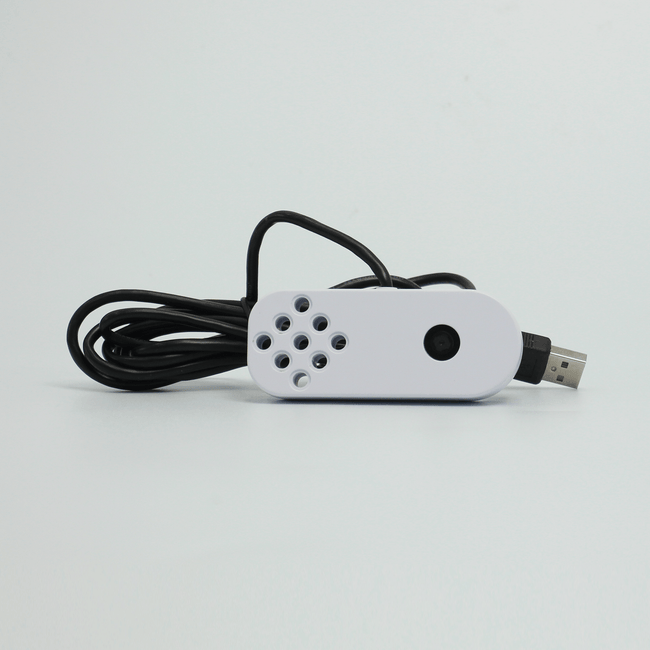

Ultra Small Micro USB Camera
- Adopt color wide-angle high-definition 720P; Support MJPE and YUV format; With standard USB2.0 high-speed interface.
Direct Plug-in Drive-free Design

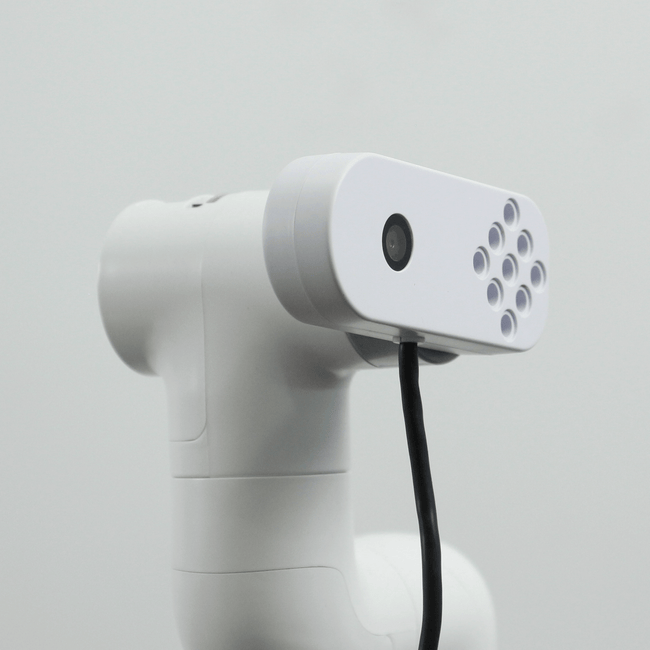

- It installs in minutes on the Robot arm. Plug-and-play. It is very convenient and fast.
Does Not Take up Space
- The compact design and small volume let you don't worry about taking up too much space.
Lightweight and Easy to Carry
- Lightweight and Easy to Carry
Multiple Uses
- Wide range of uses, suitable for face recognition, smart screen, smart express delivery, automatic vending, scan code, access control, medical equipment, and so on.
Specifications
| USB non-distortion lens | |
|---|---|
| Size | 18x18x20mm |
| Maximum pixels | 1 million 1280X720 |
| Support image formats | YUV, MJPEG |
| Pixel size | 3.4umX3.4um |
| Maximum frame rate | 1280x720 @ 25fps |
| USB protocol | USB2.0 HS/FS |
| Supported resolution | 1280X720, 640X480, 320X240 |
| Power supply | DC5V 90mA |
| Lens focal length | Standard 1.7mm |
| Field of view angle | ≈60° |
| Supported systems | Win7/8/10, Linux, MAC |
| End flange | |
|---|---|
| Material | ABS injection |
| Process | Painting |
| Size | 80x40x20mm |
| Weight | 60g |
