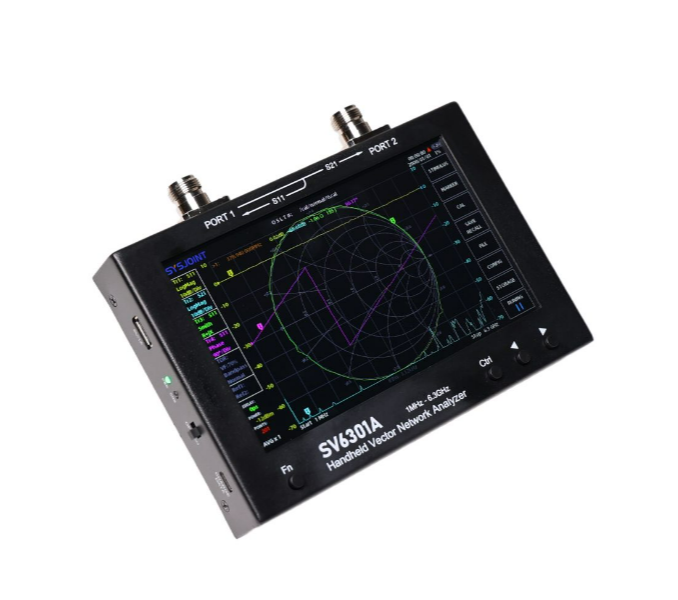

The SV6301A is a top-tier, handheld Vector Network Analyzer (VNA) boasting a 7" capacitive touchscreen. With a frequency range of 1MHz-6.3GHz, precision S11 and S21 measurements, and a user-friendly UI, this VNA guarantees dependable, superior performance. Certified by CE, FCC, and RoHS, too.
Feature
- Wide Frequency Range: Supports a frequency range of 1 MHz to 6.3 GHz, making it suitable for a variety of high-frequency applications.
- User-Friendly Interface: Equipped with a 7-inch IPS LCD capacitive touchscreen, providing an intuitive user interface for easy setup, data observation, and result analysis.
- Precise S11 and S21 Measurements: With a dynamic range of 75 dB (S21) and 50 dB (S11) below 3 GHz, and 65 dB (S21) and 40 dB (S11) above 3 GHz, the SV6301A delivers accurate measurement and evaluation capabilities.
- Fast Sweep Speed: Offers a rapid scan speed of 500 points per second for frequencies above 25 MHz, enabling quick measurements and analysis, and enhancing work efficiency.
- Ample Storage and Calibration State Management: With 8GB of built-in storage capacity and support for TF card expansion, offers ample space for data storage.
Description
With its wide frequency range of 1MHz to 6.3GHz, and precise S11 and S21 measurements, it offers accurate measurement and evaluation of transmission and reflection characteristics. Featuring a 7" capacitive touchscreen, the SV6301A offers a user-friendly interface for easy operation and data analysis. Additionally, with its ample storage capacity and calibration state management, users can conveniently store and manage calibration settings and measurement data, enhancing workflow and productivity.
The SV6301A finds applications across various fields, including communication system testing, RF engineering, wireless network research, antenna design, and microwave circuit analysis. With its advanced features and precise measurements, the SV6301A is an essential tool for high-frequency analysis and evaluation in a wide range of industries and research areas.
Application
- Communication system testing
- RF engineering
- Wireless network research
- Antenna design and testing
- Microwave circuit analysis
Specification
Item | Specification | Condition |
Frequency range | 1MHz ~ 6.3GHz |
|
RF power out | -40dBm ~ -10dBm | step：1dB |

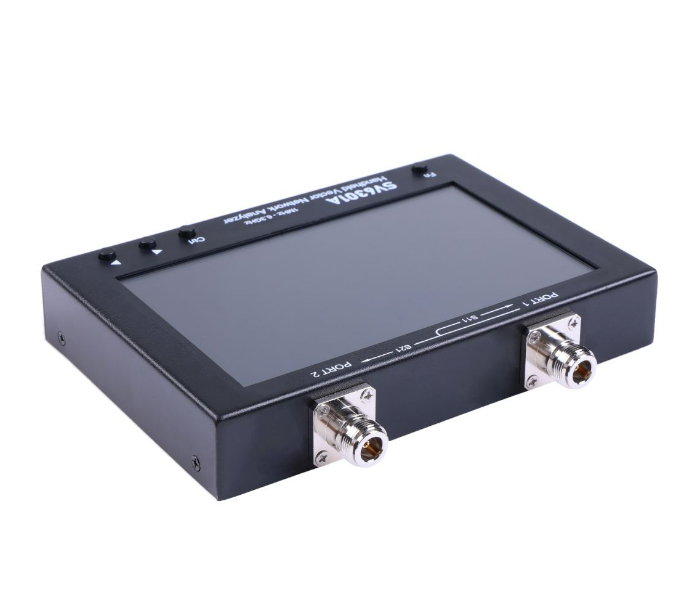

RF connectors | N-type female | Come with N-to-SMA adapters |
RF power in | -100dBm (Max) | DC < 5V |
Frequency accuracy | < ±1 ppm |
|
Frequency step | 10kHz (Min) |
|
S21 dynamic range1 | 75dB | < 3GHz |
65dB | > 3GHz | |
S11 dynamic range1 | 50dB | < 3GHz |
40dB | > 3GHz | |
Sweep points | 1001 | Configurable from 101 to 1001 |
Sweep speed | 500 pts/s | f > 25MHz |
IFBW | 12.5kHz (default) | 12.5k/6.25k/3.12k/1k/300Hz/100Hz/30Hz |
Smoothing | Arithmetic mean | Average times: 1 ~ 25 |
Traces | 7 | 4 data traces, 2 reference traces, 1 TDR trace |
Calibration state storage | 18 | Calibration states can be stored as files to the built-in memory card |
Storage capacity | 8GB | TF card |
Display | 7-inch IPS LCD | Resolution: 1024×600 |
Operation mode | Capacitive touch and physical buttons |
|
Screenshot | On-device |
|
Power consumption | 6.5W |
|
Battery life | 3 hours | 50% brightness |
Battery | 18650 lithium battery | 3.6V/3350mAh×2 |
Charge/data port | USB Type-C |
|
Charge voltage | 4.7V ~ 5.5V | 5V/2A is recommended |
USB power output | 5V/1A |
|

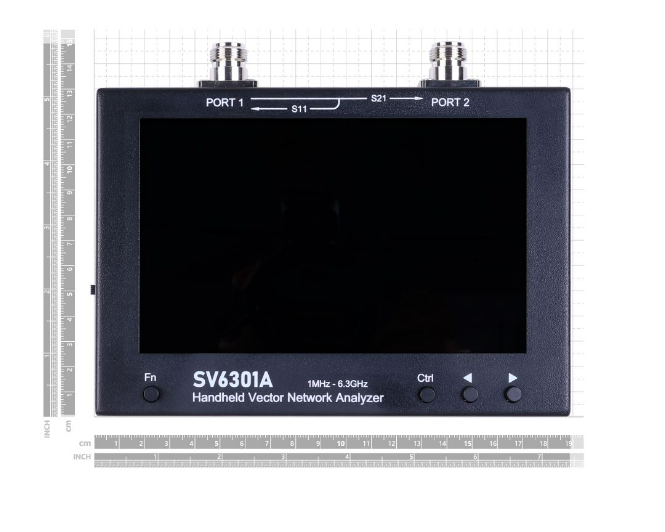

Dimensions | 190mmx130mmx30mm | RF connector not included |
Shell material | Iron |
|
Weight | 1.2kg |
|
1.7kg | Includes accessories and packaging | |
Operating temperature | 0℃-45℃ |
|

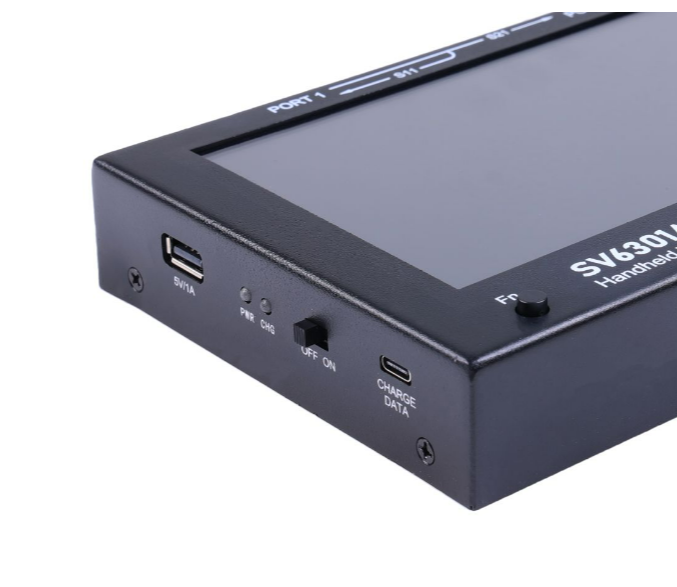

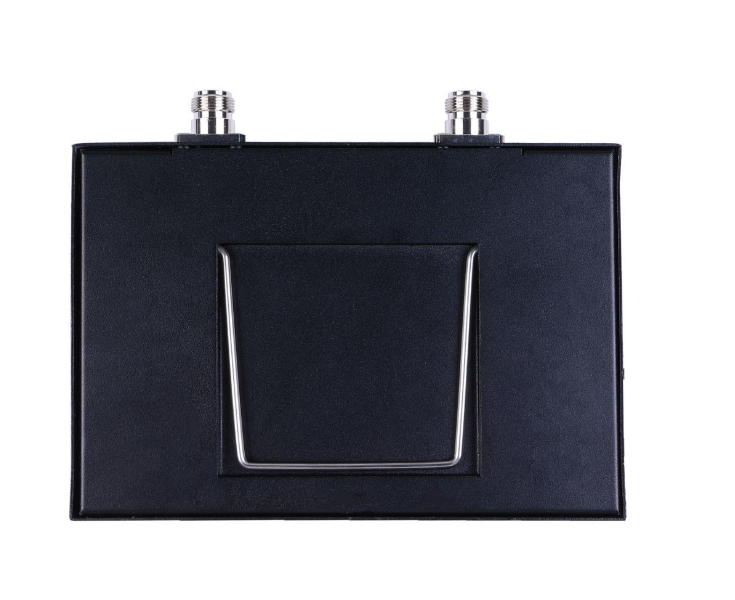

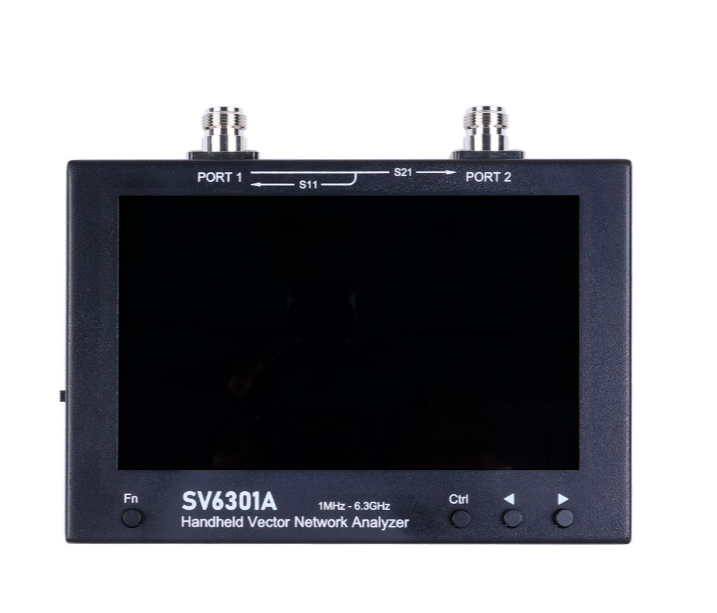

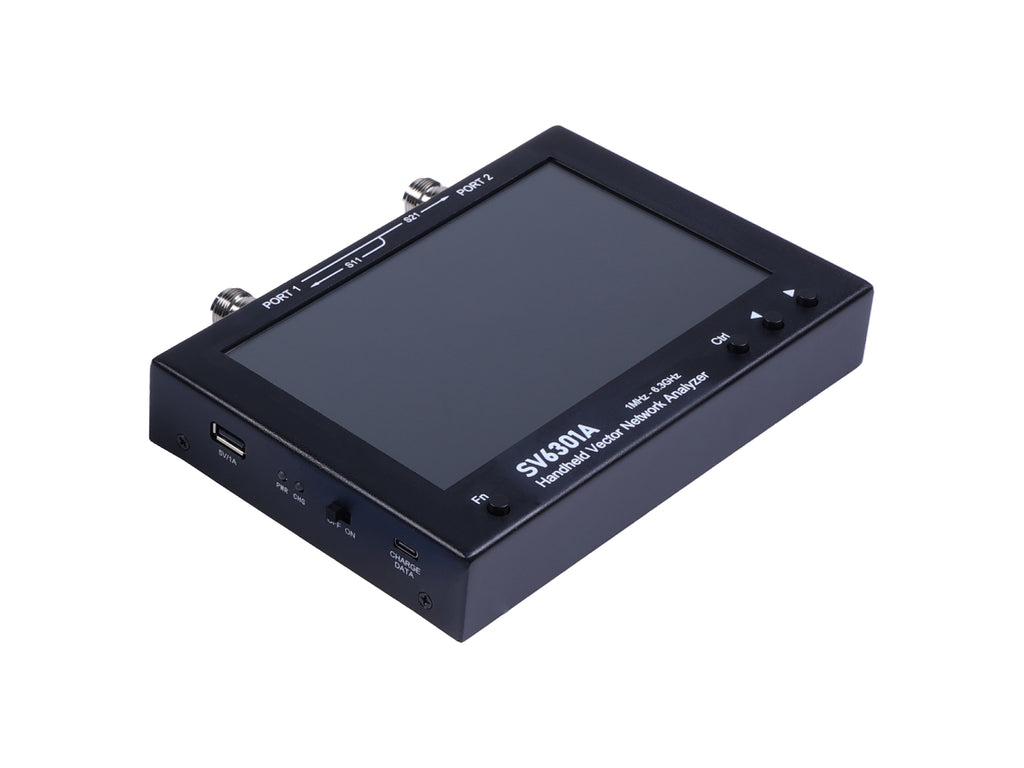

Hardware Overview

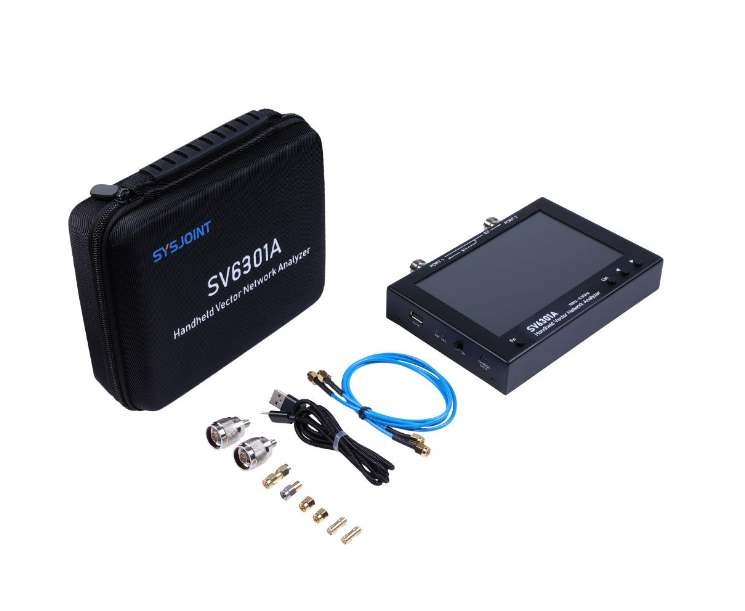

Part List
SV6301A (with built-in 8GB memory card and 18650 battery x2) | x1 |
SMA open calibration piece | x1 |
SMA short calibration piece | x1 |
SMA load calibration piece | x1 |
N to SMA adapter | x2 |
SMA-KK adapter | x2 |
SMA-JJ adapter | x1 |
60cm SMA-JJ SS405 coaxial cable | x2 |
USB Type-C cable | x1 |
Storage bag | x1 |
ECCN/HTS
| HSCODE | 9030409000 |
| USHSCODE | 9030390100 |
| UPC | |
| EUHSCODE | 9405413910 |
| COO | CHINA |
