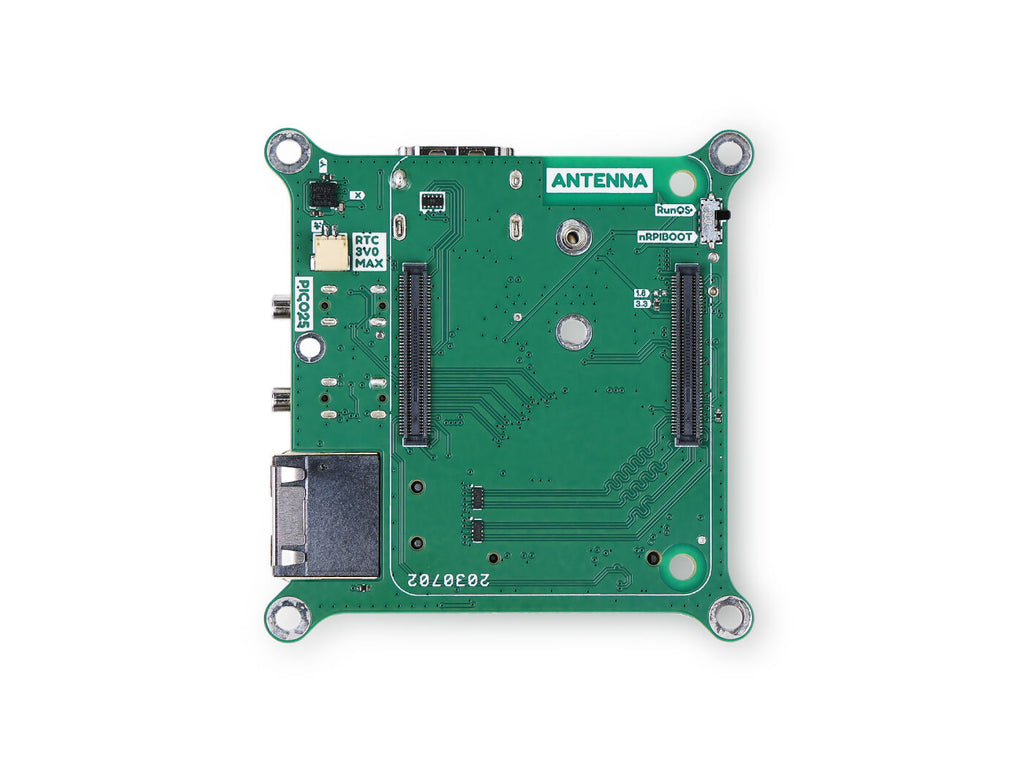

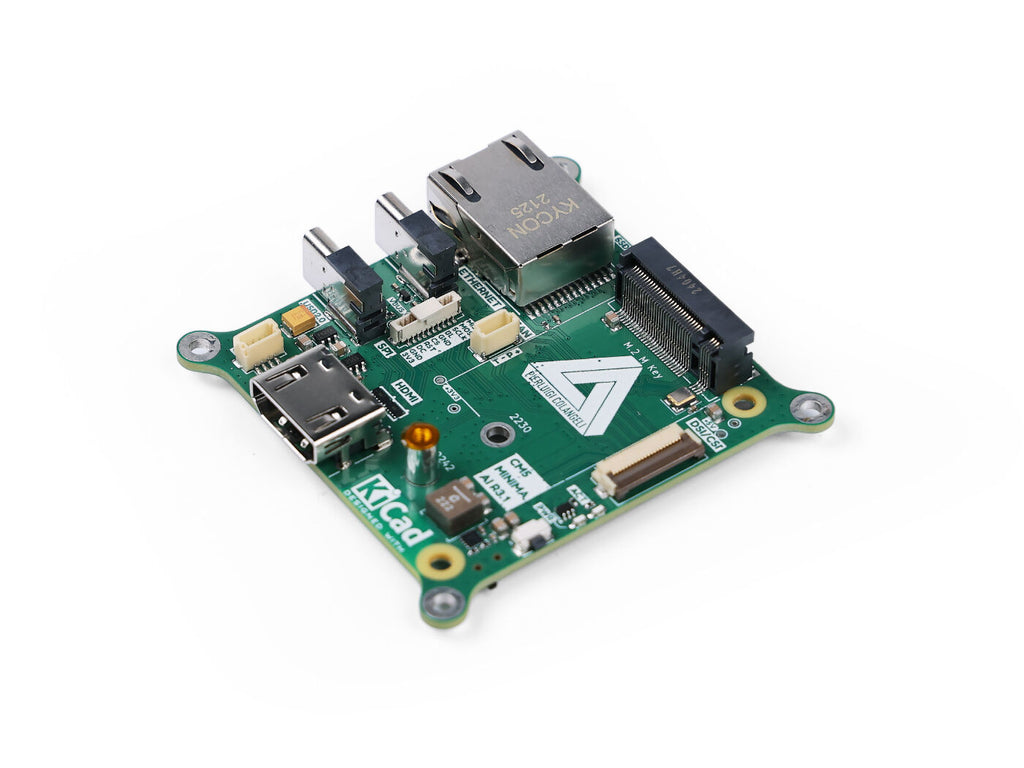

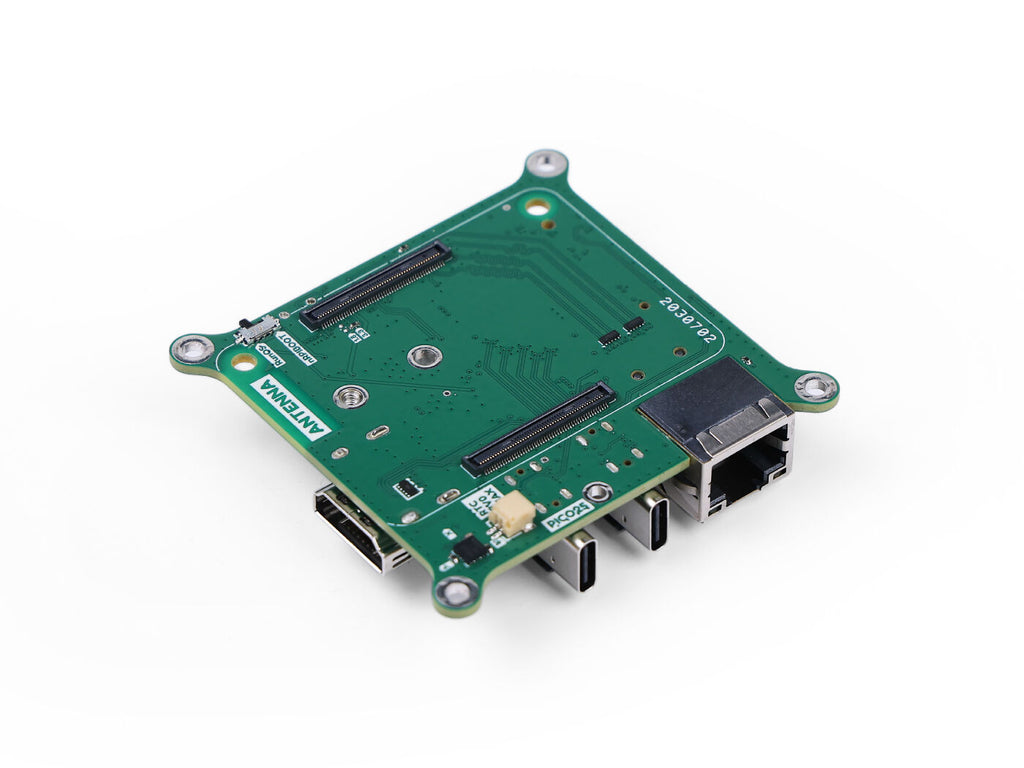

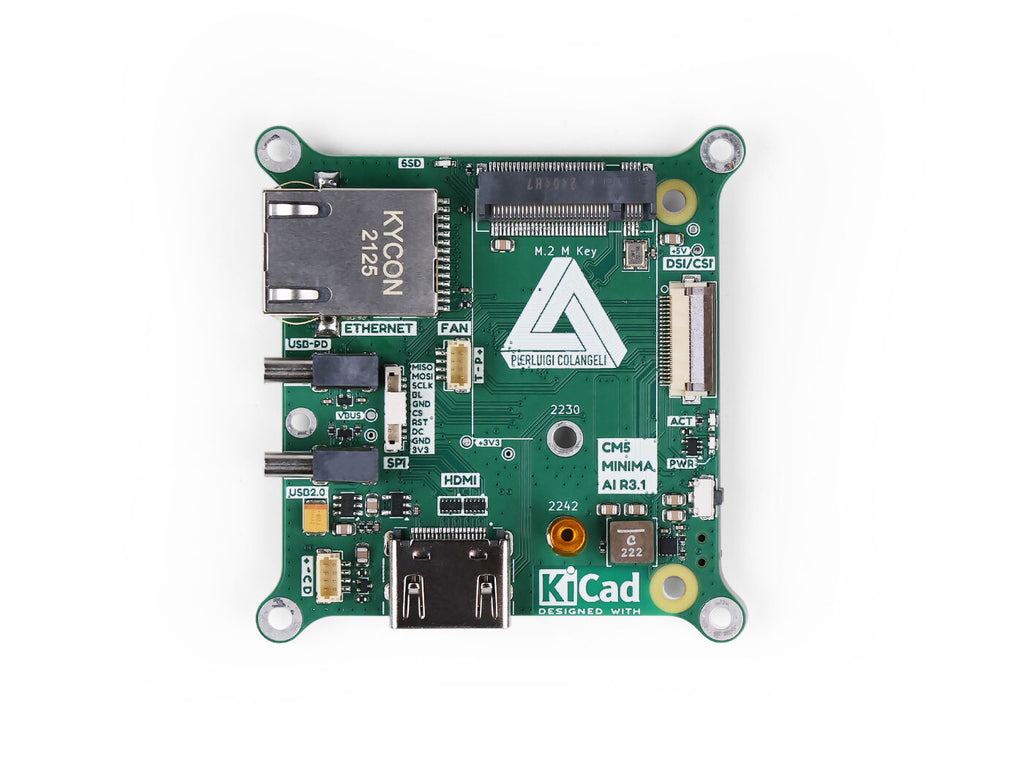

The CM5 MINIMA is a compact carrier board for the latest Raspberry Pi computing module 5. It is designed for embedded applications, DIY electronics, and low-power computing projects. Unlike traditional desktop computers, the CM5 is a small, efficient system that integrates essential computing hardware onto a single board. Whether you're a hobbyist, developer, or engineer, this module provides a versatile platform for various applications, including IoT, automation, and custom hardware development.
- USB-C Power Delivery (PD): Supports power negotiation for efficient energy use.
- USB 2.0 Ports: Connect peripherals such as keyboards, mice, and external storage.
- Gigabit Ethernet: High-speed wired networking with a low-profile cutout magjack.
- HDMI Port: Output video to external displays for media playback or interface applications.
- M.2 M Key Slot: Supports 2242 HAILO accelerator or SSDs for storage expansion.
- CSI/DSI Connector: Attach camera modules or displays for vision-based applications.
- LIS3DH STM32 accelerometer: can help with automatic camera orientation.
- I2C Connector (3.3V only): Connect low-power sensors and communication modules.
- SPI Connector: Supports high-speed communication with other devices.
- Fan Connector: Optional cooling support for high-performance applications.
- Status LEDs: Visual indicators for power and system activity.
- nRPI boot switch: Flash CM5 OS directly on-board.
- Compact Size: Measuring only 6.1 × 6.1 cm, ideal for space-constrained projects.
Interface | |
Ethernet | 1x Gigabit ethernet |
USB | 1x USB-PD; 1x USB 2.0; |
Display | 1x Standard HDMI |
M.2 Slot | 1x PCIe M.2 M-Key for 2230/2242 cards |
Display/Camera | 1x CSI/DSI Connector |
LED | 1x ACT; 1x PWR; |
Button/Switch | 1x Boot Switch |
Communication | 1x I2C connector; 1x SPI connector (with 3 extra GPIOs); |
Other | RTC battery connector<br>LIS3DH 9-axis accelerometer |
Mechanical | |
Dimensions | 61mm x 61mm x 15mm |
- IoT & Smart Devices
- Hand-held projects
- AI camera traps and security systems
- Home Automation
- Media Centers
- DIY Projects
CM5 MINIMA - Mini Carrier Board (Without CM5) | x1 |
