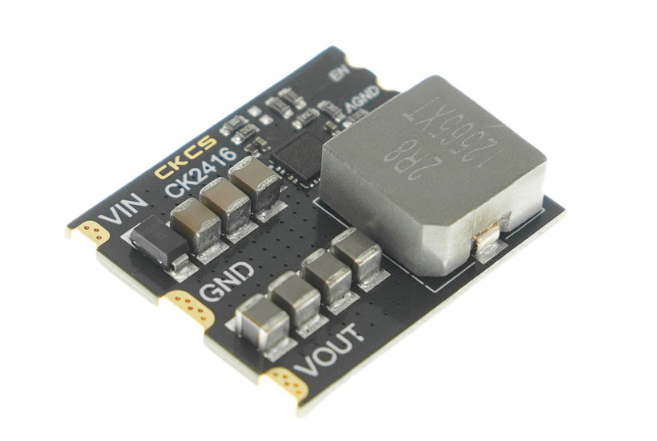

This DC-DC step-down converter module is designed to efficiently reduce a high input voltage (15-24V) to a stable 12V output, supporting up to 12A of current. The module offers high conversion efficiency (over 95%), with minimal ripple noise (under 50mV), making it suitable for power-sensitive applications. It also includes built-in protection features such as over-temperature protection (up to 125°C) and short circuit protection, ensuring the safe operation of both the module and connected devices.
High Conversion Efficiency
Achieves greater than 95% efficiency with 24V input and 1-12A load, minimizing energy loss and ensuring reliable power conversion for demanding applications.
Over-Temperature and Short Circuit Protection
Features over-temperature protection up to 125°C and output short circuit protection, safeguarding the module and connected devices from damage.
Thermal Management for High-Current Loads

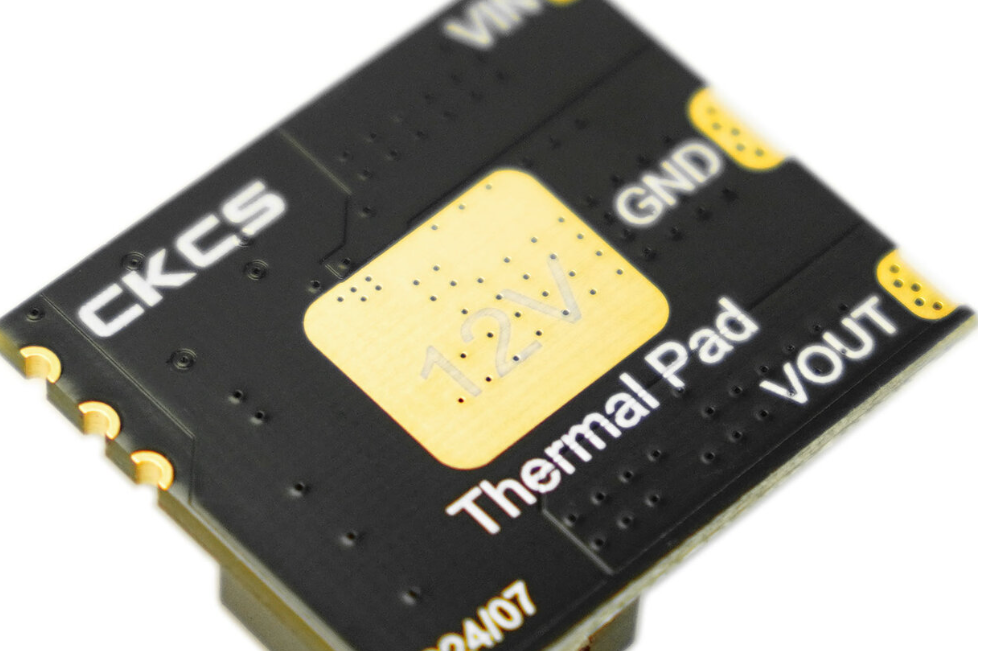

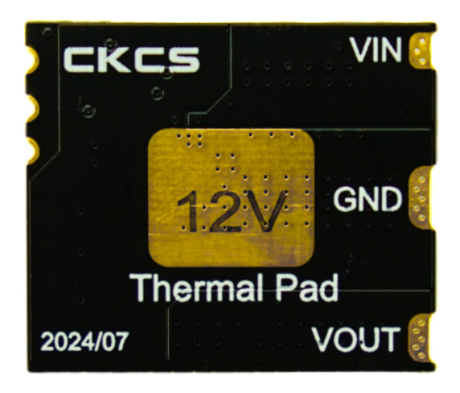

A built-in thermal pad allows for enhanced heat dissipation when soldered to a larger copper area, providing improved performance under heavy load conditions.
The module features three control pins:

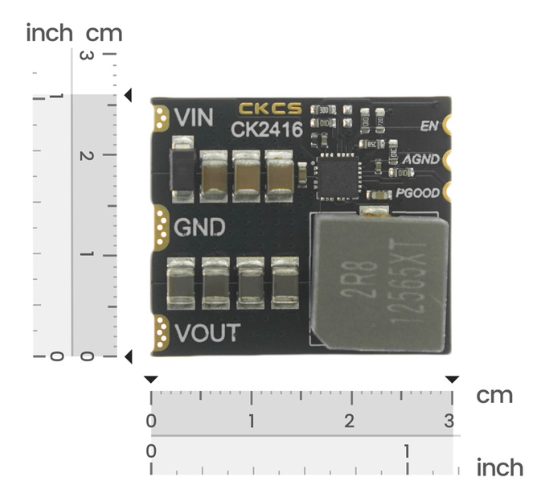

Figure: Pin and Dimension Diagram of DC-DC step-down converter module
Conversion Efficiency
Figure: Conversion efficiency (Input 24V, output 12V, with a load ranging from 1 to 12A)
Applications:
Specification:
Product Includes:
