- Full-speed USB device interface compatible with USB V2.0
- Supports baud rates from 50bps to 1Mbps
- Switchable 5V and 3.3V UART serial port signal levels
- Compatible with 32/64-bit Windows operating systems including Windows 10, 8.1, 8, 7, Vista, XP, and various server editions
- Microsoft digital signature certification for secure operation
- Allows for control of SMS and SCS series servos through a single serial port
- Asynchronous half-duplex communication mode with hardware automatic diversion, reducing the need for additional IO control
- Error-proof connection interface for servo systems to ensure proper connections
- General-purpose UART interface that can be used for USB-to-serial output or to connect MCU UART for controlling servos
- Equipped with signal level power indicator (D1), TX (D2), and RX (D3) indicators for easy data status monitoring
- 5V voltage supplied from USB; external 5V supply can also be used
- 500mA overcurrent protection and overvoltage protection for the USB power supply
Product | Feetech HL-3615-C002 6V 2.5Kg Servo |
Weight | 12.5 g |
Dimensions | 55.8 * 36.6 * 11.5 mm |
Mounting size | 48.8 * 28.8 mm |
USB interface | Mini USB |
UART interface | 2.54 pin spacing |
SCS servo interface | 3PIN 5264-3AW |
SMS servo interface | 4PIN 5264-4AW |
Actuator power interface | 5.08 terminal |

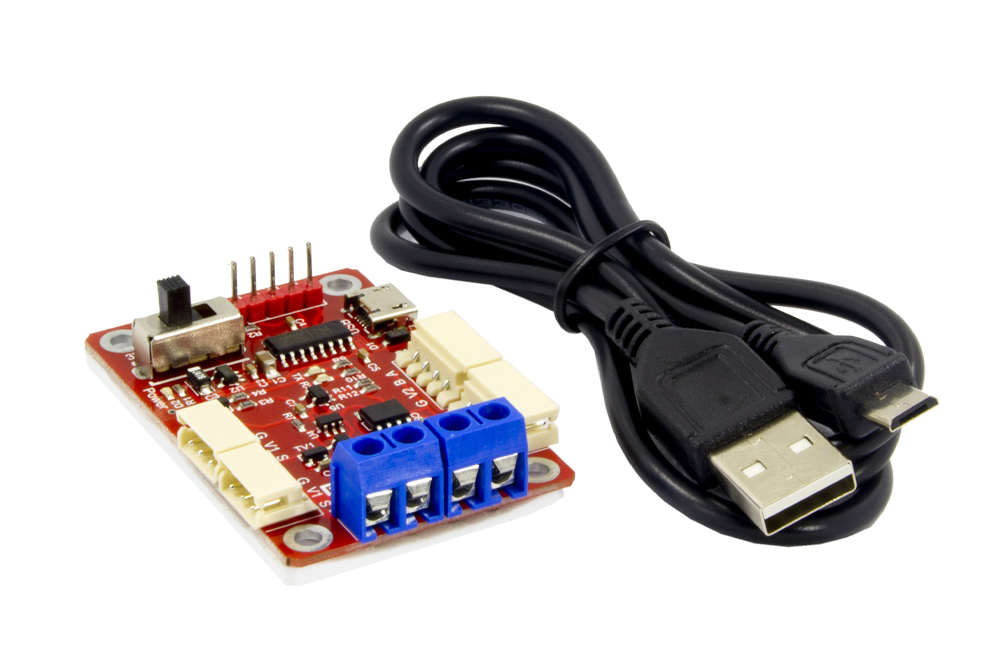

FE-URT-1 USB to TTL, 485 bus programmer | x1 |
| HSCODE | 8503001000 |
| USHSCODE | 8501106080 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
Array
