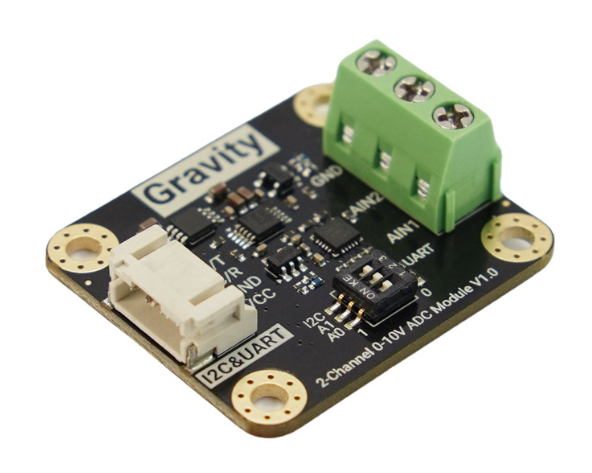

The Gravity: 0-10V 15-Bit High-Precision ADC Module combines dual-channel 0-10V input with I2C and UART interfaces, offering unmatched flexibility for Arduino, Raspberry Pi, and ESP32 users. Featuring 15-bit resolution (0.3125mV accuracy) and the Texas Instruments ADS1115 chip, it bridges industrial 0-10V sensors (e.g., pressure transducers, energy meters) with low-voltage microcontrollers. Perfect for automation, environmental monitoring, and IoT systems requiring stable, noise-resistant signal conversion.
Industrial-Grade 0-10V Sensor Compatibility
The module directly interfaces with industrial-standard 0-10V sensors, such as pressure transducers, flow meters, and wind speed sensors. It resolves the voltage mismatch between high-output sensors (0-10V) and low-voltage microcontrollers (e.g., Arduino, Raspberry Pi), eliminating the need for external signal conditioning.
15-bit Resolution with Enhanced Accuracy
With a 15-bit ADC and ±2mV precision, the module captures subtle signal variations (e.g., 0.3125mV steps), making it suitable for applications requiring fine-grained data, such as water tank pressure monitoring or energy consumption analysis. The ADS1115’s PGA dynamically adjusts gain to maintain accuracy across the full 0-10V range.
Flexible Communication Interfaces
Dual I2C and UART protocols ensure compatibility with diverse controllers, from Arduino boards to industrial PLCs. The Gravity-4P connector standardizes wiring, reducing setup complexity for multi-sensor systems.
Applications:
- Industrial Automation: Real-time monitoring of pressure, flow rate, and temperature in manufacturing pipelines.
- Environmental Monitoring: Precise measurement of water quality parameters, wind speed, and humidity in outdoor stations.
- Energy Management: Tracking voltage signals from energy meters or solar inverters for consumption analysis.
Specification:
- Chip: ADS1115
- Input Range: 0-10V
- Resolution: 15-bit (0.3125mV)
- Accuracy: ±2mV
- Communication: I2C/UART
- Supply Voltage: 3.3-5V DC
Documents:
- Product wiki
- Function Diagram

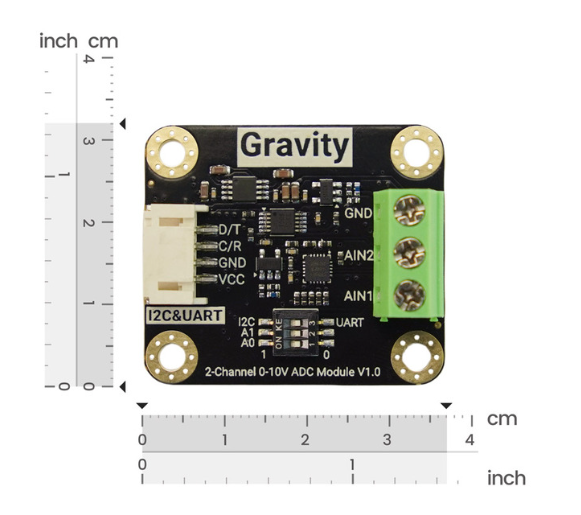

- Dimension Diagram
- Serial Communication Description
- Serial AT Command Description
- Arduino Usage Tutorial
- Accuracy Test Record
- Schematic
- 2D CAD
- 2D DXF
- 3D STP

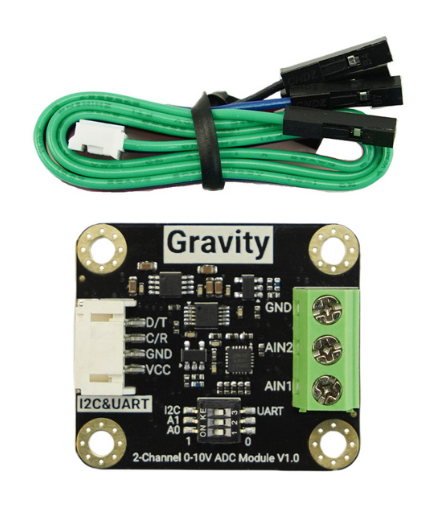

Product Includes:
- Gravity ADC Module ×1
- Gravity-4P I2C/UART Cable ×1
