Gravity: BMP585 High-Precision Barometric Pressure & Temperature Sensor (I2C / UART)

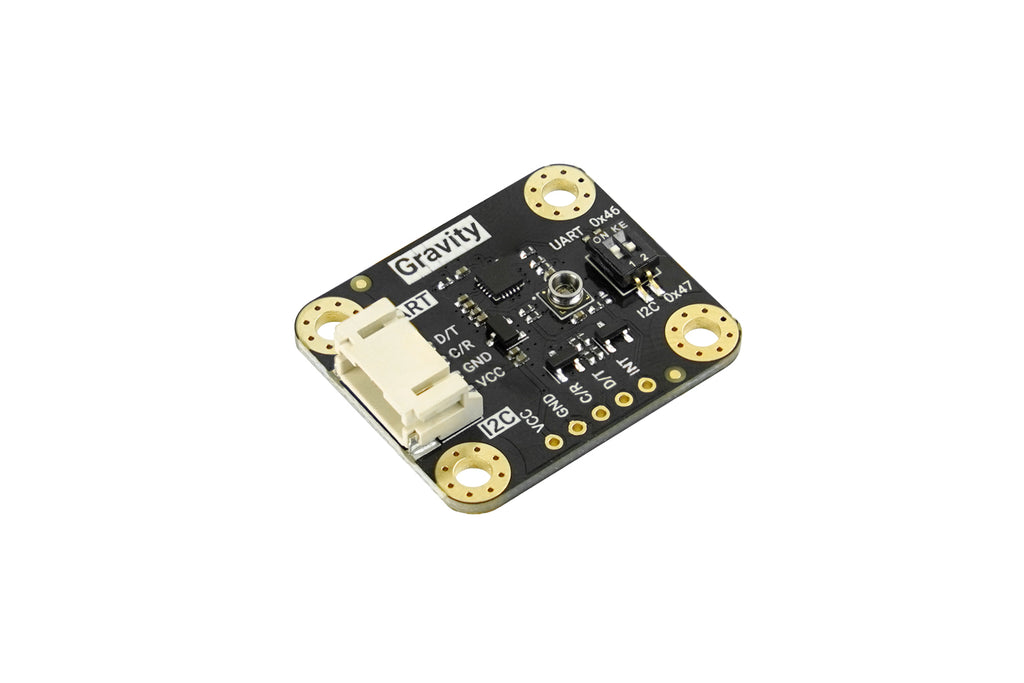

The Gravity: BMP585 High-Precision Barometric Pressure & Temperature Sensor brings industrial-grade reliability to challenging projects by integrating the advanced Bosch BMP585 chip into a rugged, gel-filled design. Built to withstand water, moisture, and chemical exposure, this waterproof barometric module overcomes the durability limitations of traditional sensors while delivering exceptional ±0.3 hPa absolute accuracy and ultra-low noise (0.1 Pa). Capable of detecting centimeter-level altitude changes with minimal power consumption (~700μA), the environmental sensing unit supports both I2C and UART interfaces, making it the superior choice for drone altitude stabilization, outdoor meteorological monitoring, and precision navigation systems requiring long-term stability in demanding conditions.

Industrial-Grade Durability with Liquid-Proof Design

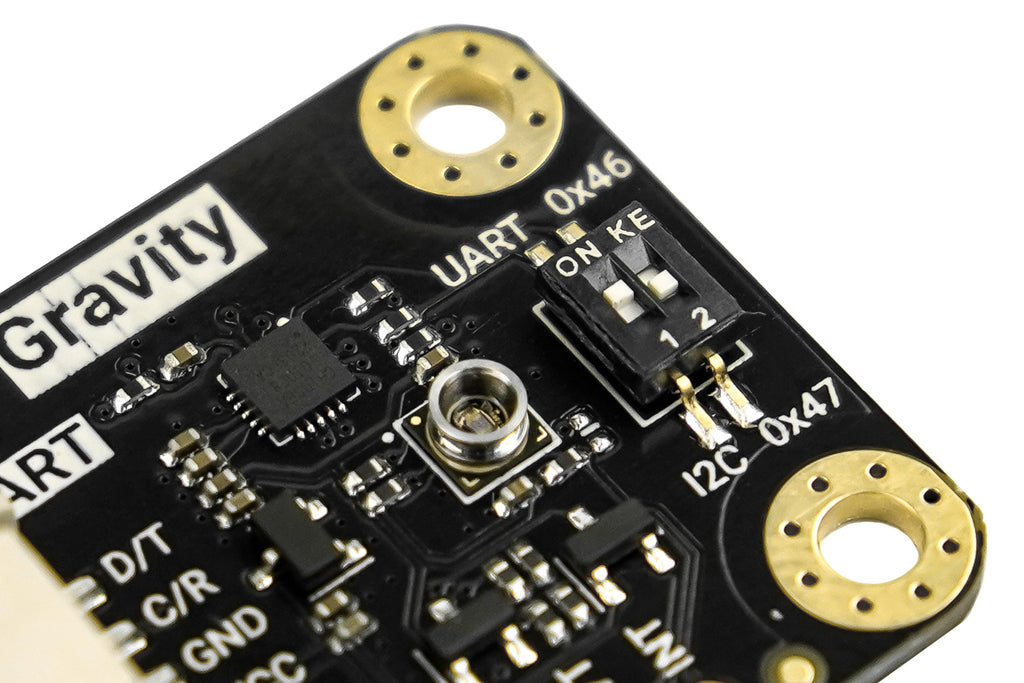

A primary challenge for standard MEMS pressure devices is susceptibility to environmental contaminants. The Gravity: BMP585 addresses this through a specialized gel-filled cavity architecture and an industrial-grade protective cover. This construction allows the waterproof barometric instrument to maintain reliable operation even in the presence of water, humidity, and other corrosive elements. By effectively resisting external interference, the ruggedized pressure monitor ensures long-term stability and extended service life in harsh outdoor environments where traditional components would degrade or fail.

Laboratory-Level Precision and Ultra-Low Noise

At the core of this altitude measurement solution is the capability to deliver exceptional data fidelity. The module achieves an absolute pressure accuracy of ±0.3 hPa and relative accuracy of ±0.06 hPa, ensuring that measurements remain dependable across its 30 to 125 kPa range. Furthermore, the ultra-low noise floor (< 0.1 Pa RMS) eliminates the need for aggressive external filtering that can introduce lag. This level of sensitivity allows the high-precision altimeter to detect floor-level elevation changes in indoor navigation systems or maintain rock-steady hovering altitude for UAVs and drones.

Intelligent On-Chip Data Processing

To support dynamic applications, the digital barometer integrates advanced hardware features including a FIFO (First In, First Out) buffer and a configurable Infinite Impulse Response (IIR) filter. The internal hardware FIFO reduces the polling frequency required from the host microcontroller, thereby saving system power and freeing up processing resources. Simultaneously, the built-in filtering algorithms smooth out data jitter caused by sudden airflow or environmental disturbances. This results in a cleaner, more stable signal output from the atmospheric sensor, which is critical for real-time control systems like drone flight controllers.

Flexible Integration and Wide Compatibility

Designed for seamless adoption into existing ecosystems, the environmental data logger supports both I2C and UART communication protocols. The inclusion of a wide-voltage design ensures compatibility with both 3.3V and 5V logic levels, making the unit plug-and-play with popular controllers such as the ESP32, Raspberry Pi, and Arduino platforms. The provision of open-source code libraries further accelerates the development cycle, allowing for rapid deployment in prototyping and mass production contexts alike.

Figure: Wiring Diagram of Gravity: BMP585 High-Precision Barometric Pressure & Temperature Sensor and ESP32

Applications:

Specification:

Basic Parameters

BMP585 Parameters

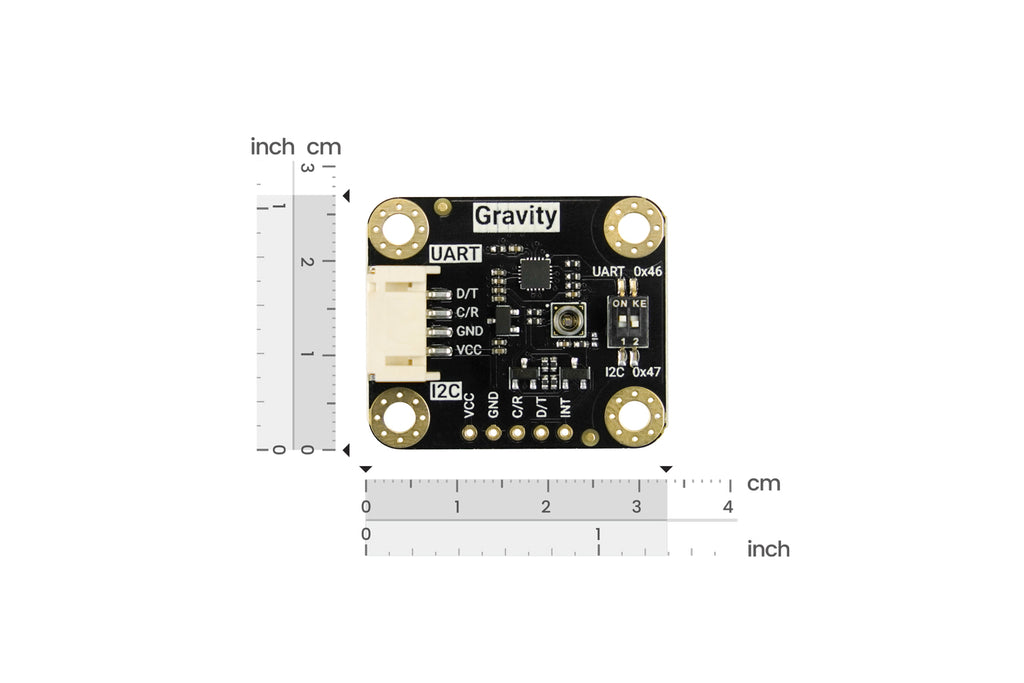

Physical Dimensions

Documents:

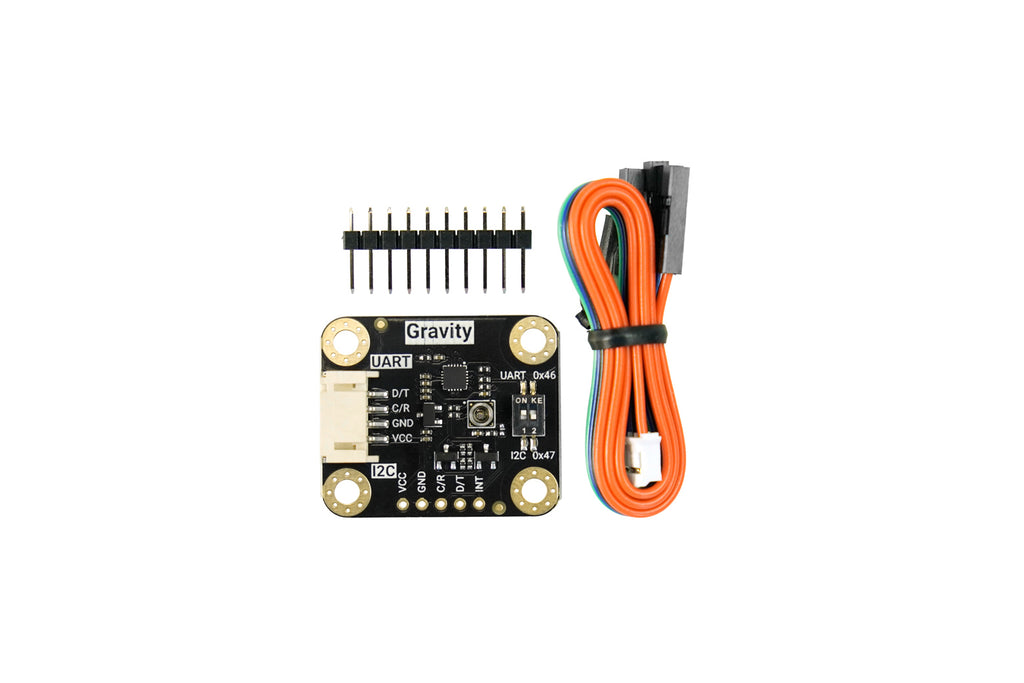

Product Includes:
