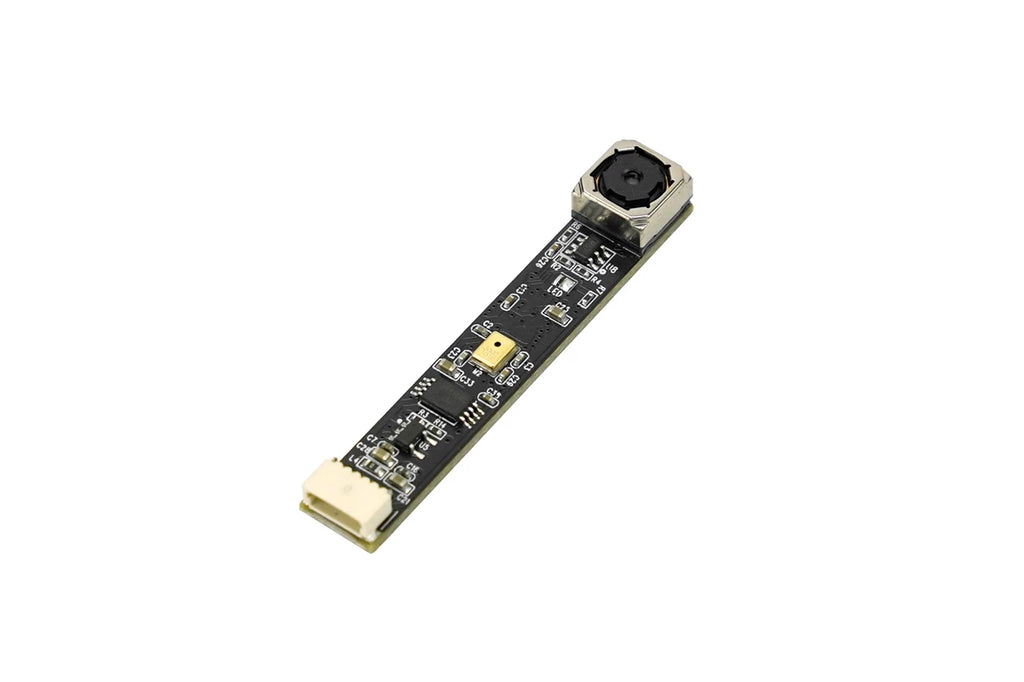

IMX179 8MP Autofocus USB Camera Module with Microphone for Raspberry Pi/ NVIDIA / LattePanda

The IMX179 8MP USB Camera Module is a high-performance, versatile imaging solution designed for a wide range of embedded applications. Centered around the Sony IMX179 image sensor, it delivers exceptional 8-megapixel clarity, dynamic autofocus, and seamless plug-and-play functionality via a standard USB 2.0 interface. By leveraging the USB Video Class (UVC) protocol, this UVC camera operates without requiring special drivers, ensuring immediate compatibility across a vast range of hardware platforms and operating systems, including Raspberry Pi, NVIDIA Jetson, LattePanda, RDK X5 and PCs. With a maximum resolution of 3280×2464 and a fluid frame rate of 30 FPS at 1080p, this 8MP camera is engineered for demanding tasks in machine vision, security surveillance, and high-definition video conferencing.

High-Fidelity 8MP Imaging

Powered by a 1/3.2-inch Sony IMX179 sensor, this high-resolution imaging device captures images and video with outstanding detail and color accuracy. The high pixel count of 8 megapixels allows for the capture of fine details, which is critical for applications such as document scanning, quality control inspection, and identity recognition. Supporting multiple output formats including MJPEG and YUY2, this embedded vision camera offers the flexibility needed to balance image quality with bandwidth requirements for different projects.

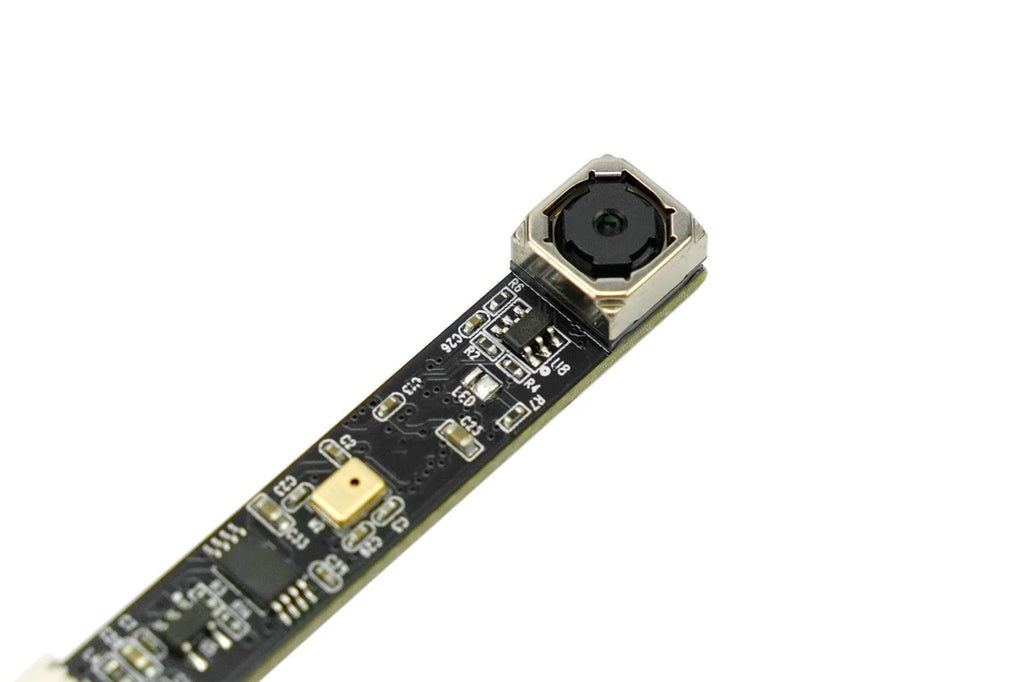

Dynamic and Responsive Autofocus

The integrated autofocus system automatically adjusts the lens to maintain a sharp, clear image of subjects at various distances, from 10cm to infinity. This eliminates the need for manual intervention and ensures consistent image quality in dynamic settings where the distance between the camera and the subject may change. This feature is particularly beneficial for interactive kiosks, educational document cameras, and machine vision systems that must track objects in motion.

Seamless Plug-and-Play Integration

Designed for rapid deployment and ease of use, this plug-and-play camera is fully compliant with the UVC standard. This enables true driver-free functionality across a broad spectrum of operating systems, including Windows, macOS, Android, and Linux-based platforms like the Raspberry Pi, NVIDIA Jetson, LattePanda, RDK X5 and other single-board computers. The standard USB 2.0 Type-A connection simplifies the physical integration process, drastically reducing development time and allowing developers to focus on their core application rather than on complex hardware setup.

Compatible Systems

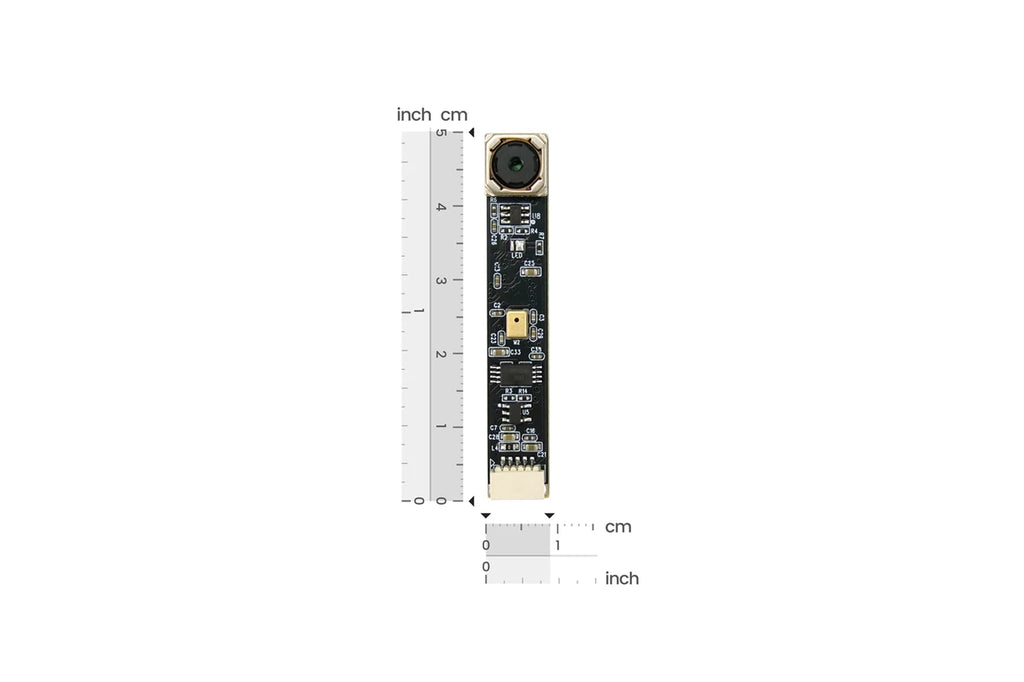

Dimension Diagram (Unit: mm)

Applications:

• Machine Vision for Robotics
• DIY Smart Security Camera
• High-Res Document & PCB Scanner
• Custom Webcam & Streaming Rig
• Interactive Kiosks & Art Installations

Specification:

• Image Sensor Size: 1/3.2 inch
• Active Pixels: 3280*2464
• Pixel Size: 1.4μm * 1.4μm
• Data Output Type: Raw Data 10bits
• Output Format: MJPEG, YUY2
• Supported Resolutions & Frame Rates (MJPEG):
       3264*2448 @15FPS    2592*1944 @15FPS
       1600*1200 @30FPS    1920*1080 @30FPS
       1280*720 @30FPS    960*540 @30FPS
       848*480 @30FPS    640*480 @30FPS
       640*360 @30FPS    424*240 @30FPS
       320*180 @30FPS
• Signal-to-Noise Ratio (SNR): TBD
• Dynamic Range (DR): TBD
• Minimum Illumination: TBD
• Connection Interface: 1.0 / 5PIN / USB 2.0 Type-A
• Cable Length: 1.5 meters
• Interface Speed: Max 480 Mbps
• Power Supply: 5V ±5%
• Storage Temperature: -40 ~ 70
• Operating Temperature: -30 ~ 60
• Supported Systems: Windows XP / Vista / 7 / 8.1 / 10 / Mac OS / Android / Linux 2.6.2+ (Includes UVC compliance)
• Effective Focal Length: 3.5mm ±5%
• F/NO (Aperture): F2.2 ±5%
• FOV (Field of View) Angle: D:72°±3°
• Distortion: < -0.5%
• Lens Construction: 5P (5 Plastic Elements)
• Default Lens Mount: M6*P0.25
• Focus Mode: Autofocus
• Shooting Distance: 10cm - ∞ (Infinity)

Documents:

• Github

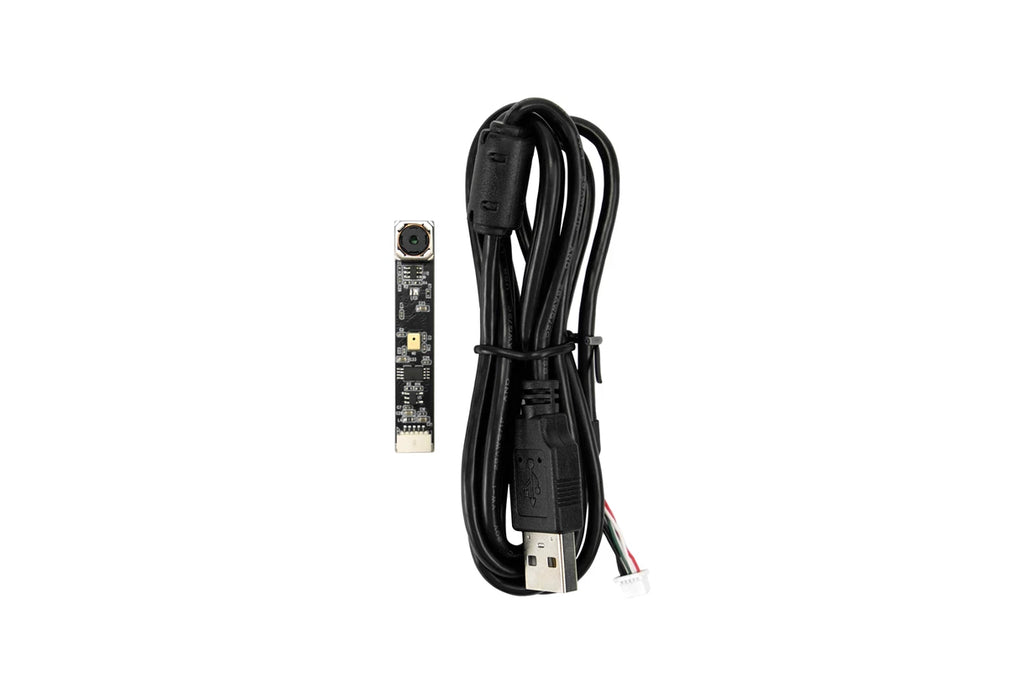

Product Includes:

• IMX179 USB 8MP Camera Module ×1
• 1m USB Cable × 1
