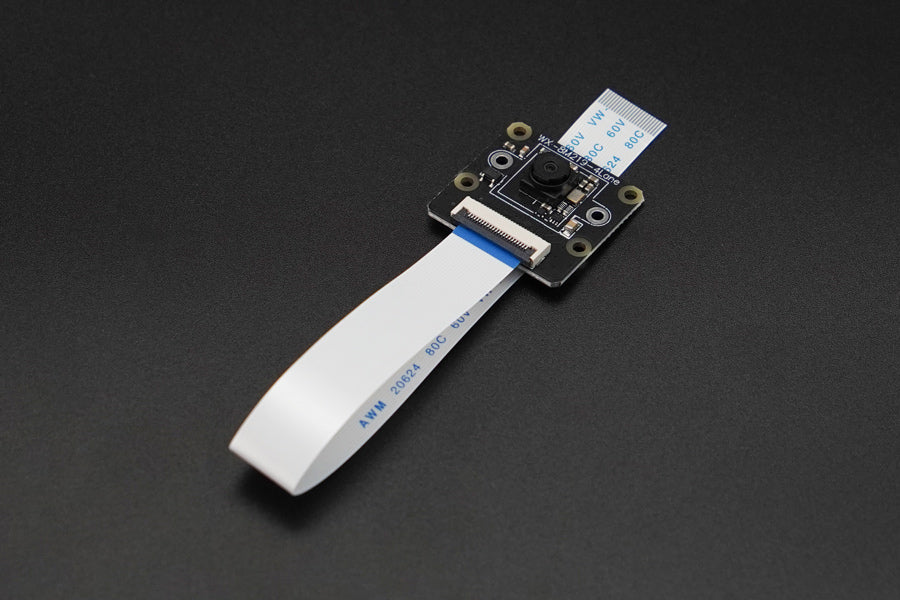

The IMX219-120-4Lane 8MP Camera Module is a high-performance imaging solution designed for the Raspberry Pi 5, offering a wide 120° field of view. Featuring the Sony IMX219 photosensitive chip, this camera captures sharp, high-resolution images with a 3280x2464 resolution. The MIPI-CSI-4Lane interface ensures fast data transfer for demanding applications, making this module ideal for real-time imaging tasks in robotics, security surveillance, and machine vision.
Excellent Compatibility with Raspberry Pi 5
Designed for seamless integration with the Raspberry Pi 5, the IMX219-120-4Lane module ensures easy installation with its 22-pin 0.5mm pitch connector and optimized interface, making it an ideal choice for Raspberry Pi-based projects.
Figure: Wiring Diagram of Raspberry Pi 5 and IMX219-120-4Lane camera module
High-Resolution Imaging with 120° Field of View
With an 8MP resolution and 120° wide-angle field of view, this camera provides detailed, distortion-free images, making it perfect for wide-area surveillance, visual inspections, and applications that require a broad capture area.
Figure: IMX219-120-4Lane 8MP Raspberry Pi 5 Camera Module Test Shot at 50cm - Approximate Horizontal Field: 96cm, Vertical Field: 75cm (Manual Measurement, Allow for Error)
MIPI-CSI-4Lane Interface for Enhanced Performance
Utilizing the MIPI-CSI-4Lane interface, this camera module offers superior data transfer speed compared to traditional 2-lane modules, enabling higher frame rates and smoother video capture for tasks such as real-time object detection and machine vision.
Figure: Dimension Diagram of IMX219-120-4Lane 8MP Raspberry Pi 5 Camera
How to Choose IMX219-120-4Lane camera module
The IMX219-120-4Lane camera module is available in two versions: 79° field of view (FOV) and 120° FOV (this one). The 79° FOV version offers a narrower, more focused field of view, making it ideal for applications requiring precision and detail, such as industrial automation, object recognition, and close-range inspections. The 120° FOV wide-angle version, designed for broader area capture, is perfect for security surveillance, smart home monitoring, autonomous robots, and large-scale visual inspections. Its wider field of view allows for fewer cameras to cover larger spaces, reducing blind spots in monitoring systems.
Figure: Raspberry Pi CSI Camera Selection Table
Applications:
- Security surveillance
- Smart home monitoring
- Autonomous robots
- Large-scale visual inspections
Specification:
- Photosensitive chip: Sony IMX219
- Pixels: 8 million
- Resolution: 3280x2464
- Camera type: color
- Shutter mode: rolling shutter
- Focus mode: fixed focus
- CMOS size: 1/4 inch
- Aperture: 2.0
- Focal length: 1.79mm
- Field of view: 120°
- Distortion: 1%
- Interface: MIPI-CSI-4Lane
- Cable specification: FPC-22Pin-0.5mm pitch
- Lens size: 6.5*6.5mm
- PCB size: 25*24mm
Documents:
Product Includes:
- IMX219-120-4Lane 8MP Raspberry Pi 5 Camera x1
- 22-pin FPC cable x1
