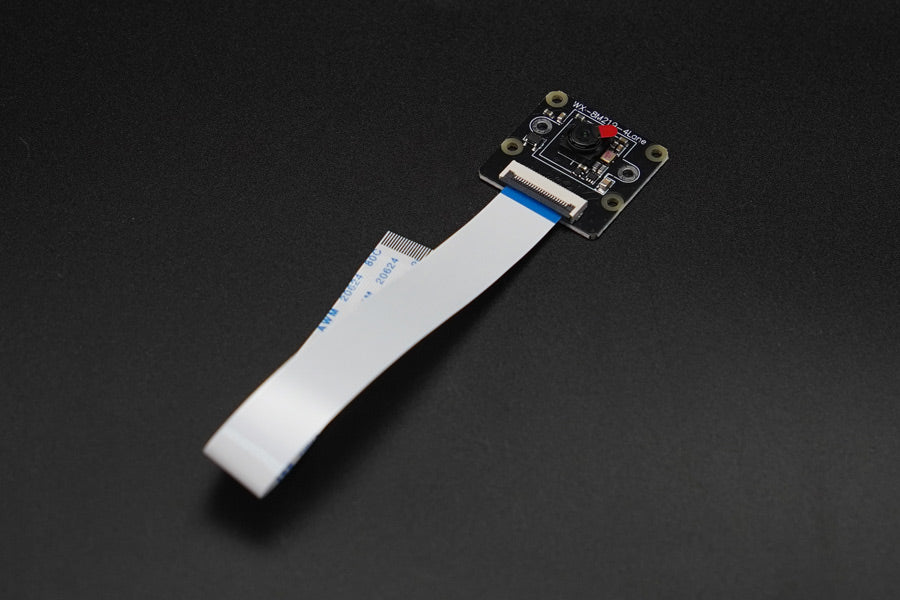

The IMX219-77-4Lane 8MP Camera Module is a high-performance imaging solution designed for high-definition visual applications with the Raspberry Pi 5. Featuring the Sony IMX219 photosensitive chip, it offers 8 million pixels and a resolution of 3280x2464, delivering sharp, distortion-free images. The module uses the MIPI-CSI-4Lane interface, ensuring fast data transfer for demanding image processing tasks. It is ideal for applications such as security surveillance, robotics, and image processing, where both fast, high-quality imaging and smooth video performance are crucial.
Excellent Compatibility with Raspberry Pi 5
IMX219-77-4Lane 8MP Camera is designed with seamless integration in mind, providing out-of-the-box compatibility with the Raspberry Pi 5. Its 22-pin 0.5mm pitch connector and optimized interface make installation and use straightforward, ensuring it works effectively with Raspberry Pi-based projects.
Figure: Wiring Diagram of Raspberry Pi 5 and IMX219-77-4Lane 8MP Camera Module
High-Resolution (3280x2464) Imaging
With an 8MP resolution (3280x2464), this Raspberry Pi 5 camera module delivers sharp, detailed images, ensuring high-quality output for both static and dynamic content. The 79.3° field of view guarantees comprehensive capture without distortion, making it suitable for a wide range of applications, including security cameras and visual inspections.
Figure: IMX219-77-4Lane 8MP Raspberry Pi 5 Camera Module Test Shot at 50cm - Approximate Horizontal Field: 62cm, Vertical Field: 47cm (Manual Measurement, Allow for Error)
MIPI-CSI-4Lane Interface for Enhanced Performance
Utilizing a MIPI-CSI-4Lane interface, the Raspberry Pi 5 camera module offers a higher frame rate compared to traditional 2-lane modules. This results in smoother video capture and enhanced performance for tasks requiring real-time imaging, such as object detection and machine vision.
Figure: Dimension Diagram of IMX219-77-4Lane 8MP Raspberry Pi 5 Camera Module
How to Choose IMX219-77-4Lane camera module
The IMX219-77-4Lane camera module is available in two versions: 79° FOV (this one) and 120° FOV. The 79° FOV version offers a narrower, more focused field of view, making it ideal for applications requiring precision and detail, such as industrial automation, object recognition, and close-range inspections. The 120° FOV wide-angle version, designed for broader area capture, is perfect for security surveillance, smart home monitoring, autonomous robots, and large-scale visual inspections. Its wider field of view allows for fewer cameras to cover larger spaces, reducing blind spots in monitoring systems.
Figure: Raspberry Pi CSI Camera Selection Table
Applications:
- Industrial automation
- Close-range inspections
- Object detection and machine vision
Specification:
- Photosensitive chip: Sony IMX219
- Pixels: 8 million
- Resolution: 3280x2464
- Camera type: color
- Shutter mode: rolling shutter
- Focus mode: fixed focus
- CMOS size: 1/4 inch
- Aperture: 2.0
- Focal length: 2.85mm
- Field of view: 79.3°
- Distortion: 1%
- Interface: MIPI-CSI-4Lane
- Cable specification: FPC-22Pin-0.5mm pitch
- Lens size: 6.5*6.5mm
- PCB size: 25*24mm
Documents:
Product Includes:
- IMX219-77-4Lane 8MP Raspberry Pi 5 Camera x1
- 22-pin FPC cable x1
