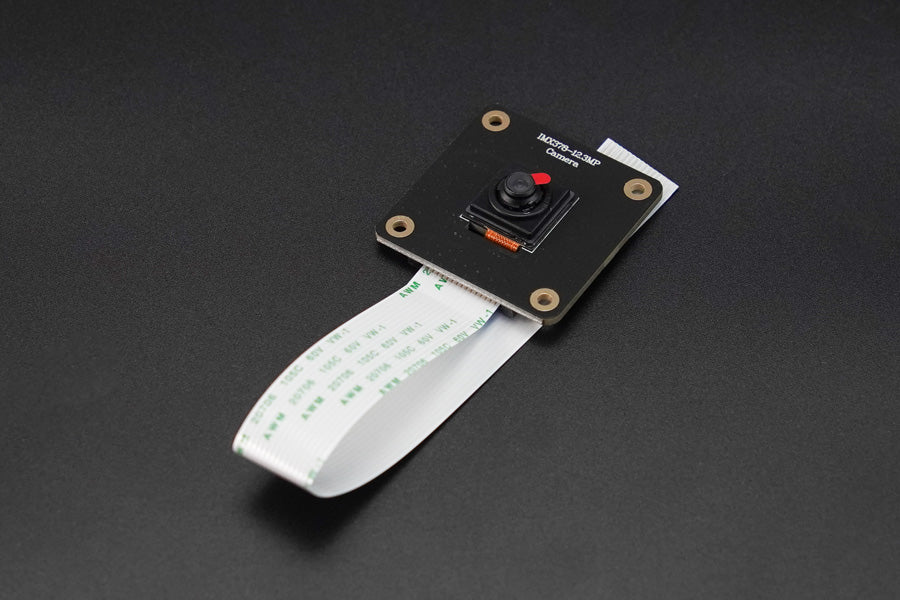

The IMX378-79 Camera Module is a cutting-edge imaging solution designed to deliver exceptional performance in industrial applications. Built with the Sony IMX378 photosensitive chip, it offers ultra-high 12.3MP resolution (4056x3040) and a precise 79° field of view, ensuring crystal-clear imaging. The module is fully compatible with Raspberry Pi single board computers (Raspberry Pi 5 / Raspberry Pi 4 / Raspberry Pi Zero) and comes with two FPC cables for seamless connectivity, eliminating the need for additional accessories.
Seamless Raspberry Pi Integration
The camera's MIPI-CSI-2Lane interface ensures efficient data transmission, while its plug-and-play compatibility with Raspberry Pi series boards simplifies deployment. Included FPC cables further enhance usability, streamlining the setup process for projects of all sizes.
Figure: Wiring Diagram of IMX378-79 12.3MP Raspberry Pi Camera and Raspberry Pi 5 / Raspberry Pi Zero
Sony IMX378 Sensor for Superior Image Quality
Powered by the Sony IMX378 sensor, this module achieves outstanding clarity and detail with its 1.55μm pixel size. The integrated infrared filter ensures vibrant and accurate color reproduction, making it suitable for applications requiring high-fidelity imaging.
High-Resolution Imaging with a 79° Field of View
With a resolution of 4056x3040 and a 79° FOV, this camera captures detailed visuals with minimal distortion (1.5%). The focused field of view enhances accuracy, making it ideal for close-range inspections, object recognition, and industrial automation.
Figure: Dimension Diagram of IMX378-79 12.3MP Raspberry Pi Camera
How to Choose IMX378 12.3MP Camera Module
The IMX378 camera module is available in two versions: 79° field of view (FOV) and 190° FOV (this one). The 79° FOV version offers a narrower, more focused field of view, making it ideal for applications requiring precision and detail, such as industrial automation, object recognition, and close-range inspections. The 190° FOV wide-angle version, designed for broader area capture, is perfect for security surveillance, smart home monitoring, autonomous robots, and large-scale visual inspections. Its wider field of view allows for fewer cameras to cover larger spaces, reducing blind spots in monitoring systems.
Figure: Raspberry Pi CSI Camera Selection Table
Applications:
- Close-range inspections
- Object recognition
- Industrial automation
Specification:
- Photosensitive chip: Sony IMX378
- Pixels: 12.3 million
- Chip pixel size: 1.55umx1.55um
- Resolution: 4056x3040
- Camera type: color
- Shutter mode: rolling shutter
- Focus mode: fixed focus
- CMOS size: 1/2.3 inches
- Infrared filter: integrated
- Aperture: 1.79
- Focal length: 4.74mm
- Field of view: 79°
- Distortion: 1.5%
- Interface: MIPI-CSI-2Lane
- Lens size: M8.5
- PCB size: 38*38mm
Documents:
Product Includes:
- IMX378-79 12.3MP Raspberry Pi Camera x1
- 15Pin to 15Pin FPC cable x1
- 15Pin to 22Pin FPC cable x1
