Description:
The Jetson Carrier Board is a high-performance expansion board for NVIDIA Jetson Nano, Xavier NX, and TX2 NX modules, delivering AI compute power from 472 GFLOPS to 21 TOPS. Perfect for edge AI applications, this carrier board features 4x USB 3.0 ports, Gigabit Ethernet, HDMI 2.0 output, and dual/quad-channel MIPI-CSI camera interfaces supporting up to 4K resolution. The board includes a 40-pin GPIO header for Raspberry Pi ecosystem compatibility, M.2 NVMe SSD support for fast storage expansion, and M.2 Key-E slot for Wi-Fi/Bluetooth modules. With DC 12V-24V wide-voltage input and PD 60W protocol support, it's ideal for ROS robotics, real-time object detection, autonomous navigation, generative AI inference, and IoT gateway applications. Built with reverse-connection and ESD protection for reliability. Compact 75mm x 120mm design. Perfect for students, makers, engineers, and industrial edge AI deployments. Note: Jetson module sold separately.
NOTE: This product is a Carrier Board only. The NVIDIA Jetson System-on-Module (SoM) is NOT included and must be purchased separately to function.

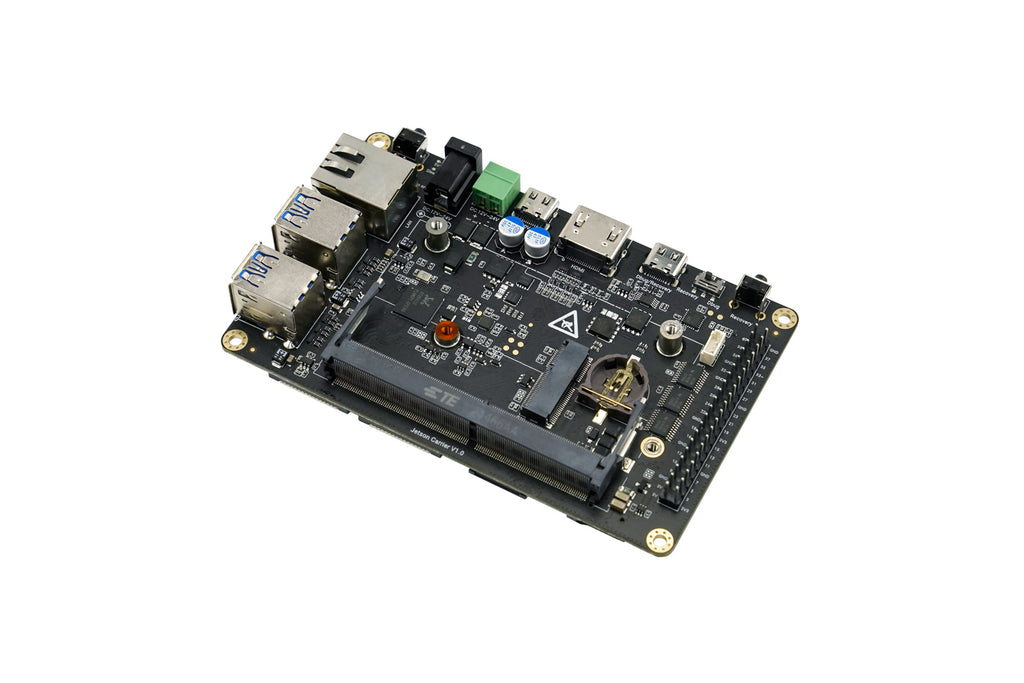

Figure: Board Overview of Jetson Carrier Board
High-Performance Computing at an Accessible Entry Point
The Jetson carrier board lowers the barrier to entry for advanced artificial intelligence by offering broad compatibility with the NVIDIA Jetson family. By supporting modules like the Jetson Xavier NX, the hardware facilitates server-class AI compute performance at the edge. This flexibility allows the development platform to scale with user requirements, accommodating everything from lightweight data processing to heavy-duty neural network inference, all while maintaining a price point accessible to educational institutions and individual DIY enthusiasts.
Extensive Interface Expansion for Robotic Ecosystems

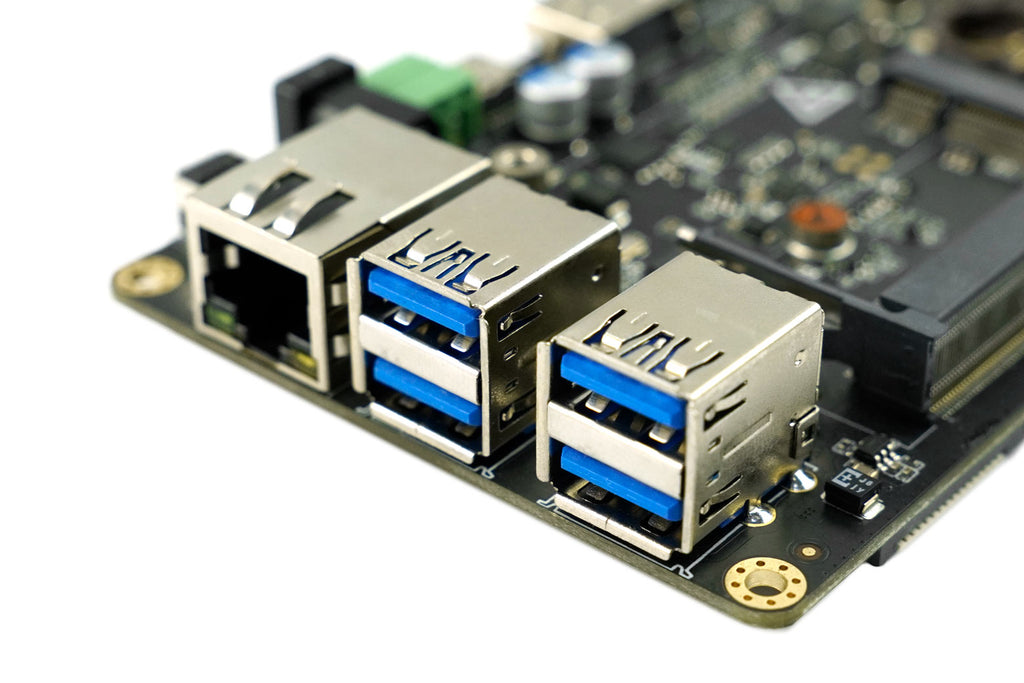

To support diverse hardware configurations, the expansion unit features a comprehensive array of peripheral connections. The inclusion of a 40-pin GPIO header ensures direct compatibility with a vast library of Raspberry Pi sensors, servos, and actuators, significantly simplifying the prototyping process. For data-intensive applications, the device includes four USB 3.0 ports, a Gigabit Ethernet controller, and HDMI 2.0 output, ensuring high-speed communication and display capabilities essential for complex ROS (Robot Operating System) projects.
Advanced Vision and Storage Capabilities

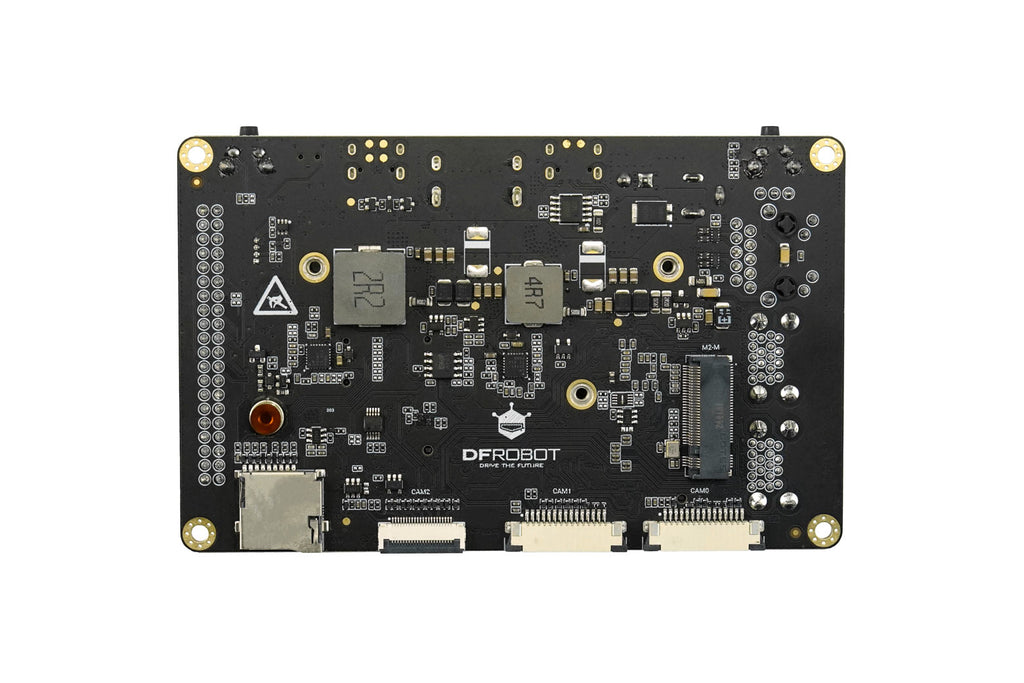

Visual perception is critical for modern AI, and this NVIDIA-compatible baseboard addresses this through 2x dual-channel and 1x quad-channel MIPI-CSI interfaces, supporting cameras up to 4K resolution. This multi-camera support is vital for depth sensing, stereo vision, and autonomous navigation. Furthermore, the system addresses the storage limitations of SD cards by integrating an M.2 Key-M slot, allowing for high-speed NVMe SSD installation. An additional M.2 Key-E slot is provided specifically for Wi-Fi and Bluetooth module expansion, ensuring robust wireless connectivity.
Industrial-Grade Power and Reliability

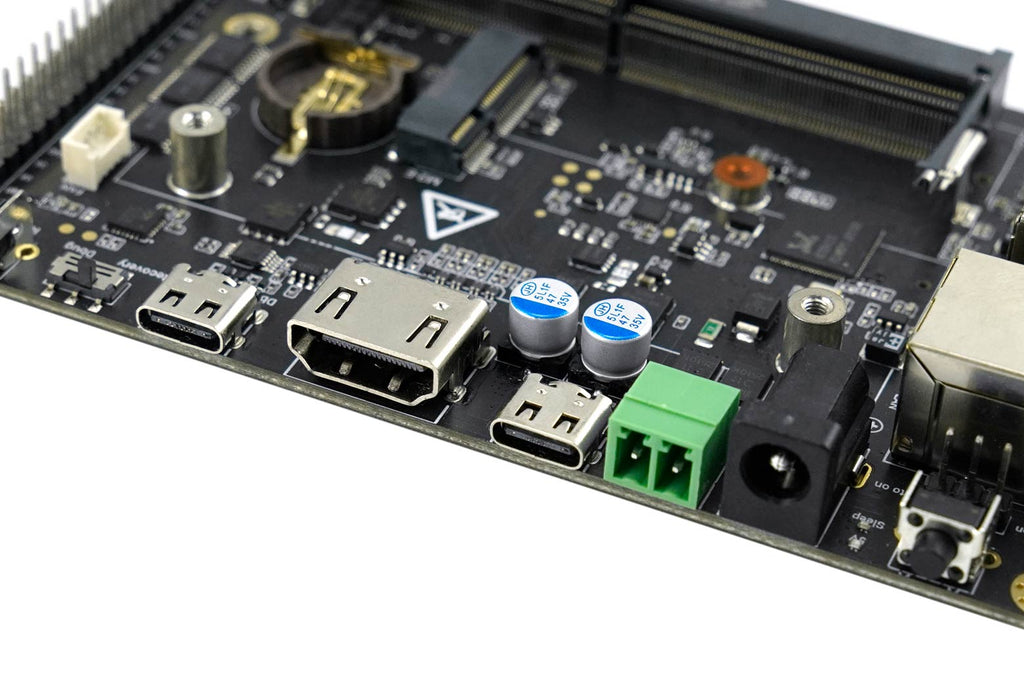

Stability is paramount in embedded systems. The development kit is equipped with a DC 12V-24V wide-voltage power jack and supports the PD 60W protocol, offering flexible powering options for mobile robots and stationary gateways. The compact PCB layout incorporates reverse-connection protection and ESD protection, safeguarding the sensitive SoM and peripherals against common electrical hazards during the experimental phase.
Applications:
- ROS Robotics: Building autonomous rovers, robotic arms, and drones with SLAM capabilities.
- Edge AI Vision: Real-time object detection, face recognition, and automated license plate recognition (ALPR).
- Generative AI: Running localized Large Language Models (LLMs) and image generation tools.
- Smart IoT Gateways: Aggregating sensor data and performing local anomaly detection before cloud transmission.
- STEM Education: Teaching advanced AI concepts using tangible, industrial-standard hardware.
Specification:
- Compatible Modules: Jetson Xavier™ NX, Jetson TX2™ NX, Jetson Nano™
- Power:
PD 60W protocol support
DC 12V-24V power jack - Image Capture Interfaces:
2x dual-channel MIPI-CSI
1x quad-channel MIPI-CSI - USB: 4x USB 3.0
- Network: Gigabit Ethernet port
- Video Output: HDMI 2.0
- Storage Expansion:
M.2 Key-M (supports NVMe SSD)
MicroSD card slot - Wireless Expansion: M.2 Key-E (for Wi-Fi/Bluetooth module)
- Debugging/Flashing: DEBUG and system flashing interface
- GPIO: 40-pin GPIO header

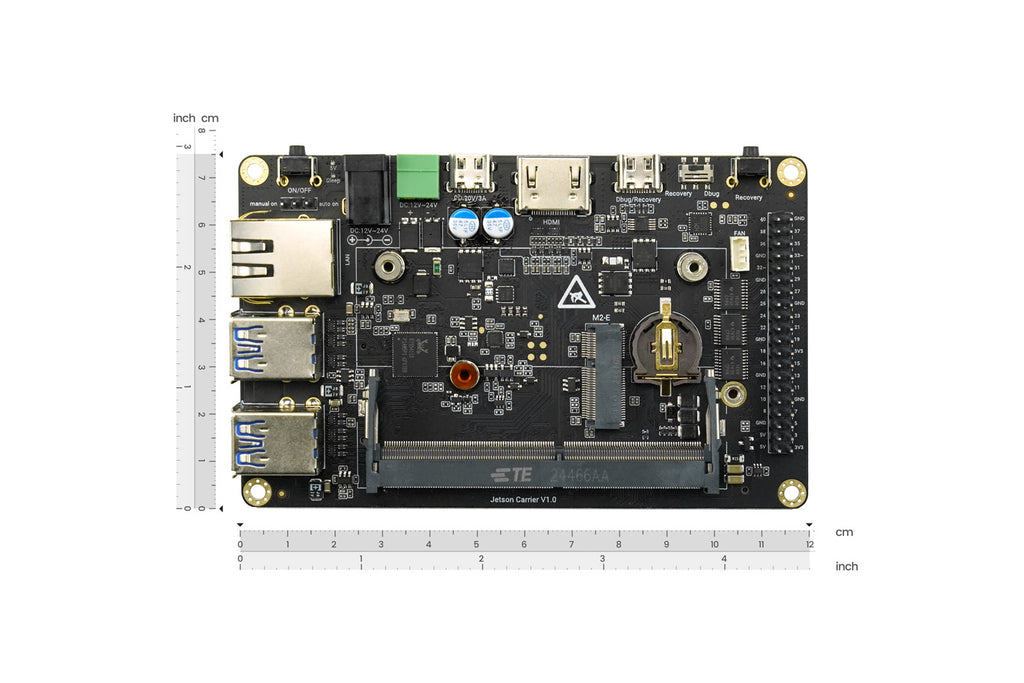

- Dimensions: 75mm x 120mm
Documents:

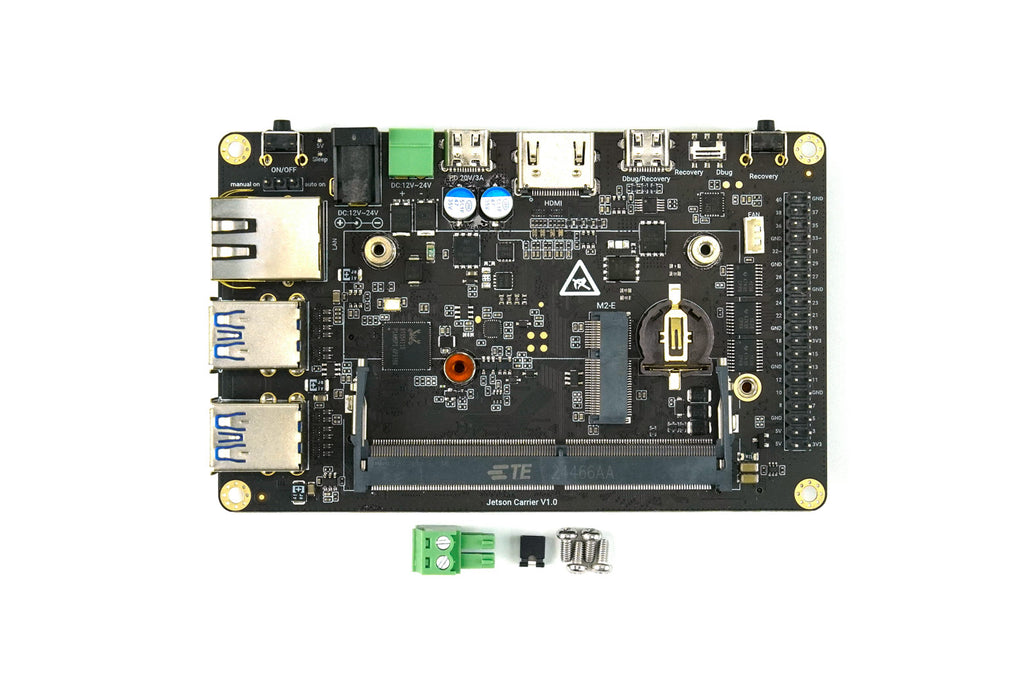

Product Includes:
- Jetson Carrier Board x1
- Pluggable Terminal Block (DB2EK-3.81-2P-GN-S-Female) x1
- M2.5 Mounting Screws x5
- Jumper Cap x1
