This board has been designed to complement the larger development board.
The larger development board can be used as a starting point for a project by attaching inputs and outputs to the board via the terminal blocks.
The PIC software can then be developed and the complete solution tested without using a soldering iron. Once students are happy with their design they can transfer the design to this project board, soldering their chosen peripherals into the board.
This development board can then be reused on future projects.
You can connect any device to the outputs of the board including LEDs, sounders, motors etc.
The teaching notes for this project include a number of possible projects including, a decision maker, traffic light, timer, quiz buzzer, alarm and a timed fan.
Features:
- 8 Pin PIC Project Board.
- Compatible with most education Flowcharting Systems.
- This development board can then be reused on future projects.

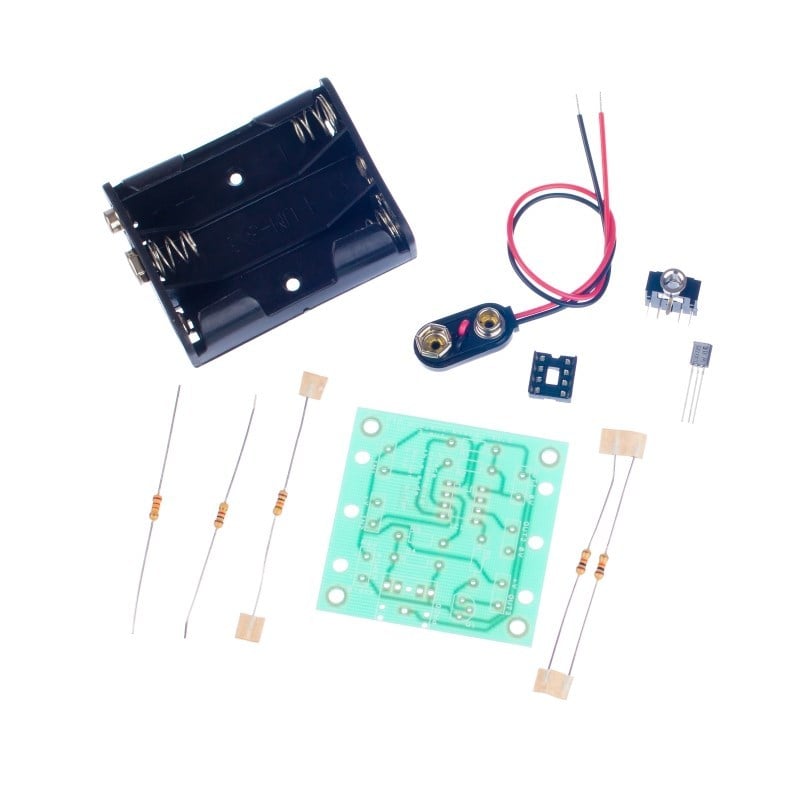

Contents:
- 3 x 1KΩ Resistors.
- 1 x 10KΩ Resistor.
- 1 x 22KΩ Resistor.
- 1 x BC337 NPN Transistor.
- 1 x 3.5mm PCB Mount Jack Socket.
- 1 x 8 Pin IC Holder.
- 1 x PP3 Clip Lead.
- 1 x 3xAA Battery Cage.
- 1 x PIC project board PCB.
Dimensions:
- PCB Length: 48mm.
- PCB Width: 48mm.
Requires:
- 3 x GP AA Batteries.
- You Will alsoneed either the PICAXE or GENIE Programming Software and Lead.
- Pliers.
- Soldering Iron.
- Solder.
- Wire Cutters.
- Wire Strippers.
Resources:
Note:
- This kit requires assembly.
- Processor not included.
