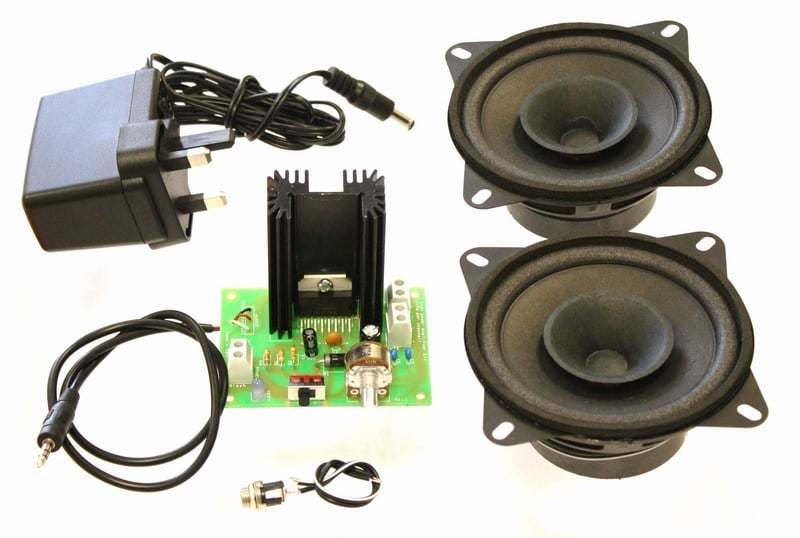

The High Power Amplifier kit from Kitronik can output up to 15W per channel into a pair of high-quality speakers (included). The kit is capable of producing a very loud, high-quality stereo sound. The kit includes all the parts required, including power supply, to build your own amplifier for use with items such as MP3 players.
Once assembled it has everything you would expect of an amplifier, a power LED, on/off switch and volume control. All you need to do is design your own enclosure.
Features:
- 15W per channel amplifier.
- Supplied with 3.5mm jack cable.
- High quality 20W full-range speakers.

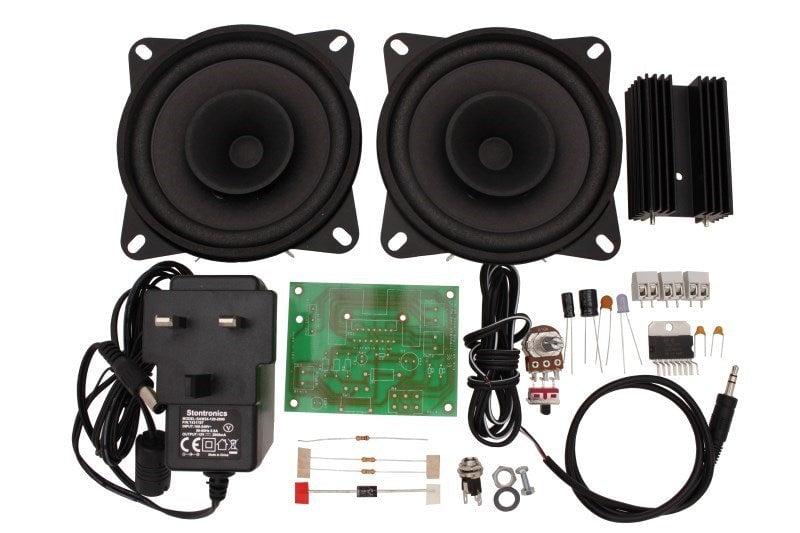

Contents:
- 1 x TDA7297 15W+15W Dual Bridge Amplifier .
- 2 x 20W 10cm Full Range Speaker.
- 1 x 12V, 2A Wall Block Power Supply.
- 1 x 6400BG Heatsink.
- 1 x Pan Head M3 x10mm Machine Screw.
- 1 x M3 Hex Full Width Nut, Zinc.
- 1 x Dual Wipe Potentiometer, 10K.
- 2 x 47K Resistor.
- 1 x Blue 5mm Diffused LED – 500mCd.
- 1 x 1K Resistor.
- 1 x Electrolytic Capacitor, 16V, 470uF.
- 1 x Ceramic Capacitor, 50V, 100nF.
- 2 x Ceramic Capacitor, 50V, 220nF.
- 1 x Electrolytic Capacitor, 16V, 10uF.
- 1 x Miniature PCB SPDT High Current Slide Switch.
- 1 x DC Power Socket, Panel Mounting, 2.1mm.
- 3 x 2-Way Terminal Blocks.
- 1 x 1N5400 Diode.
- 1m Speaker Wire.
- 1 High Power Amp PCB.
- 1 x Stereo Amp Cable.
PCB Dimensions:
- Length: 77.5mm.
- Width: 59mm.
Video:
Requires:
- Soldering Iron.
- Solder.
- Wire Cutters.
- Wire Strippers.
- Screwdriver.
Resources:
- Full mechanical details.
- Click here to download the essential information.
- Click here to download the full teaching resources
Caution:
- The heat sink will become hot when the amplifier is used at a high volume for long periods of time. For the heat sink to work at its best it should be mounted in a well-ventilated case.
- This product is supplied with a UK mains plug and is designed to work off a 230V, 50Hz supply.
