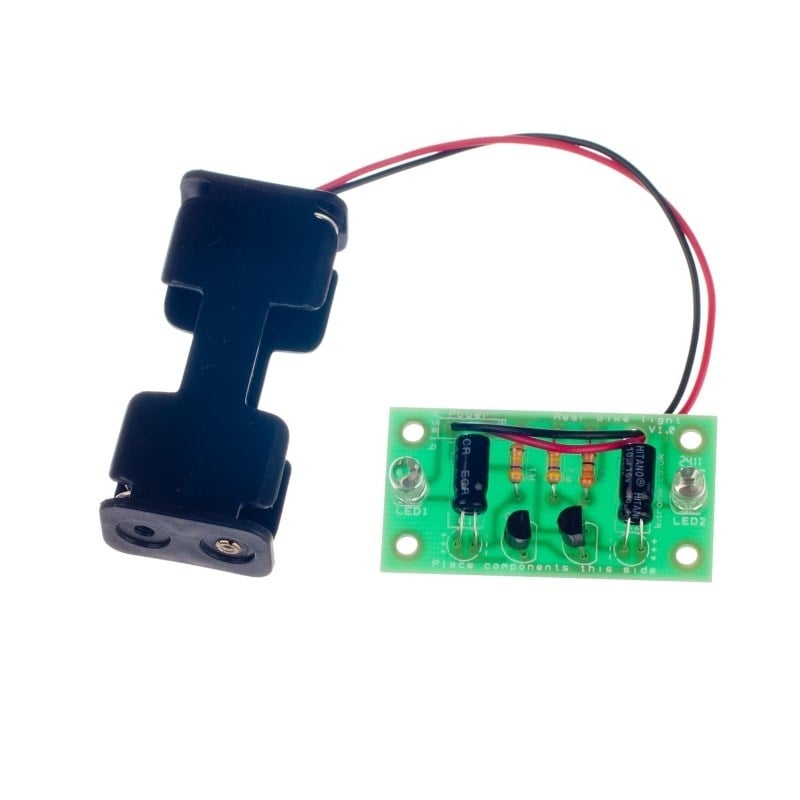

This easy-build bike light kit has just ten parts, making it a good introduction to electronics. The kit uses two ultra-bright red LEDs, which flash rapidly, providing a highly visible light. Making it ideal for use as a rear bike light.
Alternatively, it can be used as a night safety product or for flashing eyes.
Features:
- Easy build kit making a great introduction to electronics.
- Great visibility for nighttime safety.

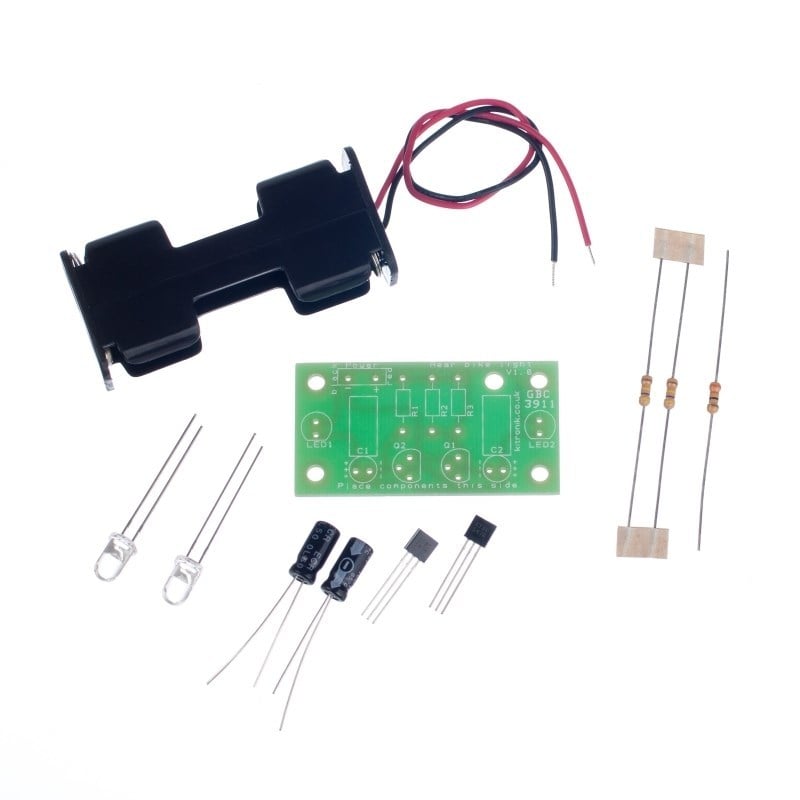

Contents:
- 1 x 2xAA Battery Cage with Leads.
- 2 x 470K Resistor.
- 1 x 33R Resistor.
- 2 x Capacitor, Electrolytic, 16V, 10uF.
- 2 x BC547 NPN Transistor.
- 2 x Red 5mm Water Clear LED – 30deg – 1000mCd.
Dimensions:
- Length: 48.5mm.
- Width: 25.5mm.
Requires:
Resources:
- Click here to download the essential information
- Click here to download the full teaching resources
- Autodesk Files.
- 3D CAD Files.
- Click here to find out more about Autodesk.
This easy build bike light kit has just ten parts, making it a good introduction to electronics. The kit uses two ultra bright red LEDs, which flash rapidly, providing a highly visible light. Making it ideal for use as a rear bike light.
Alternatively, it can be used as a night safety product or for flashing eyes.
Caution:
- This is an educational kit and should be used in conjunction with a commercially available bike light.
Documents & Downloads
- Click here to download the essential information
- Click here to download the full teaching resources
- Autodesk Files.
- 3D CAD Files.
- Click here to find out more about Autodesk.
This easy build bike light kit has just ten parts, making it a good introduction to electronics. The kit uses two ultra bright red LEDs, which flash rapidly, providing a highly visible light. Making it ideal for use as a rear bike light.
Alternatively, it can be used as a night safety product or for flashing eyes.
Caution:
- This is an educational kit and should be used in conjunction with a commercially available bike light.
Technical Information
| Attribute | Value |
|---|---|
| PCB Length | 49mm. |
| PCB Width | 25mm. |
| PCB Component Count | 10. |
| Voltage Nominal | 3V. |
| Voltage Range | 2-4V. |
| Current Max at Nominal Voltage | 15mA. |
