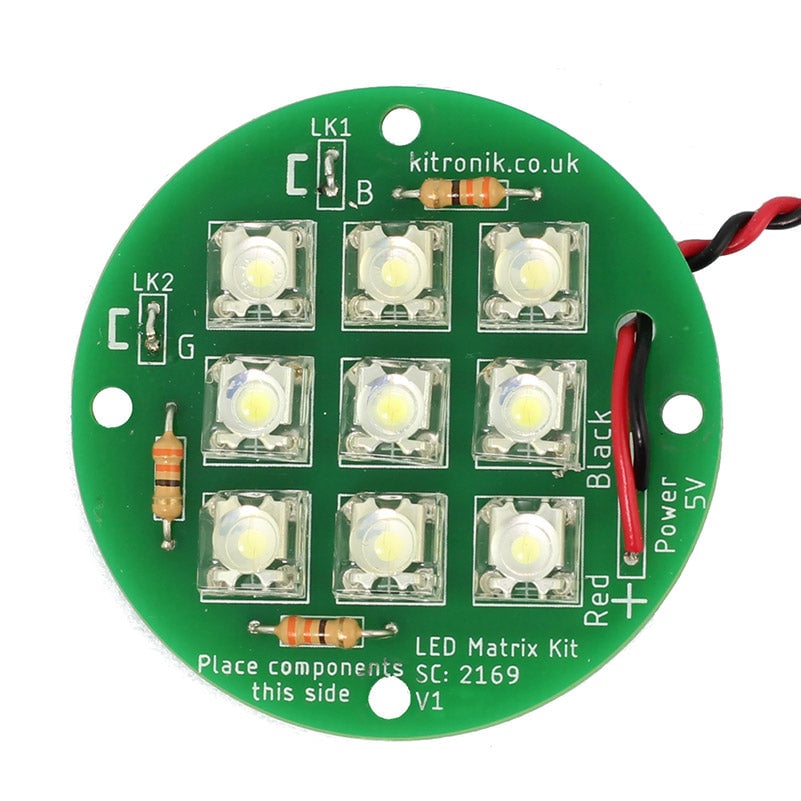

This round 5V LED matrix lamp Kit offers a really bright light, which is compact and easy to mount. The unit is supplied with 9 white super flux LEDs, which collectively output around 16,000 mCd.

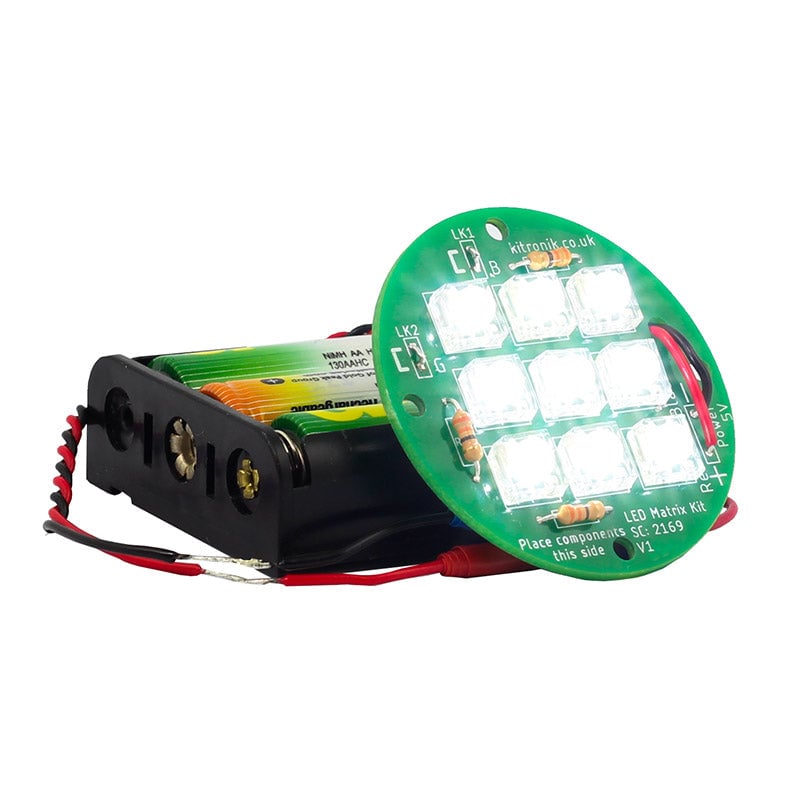

The unit incorporates current limit resistors, allowing it to be run from a 5V supply or 3 x AA batteries can be used (3 new batteries will last for around 5 hours).
The kit makes a nice desk lamp when powered from our micro USB power supply (used to charge many phones, tablets and e-readers) which can be done by using our micro USB break out board.
Features:
- Easy to build lamp kit.
- Battery or mains power.

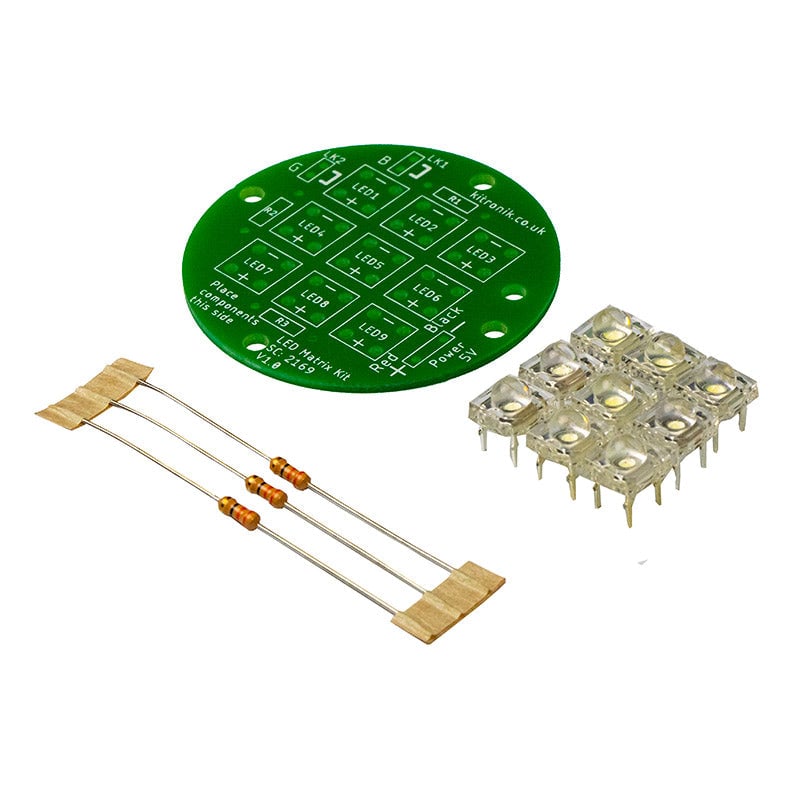

Contents:
- 9 x White Super Flux 5mm Water Clear LED – 80deg – 1800mCd.
- 3 x 33R Resistor.
- 1 x Round 5V LED Matrix Desk Lamp Kit PCB.
- 2 x Wire link.
Dimensions:
- PCB Diameter: 48mm.
- 4 x Mounting Hole Diameter: 3.2mm.
Video:
Requires:
- Soldering Iron.
- Solder.
- Either: 5V Wall Power Unit (some modification is required – see our tutorial for the mono amplifier kit here).
- Or: 3 x AA Batteries.
- And: 1 x 3 x AA Battery Cage with Leads and Switch.
- Or: 1 x Kitronik Micro USB Breakout Board, with Power Switch.
- And: 1 x Mobile Phone Charger & Wire.
Resources:
- Click here to download the essential information.
- Click here to download the full teaching resources.
