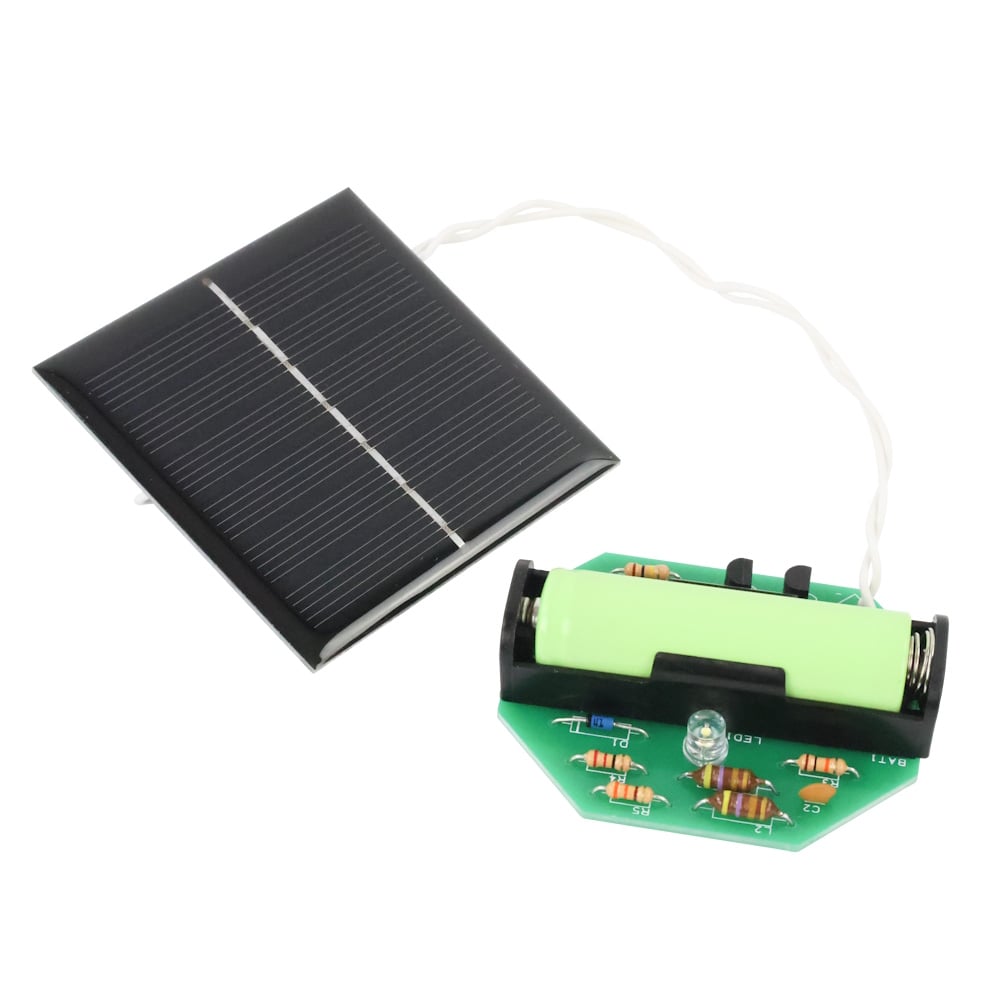

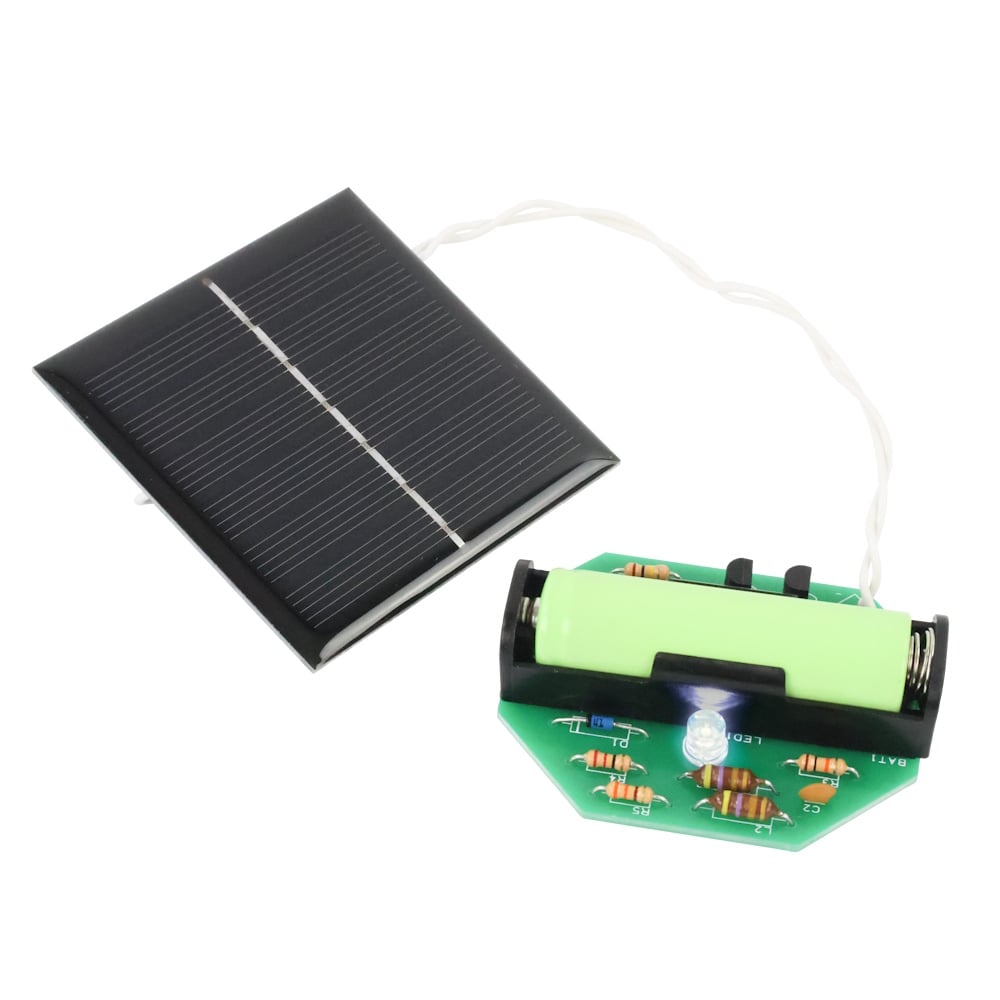

Build your own DIY “Sun Jar” with our Solar Garden Light Kit. It’s an interesting project kit that uses sustainable energy to illuminate a white LED. During the day the solar panel charges an AA battery, then when it goes dark the board automatically switches from charging the battery to illuminating the LED.
The solar panel is resin encapsulated and therefore waterproof. You will need to make a waterproof enclosure for the rest of the parts. Alternatively, the board has been shaped so that it will fit into an old jar.
Features:
- Waterproof solar panel.
- Automatically switches on when dark.
- Make custom enclosures to brighten up the garden at night.

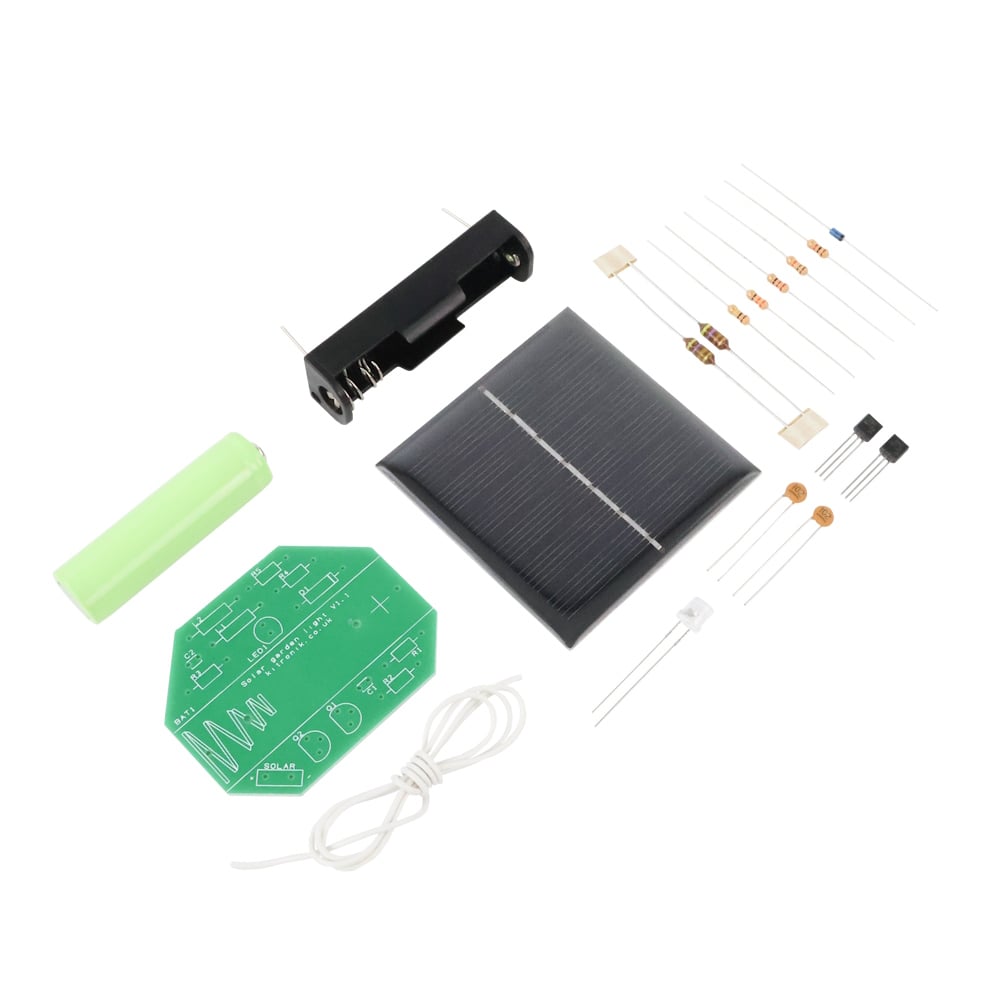

Contents:
- 1 x Solar Cell (60mm by 60mm).
- 1 x Rechargeable Battery 1300mA/h.
- 1 x 22ohm Resistor.
- 1 x 330ohm Resistor.
- 1 x 1Kohm Resistor.
- 1 x 10Kohm Resistor.
- 1 x 100Kohm Resistor.
- 2 x 1nF Ceramic Disc Capacitor.
- 1 x Wide White 5mm Water Clear LED.
- 2 x BC337 NPN Transistor.
- 1 x AA Battery Holder, PCB Mounting.
- 2 x 470uH Inductors.
- 1 x BAT41 Diode.
- 0.5m Connecting Wire (For Solar Cell).

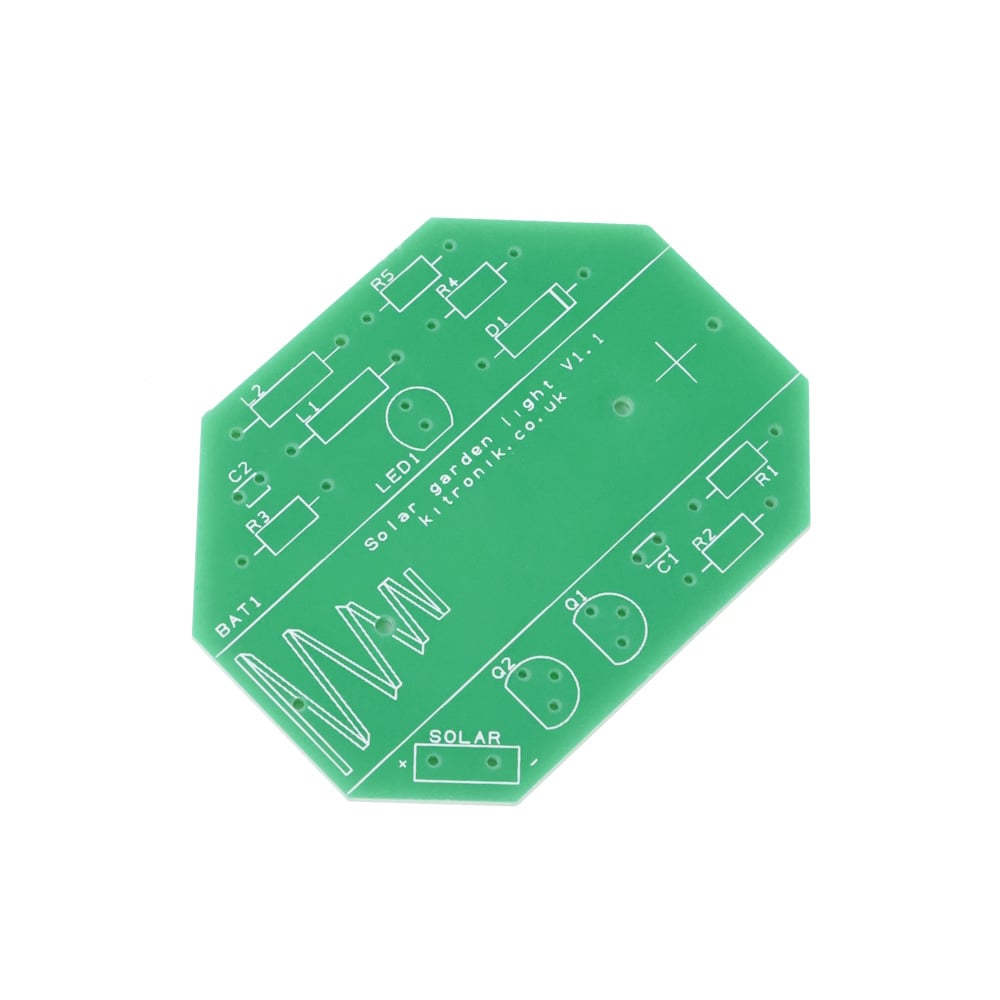

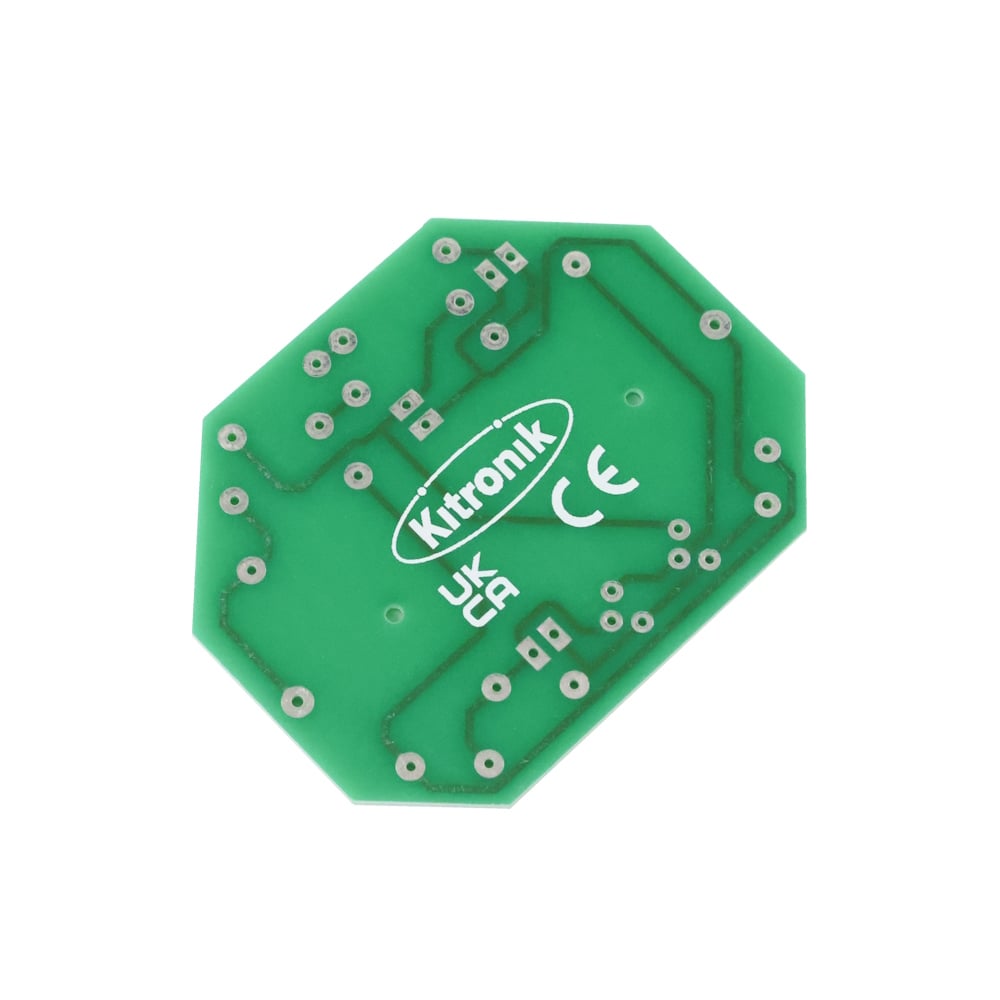

- 1 x Solar Garden Light PCB.
Dimensions:
- Length: 56mm.
- Width: 44mm.
Video:
Requires:
Resources:
Documents & Downloads
Technical Information
| Attribute | Value |
|---|---|
| PCB Length | 56mm. |
| PCb Width | 44mm. |
| PCB Component Count | 15. |
| Voltage Nominal | 1.2V. |
| Current Max at Nominal Voltage | Charge at 50mA. |
