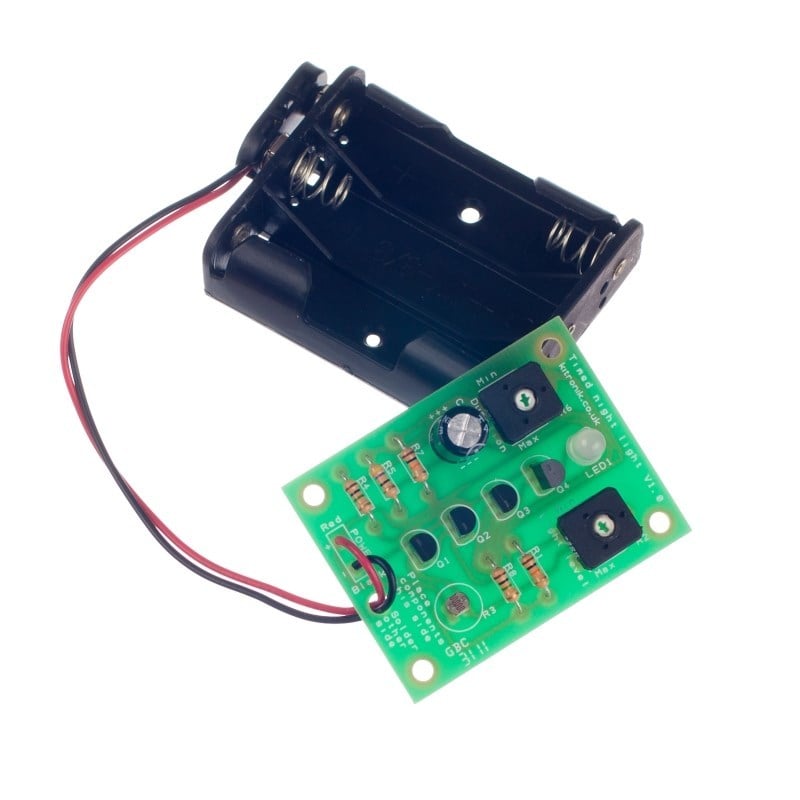

The colour-changing LED on this kit turns on when it goes dark and stays on for a period of time.
This makes a good night light and because the LED is only on for a small amount of time the batteries last much longer than a light that is on all night.
There is an onboard trimmer to set the light level at which the LED turns on and another trimmer to set how long the LED stays on for. The maximum duration is about 30 minutes.
When set to 15 minutes and activated once a night the batteries will last two months.
Features:
- Adjustable light level sensor.
- Adjustable length of light time.

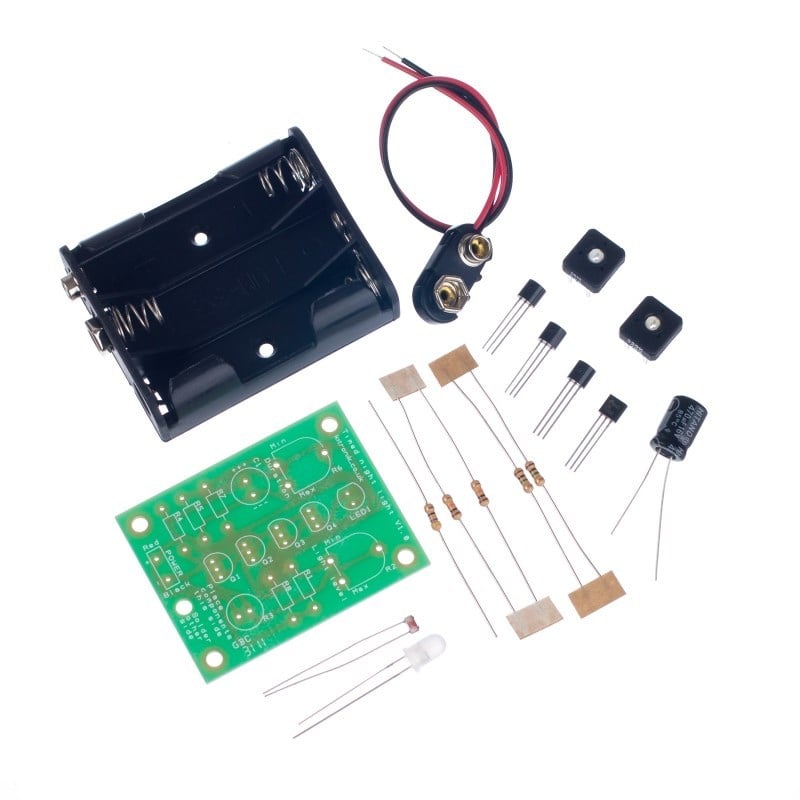

Contents:
- 2 x 10K Resistor.
- 2 x 1M Resistor.
- 1 x PCB trimmer 220K POT.
- 1 x PCB trimmer 10M POT.
- 1 x 47R Resistor.
- 1 x Miniature LDR.
- 1 x Capacitor, Electrolytic, 16V, 470uF.
- 4 x 2N7000 N Chanel FET.
- 1 x Colour Changing 5mm Diffused LED – 750mCd.
- 1 x PP3 Battery Clip Lead (Heavy Duty).
- 1 x 3xAA Battery Cage with Clip.
- 1 x Timed Night Light Kit PCB.
Dimensions:
- PCB Length: 53mm.
- PCB Width: 41mm.
Video:
Requires:
Resources:
This kit is supplied in a grip seal bag.
Documents & Downloads
This kit is supplied in a grip seal bag.
Technical Information
| Attribute | Value |
|---|---|
| PCB Length | 53mm. |
| PCB Width | 41mm. |
| PCB Component Count | 15. |
| Voltage Nominal | 4.5V. |
| Voltage Range | 2.7V - 5V. |
| Standby Current | 0.3mA. |
| Current Max at Nominal Voltage | 49mA. |
