This active cooler is an ultra-thin heatsink specifically designed for the LattePanda IOTA. Its adjustable-speed fan works together with the cooling fins to quickly dissipate heat generated by the processor, keeping the LattePanda board operating at an appropriate temperature to ensure optimal performance.
The main body is made of aluminum alloy with good thermal conductivity and comes with pre-applied thermal pads to ensure efficient heat transfer. Its surface is covered with a lightweight, high-temperature-resistant engineering plastic housing, giving it a restrained and attractive appearance.
Installation Steps:
1. Connect the fan's cable to the "FAN" connector on the back of the LattePanda board.
2. Apply an even layer of thermal paste to the processor.

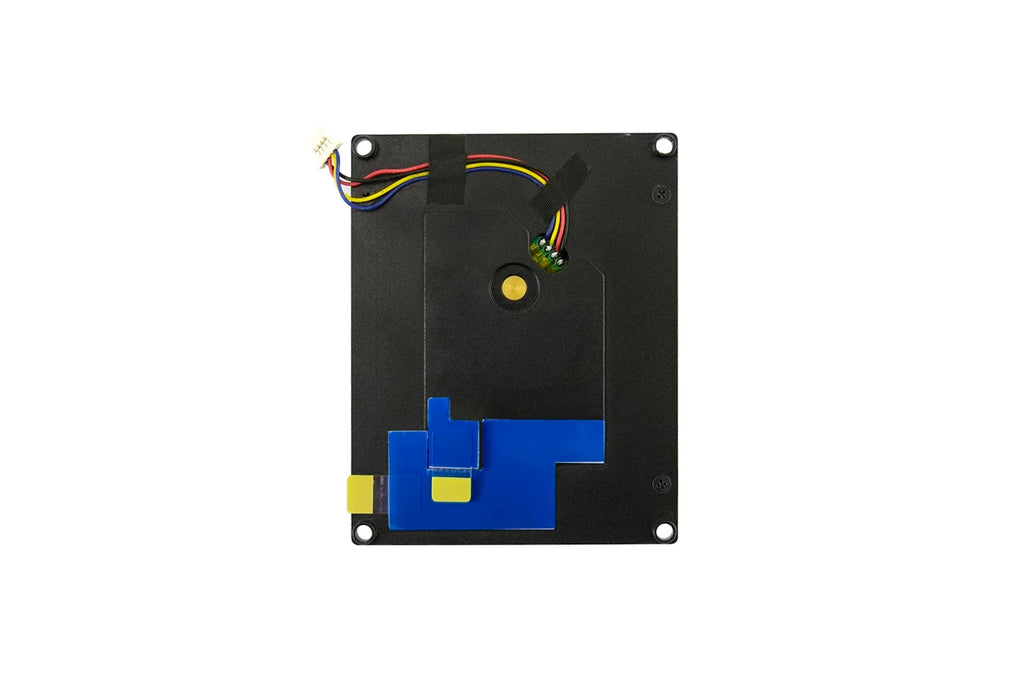

3. Remove the protective film from the heatsink thermal pad, align the heatsink with the mounting holes on the back of the LattePanda board, and secure it using the screws and standoffs.

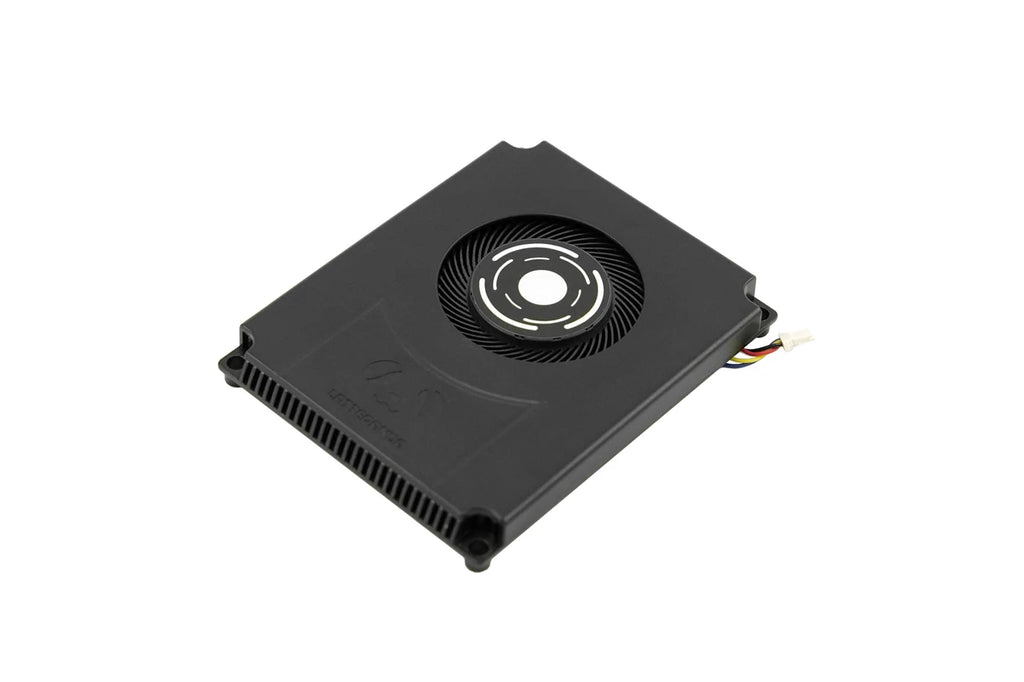

Figure: Overview of LattePanda IOTA Active Cooler
Note:
- 1.When installing or removing the cooler, the LattePanda IOTA must be powered off.
- 2.The heatsink's air outlet should be installed facing the network port side.
Features:
- Ultra-thin cooling design: While providing heat dissipation, the ultra-thin profile maximizes the saving of valuable space

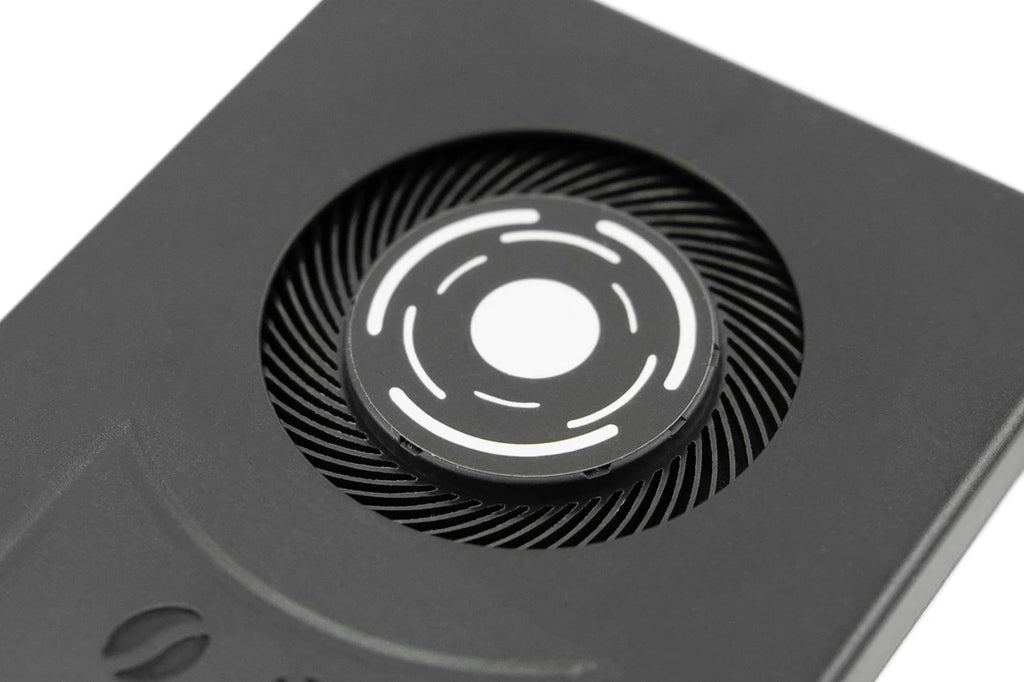

- Dynamic Pressure Bearing Fan: Low noise, high airflow, long service life
Specification:
- Compatible Board: LattePanda IOTA
- Operating Voltage: 5V
- Operating Current: 0.22A
- Fan Speed: up to 5300 RPM
- Speed Control Method: PWM
- Connector Type: MX1.25-4P (Flat Type)
- Wire Length: 18±5mmExposed Length

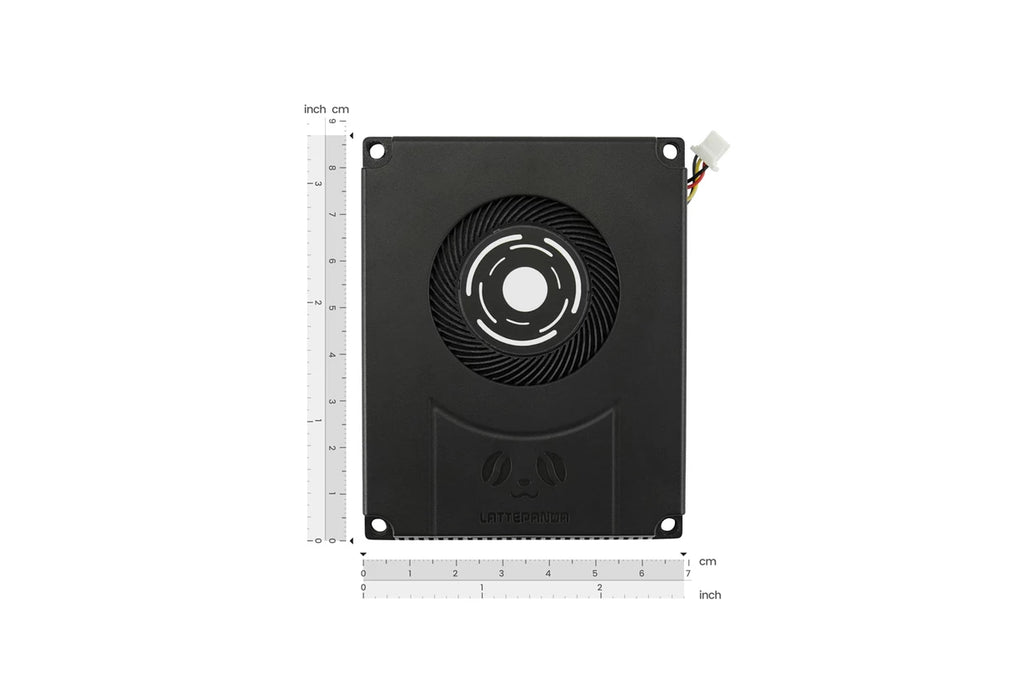

- Dimensions: 87*69*10.45mm
- Thermal Material: Aluminum Alloy
- Housing Material: Temperature-resistant Engineering Plastic
- Weight: 62g (Fan Only)
Documents:

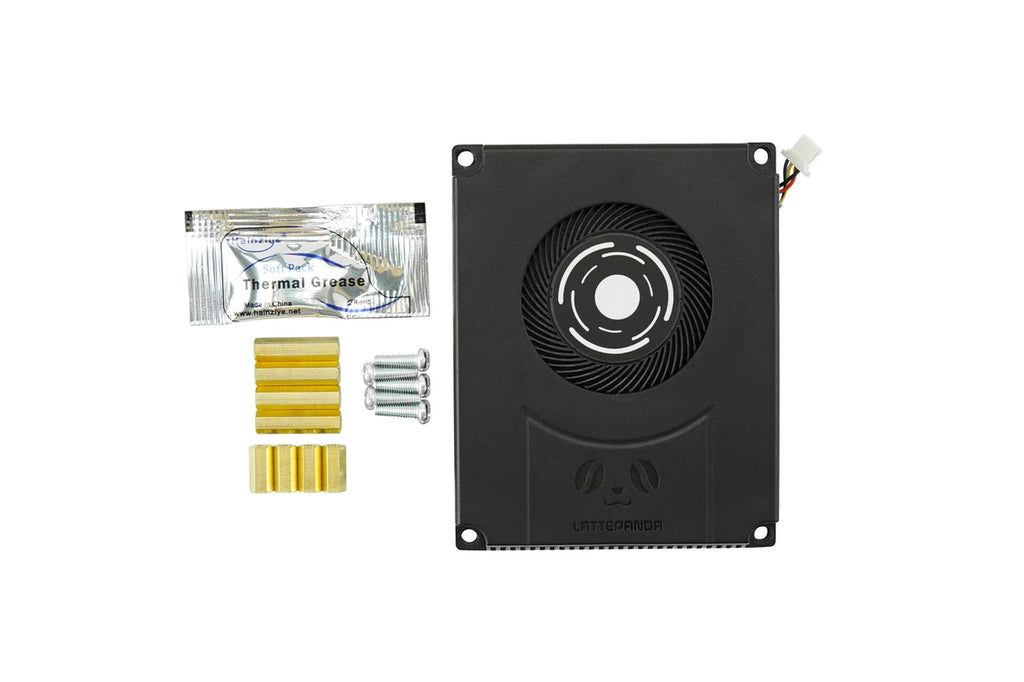

Product Includes:
- LattePanda IOTA Active Cooler x1
- Active Cooler Accessory Kit x1
