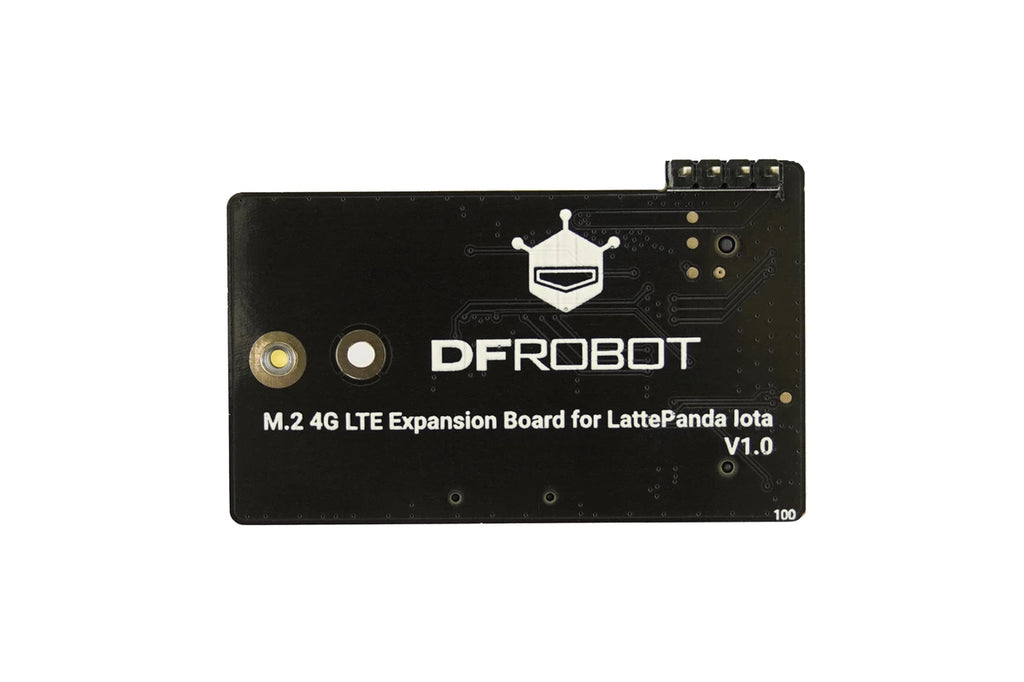

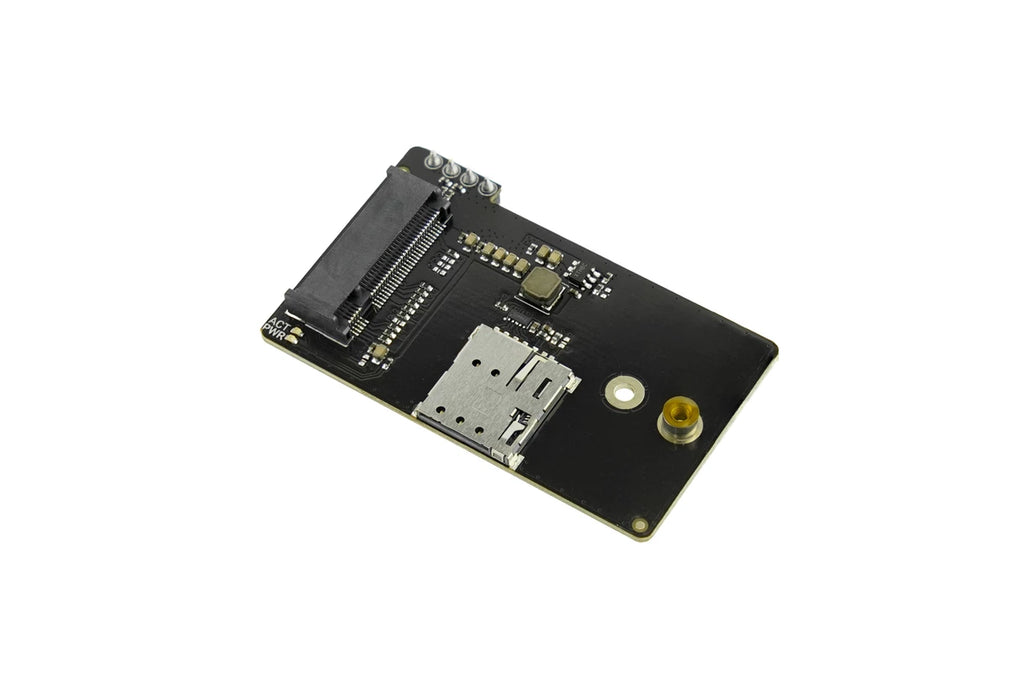

The LattePanda IOTA M.2 4G LTE Expansion Board is a dedicated hardware adapter designed to seamlessly integrate 4G LTE mobile network capabilities with the LattePanda IOTA single-board computer. By providing a standard M.2 B-Key interface, it allows for the installation of a compatible cellular module, enabling robust and reliable connectivity in locations without Wi-Fi access. Key features include its plug-and-play design tailored for the LattePanda IOTA and broad compatibility with standard 3042-size M.2 4G modules. This M.2 4G adapter is engineered for applications requiring constant or remote connectivity, such as mobile robotics, smart IoT gateways, and in-vehicle devices.
Seamless Integration with LattePanda IOTA
Engineered exclusively for the LattePanda IOTA, this dedicated adapter ensures perfect electrical and physical compatibility. The design utilizes a combination of screw fixation and a direct 4-pin header connection, creating a secure and stable platform that eliminates any need for soldering or complex modifications. This streamlined integration allows for the rapid deployment of a complete 4G communication system in minutes, ensuring a reliable data link between the cellular module and the host board.
Support for Standard M.2 B-Key 4G Modules

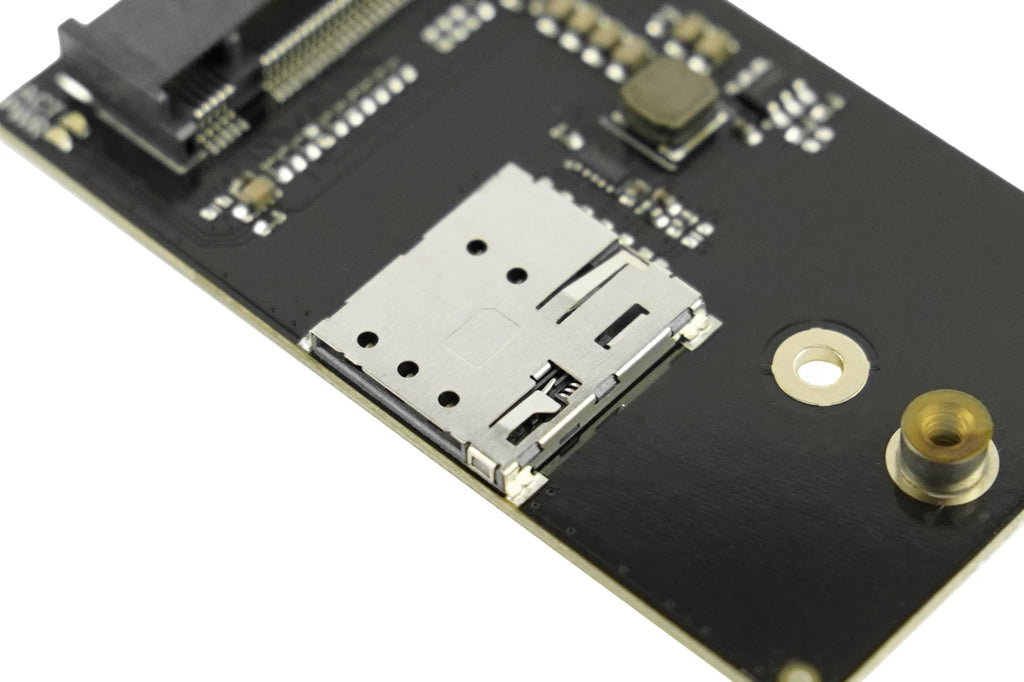

Equipped with a standard M.2 B-Key slot, the DFR1249 accommodates a wide range of commercially available 4G LTE modules. This M.2 adapter is specifically compatible with modules in the 3042 form factor (30.0mm × 42.0mm) that utilize the USB 2.0 communication protocol. This standardization provides users with the flexibility to select a module that best fits their specific geographic region, network carrier, and performance requirements. An onboard Nano-SIM card slot further simplifies the hardware setup.
Notes:
The expansion board is a hardware interface adapter board only. It does not include a 4G LTE module, SIM card, or antenna. Users must separately purchase and install components that meet the specified requirements to enable 4G functionality.
Compatibility: Designed ONLY for LattePanda IOTA. Do NOT use with other boards.
Components Required (NOT included):
- M.2 B-Key 4G LTE module, supports USB 2.0 protocol (3042 size)
- Nano-SIM card (4G/LTE network compatible)
- Matching 4G antenna kit (antenna type depends on selected module)
Recommended Tested Modules:
- Quectel EM05-CE
- Simcom SIM7600H-G-M2
Applications:
- 4G-Connected Mobile Rover
- Remote IoT Gateway
- Cellular Failover for Critical Systems
- In-Vehicle Dashcam & GPS Tracker
Specification:
- Compatible Board: LattePanda IOTA only
- Host Interface: USB 2.0 (connected via 2.54mm 4-Pin header to LattePanda IOTA)
- Module Interface: M.2 B-Key slot
- Compatible Module: USB2.0 Protocol, 3042 (30.0mm × 42.0mm)
- SIM Card Slot: Nano-SIM

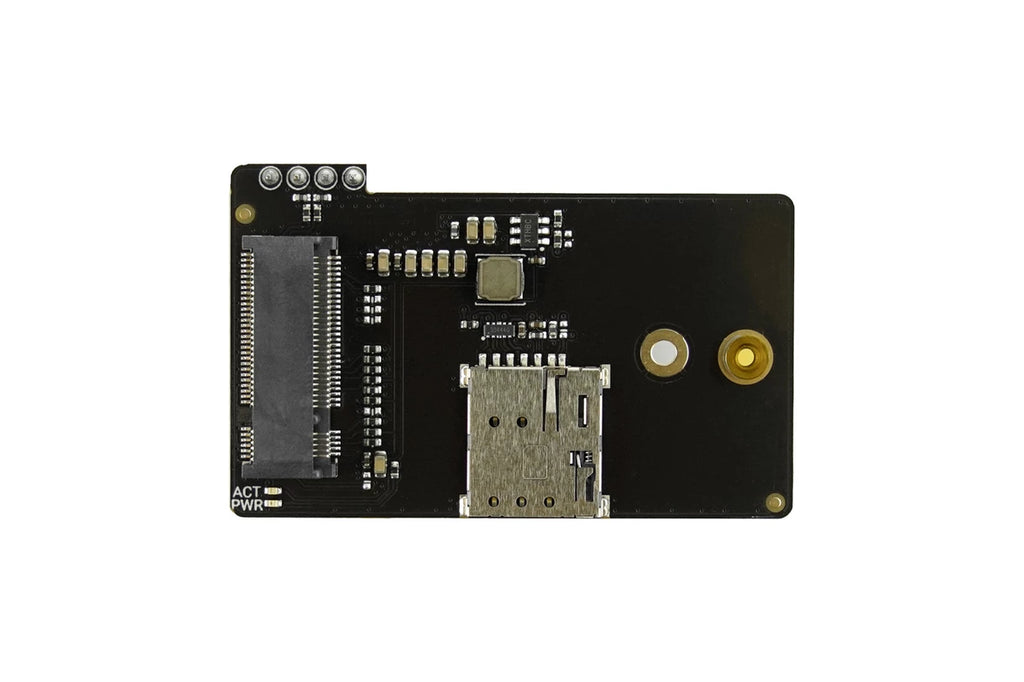

- Board Dimensions: 52mm × 32.5mm
- Mounting Method: Screw fixation + pin header insertion
Documents:

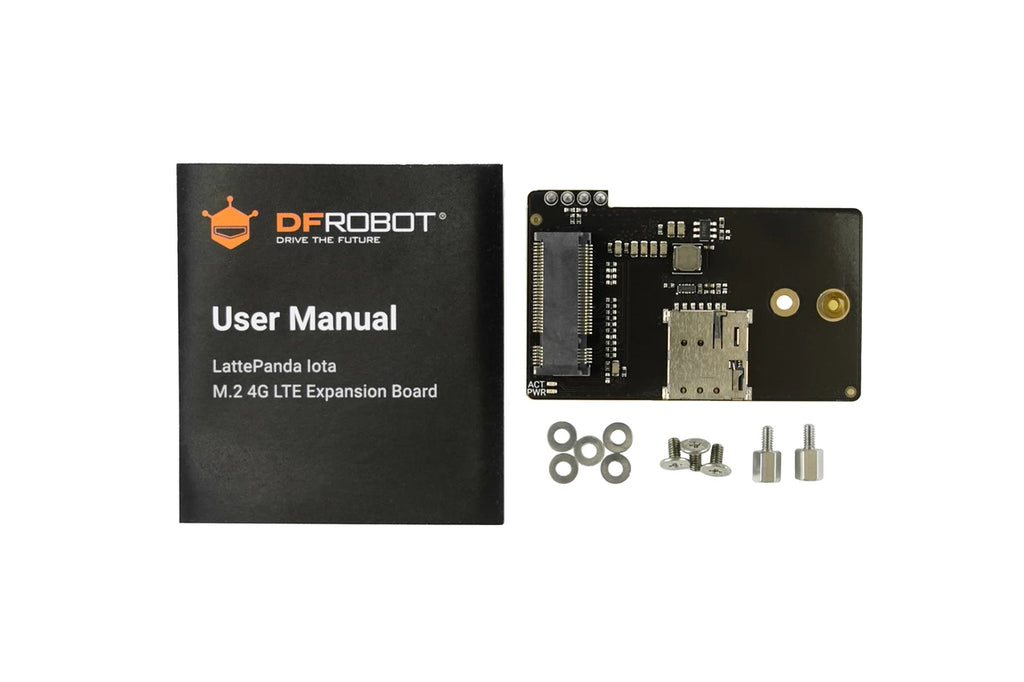

Product Includes:
- M.2 4G LTE Expansion Board x1
- M2 Hex Standoff x1
- M2 Screws x2
- M2 Washers x4
- User Manual x1
