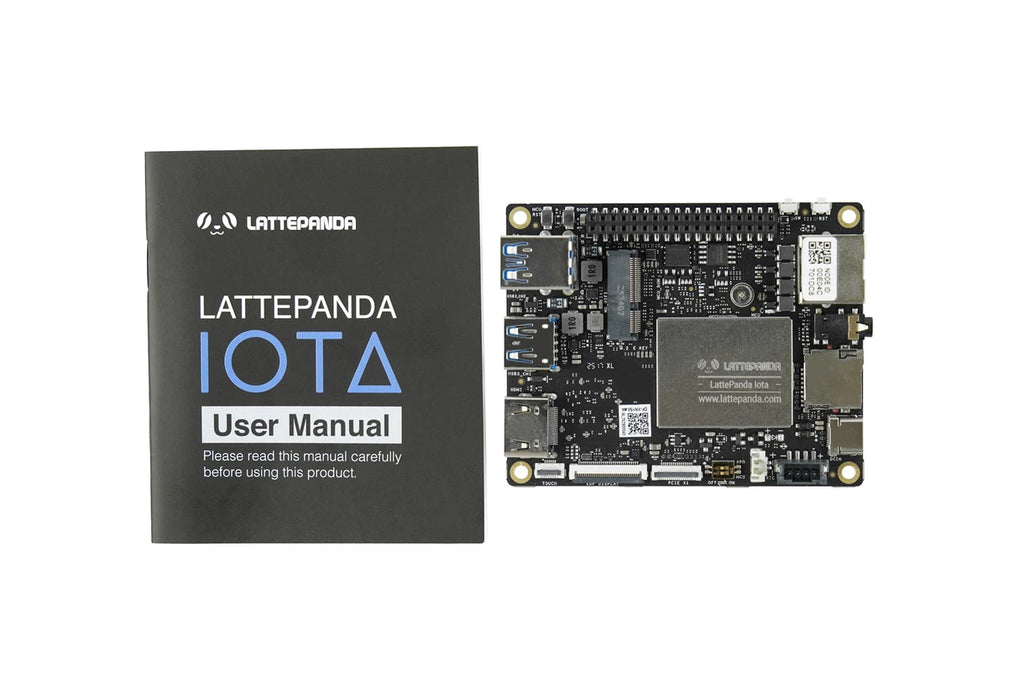

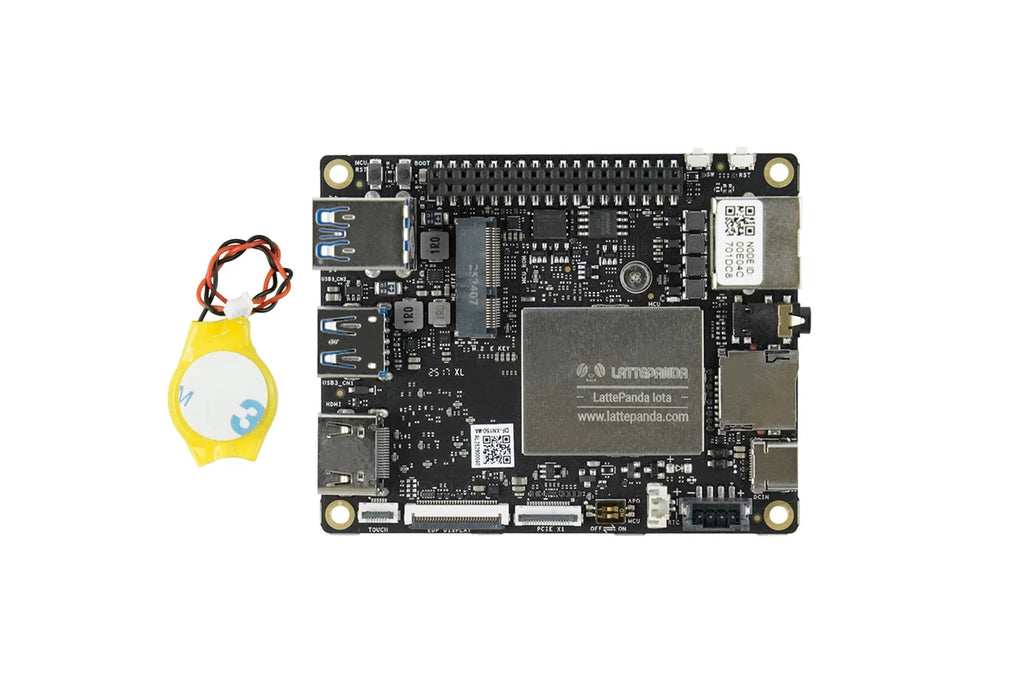

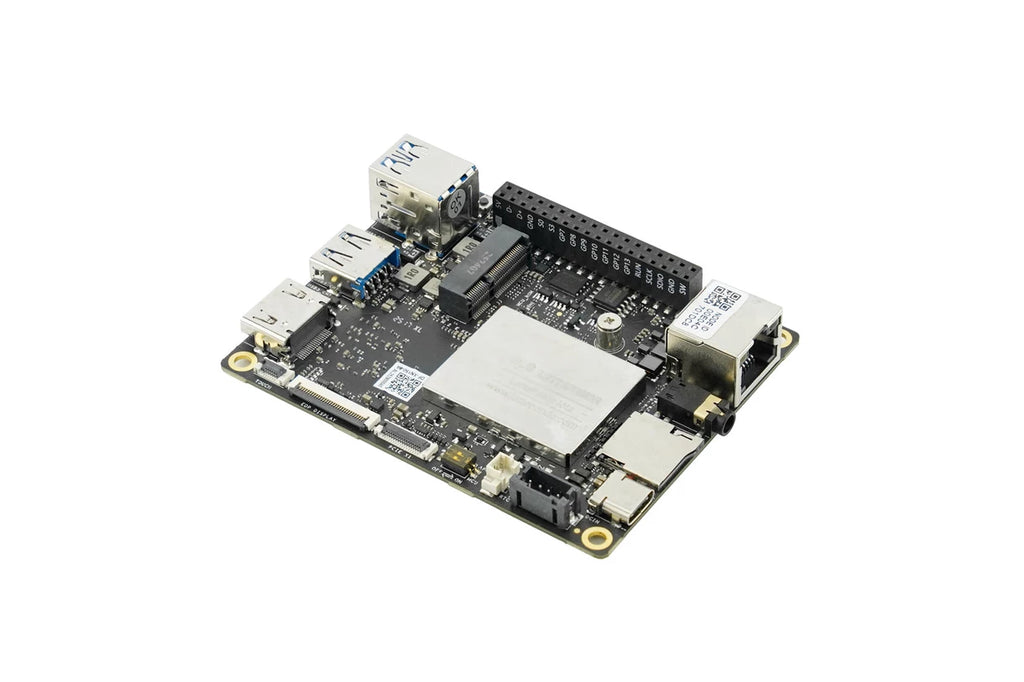

LattePanda IOTA is a palm-sized, high-performance x86 single-board computer (SBC), engineered as a bridge between rapid prototyping and commercial deployment. As the next generation of the classic LattePanda V1, It integrates a powerful Intel Processor N150 with a versatile RP2040 co-processor, delivering a significant leap in computing power within a compact footprint. Key differentiators include its high speed LPDDR5 memory with IBECC for enhanced reliability, broad compatibility with desktop operating systems like Windows and Ubuntu, and a range of hardware configurations to meet diverse performance and budget needs. Designed for seamless system upgrades and future-proof applications, the LattePanda IOTA is the definitive choice for industrial automation, intelligent gateways, advanced robotics, and interactive digital installations.
Seamless Upgrade: Retains the classic LattePanda V1 form factor for easy project migration

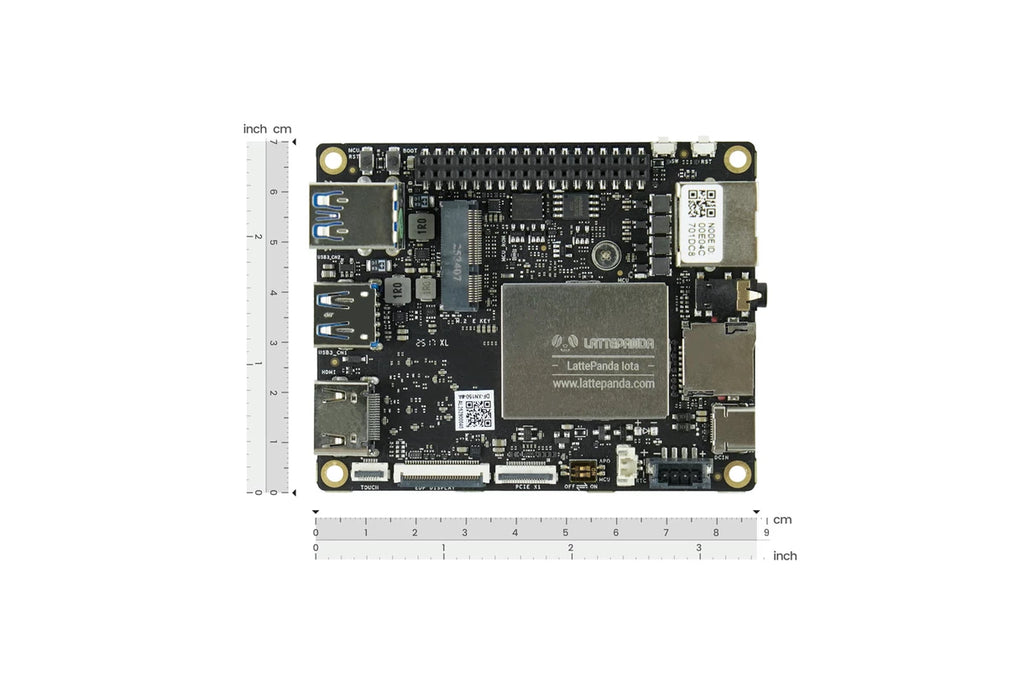

Maintaining the compact design (88mm x 70mm) and interface layout of the LattePanda V1, LattePanda IOTA enables effortless upgrades nearly without mechanical redesign or enclosure modifications, significantly reducing development time and preserving project continuity.
8x Faster Performance
With the Intel Twin Lake N150 quad-core processor (up to 3.6GHz) and LPDDR5 high-speed memory, LattePanda IOTA offers 8x the CPU performance of LattePanda V1, ensuring ample performance and multitasking capability for most applications.
Palm-Sized Design
Measuring only 88mm x 70mm, this compact LattePanda IOTA can be easily embedded into space-constrained applications like robots, smart terminals, and portable inspection devices—greatly expanding deployment possibilities for embedded systems at the edge.
Flexibility in Performance and Energy
LattePanda IOTA supports a configurable TDP (thermal design power) ranging from 6W to 15W, allowing you to balance power consumption and performance according to the application scenario.
Rich I/O Connectivity
LattePanda IOTA provides a practical and comprehensive set of interfaces, including 3x USB 3.2 Gen2 (10 Gbps) ports, a Gigabit Ethernet port, HDMI 2.1 and eDP dual video outputs, plus M.2 E-Key and PCIe FPC expansion interfaces, which easily meets various peripheral connections through a single board.
Intel N150 + RP2040, Dual-Processor Collaboration
Alongside the Intel N150 processor, LattePanda IOTA also integrates an RP2040 co-processor, which features a dual-core Arm Cortex-M0+, offers abundant GPIOs, and can be dedicated to real-time I/O control, sensor data acquisition, motor drive tasks, or even emulate a custom HID device. This design effectively reduces the load on the main processor and enhances system responsiveness and functional versatility.
Various Expansion Boards
With dedicated expansion boards, the LattePanda IOTA can easily enhances its key capabilities:
Recommended Accessories
For a complete out-of-the-box experience, we highly recommend the LattePanda IOTA Accessories Kit, which includes the required heatsink, wifi modules, and other essential components.
Important Notice
Features:
Specification:
HDMI 2.1, up to 4096 x 2160@60Hz
eDP 1.4b, 2 Lanes, up to 1920 x 1080@60Hz
3x USB 3.2 Gen 2 Type A(10Gbps)
1x USB 2.0 Pin Header
1x USB Type-C PD 15V(Power supply only)
1x M.2 E Key 2230 Slot
1x TF Card Slot
1x PCIe FPC Connector
Up to 3x Analog Inputs
Up to 16x Digital Input/Output
1x UART
1x USB 2.0
1x PH2.0 4-Pin Connector(for power input)
1x RTC Battery Connector
1x DIP Switch
1x Power Management Connector
1x Fan Port
USB Type-C: PD 15V
PH2.0 4-Pin Connector: 10-15V DC
Documents:
Product Includes:
