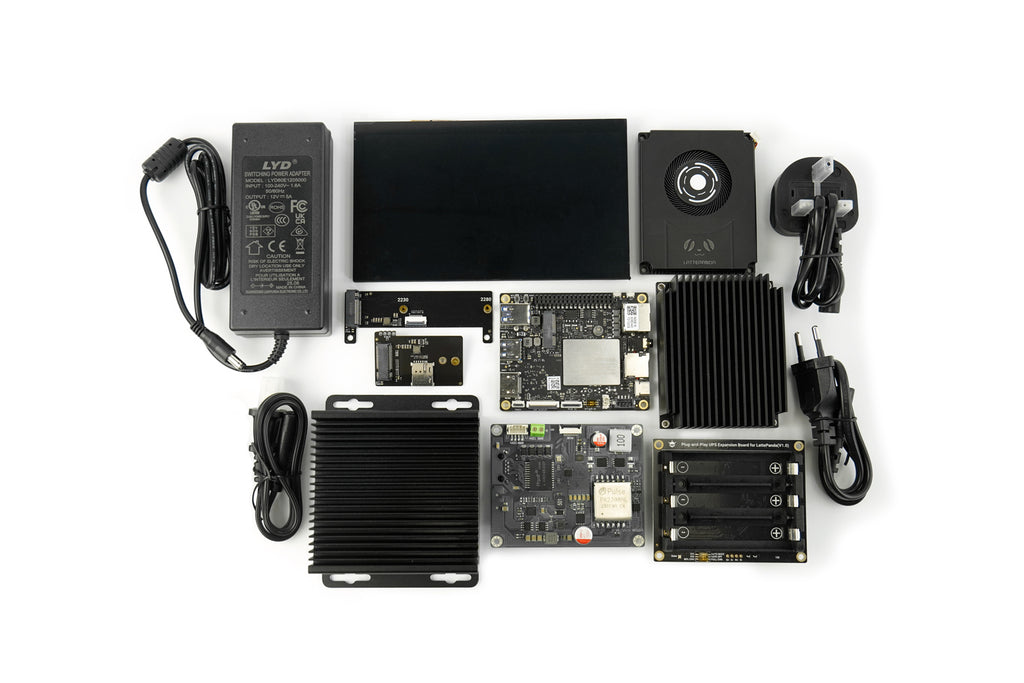

LattePanda IOTA x86 Single Board Computer & Accessories Kit

LattePanda IOTA is a palm-sized x86 single-board computer, engineered for performance and versatility. As the next generation of the classic LattePanda V1, it packs an 8x faster Intel N150 processor, an RP2040 co-processor for real-time control, and a rich set of I/O ports. Designed for industrial automation, IoT gateways, smart retail, and light AI inference, the IOTA serves as a perfect partner for innovation.

For those migrating from LattePanda V1 or starting new projects, the LattePanda IOTA (8GB/64GB) Single Board Computer is the ideal entry point.

Seamless Upgrade: Retains the classic LattePanda V1 form factor for easy project migration

Maintaining the compact design (88mm x 70mm) and interface layout of the LattePanda V1, LattePanda IOTA enables effortless upgrades nearly without mechanical redesign or enclosure modifications, significantly reducing development time and preserving project continuity.

8x Faster Performance

With the Intel Twin Lake N150 quad-core processor (up to 3.6GHz) and LPDDR5 high-speed memory, LattePanda IOTA offers 8x the CPU performance of LattePanda V1, ensuring ample performance and multitasking capability for most applications.

Palm-Sized Design

Measuring only 88mm x 70mm, this compact LattePanda IOTA can be easily embedded into space-constrained applications like robots, smart terminals, and portable inspection devices—greatly expanding deployment possibilities for embedded systems at the edge.

Flexibility in Performance and Energy

LattePanda IOTA supports a configurable TDP (thermal design power) ranging from 6W to 15W, allowing for a balance between power consumption and performance according to the application scenario.

• 6W mode: Enables fanless, silent operation, suitable for noise-sensitive embedded systems or quiet environments.
• 15W mode: Utilized with an active cooler to full performance, easily handling high-load computing tasks.

Rich I/O Connectivity

LattePanda IOTA provides a practical and comprehensive set of interfaces, including 3x USB 3.2 Gen2 (10 Gbps) ports, a Gigabit Ethernet port, HDMI 2.1 and eDP dual video outputs, plus M.2 E-Key and PCIe FPC expansion interfaces, which easily meets various peripheral connections through a single board.

Intel N150 + RP2040, Dual-Processor Collaboration

Alongside the Intel N150 processor, LattePanda IOTA also integrates an RP2040 co-processor, which features a dual-core Arm Cortex-M0+, offers abundant GPIOs, and can be dedicated to real-time I/O control, sensor data acquisition, motor drive tasks, or even emulate a custom HID device. This design effectively reduces the load on the main processor and enhances system responsiveness and functional versatility.

Moreover, compatibility with Arduino and MicroPython further reduces the barriers to hardware development and debugging.

How to Build a Perfect IOTA Kit

Creating a custom kit is straightforward. The following three simple steps outline everything needed.

1. Select an IOTA Board. Choose the RAM, storage, and Windows license option that best fits the project's demands.

2. Add Required Accessories. Every IOTA requires a cooling solution and a WiFi module to get started. These are mandatory selections.

3. Select Optional Expansions. Customize the build with a power supply, protective cases, displays, and powerful expansion boards to unlock the IOTA's full potential.

Please Note:

A LattePanda IOTA development board, a WiFi Module and a cooling solution are required for every kit.

The LattePanda IOTA board must have a heatsink installed before powering on!

Configure a Kit

Step 1: Choose a LattePanda IOTA Mainboard (Required)

The heart of the project. The LattePanda IOTA offers an 8x performance boost over the classic V1, an onboard RP2040 co-processor for real-time tasks, and a configurable TDP (6W-15W) to balance power and performance. All in the same palm-sized form factor for seamless upgrades.

• LattePanda IOTA (8GB RAM, 64GB eMMC): Ideal for standard embedded applications and basic system development. A perfect balance of performance and cost-effectiveness.
• LattePanda IOTA (16GB RAM, 128GB eMMC): Optimized for running large software, multitasking, or even local LLMs. Ensures smoother operation and provides ample storage
• LattePanda IOTA (8GB/64GB) with Win11 IoT Ent License: Includes a pre-activated Windows 11 IoT Enterprise license for commercial applications, offering long-term support and security updates.
• LattePanda IOTA (16GB/128GB) with Win11 IoT Ent License: The ultimate performance with a pre-activated Windows 11 IoT license, ready for professional and large-scale commercial deployment.



Step 2: Select a Cooling Solution (Required)

Proper cooling is essential to unlock the IOTA's full potential and ensure system stability.

• Active Cooler: An ultra-thin heatsink with an adjustable-speed fan. It rapidly dissipates heat, ensuring optimal performance even under heavy workloads.
• Fanless Heatsink: A zero-noise, all-aluminum passive cooling solution. Its large surface area provides reliable, silent cooling for noise-sensitive environments.

Step 3: Add Wireless Connectivity (Required)

Enable the project to go online with high-speed Wi-Fi and Bluetooth.

• Intel AX210 WiFi 6E Module: Tri-band high-speed with a maximum rate of 5374 Mbps. Supports WiFi 6E and Bluetooth 5.2 for ultra-low latency.
• Intel BE200 WiFi 7 Module: Experience the future with WiFi 7. Features a 320 MHz ultra-wide channel for transfers up to 8774 Mbps and supports Bluetooth 5.4.

Step 4: Power the IOTA (Optional)

A stable power source is crucial for the system.

• 12V 60W AC/DC Power Adapter + DC 5.5x2.1mm Power Cable: The officially recommended power solution. This 60W adapter comes with US, EU, and UK plugs for worldwide use, providing stable and sufficient power for the IOTA and its peripherals.

Step 5: Expand Functionality (Optional)

Enhance the IOTA's capabilities with dedicated expansion boards.

• UPS Expansion Board: A plug-and-play uninterruptible power supply. It provides up to 8 hours of runtime, auto power-on, and safe shutdown to protect the project from power loss. (Note: 18650 Batteries not included).
• 51W PoE Expansion Board: Power the IOTA and get Gigabit data through a single Ethernet cable. Compliant with the IEEE 802.3bt standard, it's perfect for remote installations.
• M.2 M-Key Expansion Board: Add a standard M.2 M-Key slot to the IOTA. Use it to connect a high-speed NVMe SSD for massive storage expansion or an AI accelerator card for edge computing tasks.
• M.2 4G LTE Expansion Board: Grant the IOTA cellular network connectivity. Perfect for remote monitoring, mobile robots, and field-deployed devices. (Note: 4G LTE module and SIM card are not included).

Step 6: Add a Protective Case (Optional)

Protect the investment with a rugged and functional case.

• Aluminum Heatsink Case: A high-strength metal case crafted from selected aluminum alloy. Finished with glossy black anodizing and sandblasting, it offers an exceptional texture and is both scratch-resistant and durable, while also providing passive cooling.

Step 7: Choose a Display (Optional)

Add a direct visual interface to the project with eDP touch displays.

• 7" 1024x600 Touch Display: A compact, multi-touch IPS display with a 1024x600 resolution. Features a full lamination design for dust and anti-glare protection. Brightness and contrast can be adjusted in the OS, allowing easy integration into HMI and portable projects.
• 11.6" 1920x1080 FHD Touch Display: An 11.6" FHD display with 1920x1080 resolution. Its ultra-thin design, ultra-narrow bezels, vivid colors, and IPS wide viewing angles create an immersive visual experience.

Recommended Bundles

For a quicker setup, choose one of the expertly curated kits to get started instantly. Click a bundle to automatically select the components below.

Starter Kit

The perfect entry point. This kit includes everything needed to power on, get connected, and start creating with the LattePanda IOTA.

Configuration

• LattePanda IOTA (8GB/64GB)
• Active Cooler
• Intel AX210 WiFi 6E Module
• 60W Power Adapter + DC Cable

IoT Developer Kit

Built for robust IoT deployments. This kit features the Windows-licensed IOTA, silent cooling, and versatile connectivity options like Power-over-Ethernet.

Configuration:

• LattePanda IOTA (16GB/128GB) with Win11 License
• Fanless Heatsink
• Intel AX210 WiFi 6E Module
• 51W PoE Expansion Board

Portable Powerhouse Kit

Unleash the full potential of the IOTA on the go. This bundle combines top-tier performance with a large touch display and a UPS for uninterrupted mobile operation.

Configuration:

• LattePanda IOTA (16GB/128GB)
• Active Cooler
• Intel BE200 WiFi 7 Module
• 60W Power Adapter + DC Cable
• UPS Expansion Board
• 11.6" FHD Touch Display

Specification:

LattePanda IOTA Specification:

• Processor: Intel® Processor N150, 4C / 4T, up to 3.60 GHz
• Memory, Storage & License (Four Choose One):
         8GB LPDDR5 4800MT/s with IBECC supported, 64GB eMMC 5.1
         8GB LPDDR5 4800MT/s with IBECC supported, 64GB eMMC 5.1 with Win11 IoT Ent License
         16GB LPDDR5 4800MT/s with IBECC supported, 128GB eMMC 5.1
         16GB LPDDR5 4800MT/s with IBECC supported, 128GB eMMC 5.1 with Win11 IoT Ent License
• Display:
         HDMI 2.1, up to 4096 x 2160@60Hz
         eDP 1.4b, 2 Lanes, up to 1920 x 1080@60Hz
• USB Ports:
         3x USB 3.2 Gen 2 Type A(10Gbps)
         1x USB 2.0 Pin Header
         1x USB Type-C PD 15V(Power supply only)
• Network: 1x 1GbE RJ45 Port (Support WOL)
• Expansion Slots:
         1x M.2 E Key 2230 Slot
         1x TF Card Slot
         1x PCIe FPC Connector
• Co-processor: RP2040 MCU
• GPIO & Other Features
         Up to 3x Analog Inputs
         Up to 16x Digital Input/Output
         1x UART
         1x USB 2.0
         1x PH2.0 4-Pin Connector(for power input)
         1x RTC Battery Connector
         1x DIP Switch
         1x Power Management Connector
         1x Fan Port
• Audio: 3.5mm Microphone Headphone Combo Connector
• Operating System: Windows 10 & 11, Ubuntu 22.04 & 24.04
• Environment: 0~60°C; 0~80% relative humidity
• Power Supply:
         USB Type-C: PD 15V
         PH2.0 4-Pin Connector: 10-15V DC
• Size: 88mm x 70mm x 19mm



  Documents:

• Product Wiki
• LattePanda V1 Migration Guide
