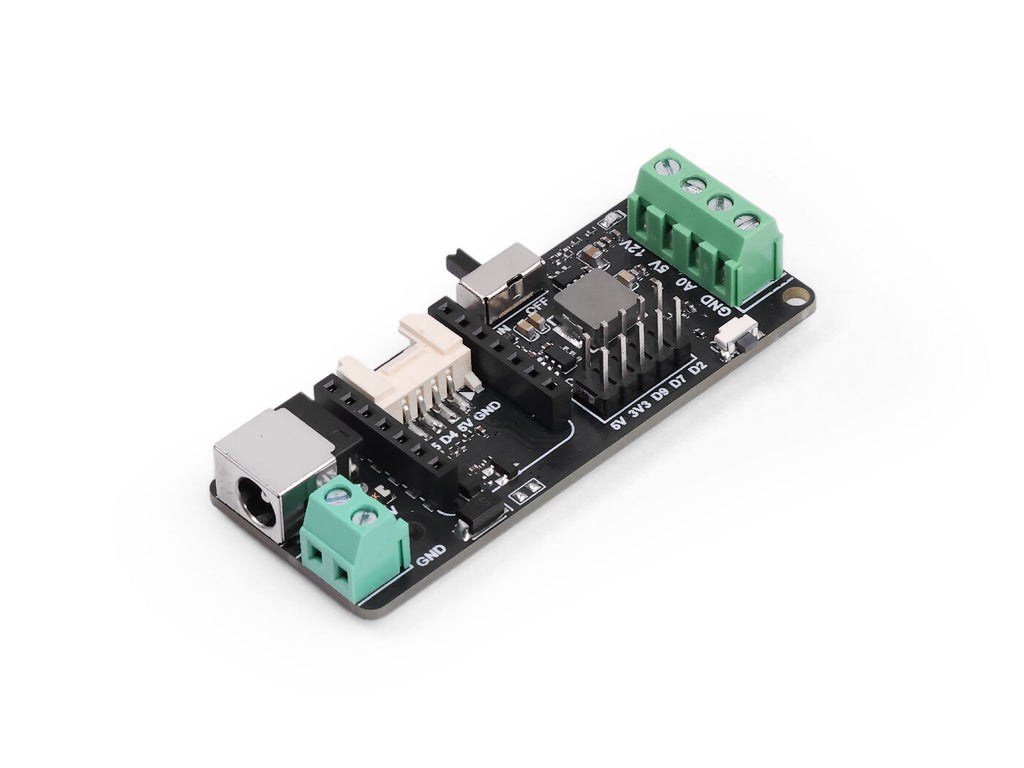

This LED driver board is a compact yet powerful solution supporting both 5V and 12V LED strips, including popular addressable RGB LEDs such as NeoPixel WS2812, WS2813, WS2815. Compatible with all XIAO boards, it enables smart control and automation through WLED and Home Assistant when using XIAO ESP32 Series, while offering flexible power options and comprehensive protection for safe, reliable operation in your lighting setup.
- Wide LED Compatibility
Versatile driver supporting both 5V/3A and 12V/2A LED strips with built-in power regulation. Compatible with single-color and addressable RGB LEDs including NeoPixel WS2811, WS2812(B), WS2813, WS2815, SK6812, and other 1-wire protocol LEDs, providing extensive lighting options.
- XIAO-Compatibility for Smart Control
Designed for all Seeed Studio XIAO boards. When paired with XIAO ESP32 Series (ESP32-C3/S3/C6), unlock smart features through
- WLED app support - Control colors, effects, brightness, and create custom animations (XIAO ESP32C3 is highly recommended)
- Home Assistant integration via ESPHome - Enable remote control, automation, and smart home scenarios
- Grove Ecosystem Compatibility
The onboard plug-and-play Grove interface is compatible with over 400 Seeed Studio modules, including infrared sensors, temperature sensors, accelerometers and more, allowing you to easily enhance lighting interactivity with the environment and motion for smarter, personalized effects.
- Flexible Power Input
Supports 12V/2A power via standard DC adapter (EU/US plugs) or direct DC wiring, featuring a universal 5.5mm x 2.1mm DC Barrel Jack connector. Suitable for both temporary and permanent installations.
- Compact Form Factor
Space-efficient design allows for discreet installation near LED strips or in tight spaces, ideal for various lighting applications while maintaining full functionality.
- Comprehensive Protection
Integrated safety features including overcurrent, overvoltage, overtemperature, and short-circuit protection, ensuring reliable operation and component longevity.
Item | Detail |
Supported LED models | ● Single-color LEDs, ● Addressable RGB LEDs (WS2811,WS2812,WS2812B, WS2813,WS2815…) ● Other 1-wire protocol LEDs |
LED Connector | 4 Pin 3.81mm Screw Terminal Block Connector： ● 12V ● 5V ● A0 ● GND |
Power Input | ● PowerAdapter, 12V/2A/24W, European Standard Plug, DC Output ● PowerAdapter, 12V/2A/24W, American Standard Plug, DC Output ● Other DC 12V Power Adapter with 5.5mm x 2.1mm x 10±0.3mm Plug ● DC 12V Wire |
LED Power Support | DC 12V / DC 5V |
Operating Current | 12V/2A, 5V/3A |

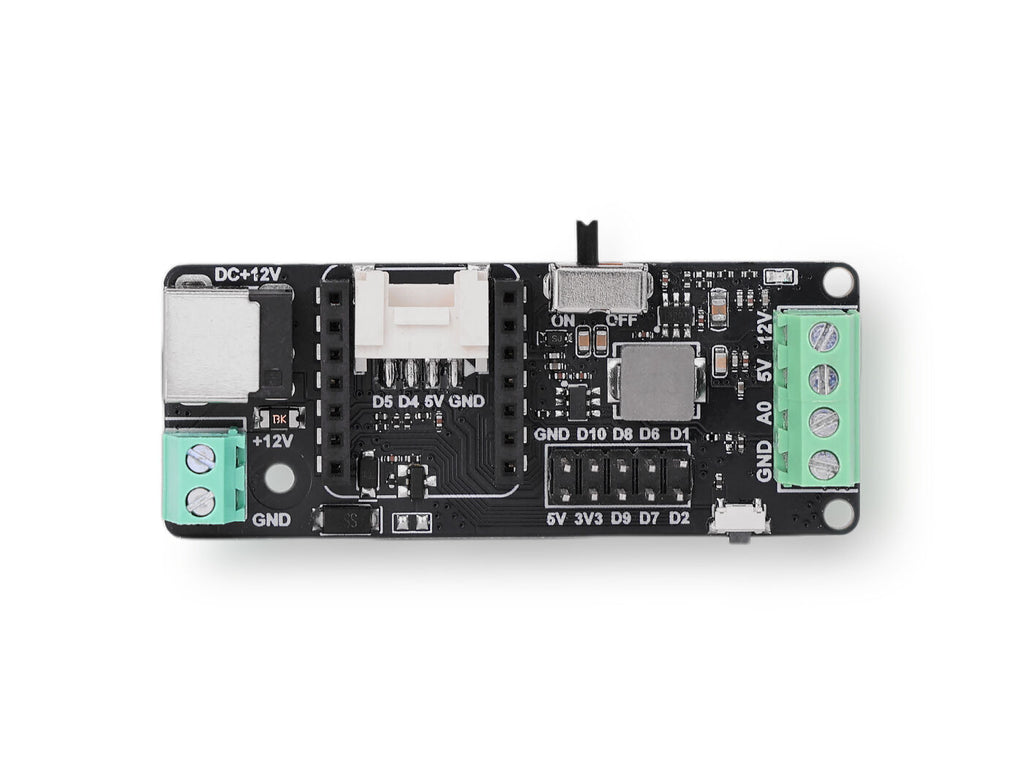

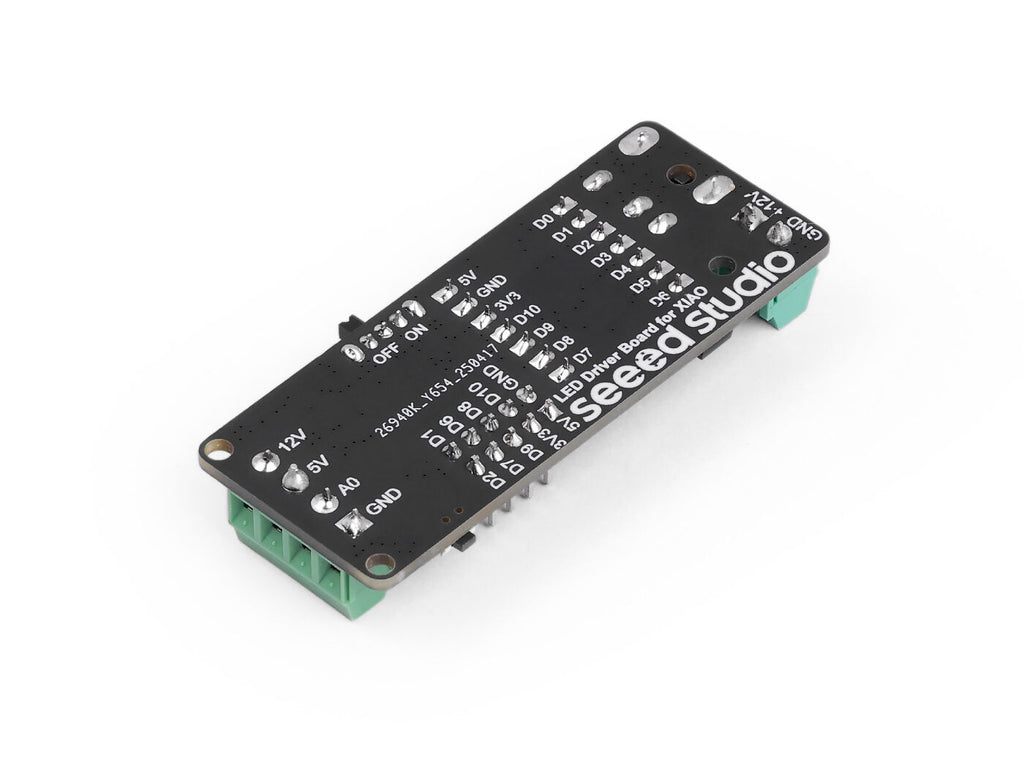

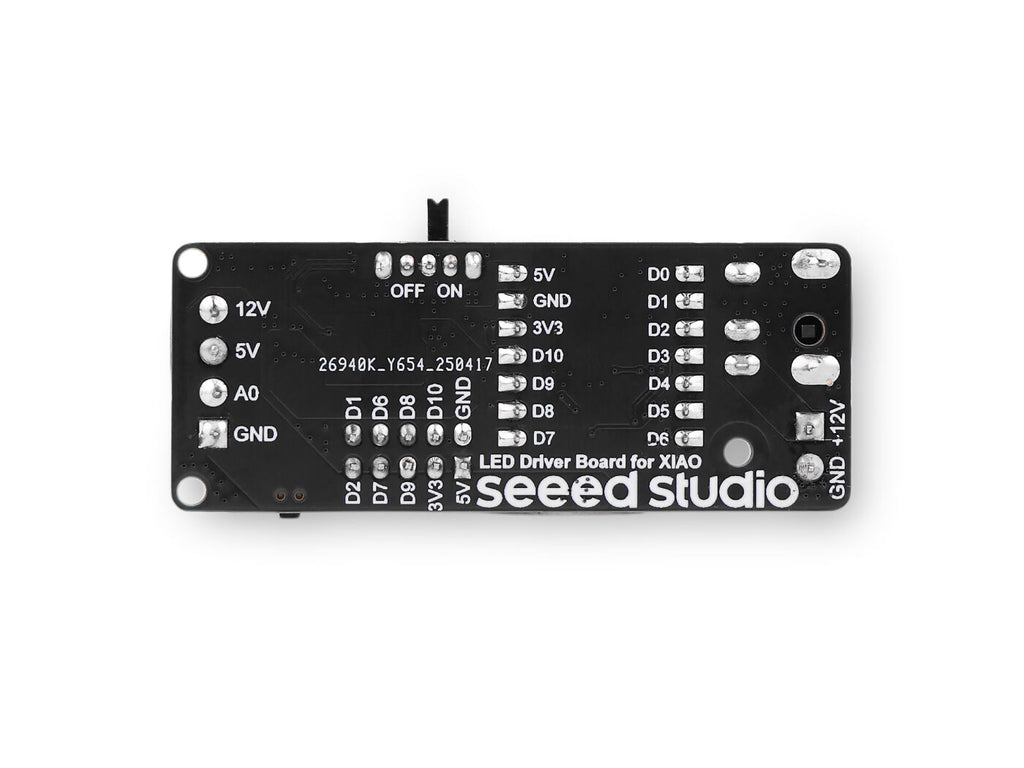

Onboard | Power Swith x1 Grove I²C Connector x1 User Button (D3) x1 Power LED x1 |
User Pin Header | SPI x1, Uart x1, Digital x1 |

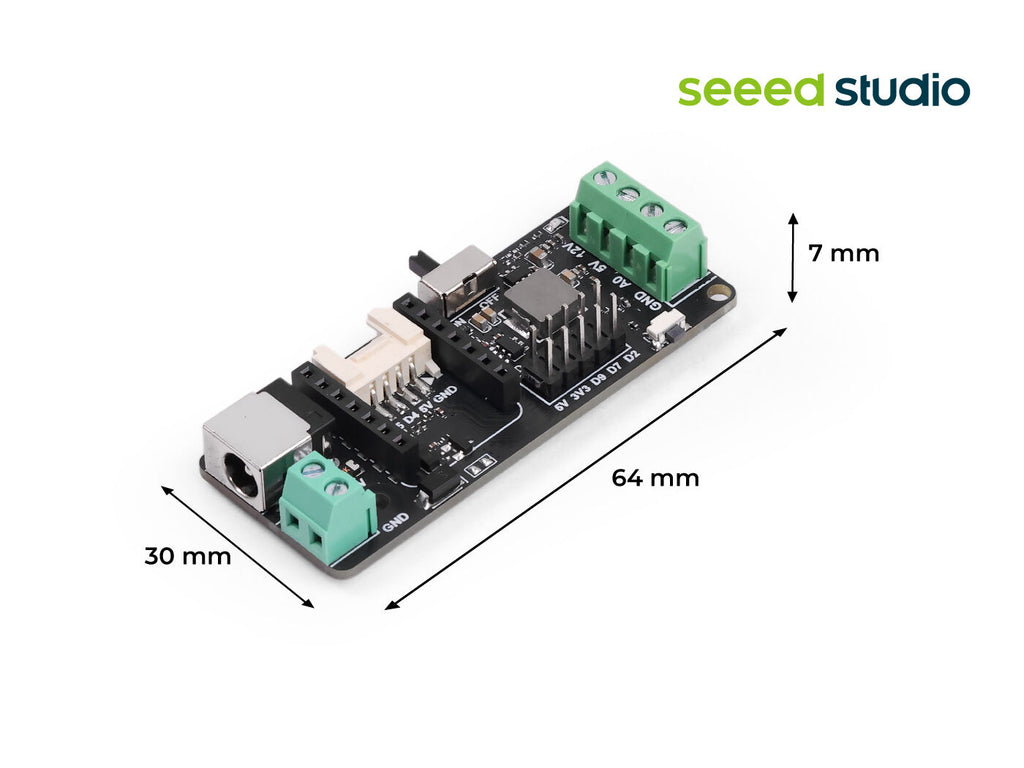

Dimensions | 63mm x 30mm x14.4mm ( With a Seeed Studio XIAO) |
LED Selection Guide
Product | Name | Operating Voltage | Connect via |
 | 5V | Grove | |
 | 5V | Grove | |
 | 5V | Grove | |
 | 5V | Grove | |
 | 5V | Grove | |
 | 5V | Grove | |
 | 5V | Grove | |
 | 5V | Grove | |
 | 5V | Screw Terminal | |
 | 5V | Screw Terminal | |
 | 5V | Grove | |
 | 5V | Grove |
- Home Lighting & Decoration: RGB strip lights, wall lights, festive decorations
- Educational & Science Experiments: Coding & Microcontroller Education, LED light design, Physical Data Visualization
- Gaming & Interactive Installations: PC case lighting, Around screens LED eddects, Interactive LED floor or wall
- DIY Projects & Fun Uses: LED name boards, LED clocks, DJ disco lights, RGB mood lighting
LED_Driver_Board_for_Seeed_Studio_XIAO_SCH_PDF
LED Driver Board for Seeed Studio XIAO | x1 |
| HSCODE | 8531909000 |
| USHSCODE | 8531903000 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
