- High-Quality Audio Output: The Louder ESP32 features a TAS5805M stereo I2S DAC with a built-in D-Class amplifier, delivering up to 2x 32W at 4Ω and 2x 22W at 8Ω, perfect for driving home stereo speakers.
- Enhanced Memory Capabilities: Equipped with a PSRAM chip, this device provides increased memory for running complex audio applications and ensuring seamless performance for Hi-Fi audio development.
- Compact Design: Measuring 85.6 mm x 56.5 mm, it's easy to integrate into smaller audio projects and fits Raspberry Pi 3/4 cases, ideal for portable audio solutions.
- Rapid Prototyping Friendly: With straightforward programming and setup, the Louder ESP32 allows for quick iteration in prototype development, enabling users to test and refine their Hi-Fi audio projects rapidly.
- User-Friendly Integration: This device is compatible with Squeezelite-ESP32 and supports HomeAssistant, streamlining the process for hobbyists and developers to create advanced audio applications without extensive technical expertise.
Product | Louder-ESP32 |
MCU | ESP32-WROVER-N16R8 |
DAC | Stereo I2S DAC (TAS5805M) with built in D-Class amp |
Output (4Ω) | 2x 32W (4Ω, 1% THD+N) |
Output (8Ω) | 2x 22W (8Ω, 1% THD+N) |
PSRAM | 8MB PSRAM (4MB usable) over 40MHz SPI |
Power | Up to 26V from external PSU 5V over USB-C with power limited to 2x5W |
Connectivity | WiFi + BT4.2 + BLE W5500 Ethernet (optional module) |
Buttons | RESET Button×1, FLASH Button ×1 |
Mode | BTL (stereo) , PBTL (parallel, or mono) |

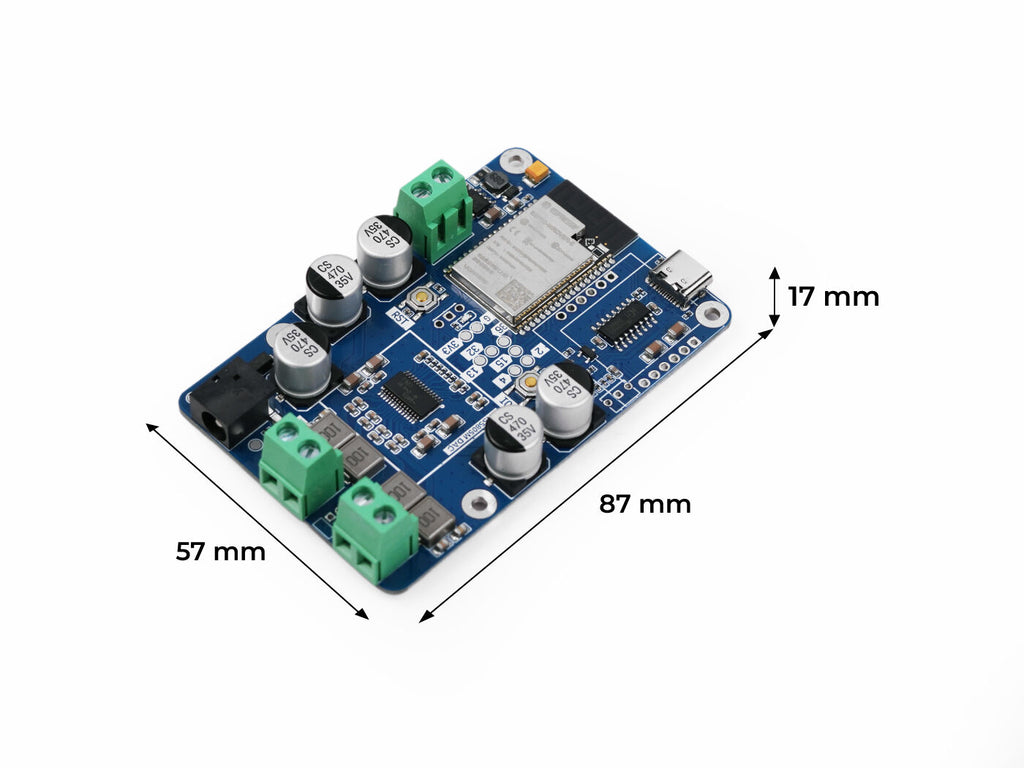

Dimensions | 85.6 mm x 56.5 mm |
- Hi-Fi Audio Development
- DIY Audio Projects
- Home Audio Systems
- Smart Speakers
- Wireless Audio Solutions
- Rapid Prototyping
Louder-ESP32 | x1 |
| HSCODE | 8518900000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
