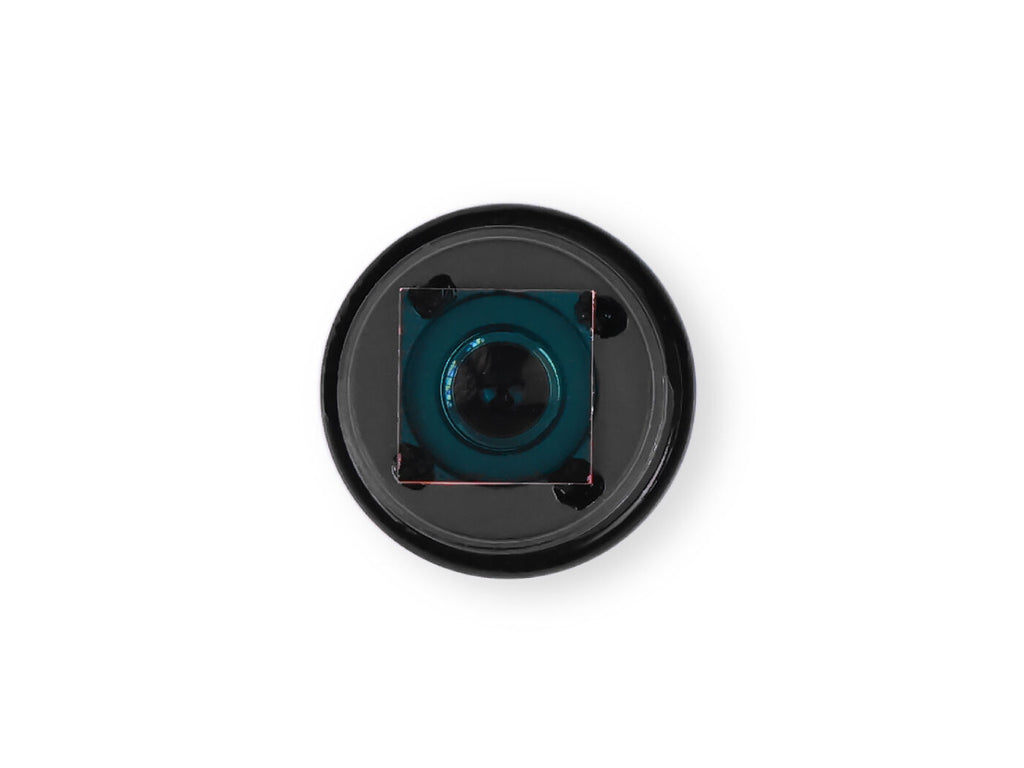

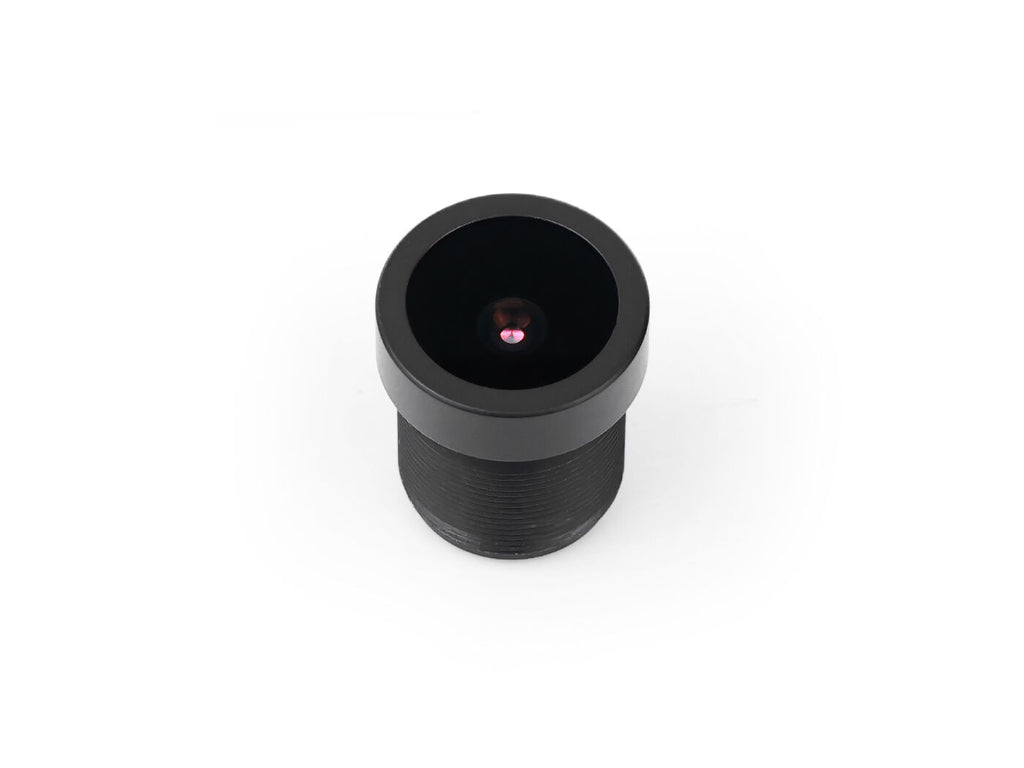

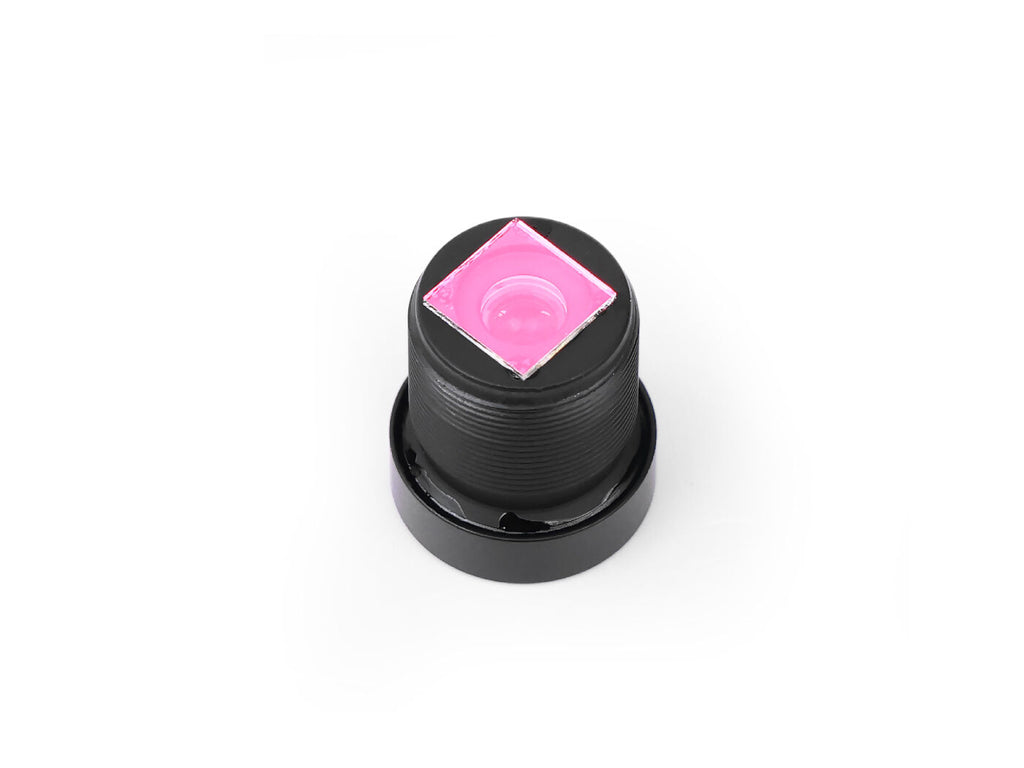

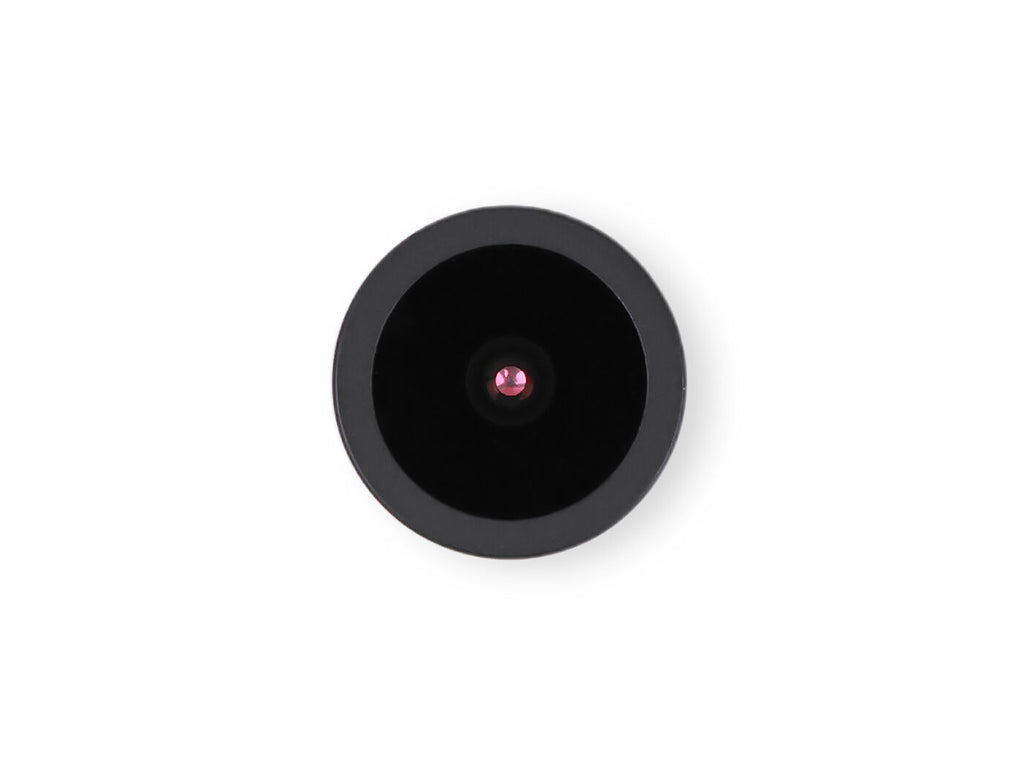

- Wide-angle 2.5mm M12 lens designed for reCamera applications requiring broad scene coverage and wide field-of-view monitoring
- Features manual focus adjustment and an F2.2 aperture for flexible deployment and clear imaging performance across different lighting conditions
Note:
- For reCamera HQ PoE Series (100029708/100018917): Directly supports lens replacement.
- For reCamera 2002 / 2002W Series (102991894/102991895/102991896/102991897): Requires additional reCamera 2002 Sensor Board (100041077) for lens replacement.
- For reCamera Gimbal Series: Lens replacement is currently not supported.
- M12 Fisheye Lens for reCamera - 5MP, 160°
- M12 Wide Angle Lens for reCamera - 3MP, 140°
- M12 Telephoto Lens for reCamera - 5MP, 20°
- M12 Ultra Telephoto Lens for reCamera - 2MP, 15°
Specification | Parameter |
Focal Length | 2.5mm |
Resolution | 3MP |
Image Format | 1/2.9" |
Aperture | F2.2 |
Mount | M12 × 0.5 |
HFOV | 140° |
Min Object Distance | 0.2m |
Focus | Manual |
Back Focal Length | 5.8 mm |
Zoom | Fixed |
MOD | 0.2m |
BFL | 5.8mm |
Dimension | Φ14 × 15.5mm |
Operating Temp | -20°C to +75°C |
M12 Wide Angle Lens for reCamera - 3MP, 140° | x1 |
| HSCODE | 9002199000 |
| USHSCODE | 9002190000 |
| UPC | |
| EUHSCODE | 9405413910 |
| COO | CHINA |
