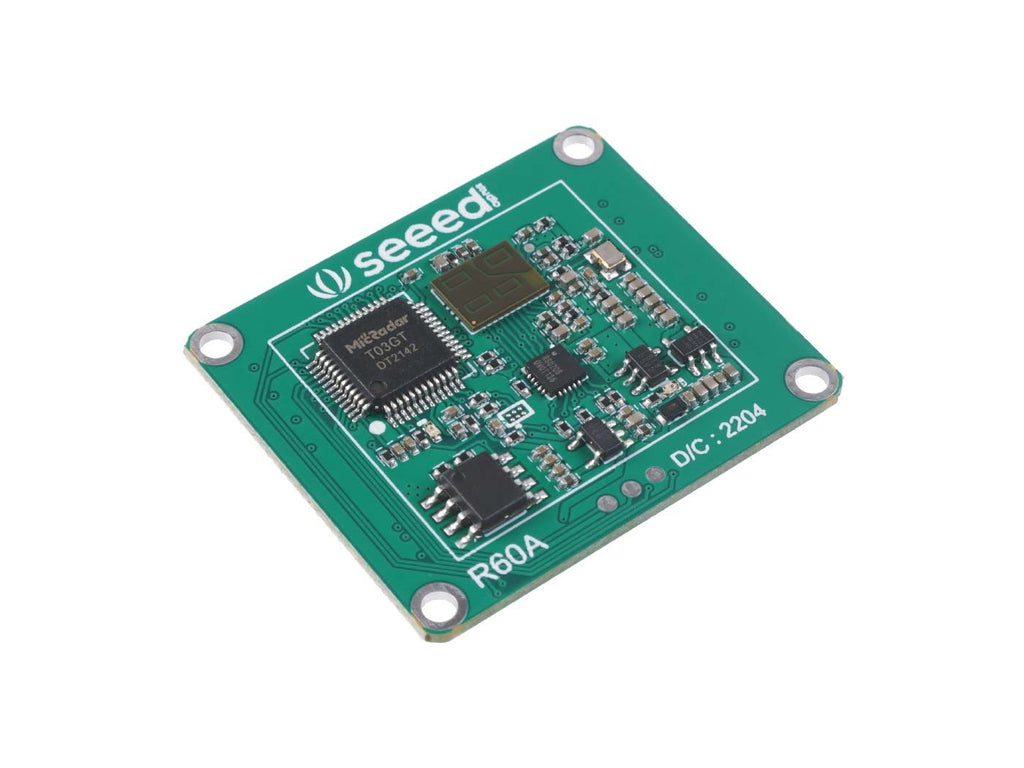

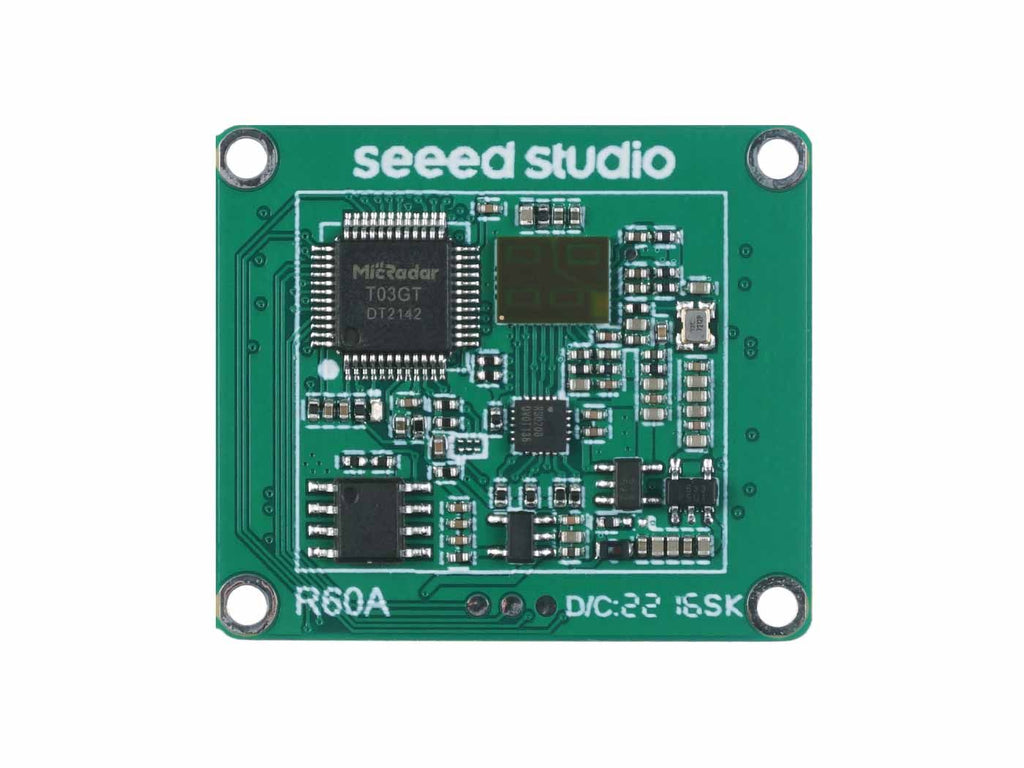

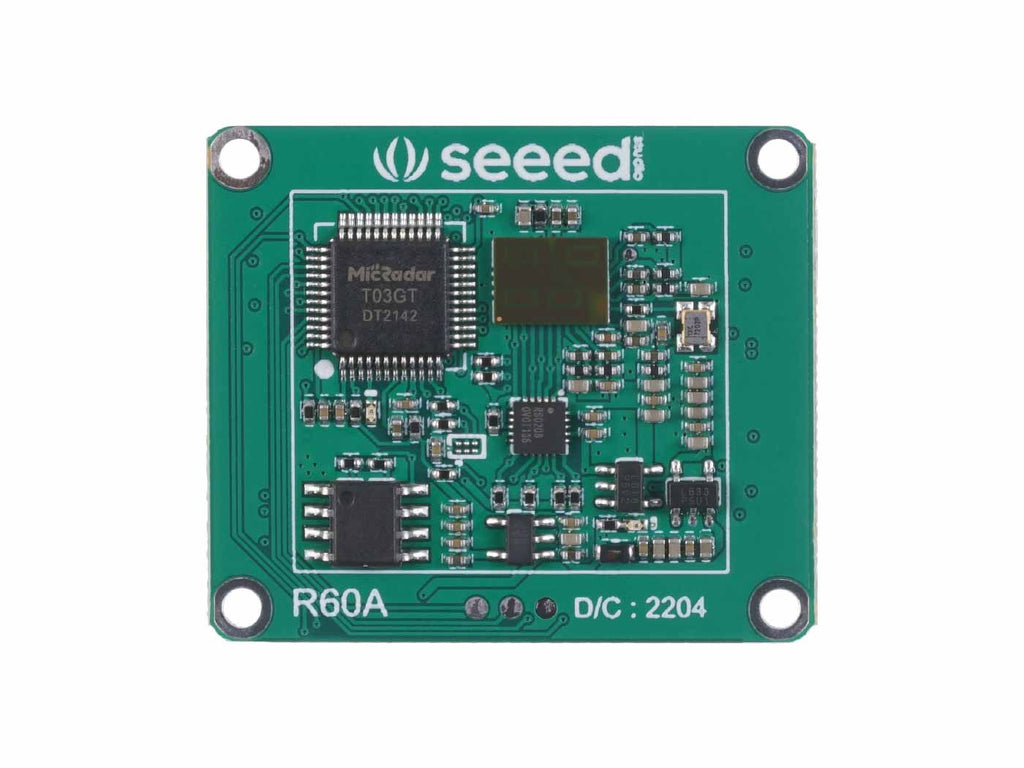

MR60FDA1 60GHz mmWave Radar Sensor - Fall Detection Module Pro | FMCW, Sync Sense, Privacy Protect, high stability, support secondary development

Feature

• Enabled theory: Implement radar detection based on 60GHz FM continuous wave signals
• Enhanced detecting algorithm: Sense and output simultaneously human activities including moving, falling, and stationary in the self-adaption environment
• Perfect privacy protection: Apply FMCW monitoring technology to provide surveillance capabilities without identification
• Health-friendly working status: Output power as low as harmless to the human body
• High stability: Independ from temperature, humidity, noise, airflow, dust, light, and other environmental influences
• High measured accuracy: Achieve fall detection accuracy up to 90% and achieve presence awareness function accuracy up to 90 %
• High flexibility hardware design radar: Support secondary development, adapt to various scenarios applications

Description

The 60GHz mmWave Radar Sensor - Fall Detection Module Pro implements human activities detection including moving, falling, and stationary based on 60GHz Frequency Modulation Continuous Wave(FMCW) detected theory, providing a fully private and secure environment, independently from other noisy influences. Additionally, with built-in a standard algorithm and onboard antenna, the unit ensures simultaneous signal output with high accuracy. It represents an ideal solution for high-accurate, self-regulation, privacy-protected, secure biotic radar systems in private property surveillance, falling caution, elderly health care, performing well in home, hotel, as well as hospital.

In comparison to 24 GHz mmWave fall detection radar sensors, 60 GHz sensors gather richer point-cloud data for being more sensitive, reducing more errors to improve accuracy in a conceivable way. In particular, fine velocity resolution enables better tracking of lateral movements to allow more stable detection of moving objects and 60 GHz radar sensors offer as much as 2.5 times better velocity resolution performance than 24 GHz. Meanwhile, because the range resolution is heavily dependent on available bandwidth, 60 GHz mmWave fall detection radar sensors will offer significantly better performance than the 24 GHz ones in high-accuracy and reliable human activities identification, particularly fall detection.

The 60GHz mmWave Radar Sensor - Fall Detection Module Pro leverages the fine performance of 60 GHz FMCW and utilizes an intelligent processing algorithm to achieve the high-accuracy output, as 90% of fall detection and 90% of presence awareness function. Furthermore, the radar can be independent from temperature, humidity, noise, airflow, dust, light, and other environmental influences. Designed as low power output, the radar maintains health-friendly working status while it is observed. For privacy protection, the radar provides a perfect solution that applies FMCW monitoring technology to equip surveillance capabilities without identification.

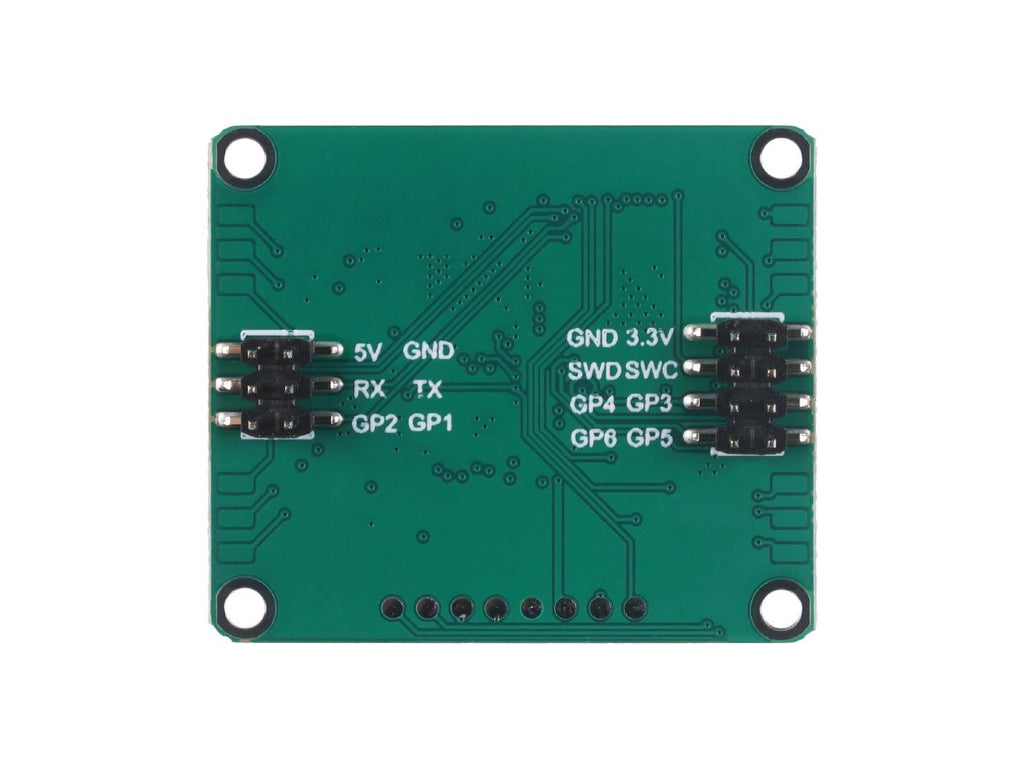

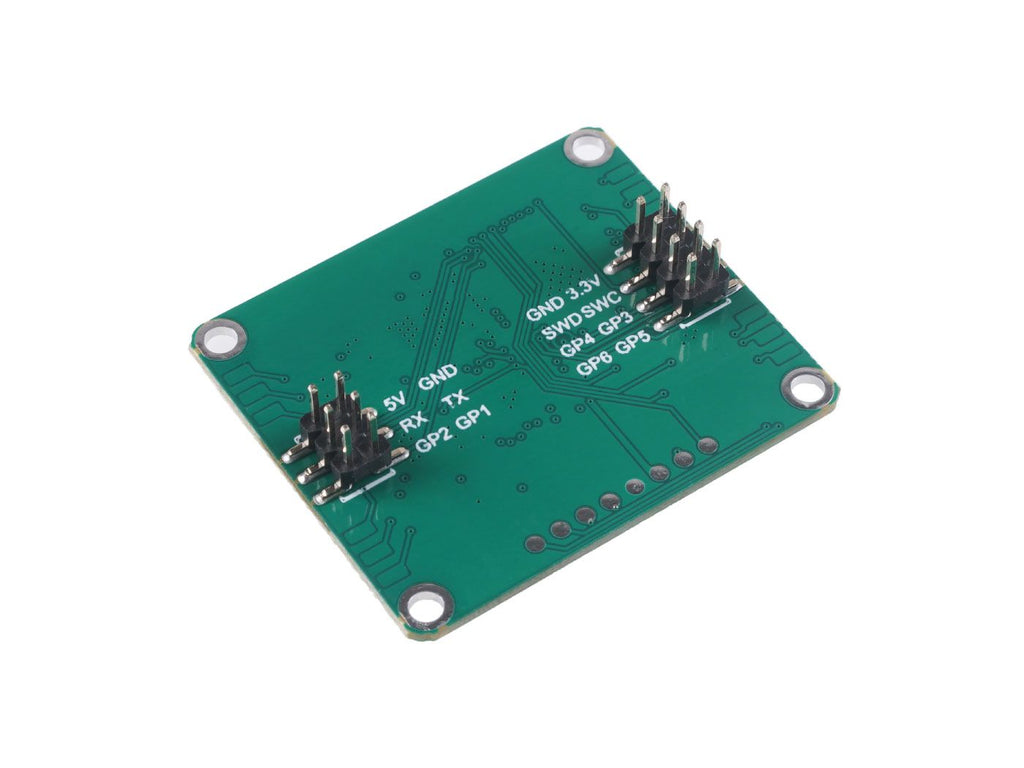

The radar supports secondary development and it adapts to various scenarios and applications. Using a universal UART communication interface provides an extra common protocol as 4 groups of I\O are reserved by the user’s definition. The detected area is a three-dimensional sector of 80° horizontally and 80° tilted and the measured distance is between 0.4-2 m.

Specification

Detection angle and distance

Usage Method

Application

• Smart home
• Health care
• Fall detection
• Smart hotel
• Medical assistants

Part List
