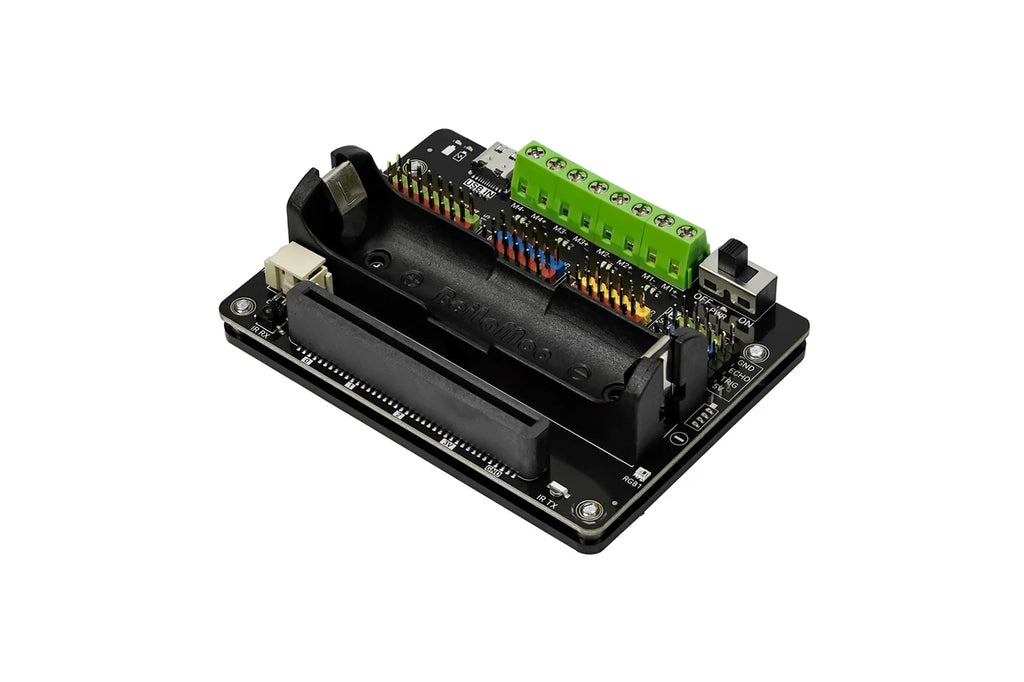

The Multi-function Expansion Board for UNIHIKER is an all-in-one module engineered to unlock the full potential of UNIHIKER (K10 / M10) and micro:bit development boards. By seamlessly integrating with the host controller, it addresses common limitations through three core enhancements: comprehensive I/O expansion, a self-contained 18650 mobile power system, and a high-current motor and servo drive unit. This board enables the simultaneous control of up to 4 DC motors and 6 servos while providing a rich array of digital, analog, and communication ports. It is the definitive solution for developing complex mobile robots, portable interactive devices, and sophisticated maker projects that demand greater connectivity and power autonomy.
Comprehensive I/O Expansion

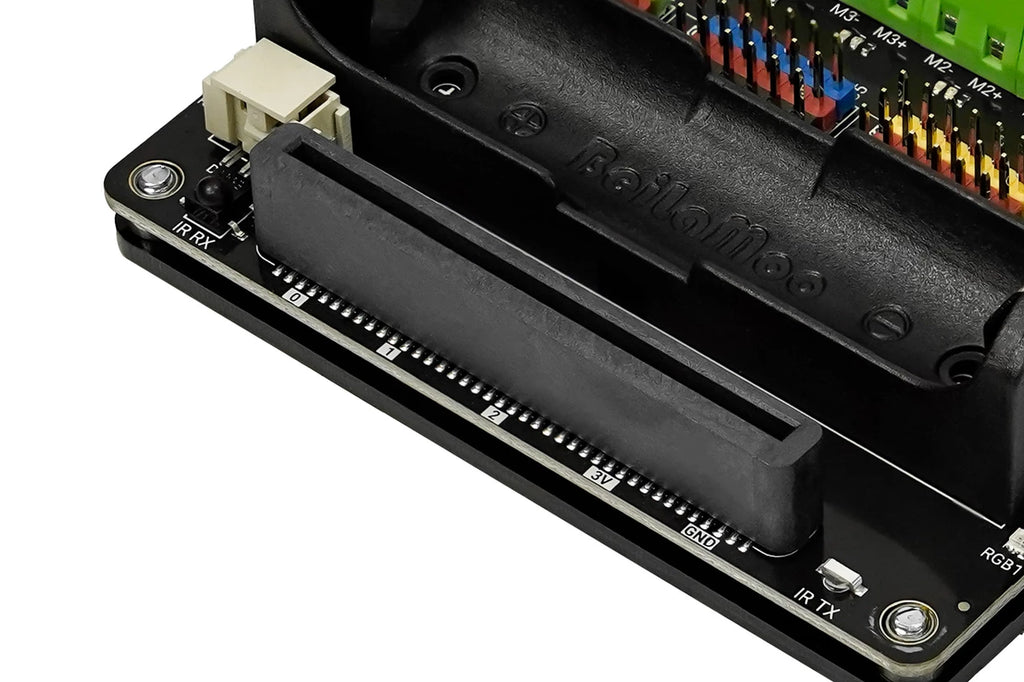

This expansion board directly resolves the issue of insufficient I/O pins on the UNIHIKER development board. It adds a multitude of multifunctional pins, including 6 ports for digital, analog, or single-bus devices, and a dedicated interface for ultrasonic sensors. Critically, it retains the native gold finger interface of the mainboard, ensuring existing connections remain accessible. Furthermore, the board integrates onboard components such as two programmable RGB LEDs and an infrared transmitter/receiver, adding immediate functionality for status indication and remote control without requiring external modules.
Figure: How to Connect the Expansion board and UNIHIKER M10
Integrated Mobile Power Solution

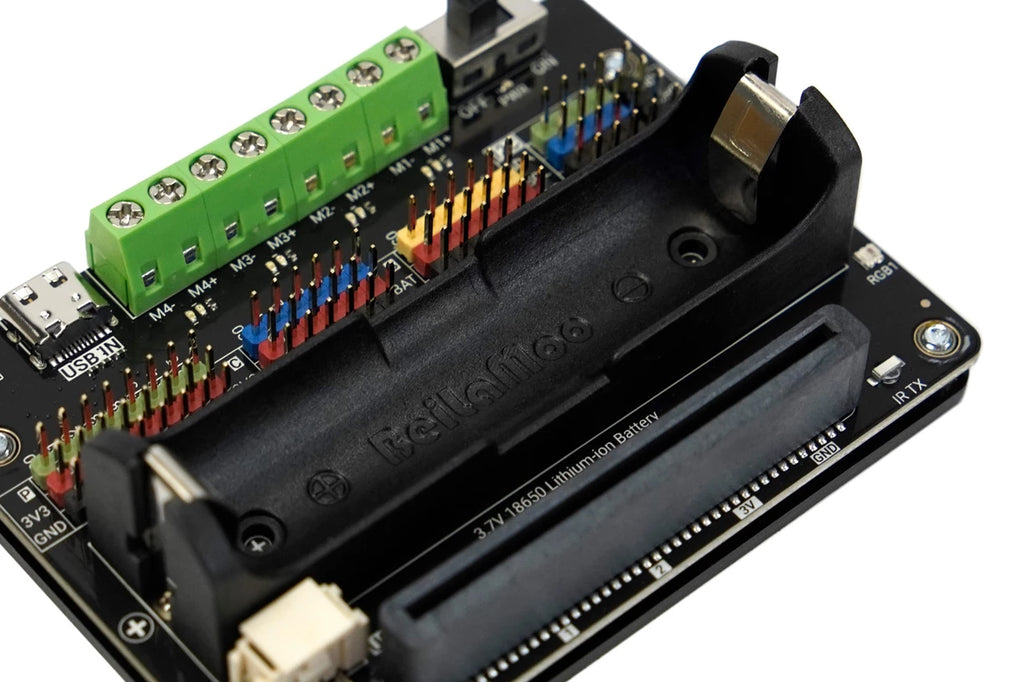

Designed for true project mobility, the IO expansion board eliminates the need for cumbersome external battery packs and tethered power cables. It features an integrated 18650 battery holder with a complete charging and discharging management circuit. An onboard battery level indicator provides a clear visual cue of the power status for safe operation. For the high-performance UNIHIKER M10, a specially designed Type-C to HY2.0-4P power cable is included, ensuring a stable and reliable power supply for demanding applications.
Superior Motor and Servo Driving Capability
To handle complex robotics and automation tasks, the IO expansion board is equipped with a powerful drive system. It incorporates a four-channel DC motor driver and six servo interfaces. The servo power supply is independent, drawing directly from the battery to ensure that high-torque movements do not compromise the main controller's stability. Additionally, a dedicated 5V I2C interface is included to reliably power high-current peripherals, such as the HUSKYLENS AI vision sensor, which typical 3.3V logic boards cannot support alone.
Figure: UNIHIKER expansion board with various connected modules
Robust, LEGO-Compatible, and User-Friendly Design

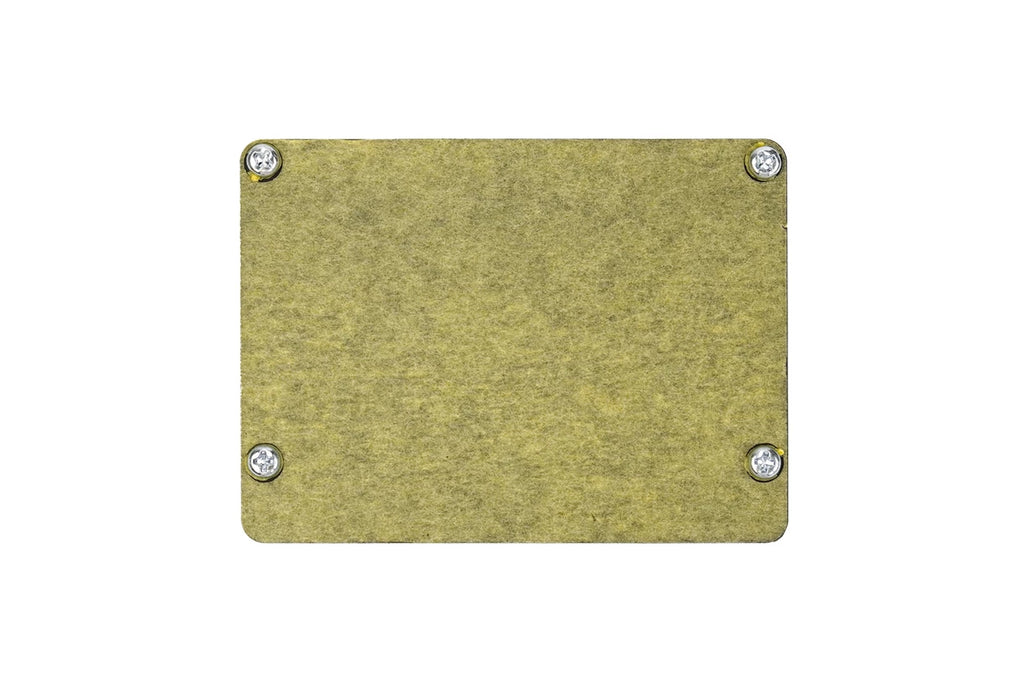

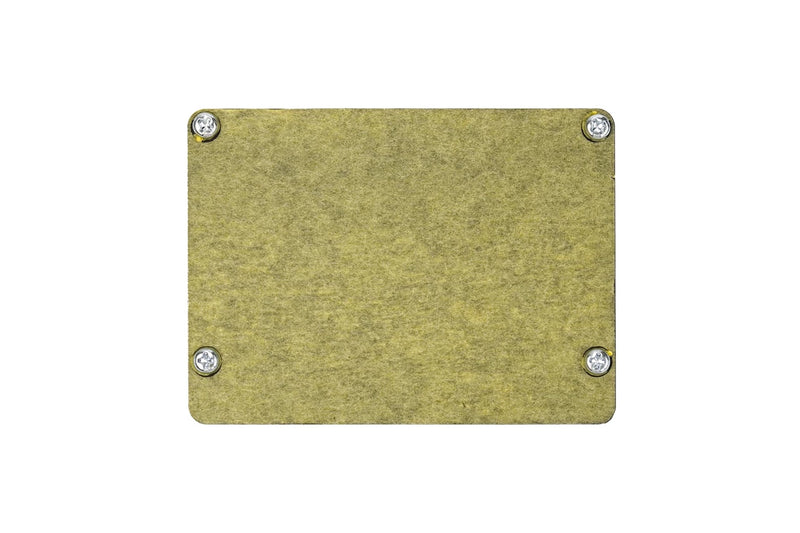

Every aspect of the board is designed for practicality and durability. The M3 mounting hole spacing on its base is compatible with LEGO brick dimensions, allowing for seamless integration into mechanical structures. A full suite of status indicator lights for system power, charging, and motor direction provides immediate visual feedback for easy debugging. For protection, an acrylic baseplate prevents accidental short circuits, while all I/O pins are equipped with electrostatic protection, enhancing safety during handling and use.
Figure: UNIHIKER board mounted on LEGO bricks
Specification:
- Operating voltage: 3.3V DC
- USB-C interface input voltage: 5V DC
- GPIO extension:
3.3V GPIO from main board edge connector x8
3.3V Digital/Analog/OneWire GPIO x6
Servo interface (powered by battery) x6
3.3V I2C x3
5V I2C x1
5V Ultrasonic Sensor (Trig-Echo) x1 - Motor Driver: DC Motor Terminal Block x4
- HY2.0 4-pin interface x1 (power for UNIHIKER M10)
- Battery Holder: 3.7V 18650
- On-board components:
RGB LED (WS2812) x2
IR emitter x1

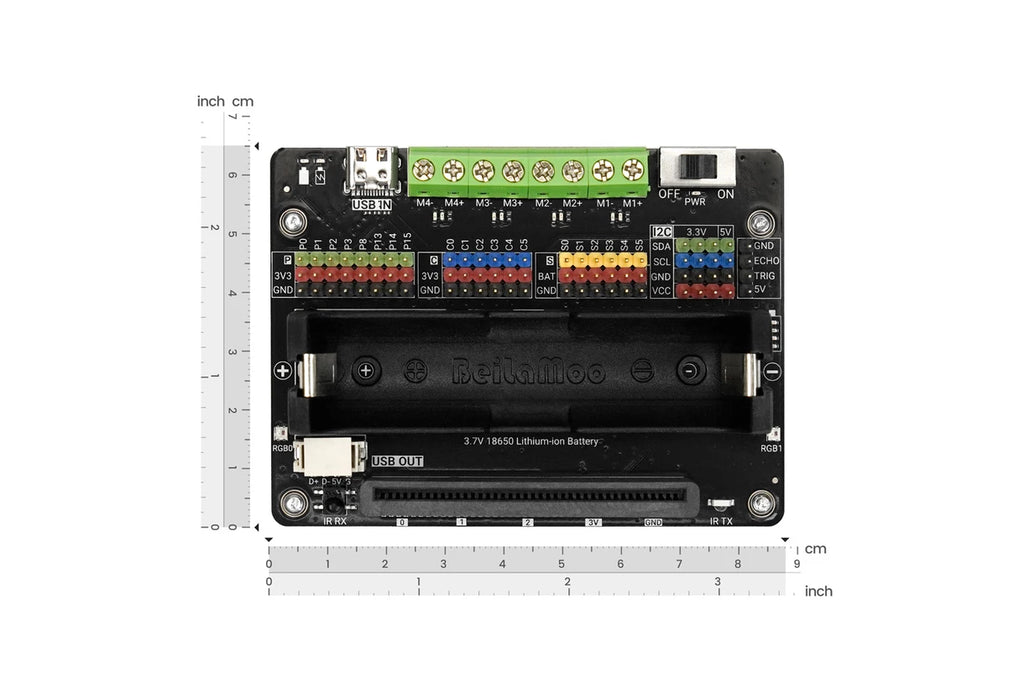

IR receiver x1 - Size: 65*88mm
- Weight: 200g
Documents:

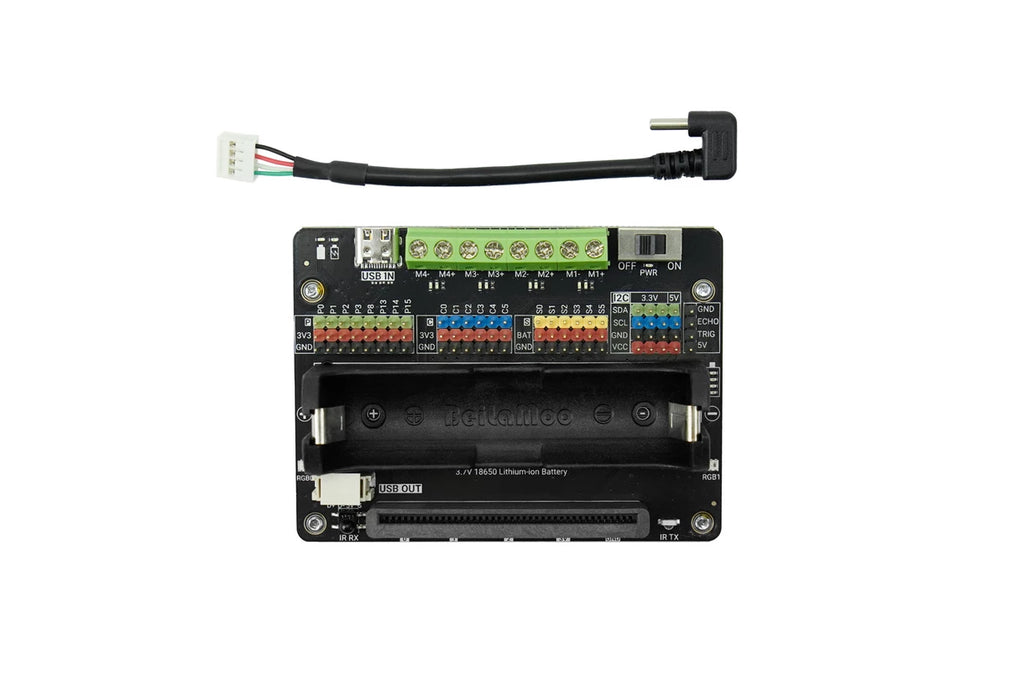

Product Includes:
- Multi-function Expansion Board for UNIHIKER M10 x1
- Type-C to HY2.0-4P Cablex1
