- Small and Compact for an Easy Upgrade: A small, single-sided M.2 2280 form factor that plugs directly onto the motherboard
- NVMe™ Technology: Reduces latency in the system's I/O channel between your SSD and your CPU by utilizing NVMeTM 1.3c technology.
- Cutting-Edge 3D Flash Memory: Built with BiCS FLASH™ and a vertically stacked cell structure, offering 2TB storage
- PCIe Gen3x4 32GT/s Interface

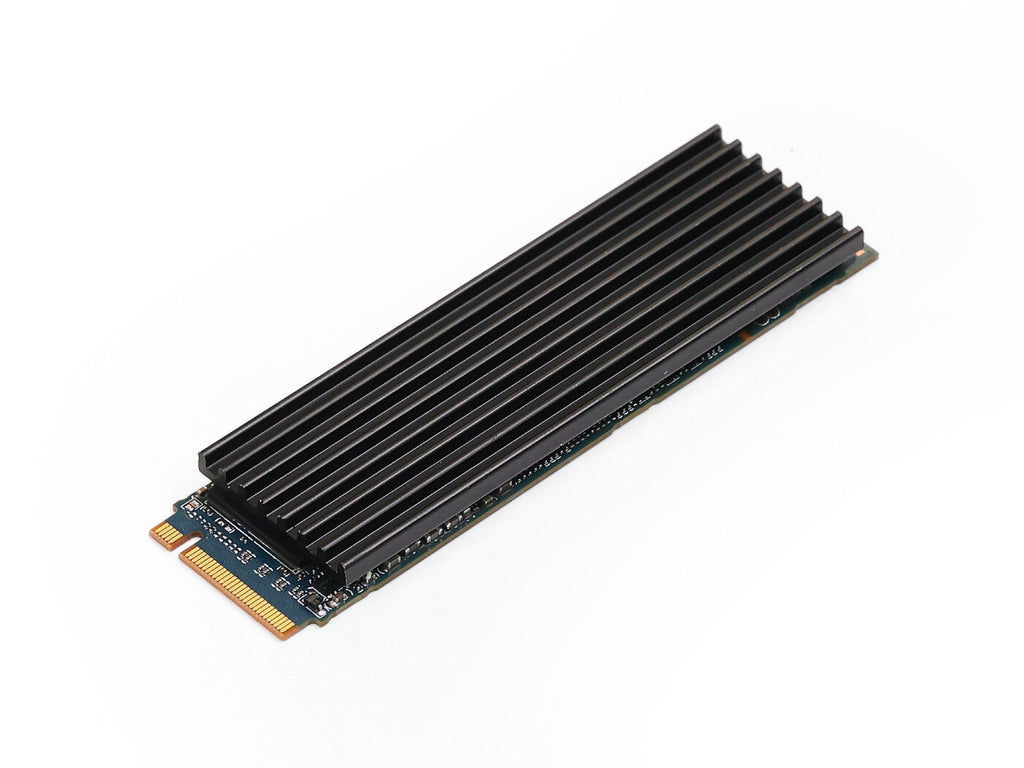

- Include cooling fin applicable to all 2280 SSDs
Physical
Specifications | KIoXIA |
Capacity | 2TB |
Interface | PCI Express Base Specification Revision 3.1a (PCIe) |
Interface Maximum Speed | 32 GT/s (PCIe Gen3 x4) |
Interface Command | NVM Express Revision 1.3c command set |
Form Factor | M.2 Type 2280-S2-M |
Flash Memory Type | BiCS FLASH TLC |

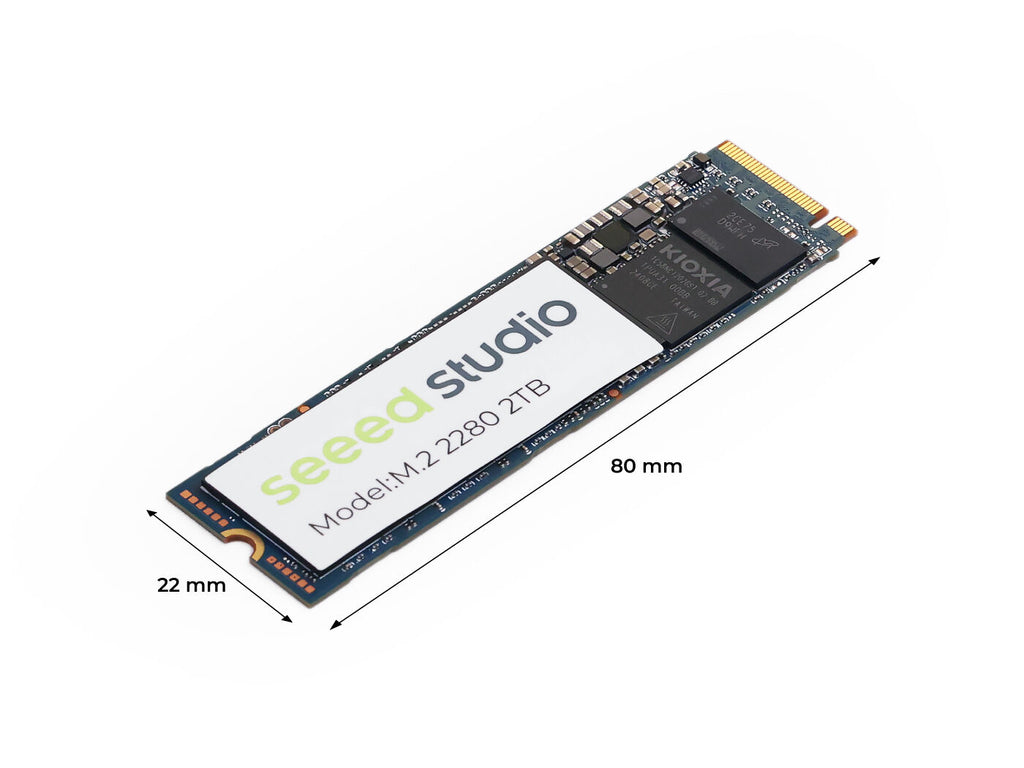

Dimension (Max:L x W x H) | 80.15 mm x 22.15 mm x 2.23 mm |
Drive Weight | 500GB, 2TB: 6.8g (typ.), 2TB: 7.1g (typ.) |
Performance
Specifications | KIoXIA |
Max Sequential Read Speed | 2,100 MB/s |
Max Sequential Write Speed | 1,700 MB/s |
Max Random Read Speed | 2TB: 360,000 IOPS |
Max Random Write Speed | 2,400,000 IOPS |
Endurance (TBW) | 2TB: 800 TB |
MTTF | 1.5 million hours |
Environmental
Specifications | KIoXIA |
Operating Temperature | 0°C (Ta) to 85°C (Tc) |
Storage Temperature | -40°C to 85°C |
Shock Resistance | 9.806 km/s² [1,000 G], 0.5 ms half-sine wave |
Supply Voltage | 3.3V ± 5% |
Vibration | 196 m/s² (20 G Peak, 10~2,000 Hz, 20 min / Axis) x 3 Axis |
Power Consumption (Active) | 2TB: 5.3 W (typ.) |
Power Consumption | PS3: 50 mW (typ. PS4: 5 mW (typ.) |
Compatibility
Specifications | KIoXIA |
PCI Express | Compatible with PCI Express Base Specification Revision 3.1a NVM Express Revision 1.3c command set |
Connector Type | M.2 M key Socket |
Target Applications | Client desktops and laptops |

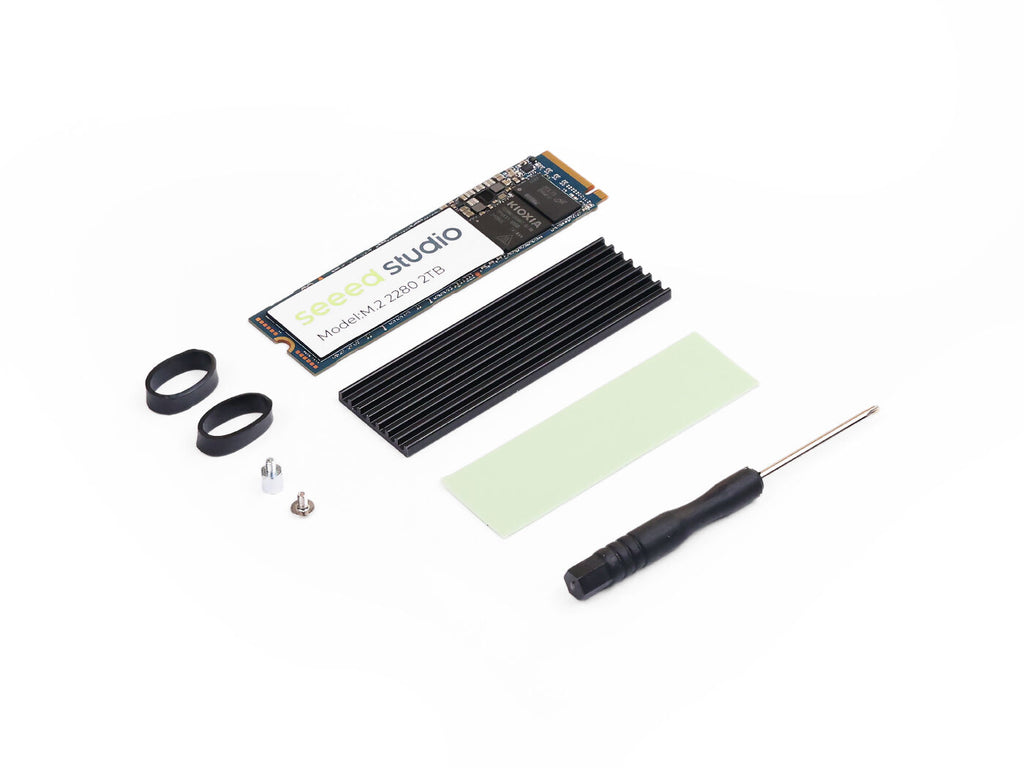

NVMe M.2 2280 SSD 2TB | x1 |
Cooling fin | x1 |
| HSCODE | 8471701100 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
