Description
Badgeware is Pimoroni's smart interactive badge with colour 2.8" TFT display, powered by Raspberry Pi RP2350.

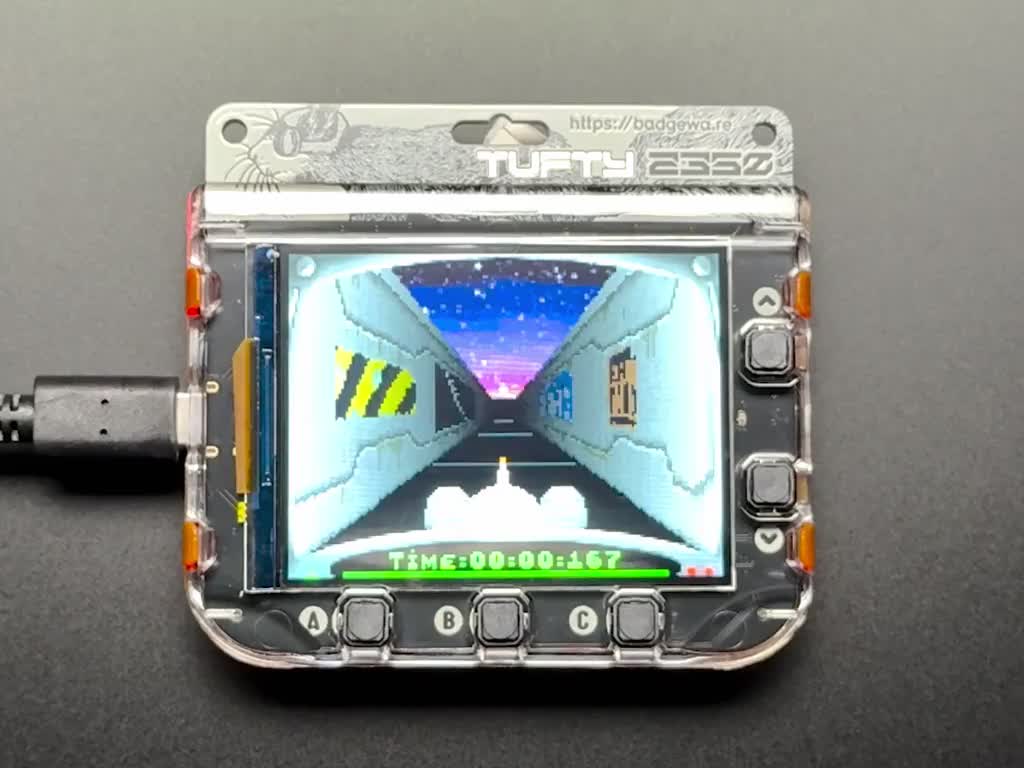

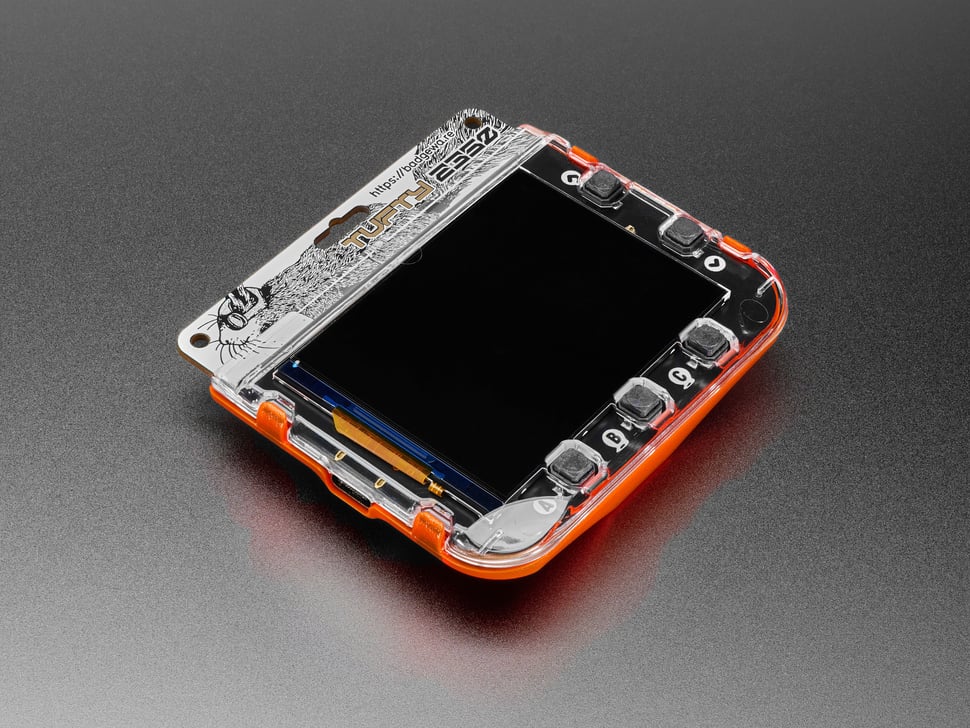

This version is the Tufty 2350 - it's an all-in-one badge wearable with a vibrant 2.8" IPS LCD screen, built-in rechargeable battery and sturdy polycarbonate case. Hang it round your neck with the (included) Tufty lanyard or prop it up on your desk - either way it's ready to go straight out of the box. It's way more than just a event badge too - the colour screen would also be great for displaying art, tiny games or sensor dashboards.
Find out more at https://badgewa.re !
🌳 What is Badgeware?
Badgeware is a trio of all-in-one wearables designed to put customisable tech within everyone's reach.
Each species of badgeware is built around a different display, but they share the same common features - five sturdy front buttons, a translucent jewel-coloured polycarbonate case and a built-in LiPo battery with USB-C charging. They also have rear mounted mono lighting to illuminate the case. Under the hood is top notch Raspberry Pi hardware - a capable dual core RP2350 chip plus a RM2 radio module for wireless and Bluetooth connectivity.

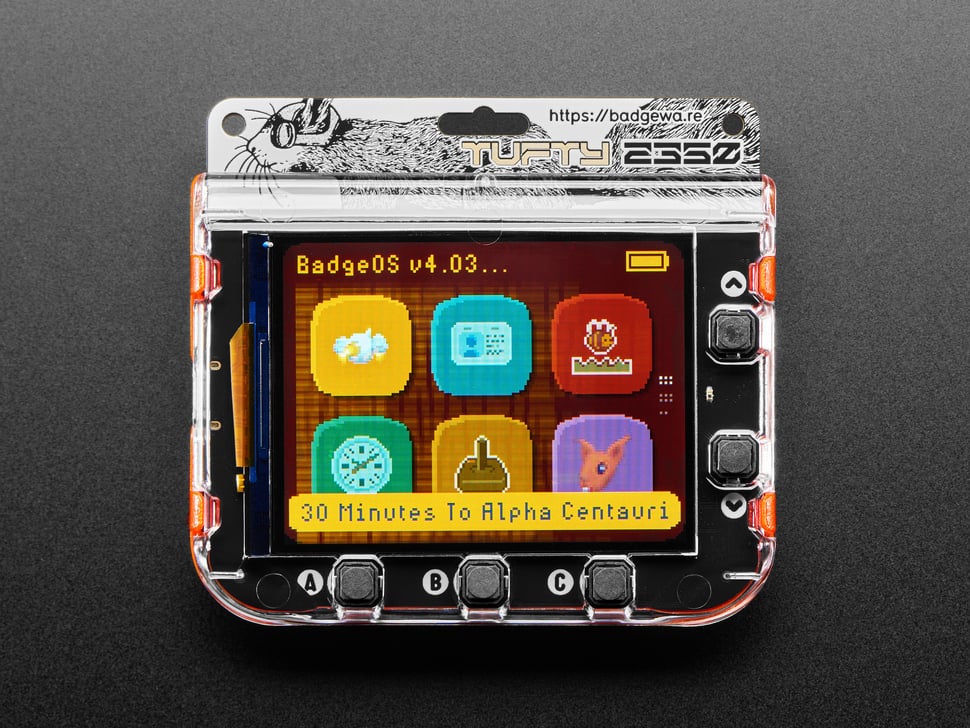

They're easy and fun for beginners to get started with, yet powerful enough for experienced coders to really make their own. Connect your badge to any computer to quickly personalise our apps, or use MicroPython to develop new ones and add them to the BadgeOS launcher.
📦 What's in the box?
Every Tufty 2350 comes fully assembled in a sturdy case with a built-in battery and a snazzy matching lanyard. You'll need a USB-C cable to charge the battery and program Tufty (if you don't have one already, we stock USB-A to USB-C cables in the adafruit shop!).
There's also a version called 'The STEM Kit' which includes a cute controller and some fun and educational sensors to play with.
👓 Features

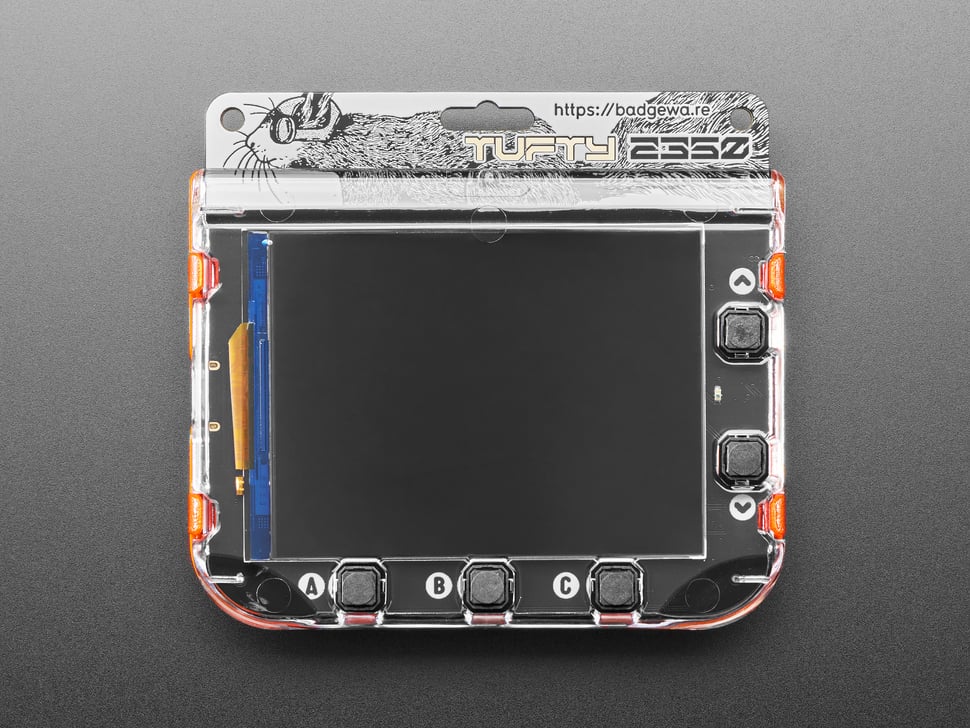

- Display: 2.8" full-colour TFT IPS LCD (320 x 240 pixels), with adjustable backlight
- Phototransistor for light sensing
- Powered by RP2350B (Dual Arm Cortex M33 running at 250MHz with 520KB of SRAM)
- 16MB of QSPI flash supporting XiP
- 8MB of PSRAM
- Raspberry Pi RM2 module (CYW43439), supporting IEEE 802.11 b/g/n wireless LAN, and Bluetooth
- 1000mAh LiPo battery:
- PCF85063A real-time clock for waking from sleep (datasheet)

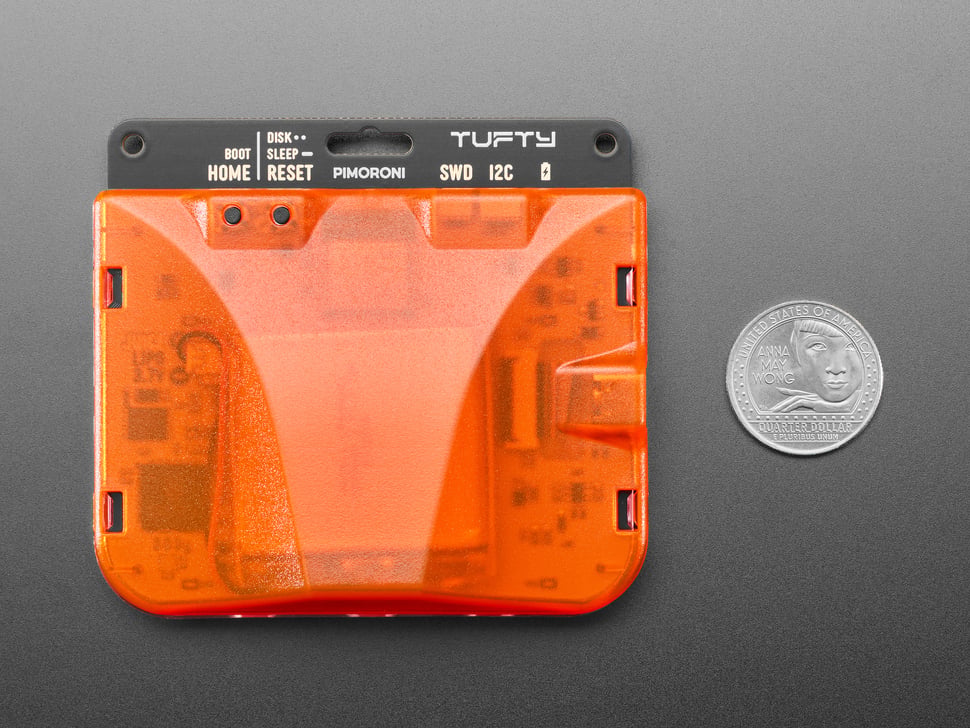

- Polycarbonate case with orange back

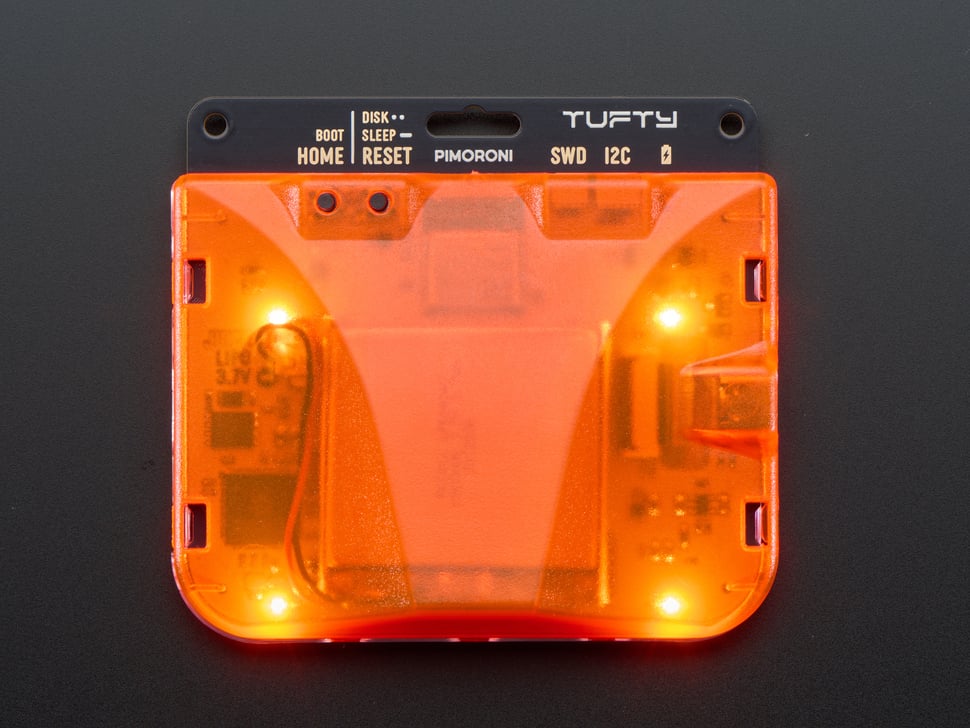

- 4-zone mono LED case lighting
- Buttons:
- Five front user buttons
- Reset (and sleep) button
- Home (and boot) button

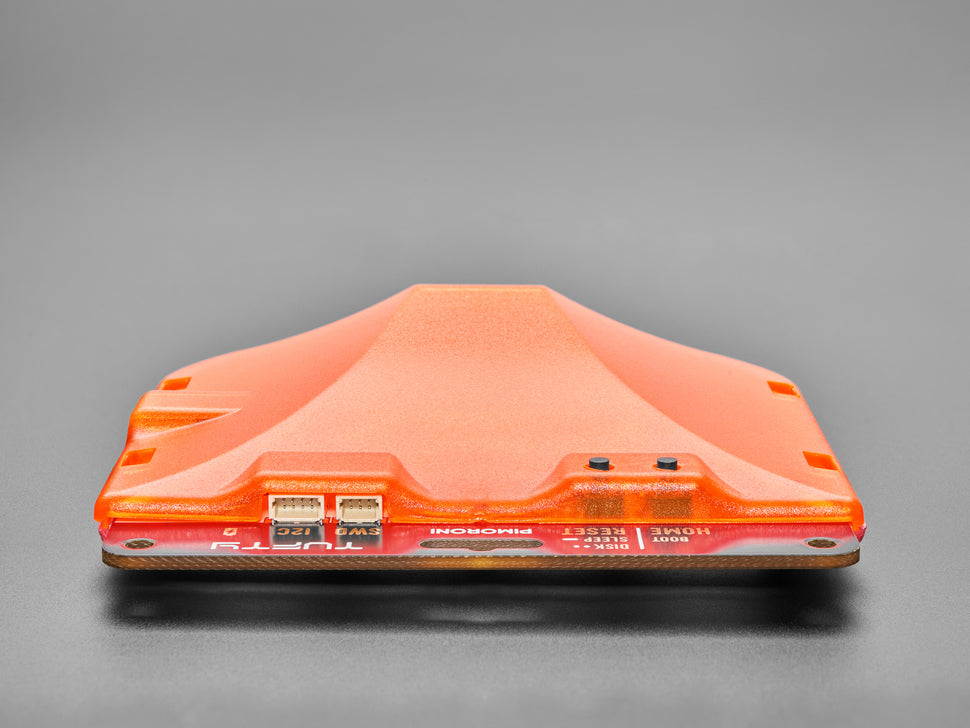

- Connectors:

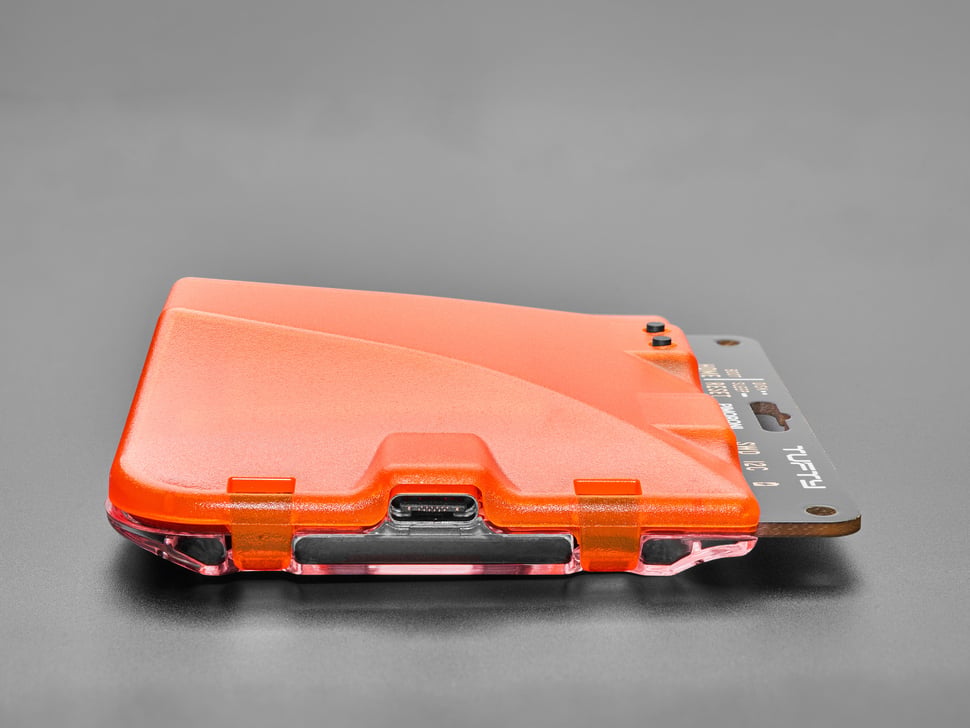

- USB-C connector for charging and programming
- I2C connector (Qwiic/STEMMA QT) for attaching breakouts
- SWD debug connector
- Programmable with MicroPython
- Comes fully-assembled (no soldering required)

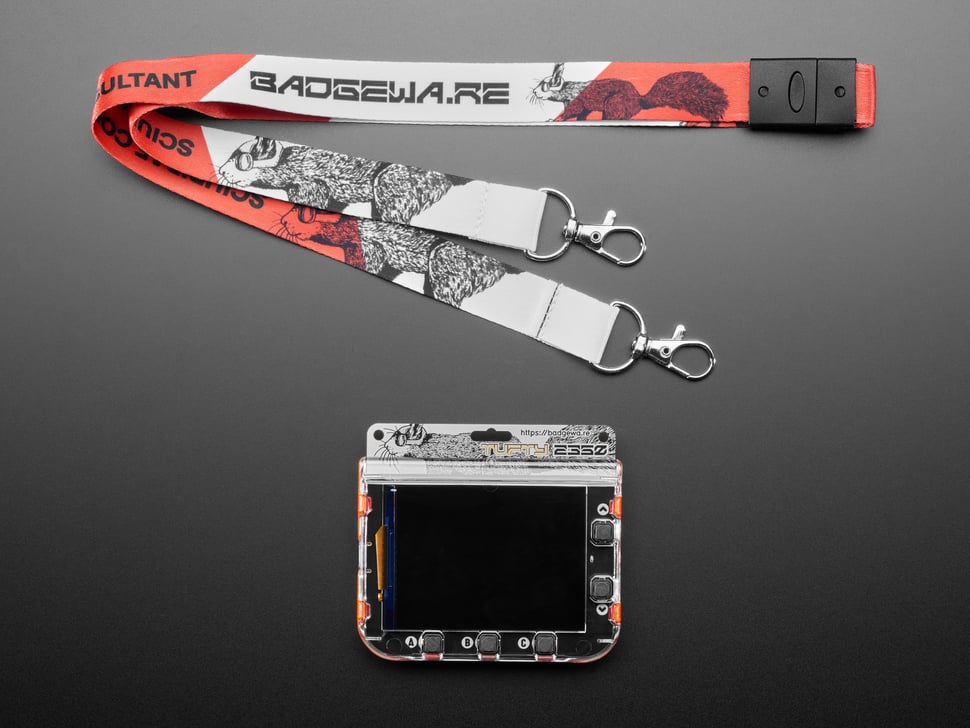

- Includes matching 2-clip lanyard
- Dimensions with case: 84mm (W) x 76mm (H) x 20mm (D)
🌞 Connecting Breakouts
Tufty 2350 has an I2C connector, so you can connect up Qwiic/STEMMA QT breakouts easily using a JST-SH to JST-SH cable.
Technical Details
Specifications:
- 2.8" 320×240 Full-colour IPS display
- RP2350 + 16MB flash + 8MB PSRAM
- WiFi + Bluetooth 5.2
- USB-C + 1,000mAh battery
- User + system buttons
- Four-zone rear lighting
- "Sciuridae Consultant" lanyard
For more details, press this link for Badgeware Docs.
For product support, replacement parts, and warranty for Pimoroni products, visit the Pimoroni forum or contact Pimoroni directly.
