- High Efficiency Design — Typical efficiency up to 92% (48V model), reducing energy costs and heat generation.
- Wide Range Input — Selectable 90–132VAC / 180–264VAC via switch; withstands 300VAC surge for up to 5 seconds.
- Robust Multi-Protection — Features Overload (Constant Current Limit 105–150%, auto-shutdown after 3s), Over Voltage (55.2–64.8V, latch-off), Over Temperature, and Short Circuit protection. All protections feature auto-recovery.
- Smart Cooling System — Built-in intelligent temperature-controlled fan; activates at ≥50°C and stops at ≤40°C to maximize lifespan.
- Extreme Environment Ready — Operates reliably from -20°C to +65°C (full load) and up to 5000m altitude.
- Low Noise Output — Ripple & Noise ≤ 360mVp-p (measured at 20MHz bandwidth).
- Global Safety Certified — Complies with IEC/UL 62368-1, CCC (GB4943.1), BSMI, and EAC TP TC 004 standards.
- Superior Reliability — MTBF \> 1,533,400 hours (calculated per Telcordia SR-332).
- Anti-Vibration Design — Withstands 5G vibration (10–500Hz) for 60 minutes in each axis (X, Y, Z).
| Item | Specification |

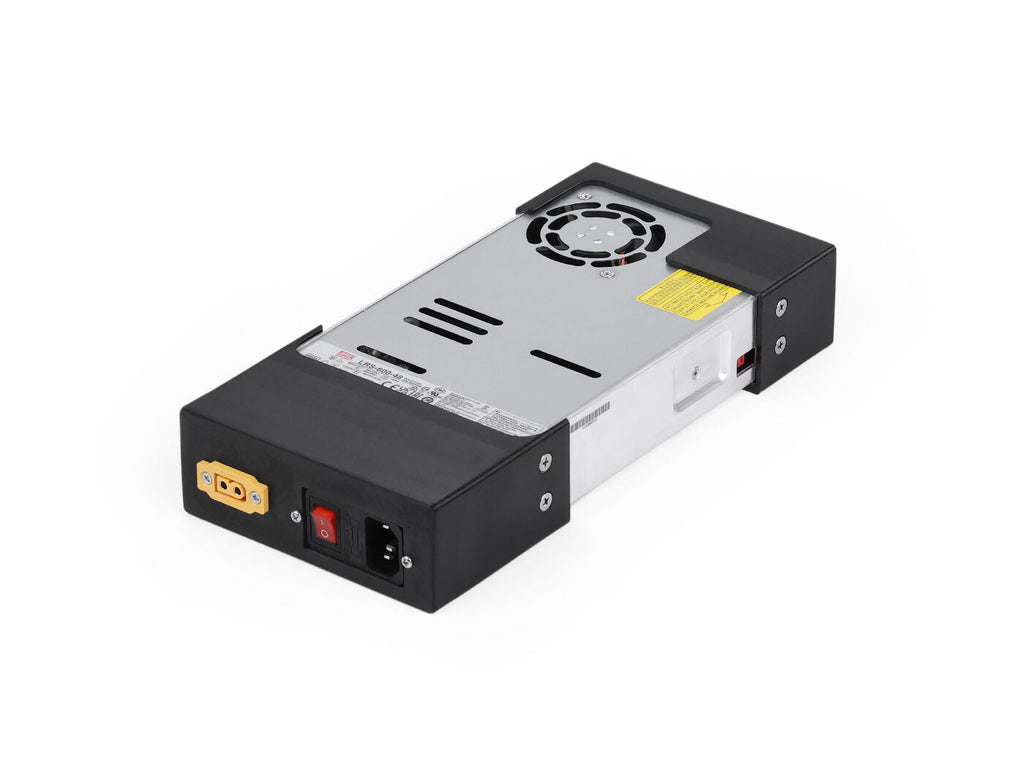

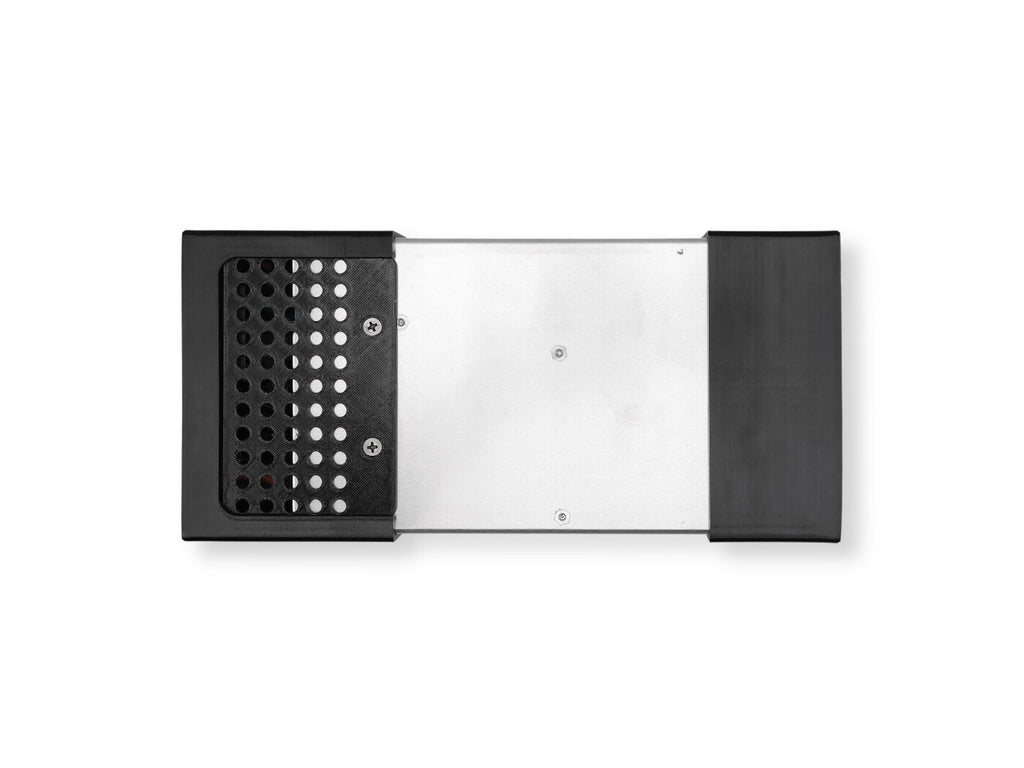

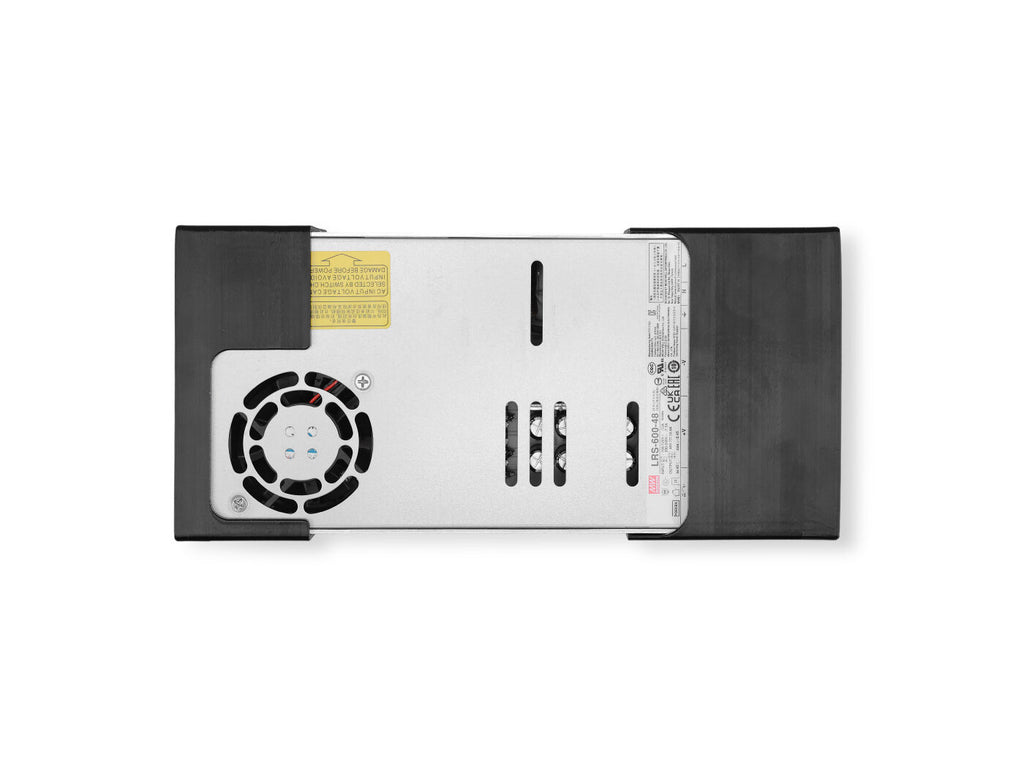

| Model Number | Power Adapter Kit for reBot Arm B601-RS |

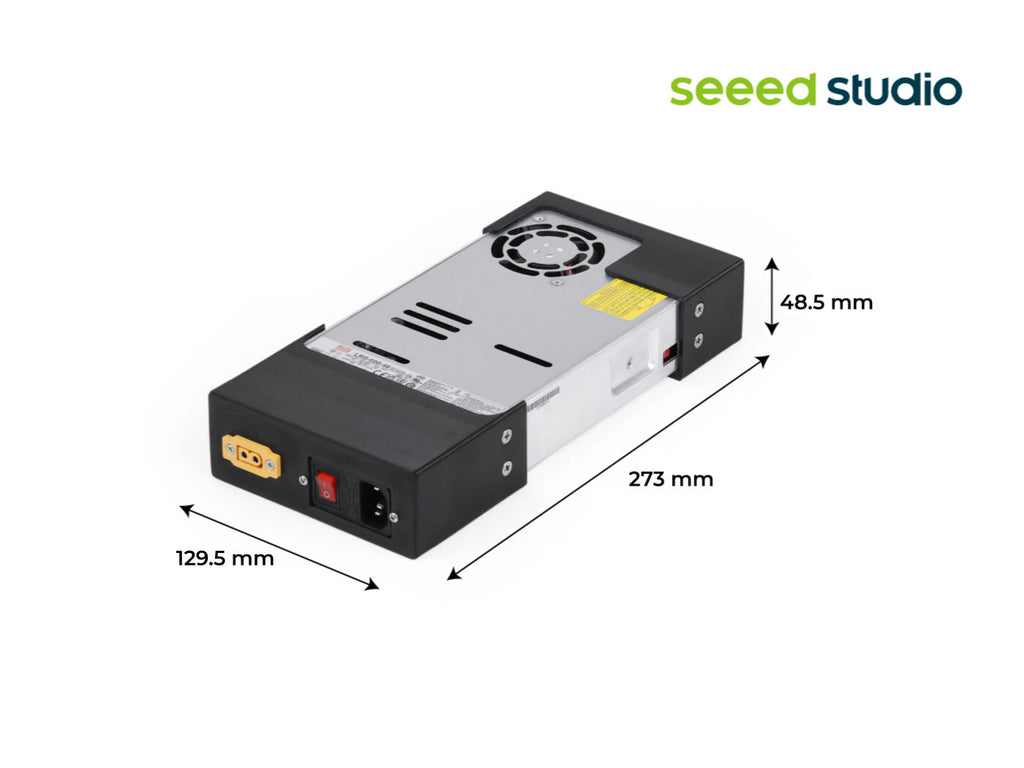

| Dimensions (L×W×H) | 273 × 129.5 × 48.5mm（L×W×H） |
| Net Weight | Approx. 0.95 kg |
| Input Voltage Range | 90–132VAC / 180–264VAC (Selectable via Switch) |
| Frequency Range | 47 – 63 Hz |
| AC Input Current | 7.5A Max. @ 230VAC (Typical) |
| Inrush Current | 35A @115VAC / 60A @230VAC (Cold Start) |
| Efficiency (Typ.) | 92% |
| DC Output Voltage | DC 48V |
| Rated Output Current | 12.5A |
| Rated Output Power | 600W |
| Ripple & Noise | ≤ 360mVp-p |
| Protections | OLP / OVP / OTP / SCP |
| Operating Temp. | -20°C ~ +65°C |
| Operating Humidity | 20% ~ 90% RH (Non-condensing) |
| Storage Temperature | -40°C ~ +85°C |
| Storage Humidity | 10% ~ 95% RH |
| Safety Certificates | IEC/UL 62368-1, CCC (GB4943.1), BSMI CNS15598-1, EAC TP TC 004, EN 61558-1, EN 61558-2-16, BIS IS13252(Part1), KC 62368-1 |

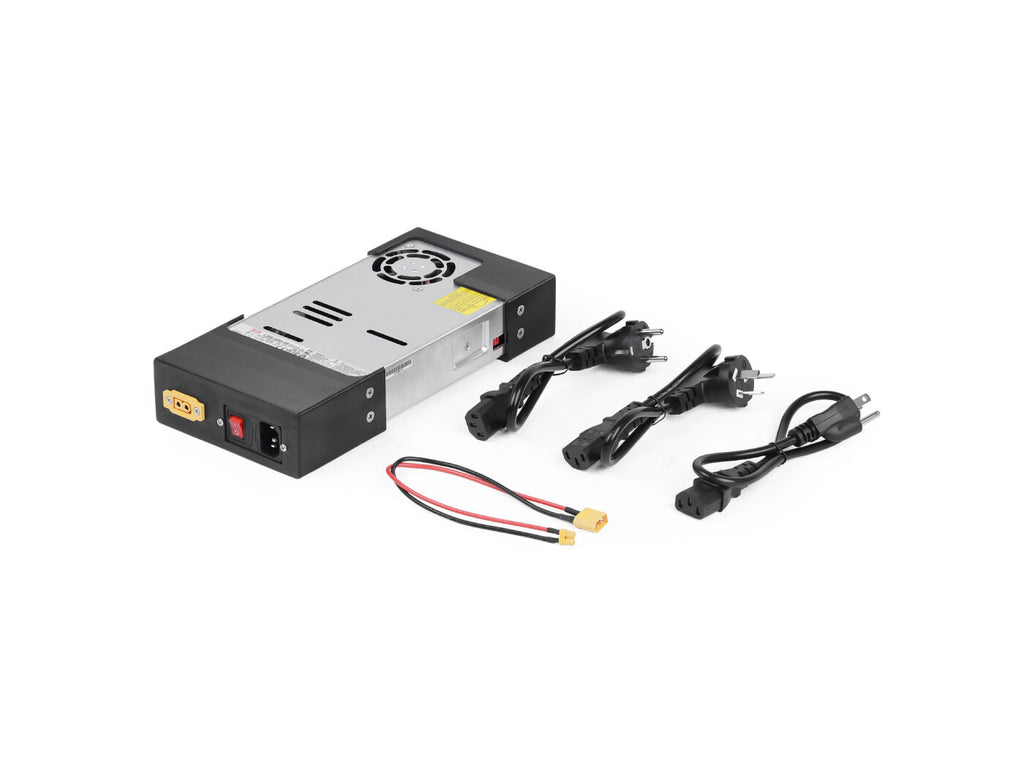

| Power Adapter Kit for reBot Arm B601-RS | x1 |
| CN Plug/Cord | x1 |
| US Plug/Cord | x1 |
| EU Plug/Cord | x1 |
| XT30U Female to XT60 Male Cable | x1 |
| HSCODE | 8504401400 |
| USHSCODE | 8504409510 |
| UPC | |
| EUHSCODE | 8504400000 |
| COO |
