Feature
- 13 Tera-Operations Per Second: Contains a neural network inference accelerator capable of 13 tera-operations per second (TOPS)
- Fully Adapted Camera: Fully integrated into Raspberry Pi’s camera software stack
- Good Heat Dissipation Effect: Thermal pad pre-fitted between module and HAT+ spreads heat across components, improving performance
- Reserved Interface: Supplied with 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with Raspberry Pi Active Cooler in place
Description

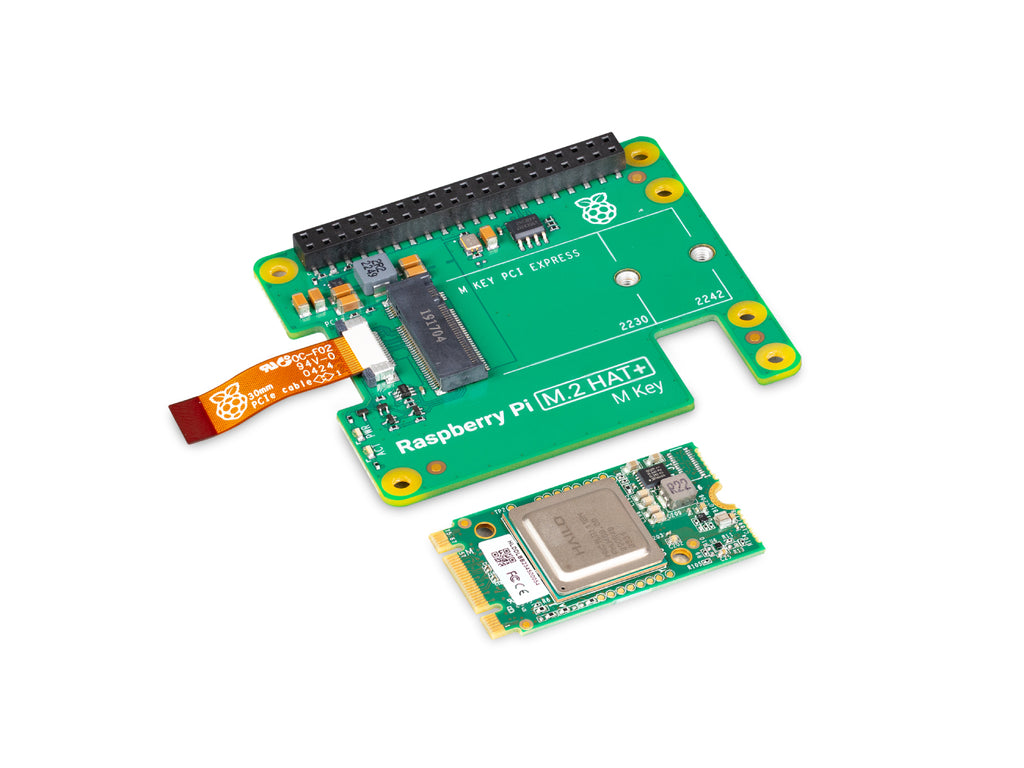

The Raspberry Pi AI Kit bundles the Raspberry Pi M.2 HAT+ with a Hailo AI acceleration module for use with Raspberry Pi 5. It provides an accessible, cost-effective, and powerefficient way to integrate high-performance AI. Explore applications including process control, security, home automation, and robotics. Contains:
- a Hailo AI module containing a Neural Processing Unit (NPU)
- a Raspberry Pi M.2 HAT+, to connect the AI module to your Raspberry Pi 5
- a thermal pad pre-fitted between the module and the M.2 HAT+
- a mounting hardware kit
- a 16mm stacking GPIO header
The AI module is a 13 tera-operations per second (TOPS) neural network inference accelerator built around the Hailo-8L chip. The module uses the M.2 2242 form factor, and comes pre-installed in the M.2 HAT+, to which it connects through an M key edge connector. The M.2 HAT+ communicates between the AI module’s M.2 interface and the Raspberry Pi 5’s PCIe 2.0 interface. When the host Raspberry Pi 5 is running an up-to-date Raspberry Pi OS image, it automatically detects the Hailo module and makes the NPU available for AI computing tasks. The built-in rpicam-apps camera applications in Raspberry Pi OS natively support the AI module, automatically using the NPU to run compatible post-processing tasks.
Specifications
Interface | 16mm stacking header |
Operating temperature | 0℃ to 50℃ |
Part List
Raspberry Pi M.2 HAT+ | x 1 |
Hailo AI Module | x 1 |
Hardware Overview

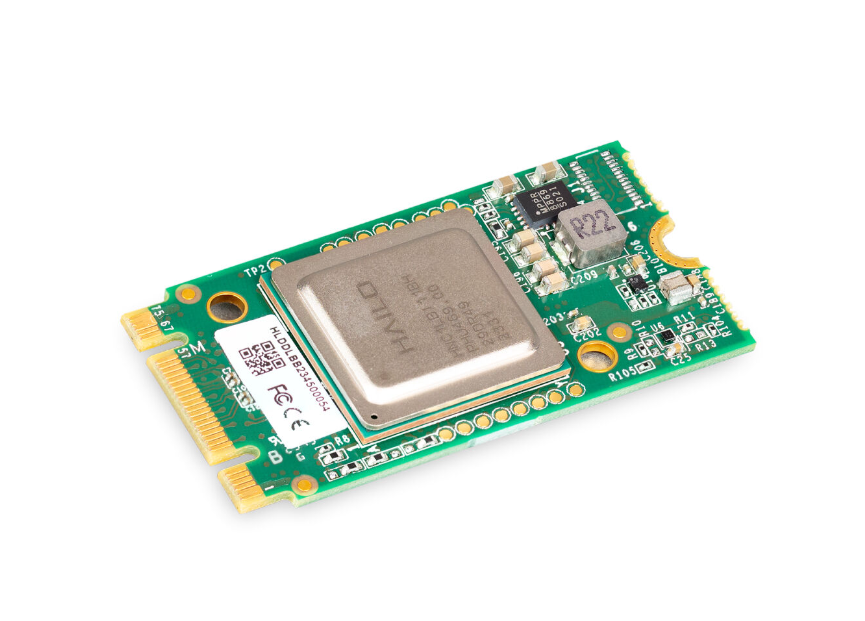

Hailo AI Module

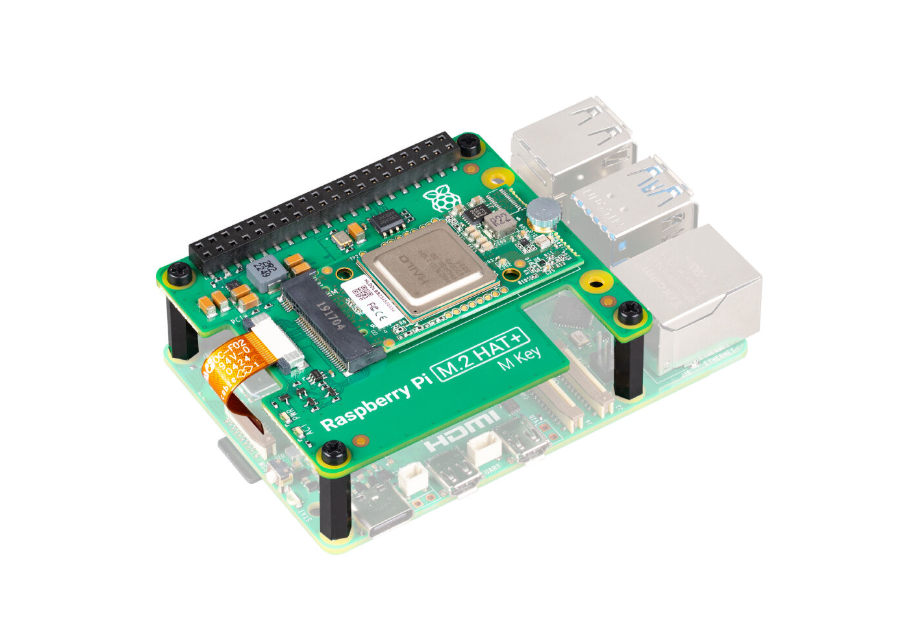

M.2 HAT+
ECCN/HTS
| HSCODE | 8543909000 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
