Raspberry Pi PoE+ HAT (Compatible with Raspberry Pi 4B / 3B+)
Raspberry Pi PoE+ HAT (Compatible with Raspberry Pi 4B / 3B+)

Raspberry Pi PoE+ HAT (Compatible with Raspberry Pi 4B / 3B+)

SKU: DF-DFR0876
$63.00 NZD
44 units ships in 7 to 10 days

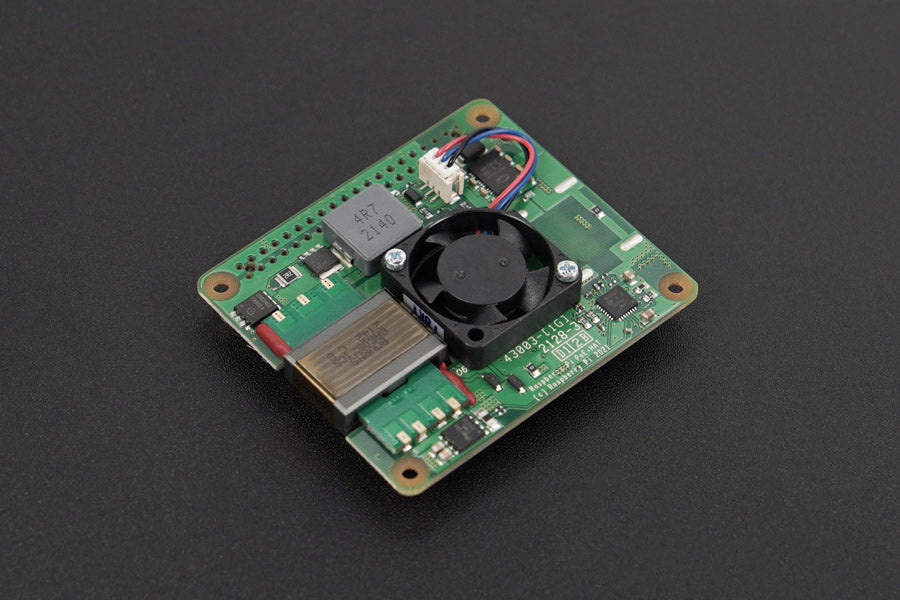

The Raspberry Pi PoE+ HAT, a compatible expansion board for Raspberry Pi 3B+/4B, is designed to enhance your Raspberry Pi by adding PoE+ capabilities to its Ethernet port. It stands out with its superior heat dissipation and increased power capacity.


Support for 802.3af PoE Network Standard

This allows a Raspberry Pi to be powered and connected to the network using a single Ethernet cable, simplifying the setup process and reducing cable clutter.


Fully Isolated Switch Mode Power Supply (SMPS)

Equipped with a fully isolated Switch Mode Power Supply (SMPS), the Raspberry Pi PoE+ HAT ensures a stable and efficient power supply. This protects the device from potential damage caused by power surges and fluctuations.


37-57V DC Input and 5V/5A DC Output

With a 37-57V DC input and a 5V/5A DC output, the Raspberry Pi PoE+ HAT provides sufficient power to handle a Raspberry Pi 3B+/4B under maximum load. This ensures that power-intensive applications can run without any power shortages.


25mm x 25mm Brushless Cooling Fan

This helps to maintain an optimal temperature for the Raspberry Pi, ensuring optimal performance and longevity of the device.


Hardware Connection Steps

  • Before installing the PoE HAT, first install the provided standoffs at the four corners of the circuit board.
  • Align the PoE HAT with the 40-pin and 4-pin PoE interfaces of the Raspberry Pi and connect them.
  • After connecting the PoE HAT board, you can power and connect to the network through an Ethernet cable connected to a PoE device.
  • When removing the PoE HAT, pull evenly to make the module smoothly detach from the Raspberry Pi pin header, avoiding bending the pins.

    • Install PoE+ HAT and Raspberry Pi 4B


    Precautions

  • Only PoE devices that comply with the 802.3af standard can be used for power supply.
  • The external power supply used by Raspberry Pi should comply with the relevant regulations and standards applicable to the intended use.
  • It should be operated in a well-ventilated environment and should not be used in an enclosed manner.
  • During use, it should be placed on a stable, flat, non-conductive surface and should not come into contact with conductive items.
  • Do not block or obstruct the fan, and do not insert anything into the fan.
  • Do not expose this product to water, humid environments, or high-temperature environments. This product is designed to operate under normal room temperatures.
  • Care must be taken during use to avoid mechanical or electrical damage to the printed circuit board and connectors.

    • Specification:

  • Model: IEEE 802.3at-2003 PoE
  • Input Voltage: 37-57V DC
  • Output Power: 5V/5A DC output
  • Operating Temperature: 0~50

    • Documents:

  • Product Brief

    • Product Includes:

  • Raspberry Pi PoE+ HAT × 1
