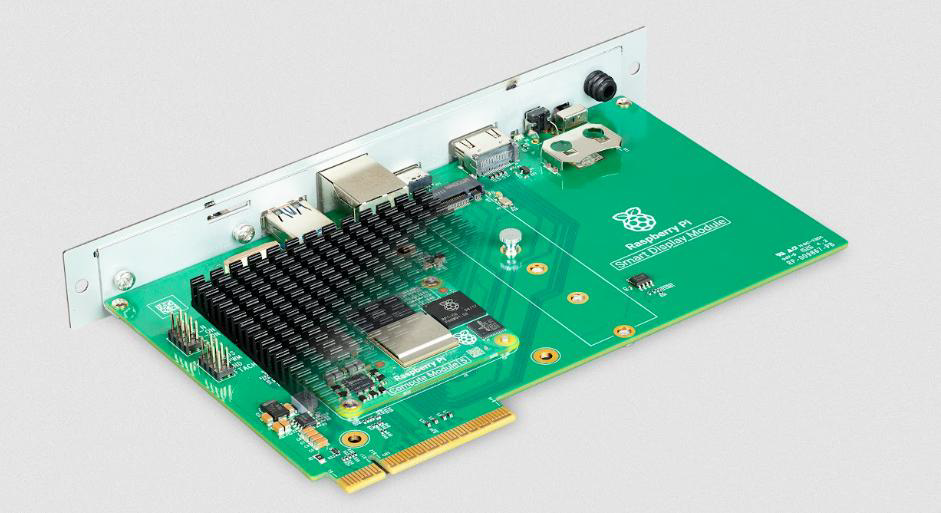

Raspberry Pi Smart Display Module is an adapter board which permits the integration of Raspberry Pi Compute Module 5 into digital signage platforms which comply with the Intel® Smart Display Module (SDM) specification. No external cabling, power or enclosure is required.
Key Features:
• Compatible with Compute Module 5 (mounts directly on the Smart Display Module)
• Slots directly into host displays that support the SDM specification
• Included passive aluminium heatsink fits within SDM form factor
• Powered directly by the host display—no separate power supply required
• M.2 M-key PCIe socket supports 2230, 2242, 2260, and 2280 form factors for expanded storage or AI acceleration
• Compatible with Raspberry Pi Antenna Kit for external positioning
• Second HDMI output with independent video stream support
• External power button for independent module power cycling
• LED indicates power status and storage activity
Box Contents:
• Smart Display Module
• Passive aluminium heatsink
• Four M3 screws (heatsink mounting)
• Two M2 screws (Compute Module 5 mounting)
• Drive attachment screw (M.2 card)
Dimensions & Weight:
• Form factor: SDM-L
• Main board only: 175mm × 100mm × 25mm
• With face plate, handle, and gold finger interface: 193mm × 125mm × 25mm
• Weight: 146g (stand-alone), approximately 225g (with CM5)
