- Long Wireless Range: Operates in the 902–928 MHz band, delivering a stable connection of up to 1 km in open environments
- Superior Signal Penetration: Designed specifically for IoT deployments, providing enhanced penetration through walls, trees, and other obstacles to ensure reliable communication in complex outdoor and industrial environments.
- HD Video Transmission: Supports data rates of up to 32.5 Mbps with an 8 MHz channel bandwidth, enabling stable and smooth 720p video streaming to remote endpoints over long distances.
- Modular Expansion Design: A dedicated expansion board for the reCamera 2002 series, adding Wi-Fi HaLow connectivity to existing AI cameras and enabling remote wireless deployment of edge AI solutions.
- Flexible Power Options: Supports 12V DC input, 5V USB Type-C, and 3.7V Li-ion battery power supplies, making it compatible with batteries, solar panels, and various other power sources.
- Adapter & Expansion Interface: Includes a 4-pin to 5V USB Type-C adapter, allowing seamless integration with our waterproof enclosure and external high-gain antenna for enhanced deployment flexibility.
Note:
- Coverage Notice: The advertised maximum transmission range of 1 km is measured under ideal line-of-sight (LOS) conditions with no obstructions. Actual coverage may vary depending on environmental interference, antenna gain, and physical obstacles.
- Antenna Recommendation: The product features an SMA antenna connector. For optimal performance, the use of an appropriately rated external antenna is recommended. The included short antenna is sufficient for most application scenarios.
- Compatibility Notice: This expansion board is specifically designed for reCamera 2002, reCamera 2002w, and reCamera 2002 HQ PoE. It is not compatible with products such as reCamera Pro or reCamera Gimbal.
WLAN Protocol | IEEE 802.11ah (WiFi HaLow) |
Wi-Fi Frequency Band | 902 - 928 MHz |
Encryption Mode | WPA3-SAE，OWE，No encryption |
Wi-Fi Modulation Mode | Support OFDM，BPSK，QPSK，16QAM，64QAM |
Wi-Fi Operating Mode | STA |
Bandwidth | 2 MHz, 4 MHz, and 8 MHz modes. |
Maximum Data Rate | Up to 32.5 Mbps (theoretical maximum) |
Maximum Transmission Range | Up to 1 km in open environments |
Antenna Interface | SMA or I-PEX (external antenna) |
Maximum Transmit Power (Theoretical) | 27 dBm |
Power Supply | 12V DC, USB Type-C, or 3.7V Li-ion battery |
Operating Temperature | -20°C to 50°C |
Certification | FCC |
Compatible Gateways | HaLowLink, Raspberry Pi HaLow module |
Wi-Fi Antenna | 1 x 1 |

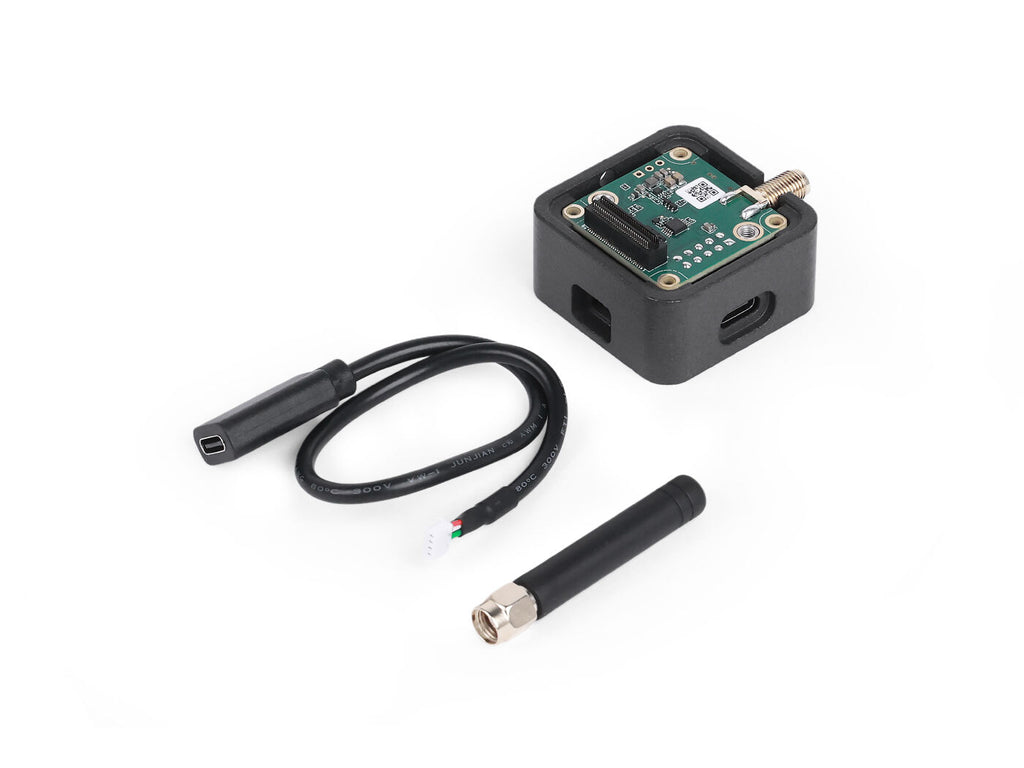

reCamera 2002 Base Board WiFi HaLow | x1 |
External Antenna | x1 |
USB Type-C Extension Cable | x1 |
Screws | x4 |
| HSCODE | 8517799000 |
| USHSCODE | 8517690000 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO |
