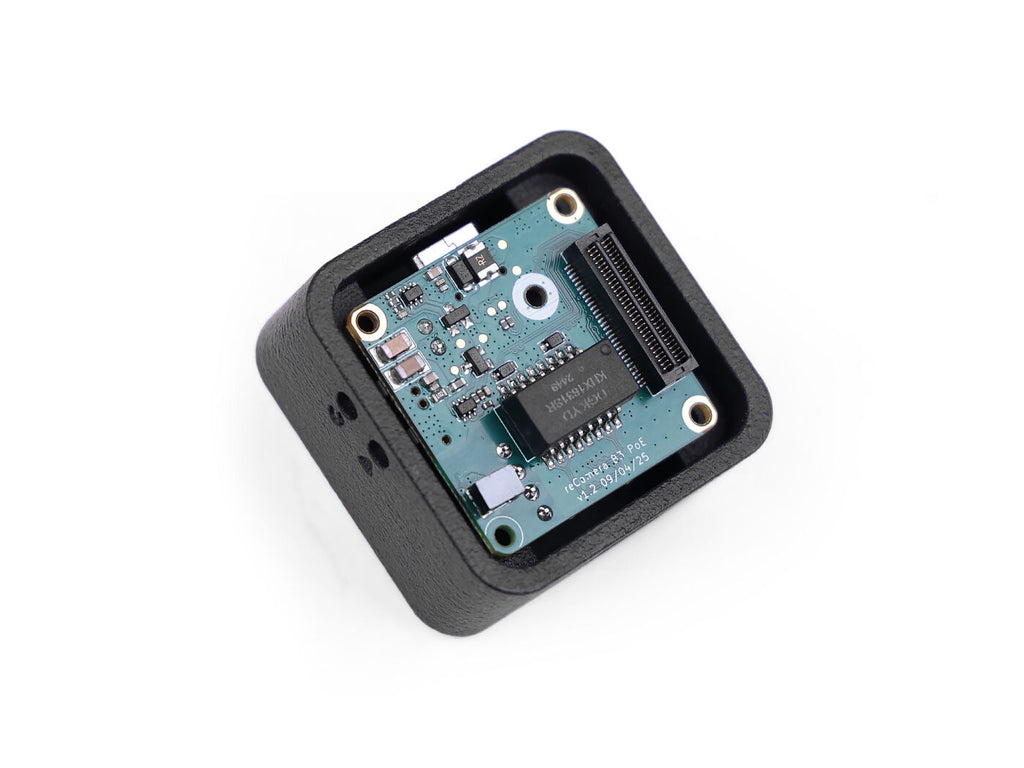

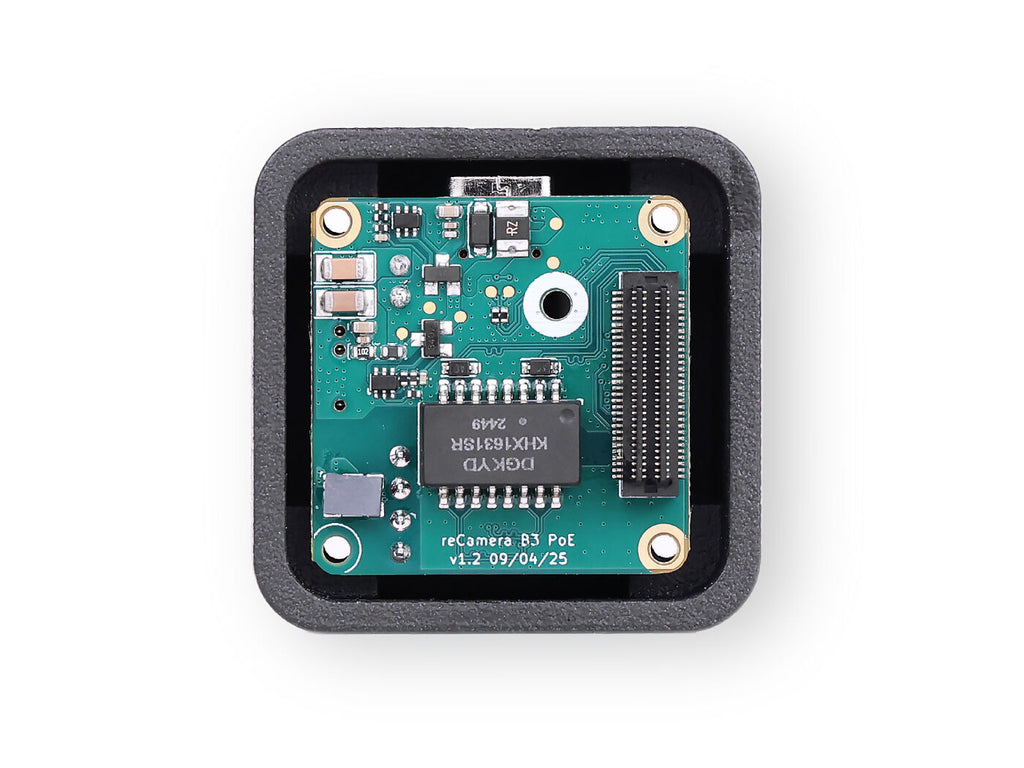

This new base board for reCamera 2002x features PoE support: single Ethernet cable for power + network; no extra DC cable needed with a PoE switch. It comes with a 6-pin cable for easy connection to Arduino/relay modules via UART/GPIO, streamlining setup and boosting project flexibility.
- Ethernet with PoE (Power over Ethernet): Single cable for data + power (PoE Mode A only)，no extra DC cord needed with a PoE switch.
- IO/UART Expansion: 6-pin header (1×UART, 3×GPIO) for easy connection to external devices like Arduino or relay modules.
- True Plug & Play: Simply pair with reCamera Core to complete setup instantly.
| reCamera Base Board with PoE |
Ethernet | 100Mbps with PoE |
USB | USB Type-C(2.0) |
Button | 1x Reset Button, 1x Boot Button |
Extention port | UARTx1 GPIOx3 |

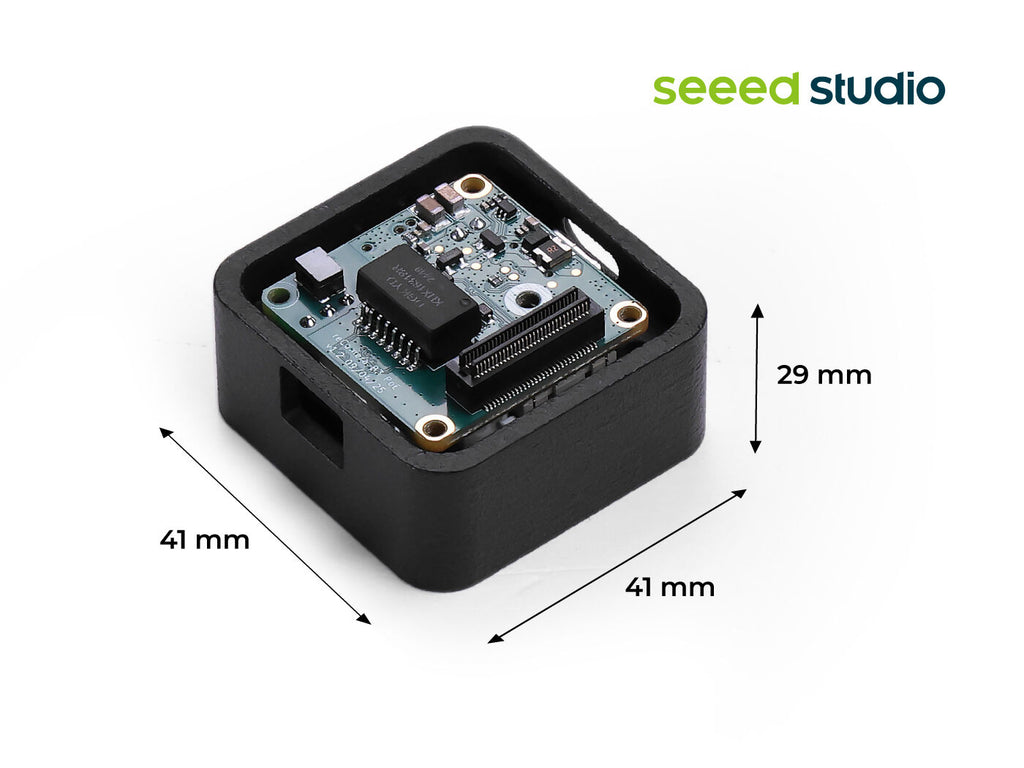

Dimension | 40x40x23mm |
Operation Temperature | -20～50°C |
Operation Humidity | 95% |

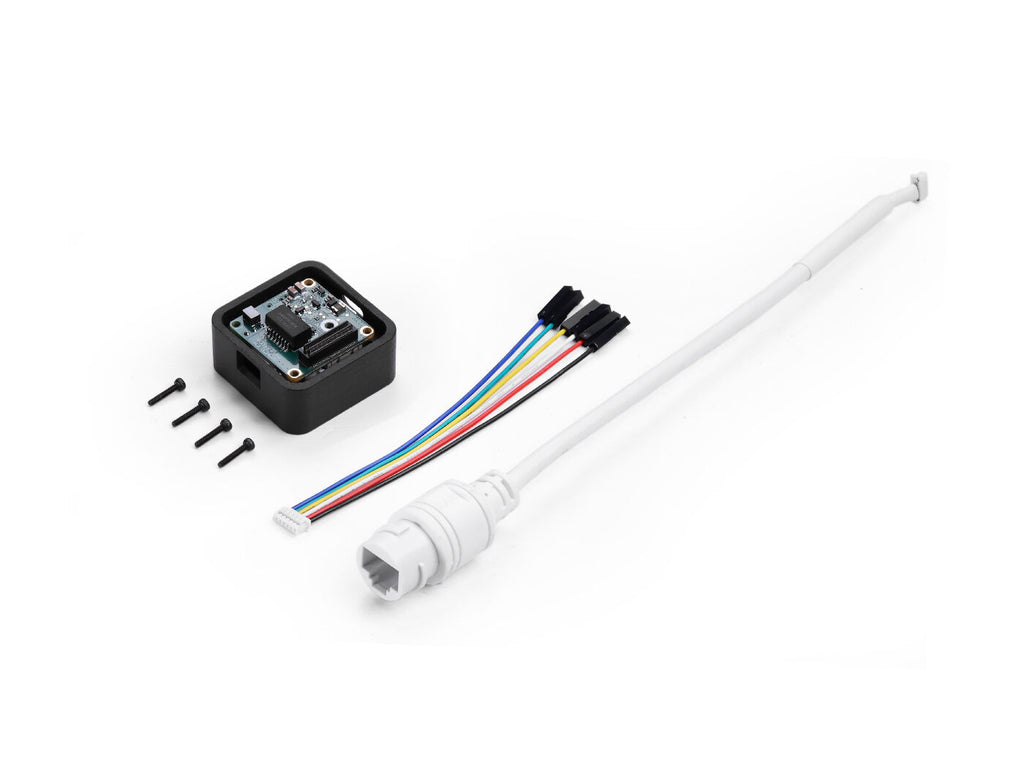

reCamera Base Board with PoE | x1 |
Ethernet Cable | x1 |
6 Pin Cable | x1 |

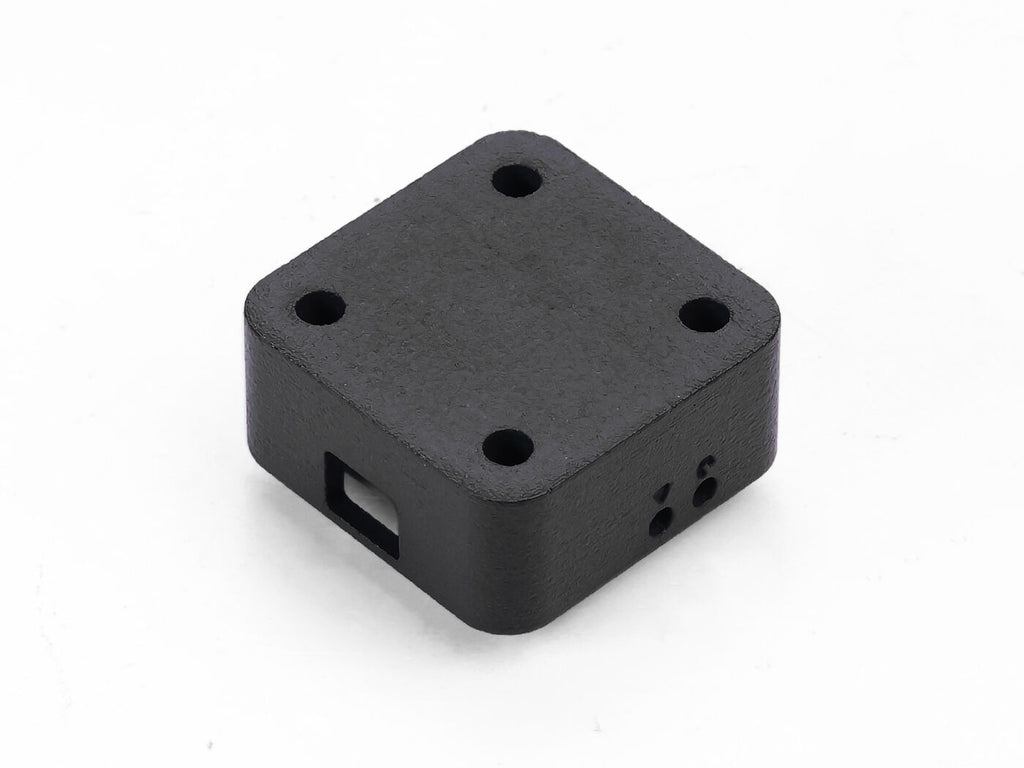

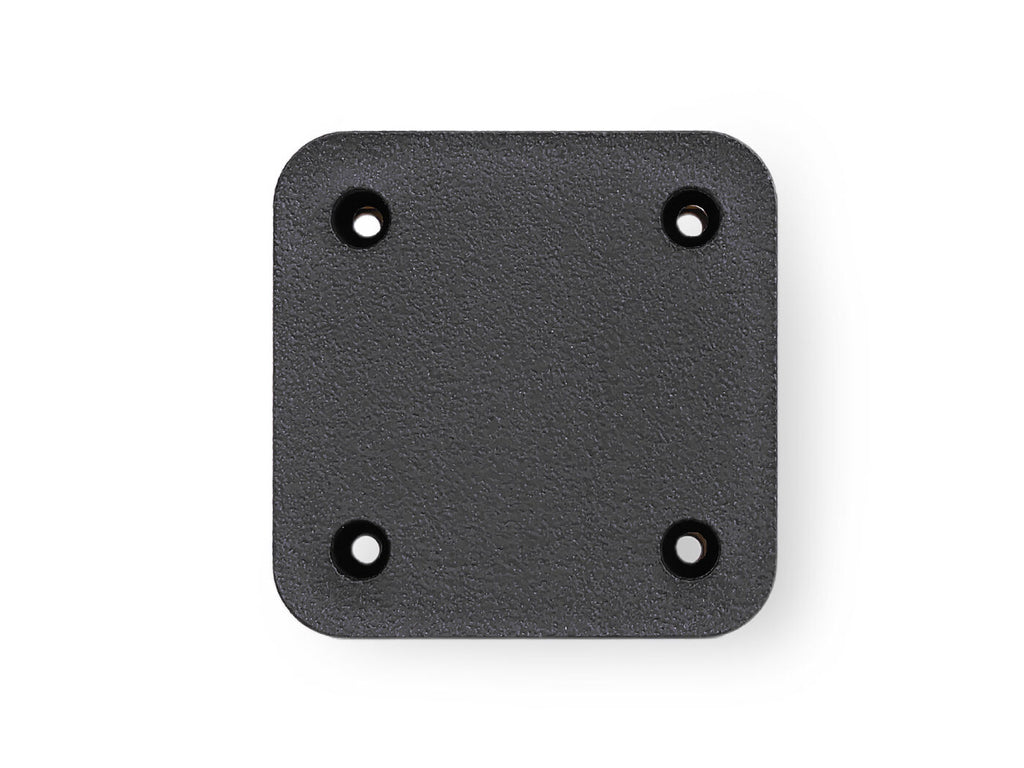

plastic Cover | x1 |
M2x10 screw | x4 |
| HSCODE | 8529904900 |
| USHSCODE | 8525895050 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
