- AI Performance: Achieves up to 40 TOPS AI performance with low power and latency, built by NVIDIA Orin SoC combining the NVIDIA Ampere™ GPU architecture with 64-bit operating capability, integrated advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.
- Energy-Efficient Operation: Configurable power modes from 7W to 15W allow for optimized performance and energy consumption.
- Robust Thermal Design: Operates reliably in temperatures from -10°C to 60°C .
- Rich interfaces: Features 1xRJ45, 4×USB 3.2, HDMI 2.1. Also pre-installed Wi-Fi/BT combo module, 2xCSI for connectivity and cameras. 256GB SSD, RTC, CAN, 40-pin and more.
- Ready for Deployment: Very suitable for beginners and developers. Supports AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.
| Jetson Orin Nano System on Module | ||
| reComputer J401 Nano Bundle | ||
| Module | Jetson Orin Nano 8GB | |
| AI Performance | up to 40 TOPS | |
| NVIDIA GPU Cores | 1024 CUDA Cores with 32 Tensor Cores | |
| GPU Max Frequency | 625 MHz | |
| CPU | 6x A78 1.5 GHz | |
| Memory | 8GB 128-bit LPDDR5 68 GB/s | |
| Video Encoder | 1080p30 supported by 1-2 CPU cores | |
| Video Decoder | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) | |
| Module Power | 7W | 15W | |
| Carrier Board | ||

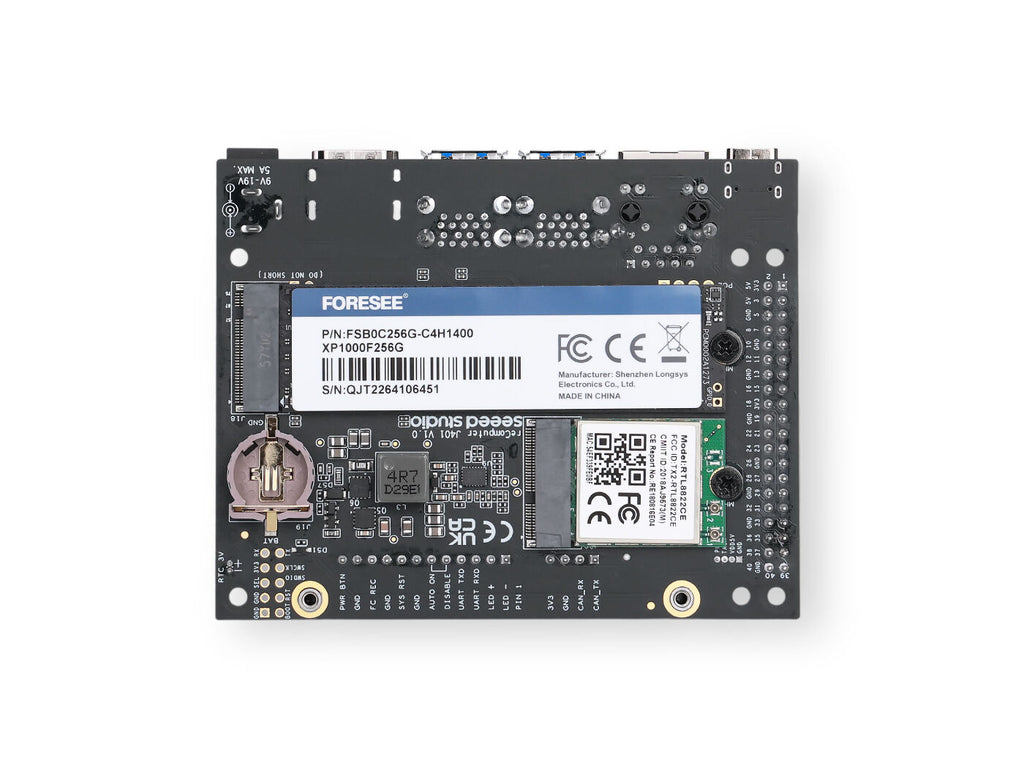

| Storage | 1x M.2 KEY M PCIe(M.2 NVMe 2280 SSD 256G included) | |
| Networking | M.2 KEY E | 1x M.2 Key E (WiFi/BT module included) |
| Ethernet | 1x RJ45 Gigabit Ethernet(10/100/1000M) | |
| I/O | USB | 4x USB 3.2 Type-A (10Gbps) 1x USB2.0 Type-C (Device Mode) |
| Camera | 2x Mipi CSI (2-lane 15-Pin) | |
| Display | 1x HDMI 2.1 | |
| Fan | 1x 4-Pin 1.25mm Fan Connector (5V PWM) | |
| CAN | 1 x CAN | |
| Multifunctional Port | 1x 40-Pin Expansion header 1x 12-Pin Control and UART header | |
| RTC | 1x RTC 2-Pin 1x RTC Socket, supports CR1220 but not included | |
| JetPack | JetPack 5.1.3 | |
| Power | 9-19V 5525 Barrel DC Jack | |

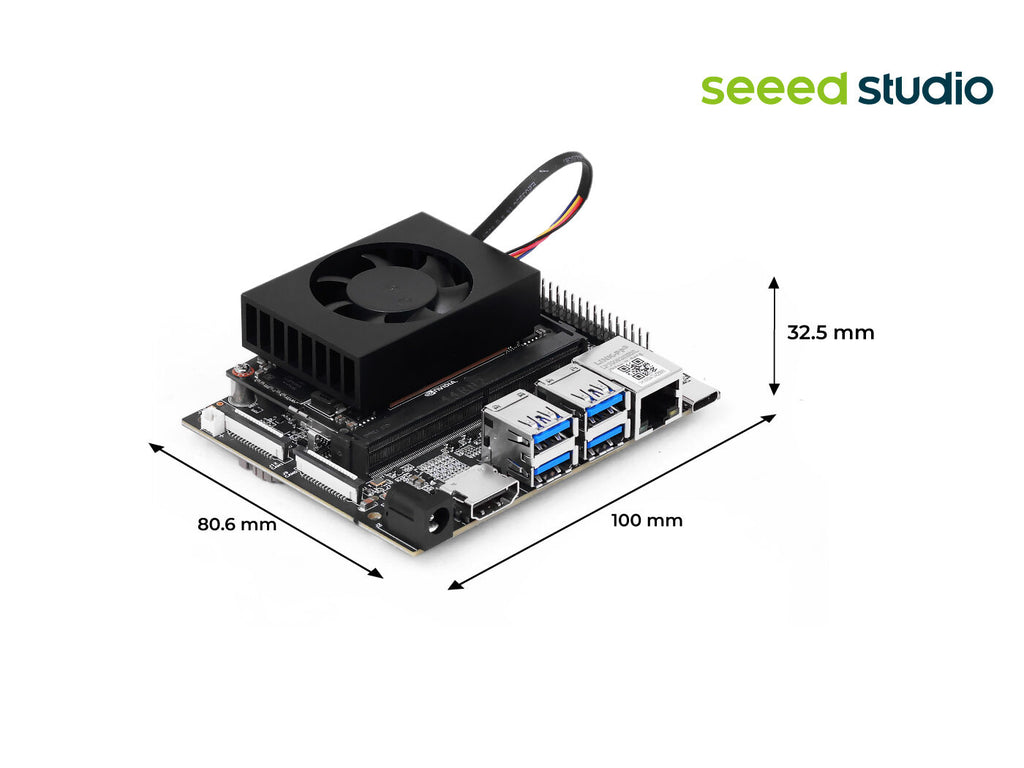

| Mechanical | Dimensions (W x D x H) | 100mm x 80.6mm x 32.5mm |
| Weight | 168.0g | |
| Installation | Desk(Copper column include) | |
| Operating Temperature | -10℃~60℃ | |
| Warranty | 2 Years | |
| Certification | RoHS,CE,FCC | |

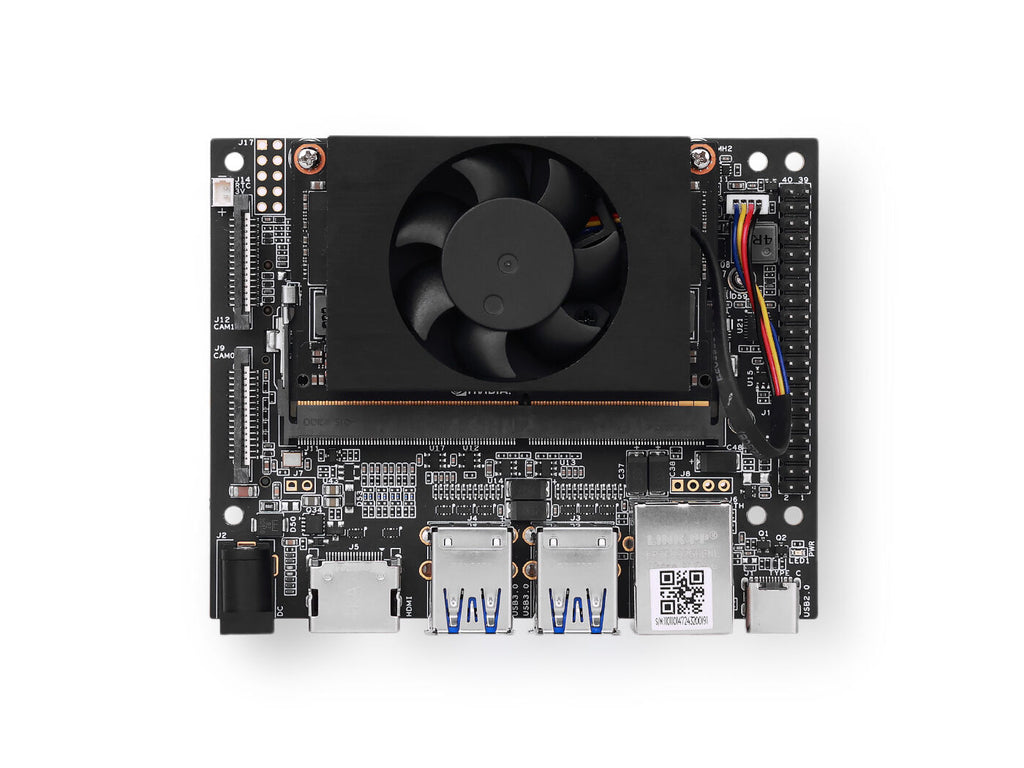

- Seeed Carrier Board - reComputer J401
Application Fields:
- AI Video Analytic
- Machine Vision
- Autonomous Mobile Robot (AMR)
- Generative AI
- Capable of Bringing Generatie AI to the Edge
- Build Multi-streams AI Video Analytics
- Fastest Way to Deploy Generative AI and Computer Vision Models

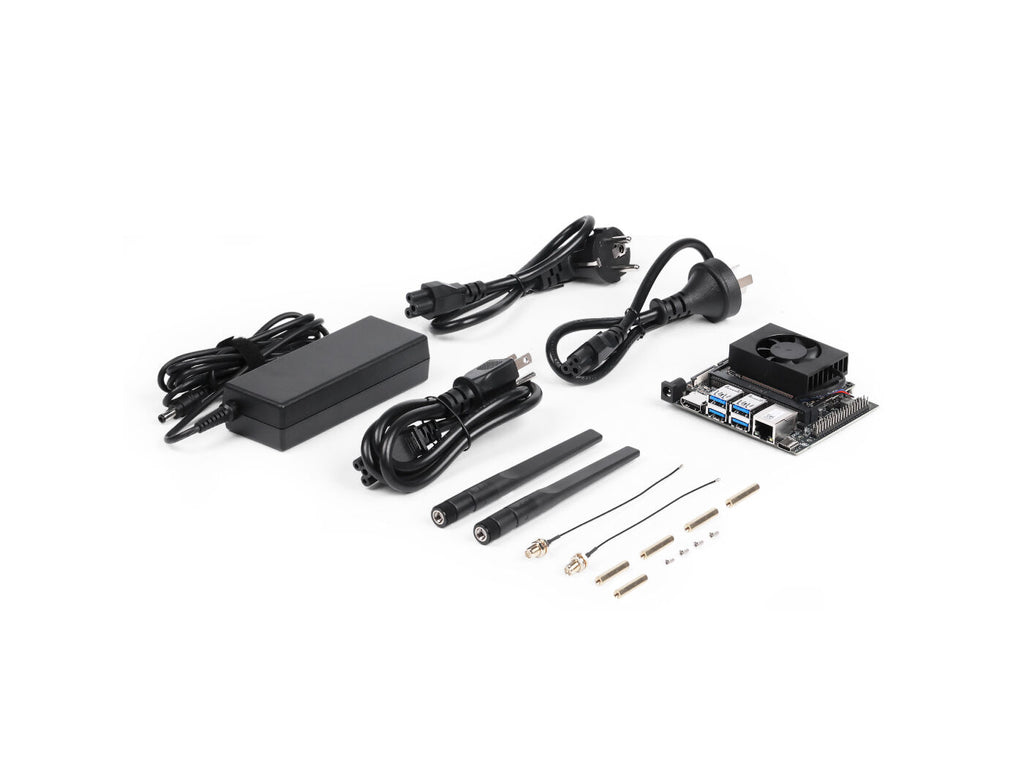

| Seeed Carrier Board (reComputer J401) | x1 |
| Jetson Orin Nano 8GB Module | x1 |
| 256GB SSD (System Installed) | x1 |
| Heatsink with Fan | x1 |
| Wi-Fi Module | x1 |
| Wi-Fi Antenna Kit | x2 |
| 19V-4.74A Power Adapter(Barrel Jack 5.5/2.5mm, Power cord not included) | x1 |
| AC Cloverleaf Power Cord - US/EU/CN | x3 |
| Copper column | x5 |
| M3 nut | x5 |
| HSCODE | 8473309000 |
| USHSCODE | 8473309100 |
| UPC | |
| EUHSCODE | 8471800000 |
| COO | CHINA |
