- Compact Size Suitable for robotics and drone applications
- 48V Compatible Can be used in 48V battery power system (max 54V input)
- Rich IO capabilities Includes USB ,CAN, I2C,RJ45 and SPI
- Orin compatibility Compatible with both Jetson Orin™ NX and Orin™ Nano
- Stackable Can be stacked onto reComputer mini carrier board for usage
Extension Board | ||
I/O | Ethernet | 1x RJ45 Gigabit Ethernet (10/100/1000M) |
USB | 4x USB 3.0 Type-A (5Gbps) | |
CAN | 1x CAN XT30 Connector (2+2) 1x CAN JST Connector | |
I2C | 2x I2C | |
SPI | 2x 60 pin High Speed Connector (For extension board) 1x 10 pin Power Connector (For extension board) | |

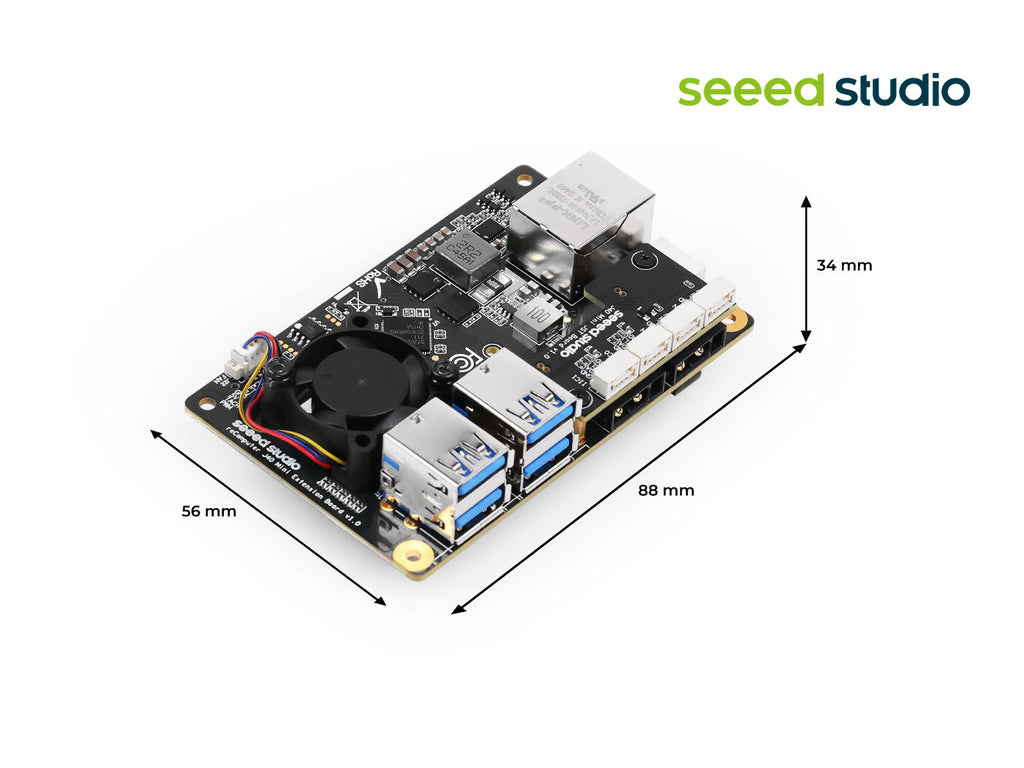

Mechanical | Dimensions (W x D x H) | 56mm x 88mm x 34mm |
Weight | 75g | |
Installation | Desk, wall-mounting | |
Operating Temperature | -10℃~50℃ | |
Warranty | 1 Year | |
● Robotic Control
- Capable of Bringing Generative AI to the Edge
Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
- Build Multi-streams AI Video Analytics
For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) reComputer J4012 can take 18x1080p30 streams. See our tested YOLOv8 performance using NVIDIA Deepstream of single model and multi model on multi streams.
- Fastest Way to Deploy Generative AI and Computer Vision Models
We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others. We have configured all environment for you to provides single command deployment of projects.
| reComputer Mini Extension Board | x1 |
| HSCODE | 8543909000 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
