Note:
reComputer R1100 provides flexible IoT wireless communication(4G, LoRa®, Wi-Fi/BLE, Zigbee) and essential functional modules (GPS, UPS, TPM2.0, PoE, SSD, etc.).
- Customize, Configure, and Engineer your own reComputer R1100
- Check the assembly guide
- Upgrade it to an AIoT gateway with Raspberry Pi AI Kit for Raspberry Pi 5
Price Increase Announcement
Date: March 2, 2026
Due to increased demand for modules and SSDs, reComputer' pricing is expected to rise by approximately \$20–\$80 in the coming weeks. Please confirm your orders and requirements accordingly to help secure availability.
| Parameter | Description | |
| Hardware Spec | ||
| Product Series | R1100 Series | R1000 Series |
| CPU | Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz | |
| Operating System | Raspbian, Ubuntu, Debian | Raspbian, Ubuntu, Debian |
| RAM | 1GB/2GB/4GB/8GB | |
| eMMC | 8GB/16GB/32GB/64GB | |
| System Spec | ||
| Power Input | DC 9V~36V, 2-pin Terminal Block | AC12~24V/ DC 9~36V, 2-pin Terminal Block |
| PoE(as powered device) | IEEE 802.3af Standard 12.95W PoE* | |
| Power Consumption | Idle:2.88W; Full Load:5.52W | |
| Power Switch | No | |
| Reboot Switch | Yes | |

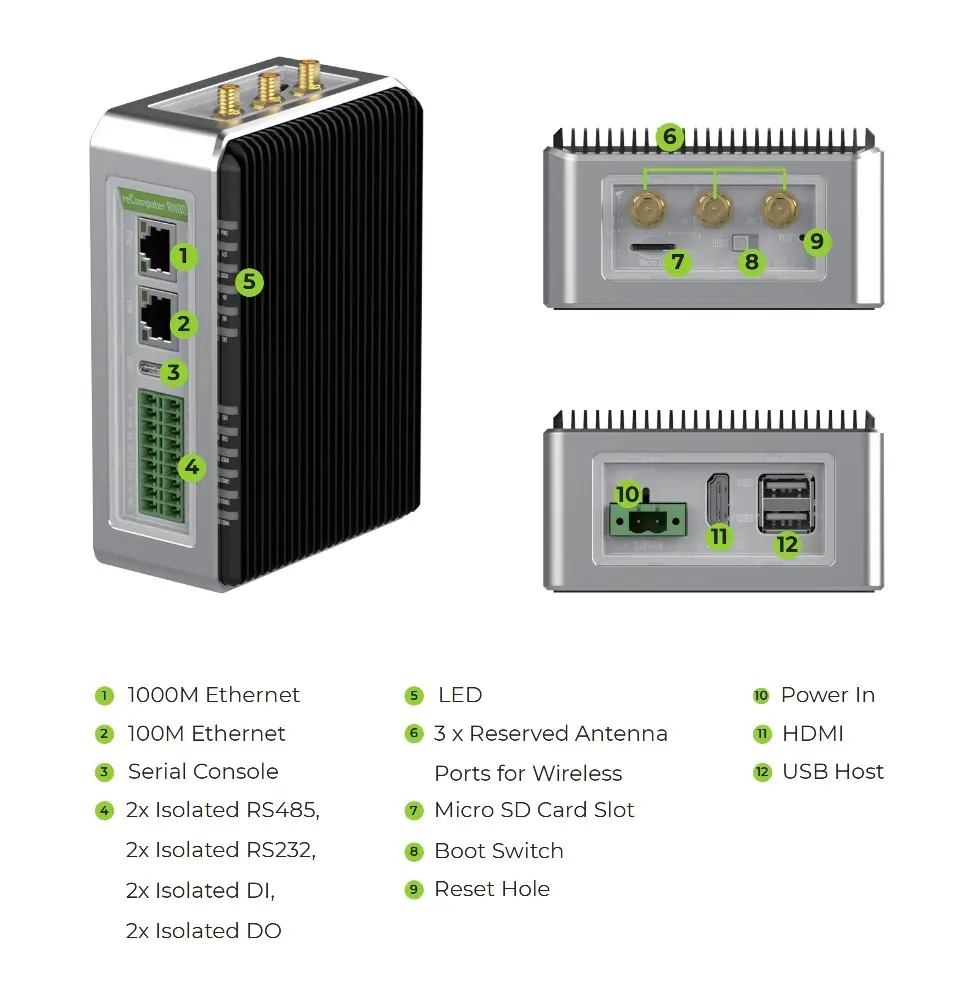

| Interface | ||
| Ethernet | 1 x 10/100/1000 Mbps (Supports PoE*) | |
| 1 x 10/100 Mbps IEEE802.3/802.3u | ||
| USB | 2 x USB-A 2.0 Host | |
| 1 x USB-C 2.0 (For flashing OS) | ||
| RS485 | 2x RS485(Isolated) | 3x RS485(Isolated) |
| RS232 | 2x RS232(Isolated) | / |
| DI | 2 x Isolated DI Ports | / |
| Input Voltage: 5~24V DC | ||
| DO | 2 x Isolated DO Ports | / |
| Output Voltage: <60V DC | ||
| HDMI | 1 x HDMI 2.0 | |
| SIM Card | 1x Nano SIM Card Slot（Internal） | 1x Standard SIM card slot |
| SD Card | 1x Micro SD Card Slot | / |
| SSD Card | 1x M.2 NVMe SSD Slot 2280-M Key | |
| LED | 12 x LED Indicators | 6 x LED indicators |
| Buzzer | 1 | |
| Reset Button | 1 | |
| Wireless Communication | ||
| Wi-Fi 2.4/5.0 GHz | On-chip Wi-Fi | |
| BLE 5.0 | On-chip BLE | |
| LoRa®* | USB LoRa®*/SPI LoRa®* | |
| 4G Cellular* | 4G LTE* | |
| Zigbee* | Zigbee* Module | |
| Standards | ||
| EMC | ESD: EN61000-4-2, Level 3 | |
| EFT: EN61000-4-4, Level 2 | ||
| Surge: EN61000-4-5, Level 2 | ||
| Certification | CE | |
| FCC | ||
| TELEC | ||
| RoHS | ||
| Ambient Conditions | ||
| Ingress Protection | IP40 | |
| Operating Temperature | -30~70 °C | |
| Operating Humidity | 10~95% RH | |
| Storage Temperature | -40~80 °C | |
| Others | ||
| Supercapacitor UPS* | SuperCAP UPS LTC3350 Module* | |
| Hardware Watch Dog | 1~255s | |
| RTC | High Accuracy RTC | |
| Security | Encryption Chip TPM 2.0*/ATECC608A | |
| Heat Dissipation | Fanless | |
| Warranty | 2 years | |
| Production Lifetime | Until December 2034 | |
| Statement | Options marked with * require additional purchase according to the accessories list. | |
The application of the reComputer R1100 spans five key areas
https://www.youtube.com/watch?v=JpCRTRBWHi8

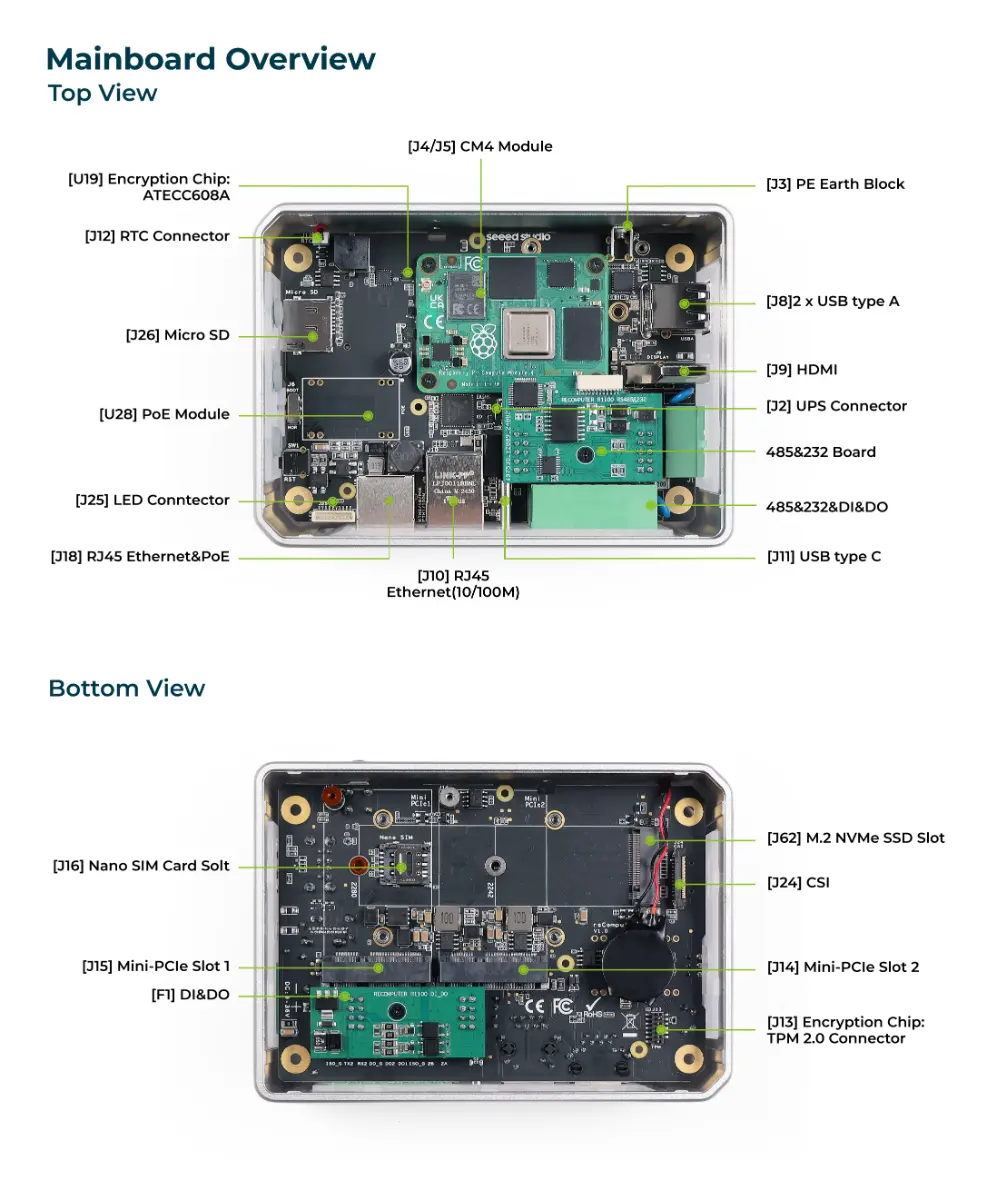

reComputer R1100 Schematic Design, PCB Design

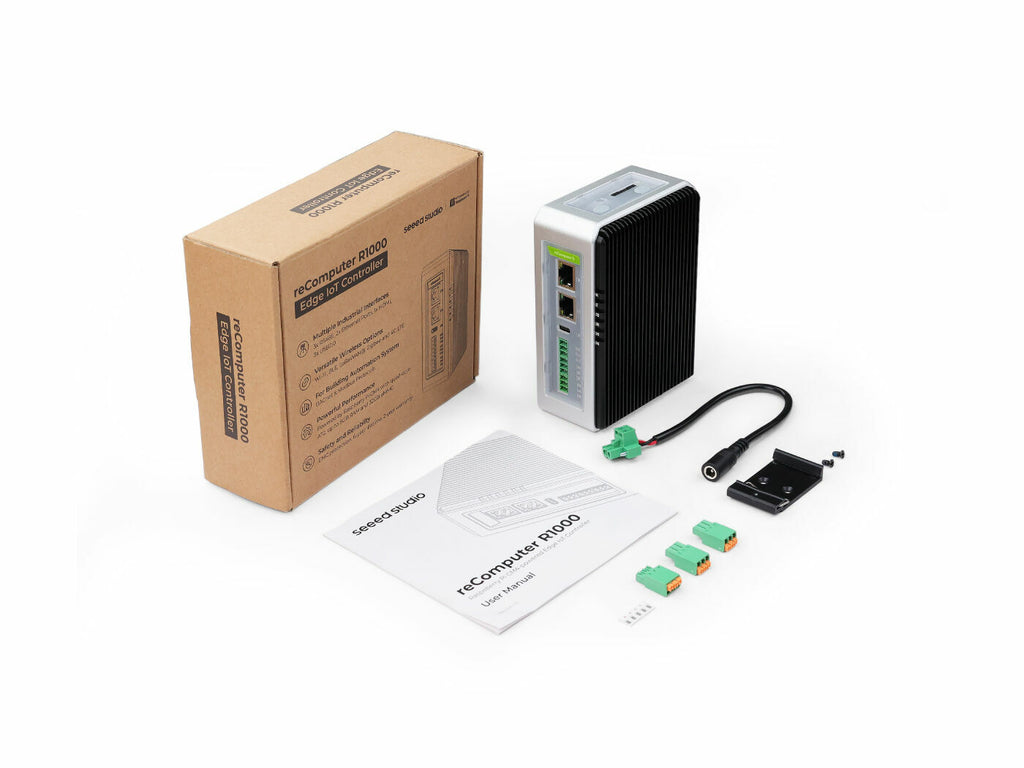

| reComputer R1100 | x1 |
| DIN-rail clip | x1 |
| Screw Pack | x1 |
| DC Power Female Jack to Screw Terminal Adapter | x1 |
| 9*2-pin Terminal Block Connector (Male) | x1 |
| 120Ω Resistor | x5 |
| User Manual | x1 |
| HSCODE | 8471504090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO |
