Parameter | Description |
Hardware Spec | |
Product Series | R1000 |
CPU | Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz |
Operating System | Seeed Gateway OS |
RAM | 4GB |
eMMC | 32GB |
System Spec | |
Input | 2-pin Terminal Block |
PoE | IEEE 802.3af Standard 12.95W PoE |
Supply Voltage(AC/DC) | 12~24V AC/9~36V DC |
Overvoltage Protection | 40V |
Power Consumption | 待测试 |
Power Switch | No |
Reboot Switch | Yes |

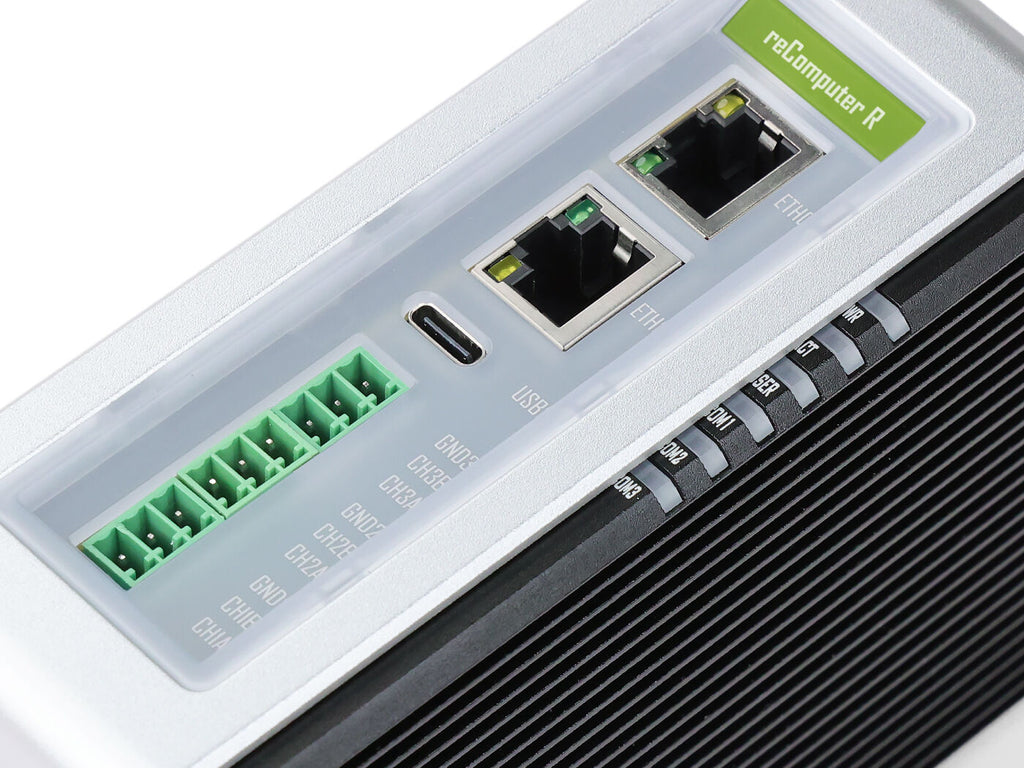

Interface | |
Ethernet | 1 x 10/100/1000 Mbps (supports PoE) |
1 x 10/100 Mbps IEEE802.3/802.3u | |

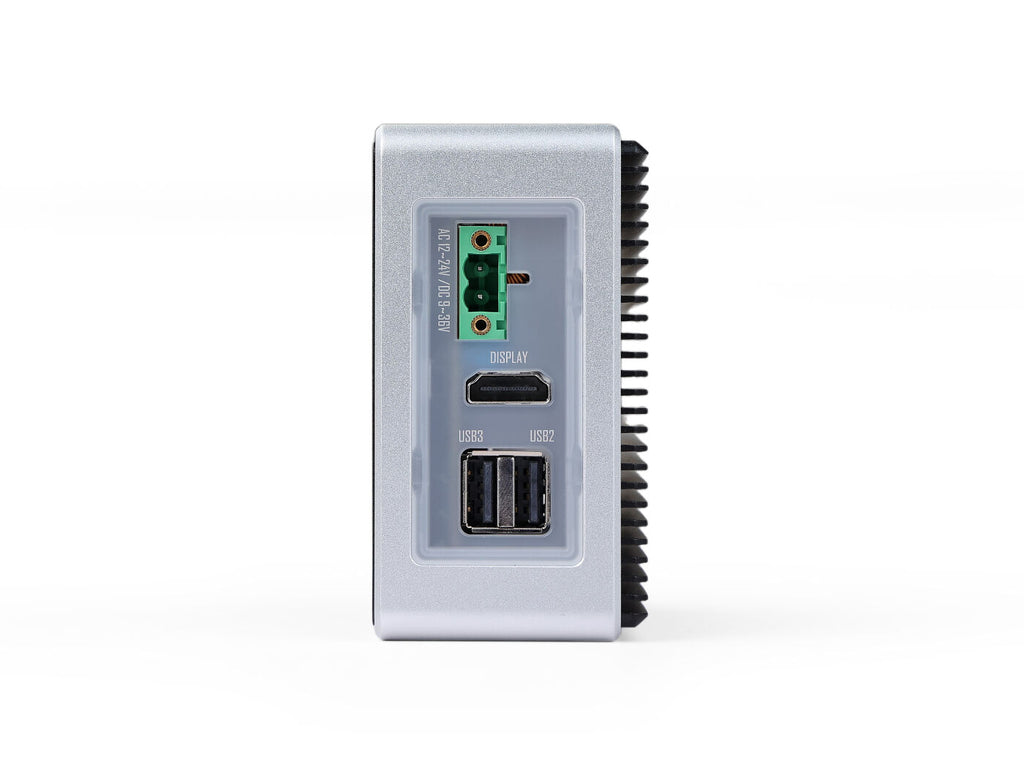

USB | 2 x USB-A 2.0 Host |
1 x USB-C 2.0 (For flashing OS) | |
RS485 | 3 x 3-pin Terminal Block (isolated) |

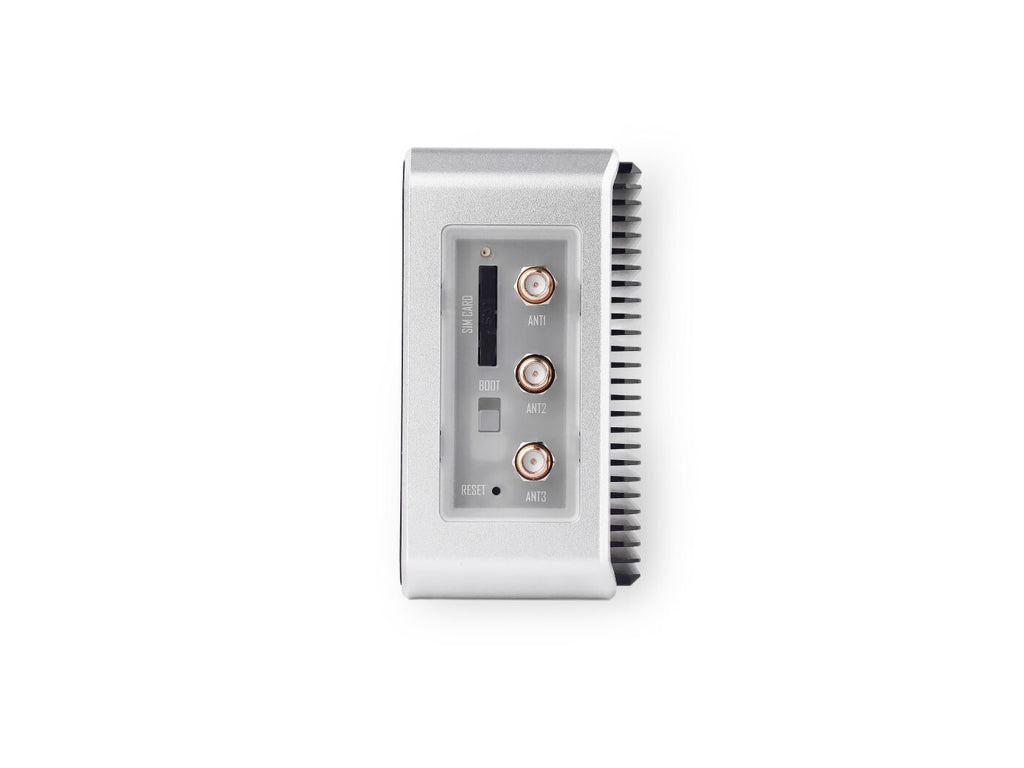

SIM Card Slot | supports Standard SIM Card |
M.2 Slot | supports M.2 NVMe SSD |
LED | 6 x LED indicators |
Buzzer | 1 |
Reset Button | 1 |
HDMI | 1 x HDMI 2.0 |
Wireless Communication | |
LoRa® | SPI LoRa® |
Long Range Gateway Chip | SX1302 |
Channel | 8 |
LoRaWAN® Protocol | V1.1.0 Class A/Class B/Class C |
Frequency | 902~928MHz |
Frequency Plan | US915/AU915/AS923/KR920 |
Long Range Sensitivity | -125dBm @125KHz/SF7 |
-139dBm @125KHz/SF12 | |
Long Range TX Power | Up to 26 dBm |
Antenna | Long Range: 3dBi External Antenna with Base |
Wi-Fi | Support 2.4 GHz/5GHz |
Antenna | Wi-Fi & BLE Antenna |
4G Cellular | 4G LTE* |
4G Band | LTE-FDD: B2/4/5/12/13/14/66/71 WCDMA: B2/4/5 |
Antenna | LTE Antenna |
Standards | |
EMC | ESD: EN61000-4-2, Level 3 |
EFT: EN61000-4-4, Level 2 | |
Surge: EN61000-4-5, Level 2 | |
Certification | CE, FCC |
RoHS | |
Ambient Conditions | |
Ingress Protection | IP40 |
Operating Temperature | -30~70 °C |
Operating Humidity | 10~95% RH |
Storage Temperature | -40~80 °C |
Others |
|
Supercapacitor UPS | SuperCAP UPS LTC3350 Module |
Hardware Watchdog | 1~255s |
RTC | High Accuracy RTC |
Security | Encryption Chip TPM 2.0* |
ATECC608A | |

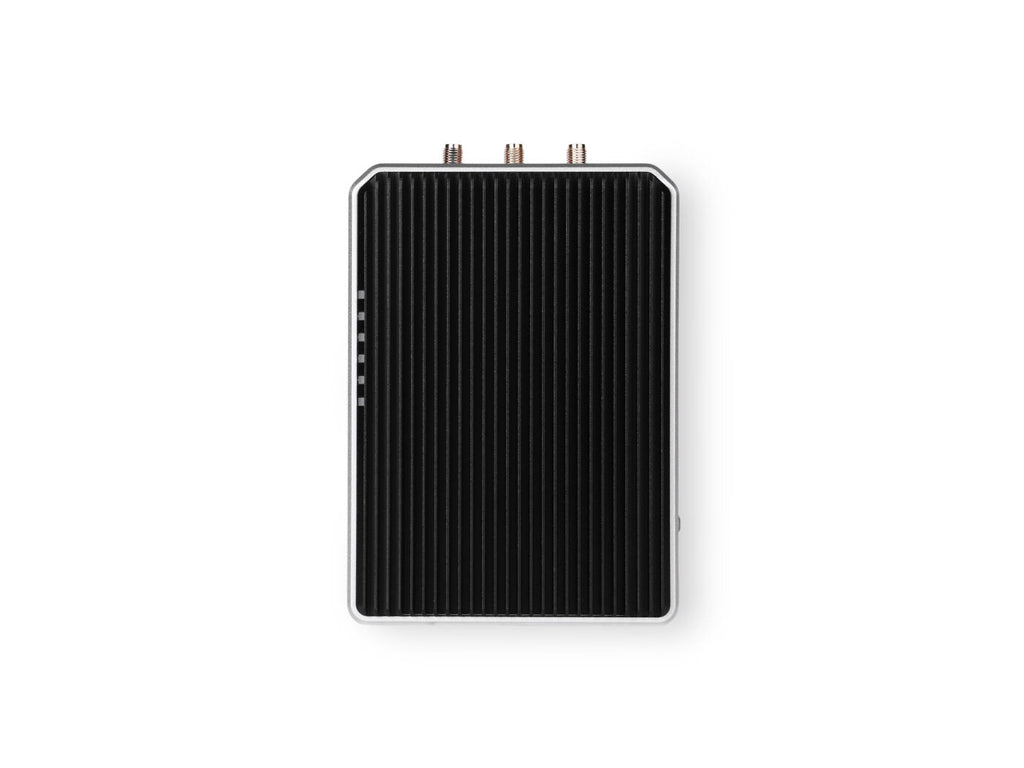

Heat Dissipation | Fanless |
Warranty | 2 years |
Production Lifetime | Until at leaset December 2030 |
Statement | Options marked with * require additional purchase according to the accessories list. |

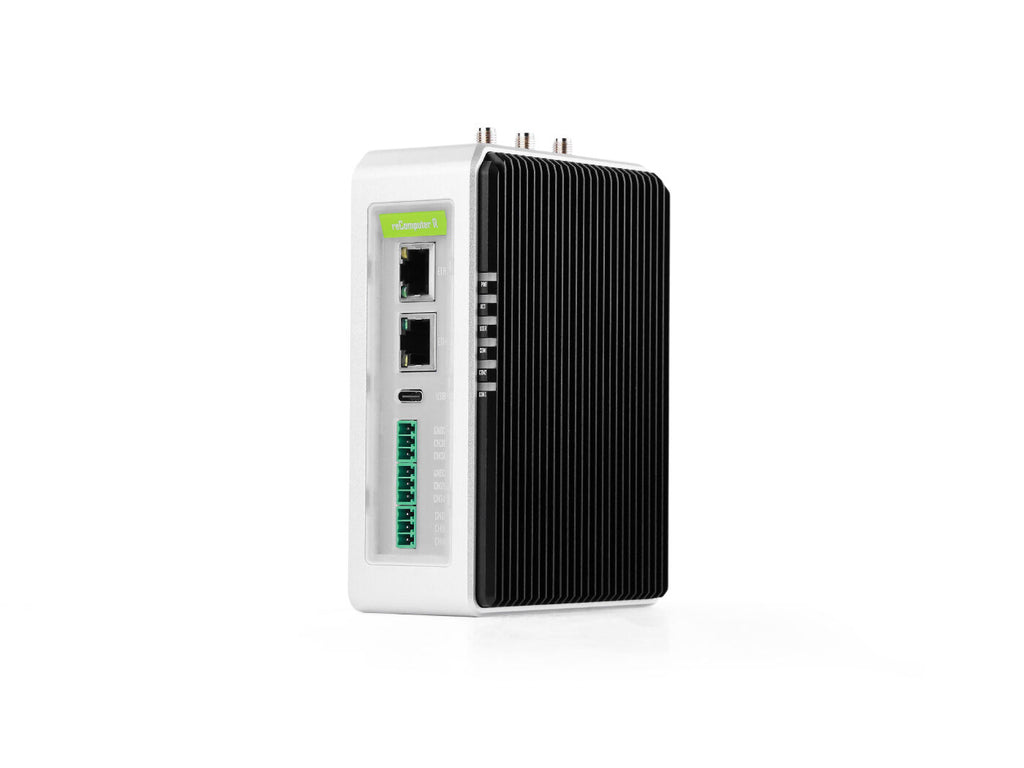

The reComputer R1225 have 4GB RAM for processing numerous data points efficiently, along with multiple isolated RS485 channels, versatile interfaces and various wireless communication protocols.
Mini-PCIe1 Slot:Supports 4G LTE, USB Zigbee modules.
●4G version pre-installed with LTE module:
○EU868-4G: EC25-EUX-mini-PCIe (LTE Cat 4)
○US915-4G: EC25-AFXGA-mini-PCIe (LTE Cat 4)
Mini-PCIe2 Slot: Pre-installed SPI LoRa® module
- reComputer R1000 3D File
- reComputer R1000 Schematic Design, PCB Design
- Trusted Raspberry Pi® Edge Device and Customized IoT solutions Provider
- Seeed Raspberry Pi-based Success Cases
reComputer R1225 - LoRaWAN gateway | x 1 |
DIN-rail clip | x 1 |
Screw Pack | x 1 |
DC Power Female Jack to Screw Terminal Adapter | x 1 |
3-pin Terminal Block Connector(Male) | x 3 |
Wi-Fi & BLE Antenna | x 1 |
LoRa Antenna | x 1 |
LTE Antenna | x 1 |
120Ω Resistor | x 5 |
User Manual | x 1 |
| HSCODE | 8537109090 |
| USHSCODE | 8517620090 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
