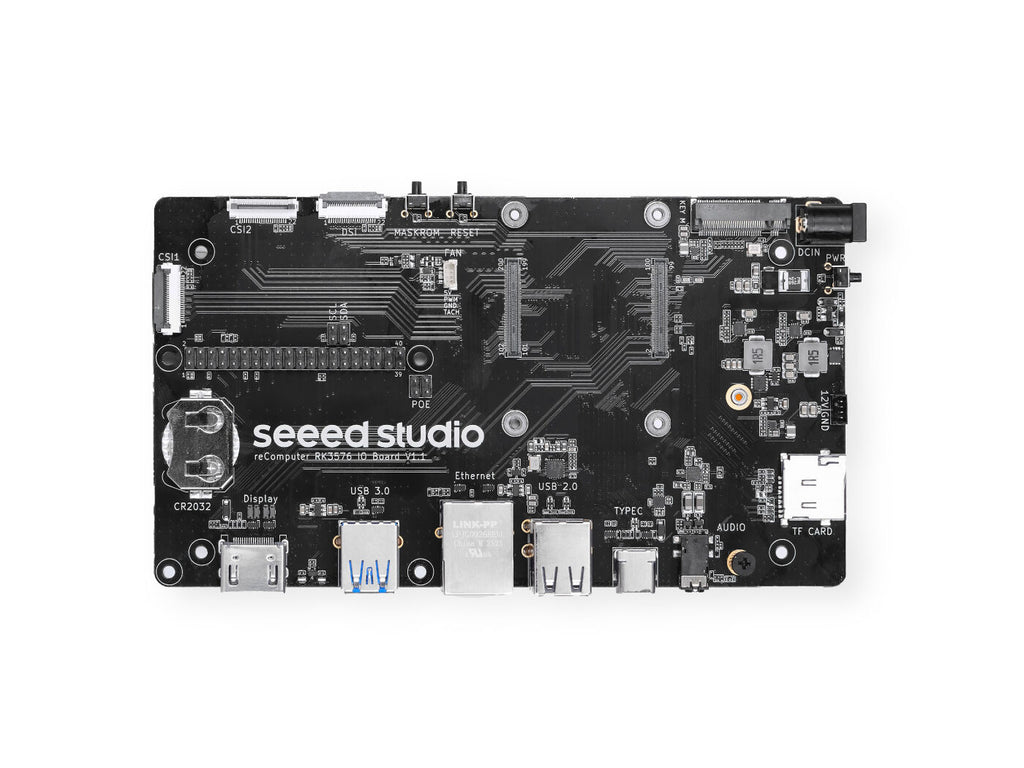

Feature1. Rapid RK3576 Module Prototyping

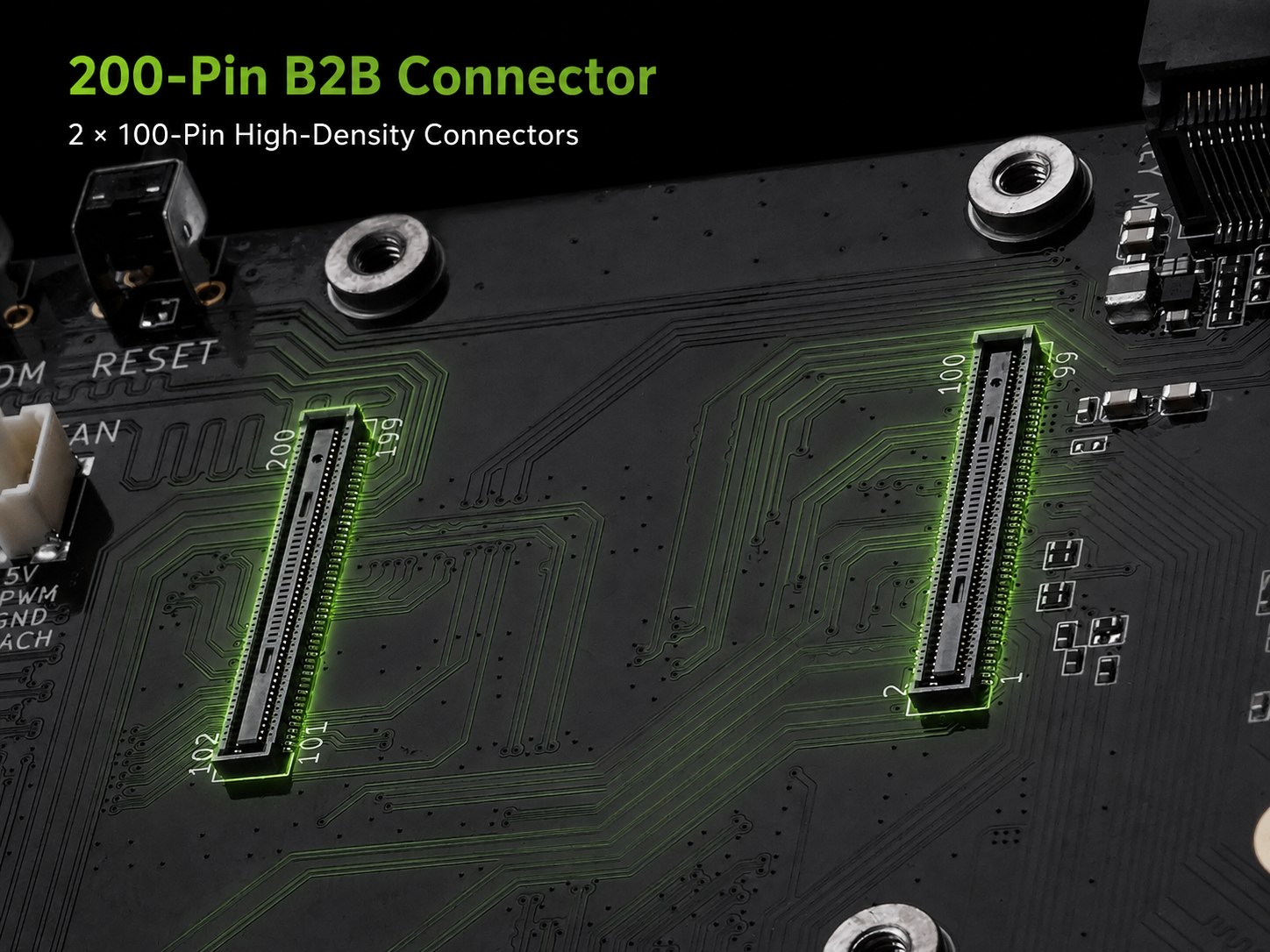

Convert the reComputer RK3576 Module into a development-ready system without designing a custom carrier board from scratch.
The IO Board breaks out the module’s high-density interfaces into standard connectors, making it easier to evaluate the RK3576 platform, validate peripherals, develop software, and prototype complete edge computing systems.
Highlights:
- Designed for the reComputer RK3576 Module
- Standard interfaces for rapid hardware integration
- Suitable for module evaluation and peripheral validation
- Useful as a reference platform before custom carrier board development

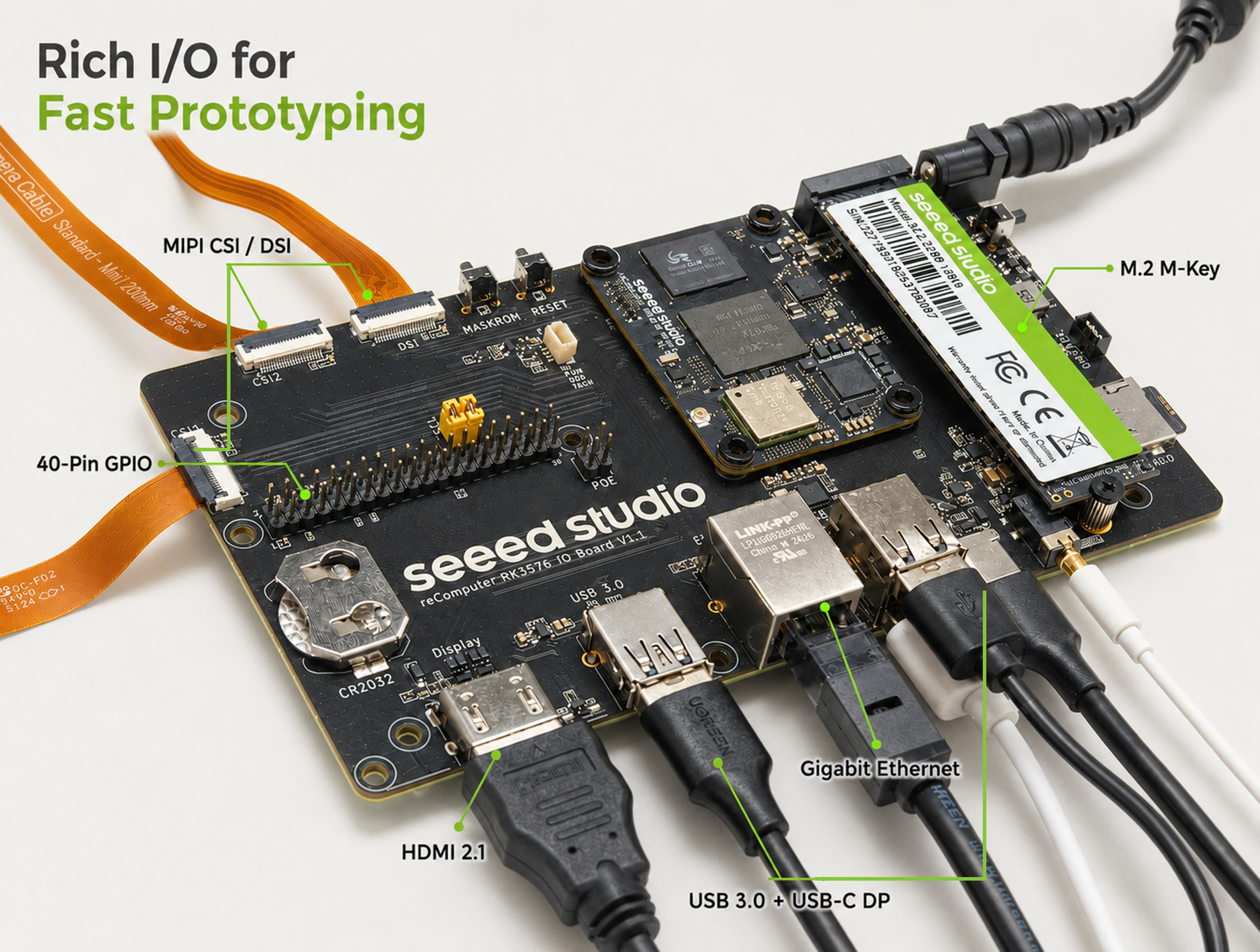

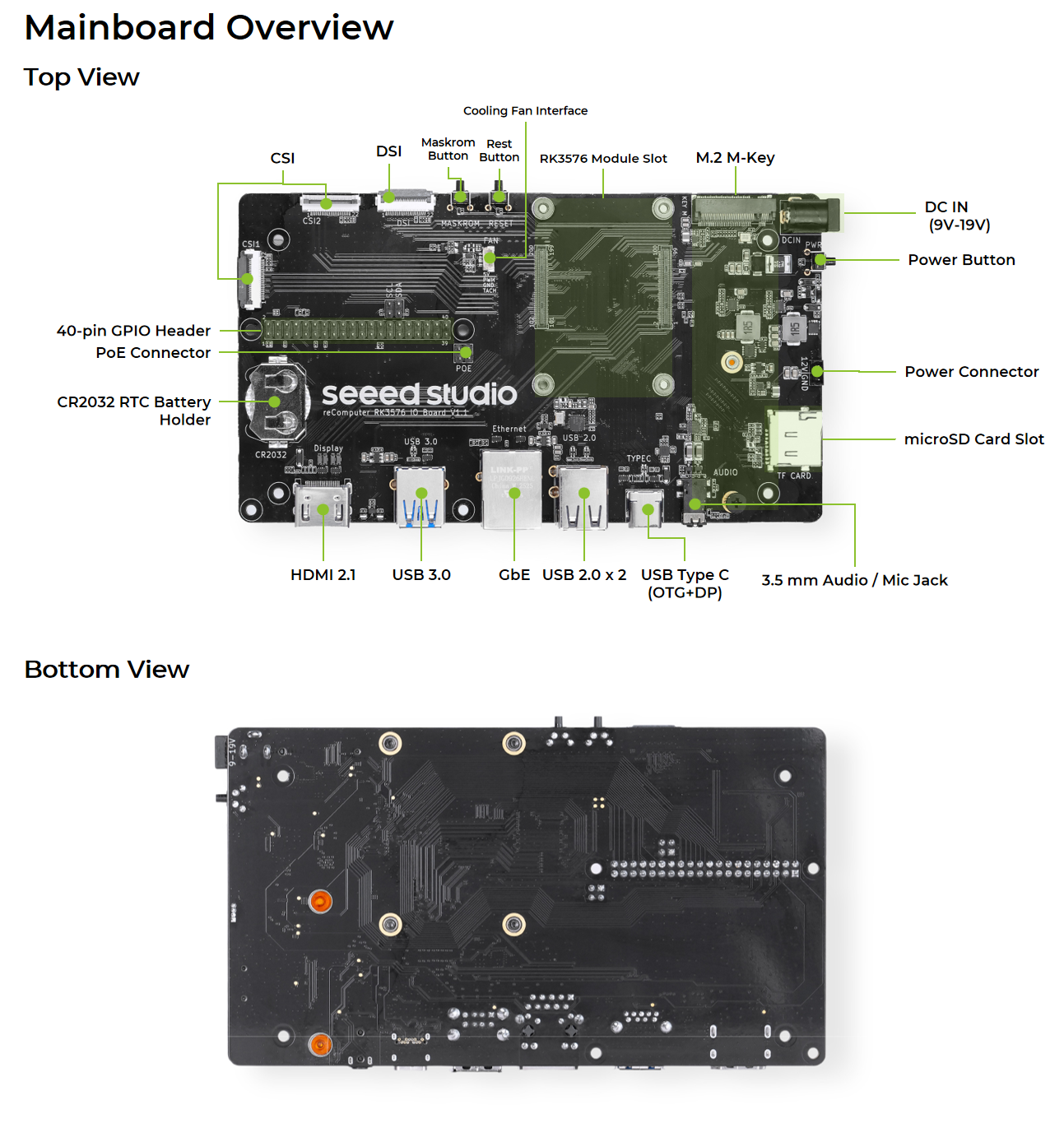

Feature2. Rich I/O for Peripheral Integration
Access a broad range of native RK3576 interfaces through standard development-ready connectors.
The board integrates display, camera, networking, storage, USB, GPIO, and audio connectivity on a single platform, reducing the need for additional adapter boards during prototyping.
Key interfaces include:
- Gigabit Ethernet
- PoE PD
- M.2 M-Key
- HDMI 2.1
- USB-C with DisplayPort
- MIPI DSI
- MIPI CSI
- USB
- GPIO
- Audio
- Storage interfaces

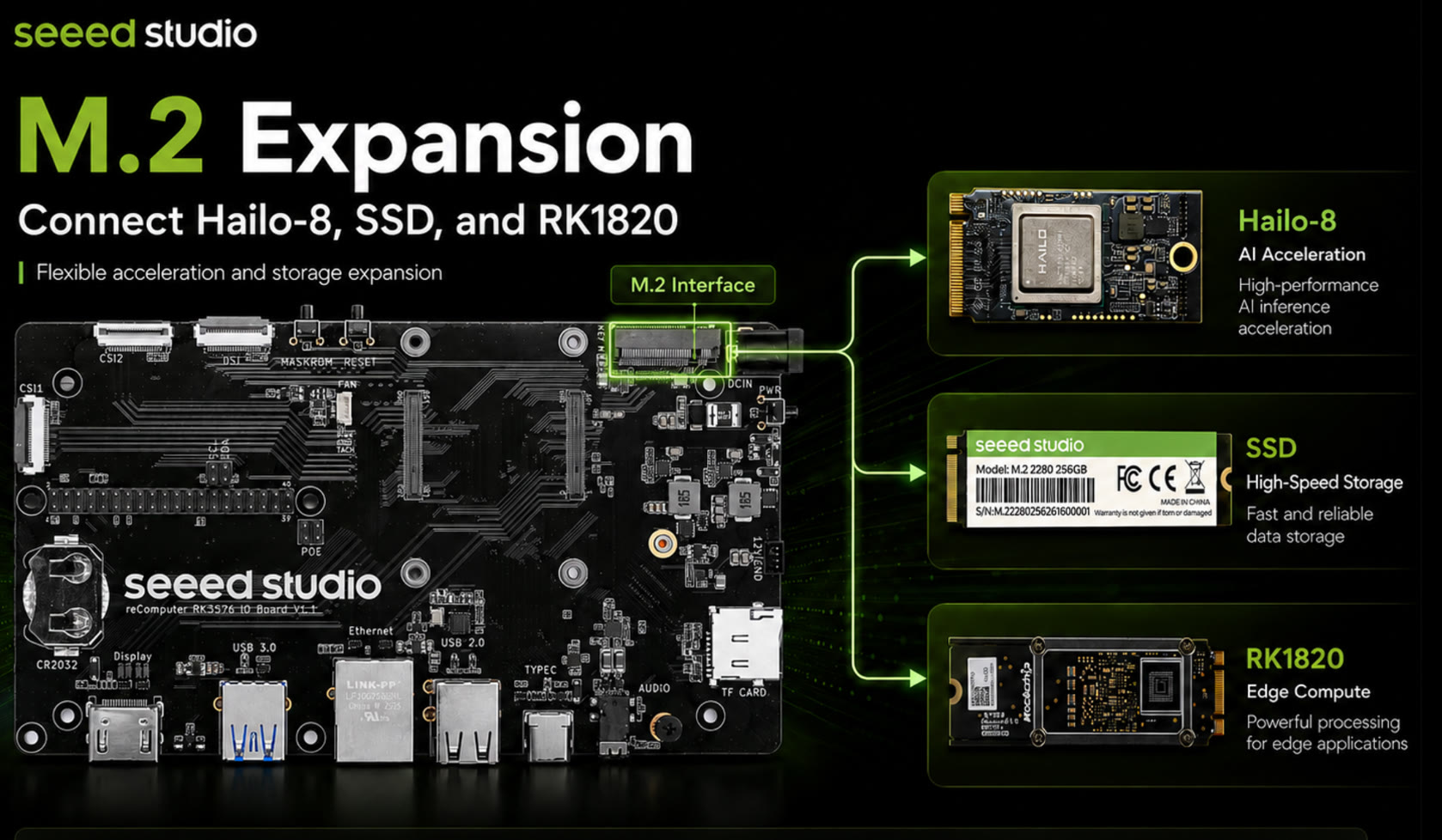

Feature3. M.2 NVMe Storage and AI Expansion
The onboard M.2 M-Key 2280 slot provides PCIe 2.1 ×1 connectivity for high-speed storage and compatible PCIe expansion devices.
It can be used with compatible NVMe SSDs for local storage and data logging, or with compatible M.2 AI accelerators for additional edge AI computing capability.
Highlights:
- 1× M.2M - Key slot（PCIe 2.1 ×1）
- Supports compatible NVMe SSDs
- Supports compatible M.2 AI accelerators
Compatibility of individual M.2 devices may depend on power, driver, and operating system support.

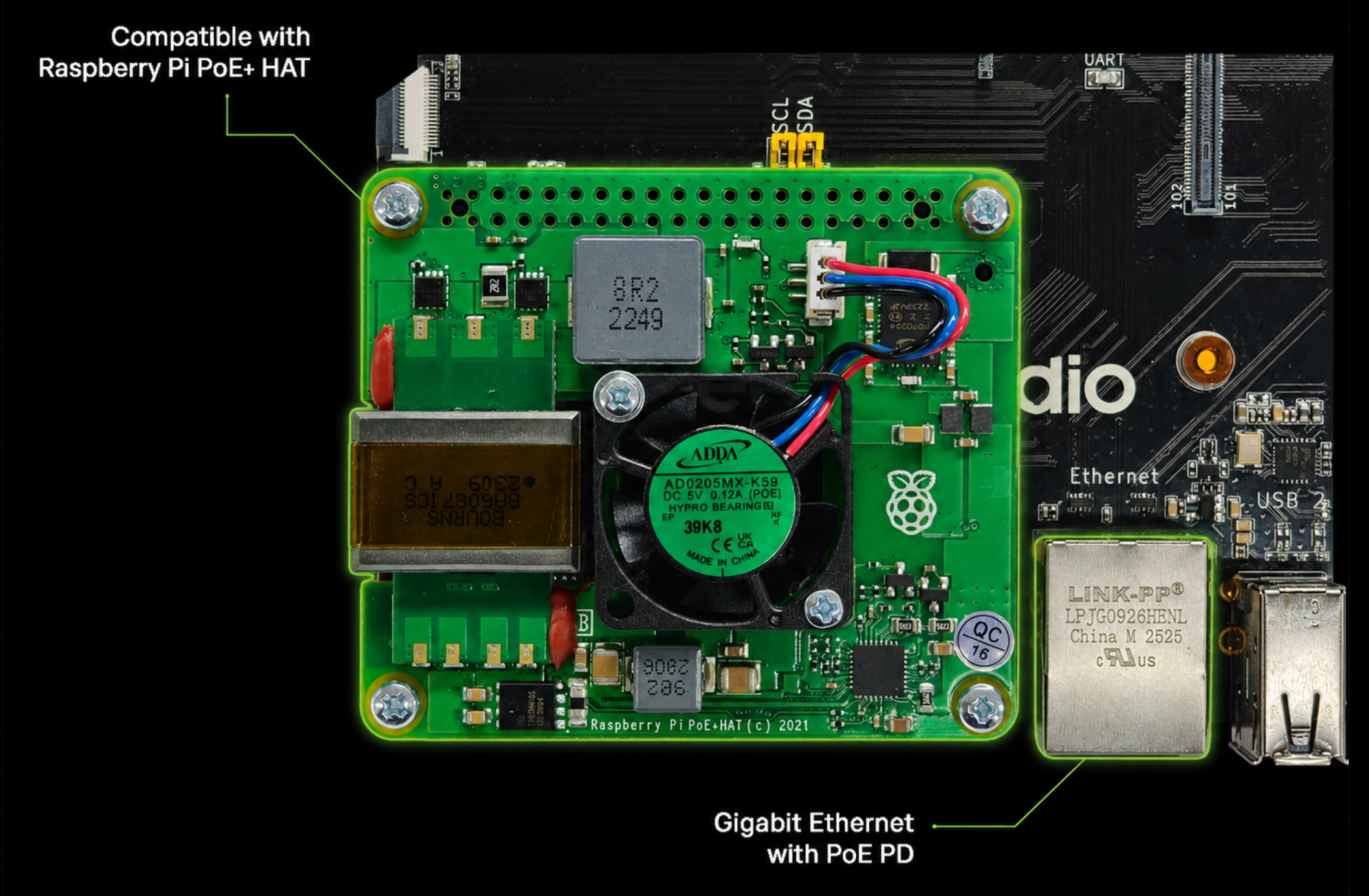

Feature4. Gigabit Ethernet with PoE PD
The board provides 1× native Gigabit Ethernet RJ45 port for reliable high-bandwidth network connectivity.
Integrated IEEE 802.3at PoE PD support allows the RK3576 system to receive both network connectivity and power through a single Ethernet cable, simplifying deployment of network-connected edge devices.
Highlights:
- 1× Gigabit Ethernet RJ45
- IEEE 802.3at PoE PD support
- Power and data over a single Ethernet cable
- Suitable for networked edge computing and remote device deployment
Feature5. Flexible Display Connectivity
The IO Board provides multiple native display interfaces for developing interactive terminals, embedded displays, dashboards, and multi-screen applications.
Display interfaces:
- 1× HDMI 2.1: supports display output up to 4K @ 120Hz
- 1× USB-C DisplayPort 1.4: supports display output up to 4K @ 60Hz
- 1× 4-lane MIPI DSI: enables direct integration with compatible embedded displays
Multiple display interfaces give developers greater flexibility when evaluating different display architectures and building RK3576-based visual applications.
Actual resolution, refresh rate, and simultaneous display capability depend on the connected display, system configuration, software, and RK3576 platform support.
| Parameter | Description | |
| Hardware Specification | ||
| Product Series | reComputer RK3576 Module lO Board | |
| System Specification | ||
| Power Input | DC 9V~19V | |
| PoE | 1 x PoE PD* | |
| Power | Yes | |
| Recover | Yes | |
| MaskROM | Yes | |
| Interface | ||
| Ethernet | 1x Gigabit Ethernet with PoE support(Additional PoE Module Required) | |
| USB | 1x Type A USB 3.0; 2x Type A USB 2.0; | |
| 1x Type C for OTG & DP | ||
| Display | 1x Display; 1x DP1.4 via USB Type C port； 1x 4-lane MIPI DSI(22pin) | |
| GPIO | 1x 40-Pin Expansion header | |
| SD Card | 1x Micro SD Card Slot | |
| M.2 Slot | 1x M.2 Key M 2280 slot (PCIe 2.1x 1), supporting either an NVMe SSD or an AI accelerator | |
| LED | 1x Power; 1x Status | |
| Button | 1x Power; 1x Reset; 1x MaskROM | |
| Audio | 1x 3.5mm Headphone Jack with Microphone Input | |
| CSI Camera | 1x 4-lane MIPI CSI(22pin)；1x 2-lane MIPI CSI(22pin) | |
| Fan Connector | 1 × 4-pin PWM fan connector | |
| RTC Backup | 1 × CR2032 RTC battery holder | |
| Power Input | 9–19V DC via DC jack or 2-pin power header | |
| Standards | ||
| Certification | CE, FCC | |
| TELEC | ||
| RoHS | ||
| Ambient Conditions | ||
| Operating Temperature | 0 ~ 70°C | |
| Others | ||
| Warranty | 1 years | |
| Production Lifetime | Until January 2036 | |
| Statement | Options marked with * require additional purchase according to the accessories list. | |
Development & Expansion with RK3576 Module
- AI Vision and Industrial Inspection
- Smart Cameras and PoE Edge Devices
- Interactive AI Terminals
- Local LLM, VLM, and Speech AI Evaluation
- Custom Edge AI Product Development
reComputer RK3576 Module IO Board Schematic
| reComputer RK3576 Module IO Board | x1 |
| HSCODE | 8473309000 |
| USHSCODE | 8473309100 |
| UPC | |
| EUHSCODE | 8473308000 |
| COO |
