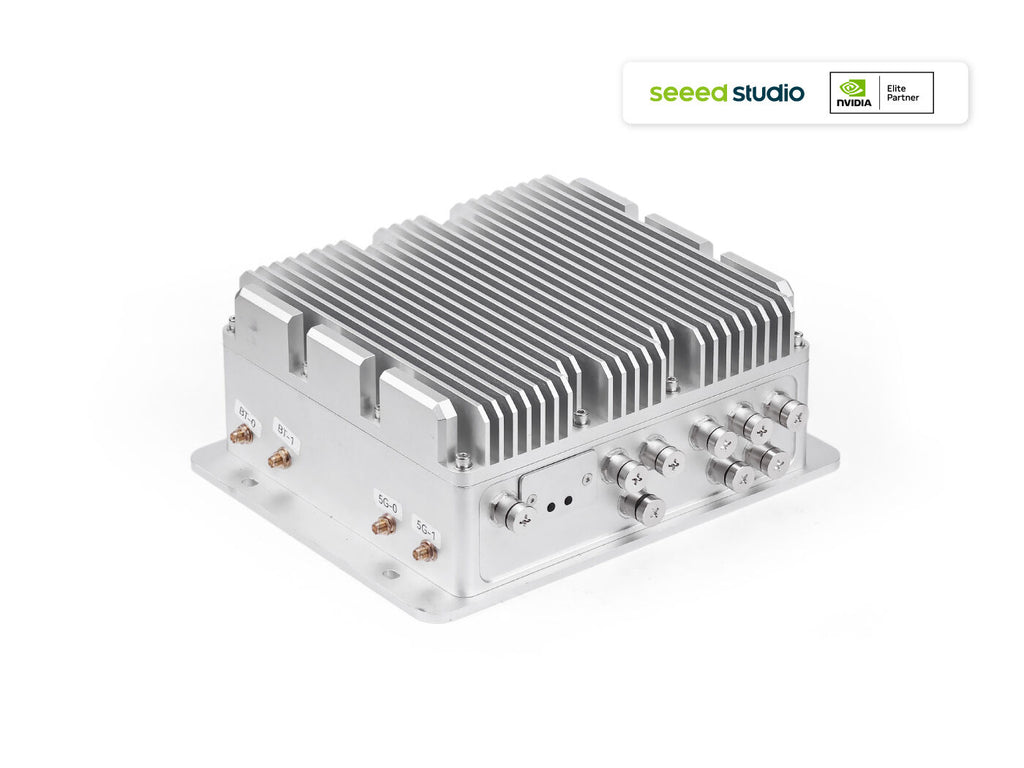

- Ruggedized Hardware Design: Ruggedized edge AI computer with IP66 rating that can be deployed in harsh environment

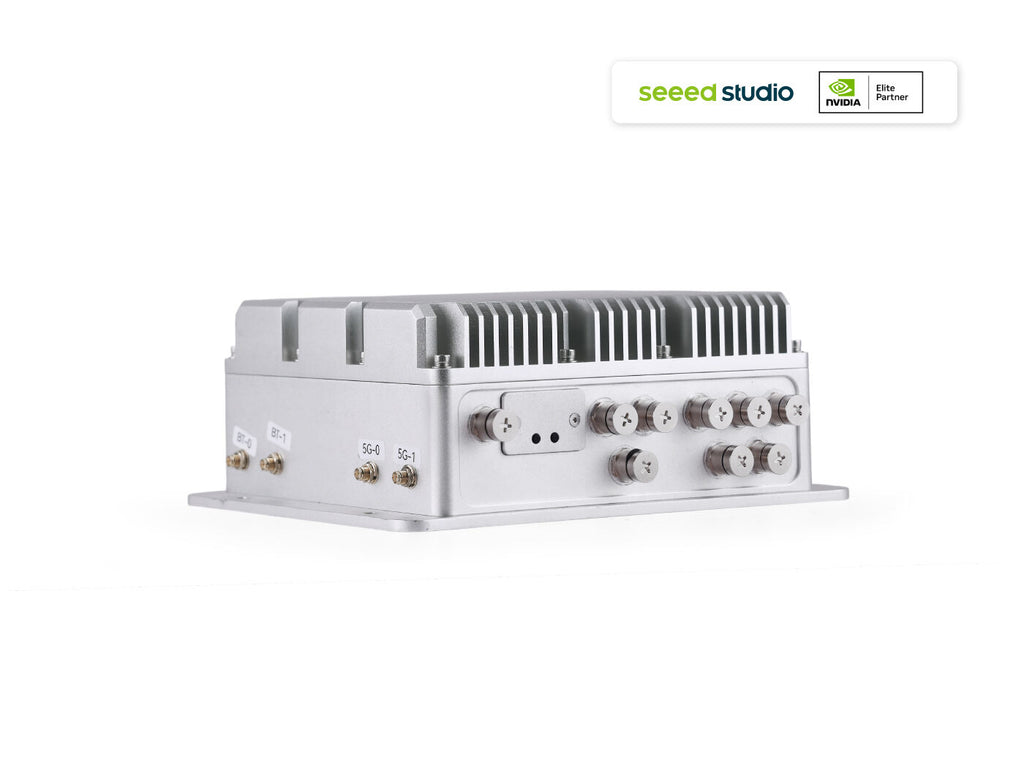

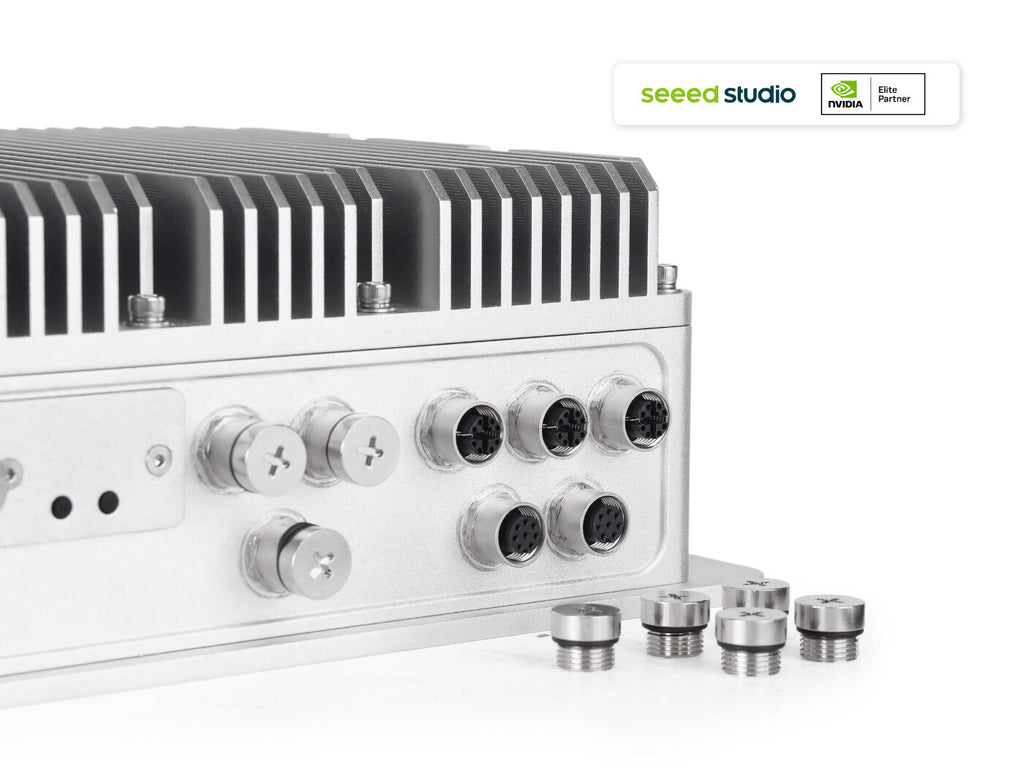

- Lockable and Waterproof connectors: M12 for all interfaces (Ethernet (PSE), DI, DO, RS‑232/422/485, and CAN), plus lockable/waterproof USB connectors.
- Application and Benefit: Ideal for rapid development of autonomous vehicles in harsh environments(AGV, AMR,trucks), accelerating time-to-market with ready-to-use interfaces and optimized AI frameworks.
- Ready to Use: Pre-installed with JetPack 5.1.3 and equipped with WiFi6 module.
- Wide Operating Range: Operates reliably across a temperature range of -20°C to 60°C at 25W mode
| Module Specifications | |
| Product Name | reComputer Rugged J4012 |
| Module | NVIDIA Jetson Orin™ NX 16GB |
| AI Performance | Orin NX 16GB – 100 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| GPU Max Frequency | 918 MHz |
| CPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| CPU Max Frequency | 2.0 GHz |
| DL Accelerator | 2 x NVDLA v2.0 |
| DL Max Frequency | 1.23 GHz |
| Vision Accelerator | 1 x PVA v2.0 |
| Memory | 16GB 128-bit wide LPDDR5 DRAM 102.4GB/s |
| Power | 10W - 15W - 25W |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
| Box Specifications | ||
| Storage | 1x M.2 KEY M PCIe (128G SSD included) | |
| Networking | M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
| M.2 KEY B | 1x M.2 Key B for 5G module | |
| SIM | 1x Nano-SIM slot | |
| Ethernet | 5x RJ-45 Gigabit Ethernet (4x PSE, all M12) | |
| I/O | USB | 4x USB 3.0 Type-A (5Gbps) 1x USB 3.0 Type-C (Recovery) 1x USB 2.0 Type-C (Debug) |
| CAN | 2x CAN (M12) | |
| Display | 1x HDMI | |
| DI/DO | 2x DI, 2x DO (M12) | |
| Serial | 1x RS-232/422/485 (M12) | |
| RTC | 1x RTC 2-pin 1x RTC Socket | |
| LED | 2x LED (PWR, SSD) | |
| Button | 1x Recovery 1x RESET | |
| Antenna Hole | 4x Antenna Hole | |
| Power | 19-48V M12 A-code connector | |
| Jetpack Version | Jetpack 5.1.3 | |
| Mechanical | Dimensions (W x D x H) | 210mm*190mm*95mm (Bottom Panel is 250mm * 210mm) |
| Weight | 3.5kg | |
| Installation | Desk, Wall-mounting | |
| Operating Temperature | -20℃~60℃ (25W Mode) | |
| Warranty | 2 Years | |
| Certification (Pending) | RoHS, CE, FCC | |
Outdoor video analytics
For outdoor video analytics and monitoring, equipment must operate reliably outdoors despite constant exposure to UV radiation, moisture, temperature fluctuations, and mechanical vibration. With its IP66-rating enclosure, reComputer Rugged can be used in outdoor environments for such purposes. Paired with computing power of NVIDIA Jetson Orin modules, reComputer Rugged J40 is a powerful edge AI gateway for remote monitoring stations.
Autonomous Logistics
Outdoor AMRs are increasingly deployed in urban and facility management environments to perform autonomous security patrols and last-mile delivery services. These multi-purpose robots are designed to navigate seamlessly through both indoor and outdoor environments. Therefore they need reComputer Rugged with NVIDIA® Jetson Orin™ as brain of AI-powered navigation systems that combine LiDAR, ultrasonic sensors, cameras, and GPS to map complex environments and avoid pedestrians, vehicles, and obstacles in real-time.

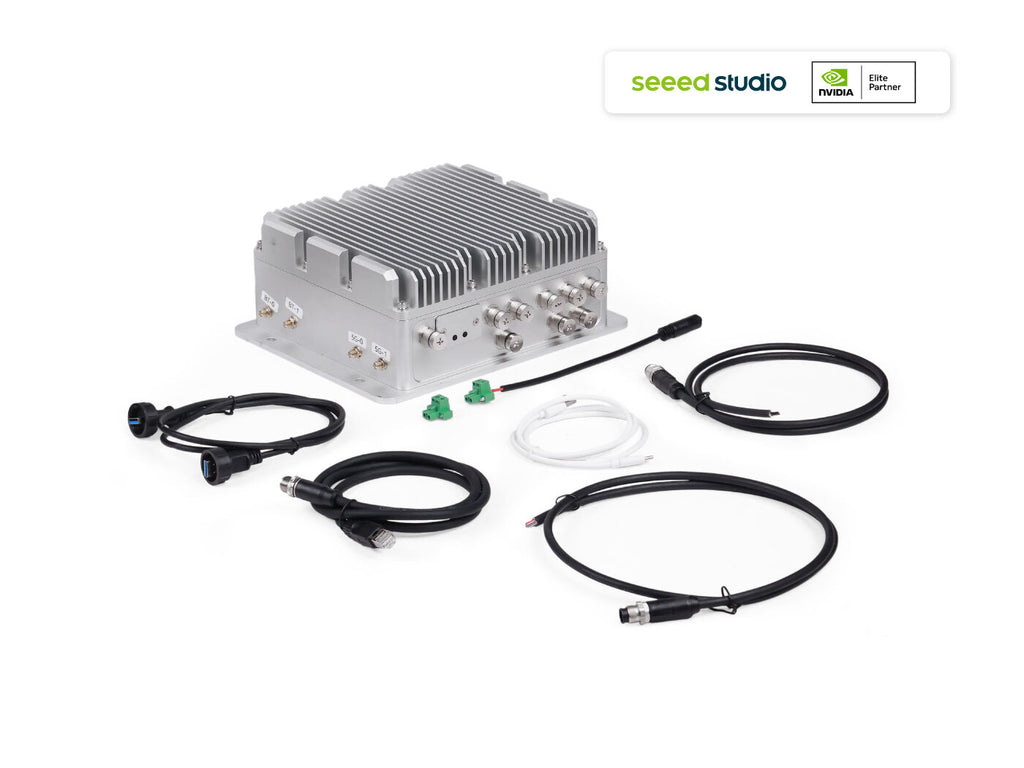

| Jetson Orin™ NX 16GB module | x 1 |
| Seeed Carrier Board (reComputer Rugged J401) | x 1 |
| 128GB NVMe SSD | x 1 |
| Aluminum Case and Heatsink | x 1 |
| Waterproof USB Cable; Type A to Type A | x 1 |
| M12 A-code Power Cable | x 1 |
| M12 A-code 8-pin Cable | x 1 |
| M12 X-code to RJ45 Cable | x 1 |
| Terminal Block female | x 1 |
| Terminal Block male | x 1 |
| DC Power cable | x 1 |
| USB Type-C to Type-A Cable | x 1 |
| User Manual | x 1 |
| HSCODE | 8471419000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
